720-degree servo
Print Profile(4)
Description
Boost Me (for free)
Your support is my biggest encouragement. Follow me for more fun open-source projects
When using servos, the problem of a small servo angle is often encountered

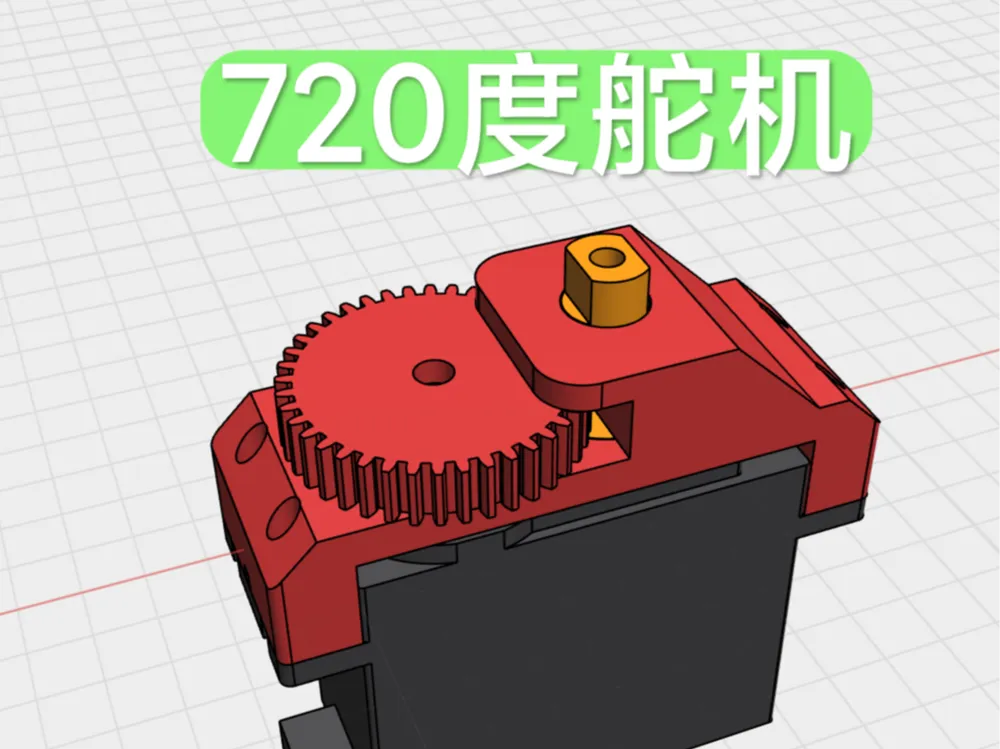

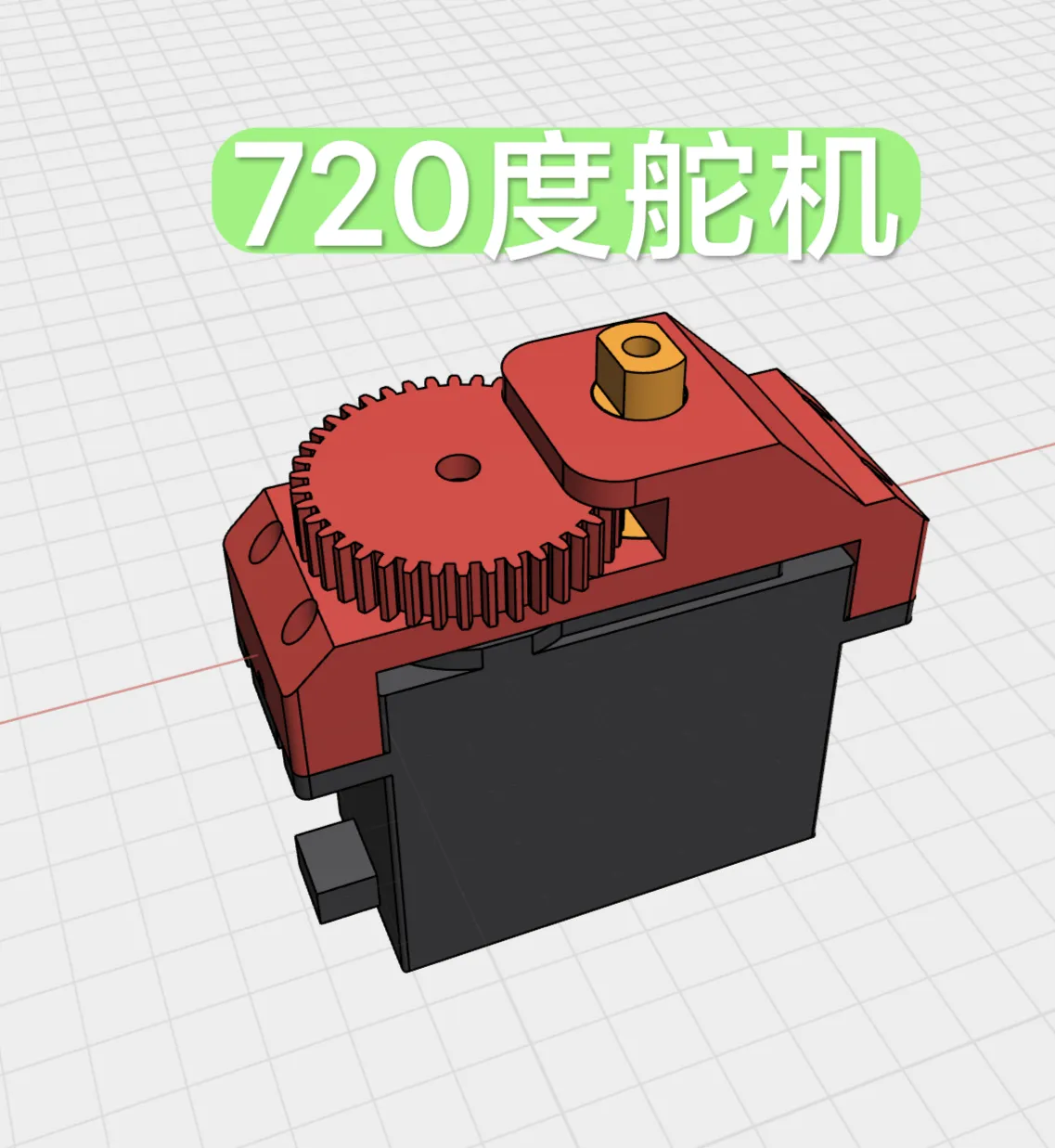

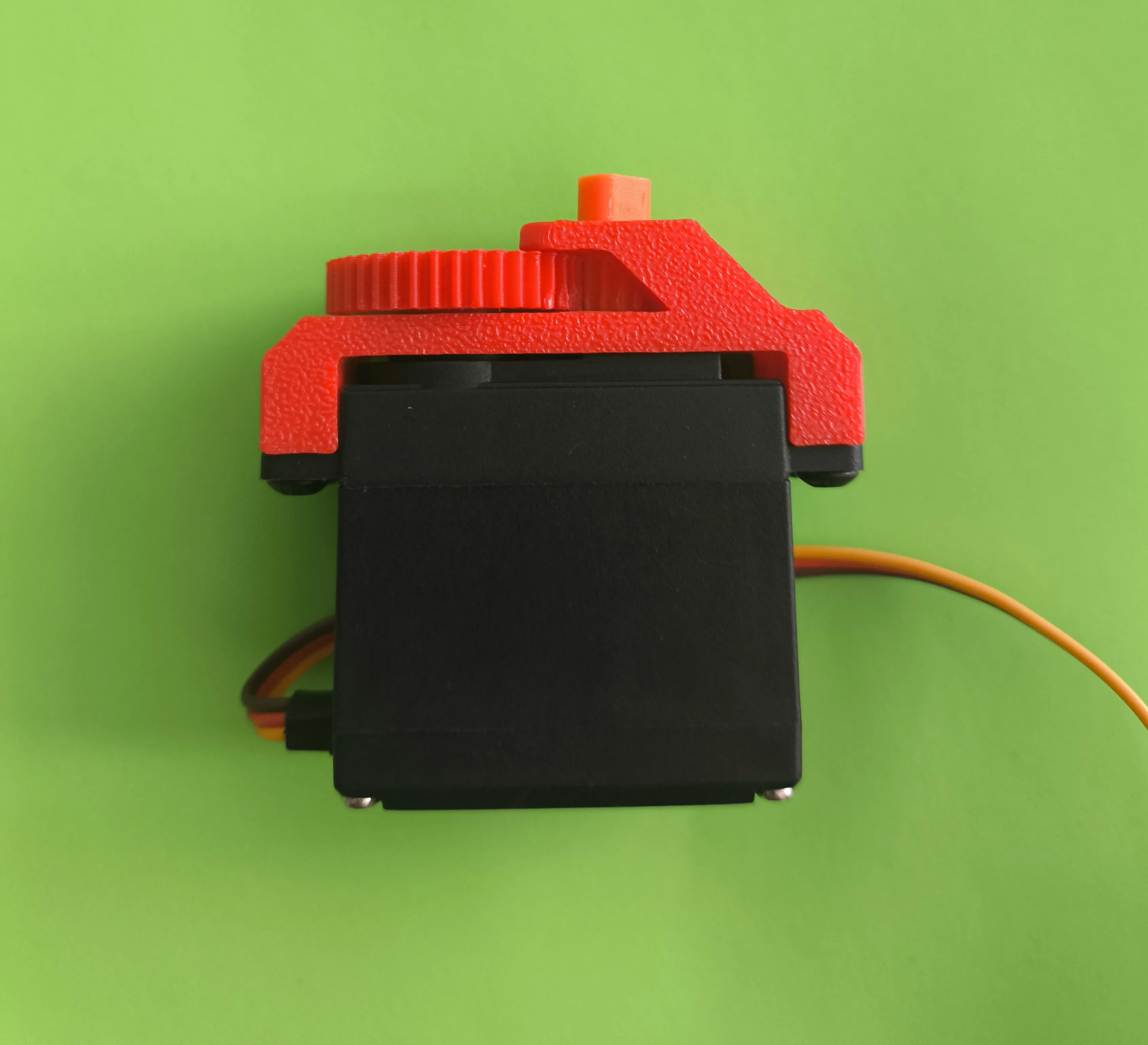

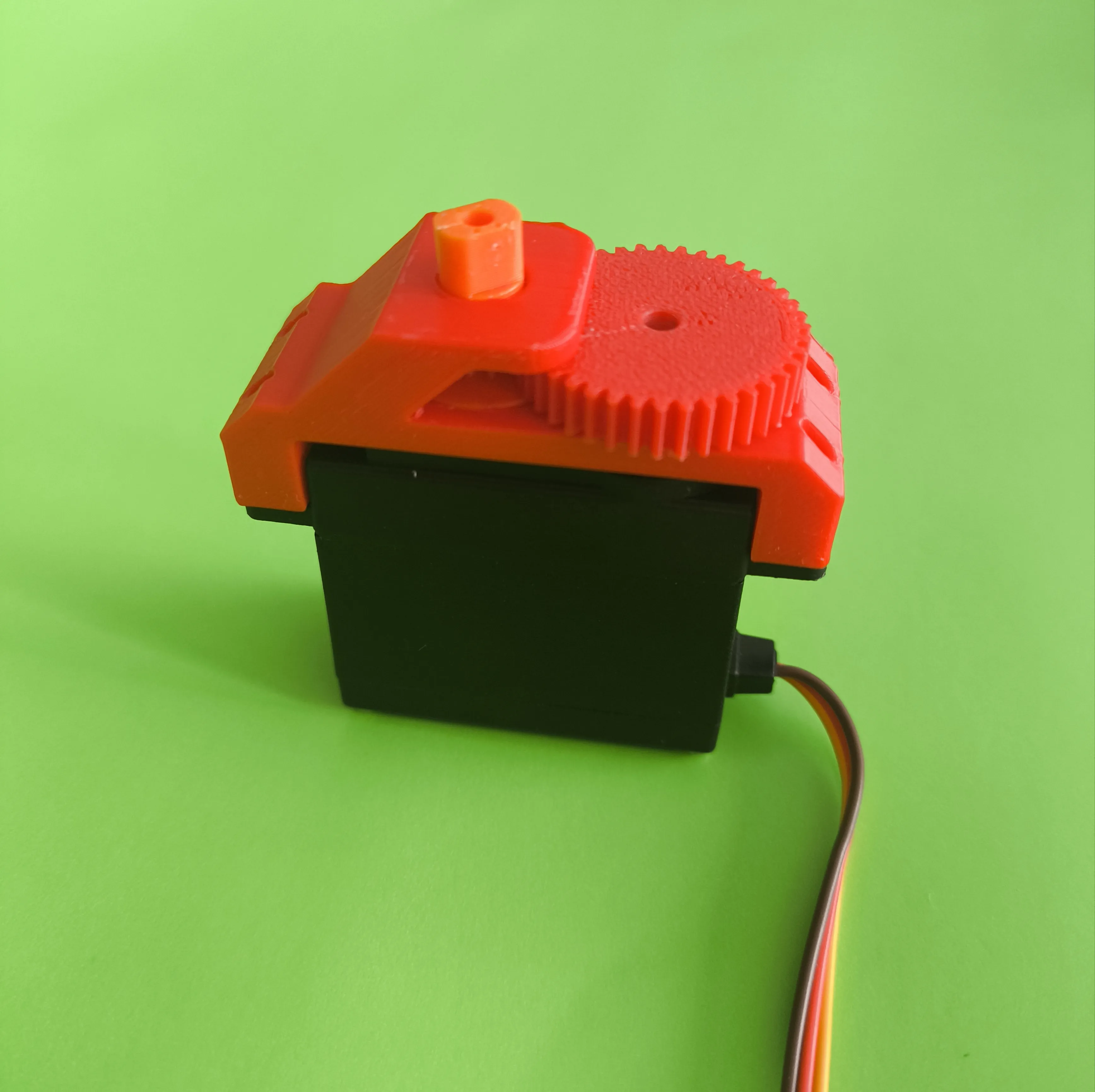

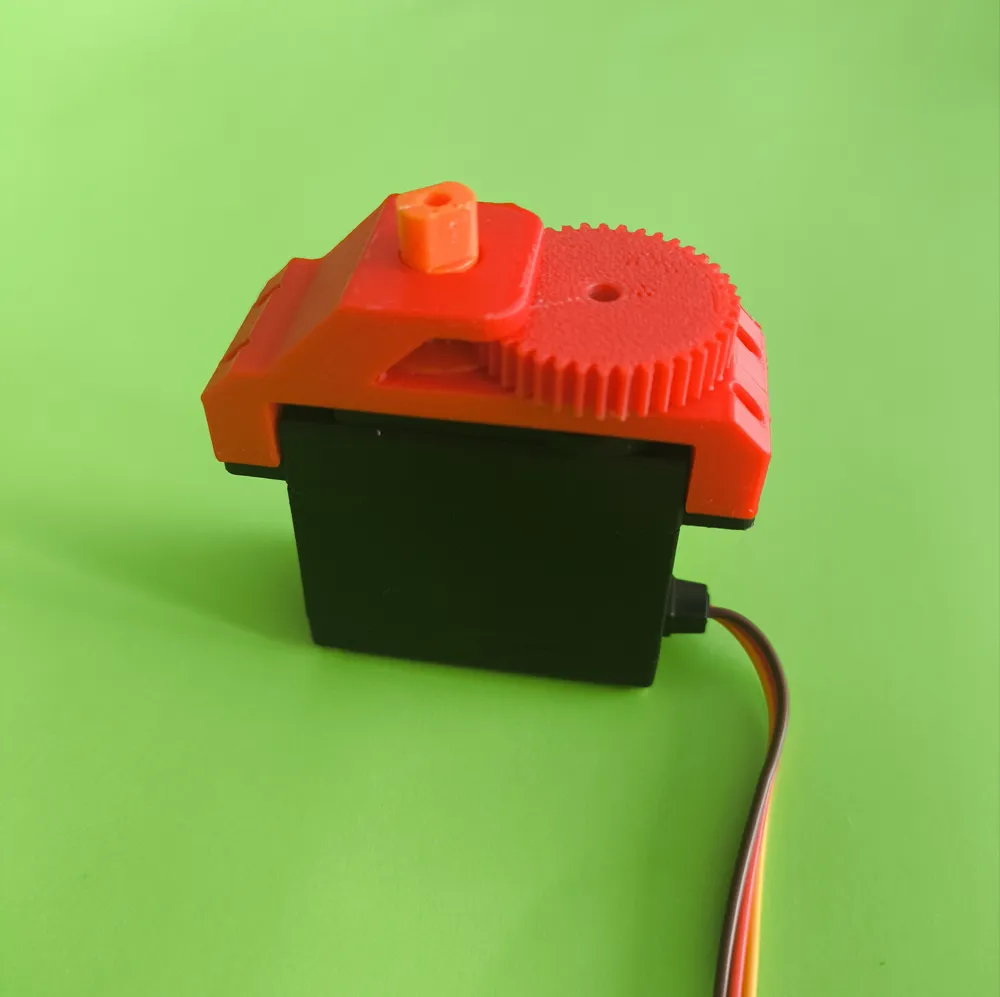

Presenting an MG995 servo 720-degree servo

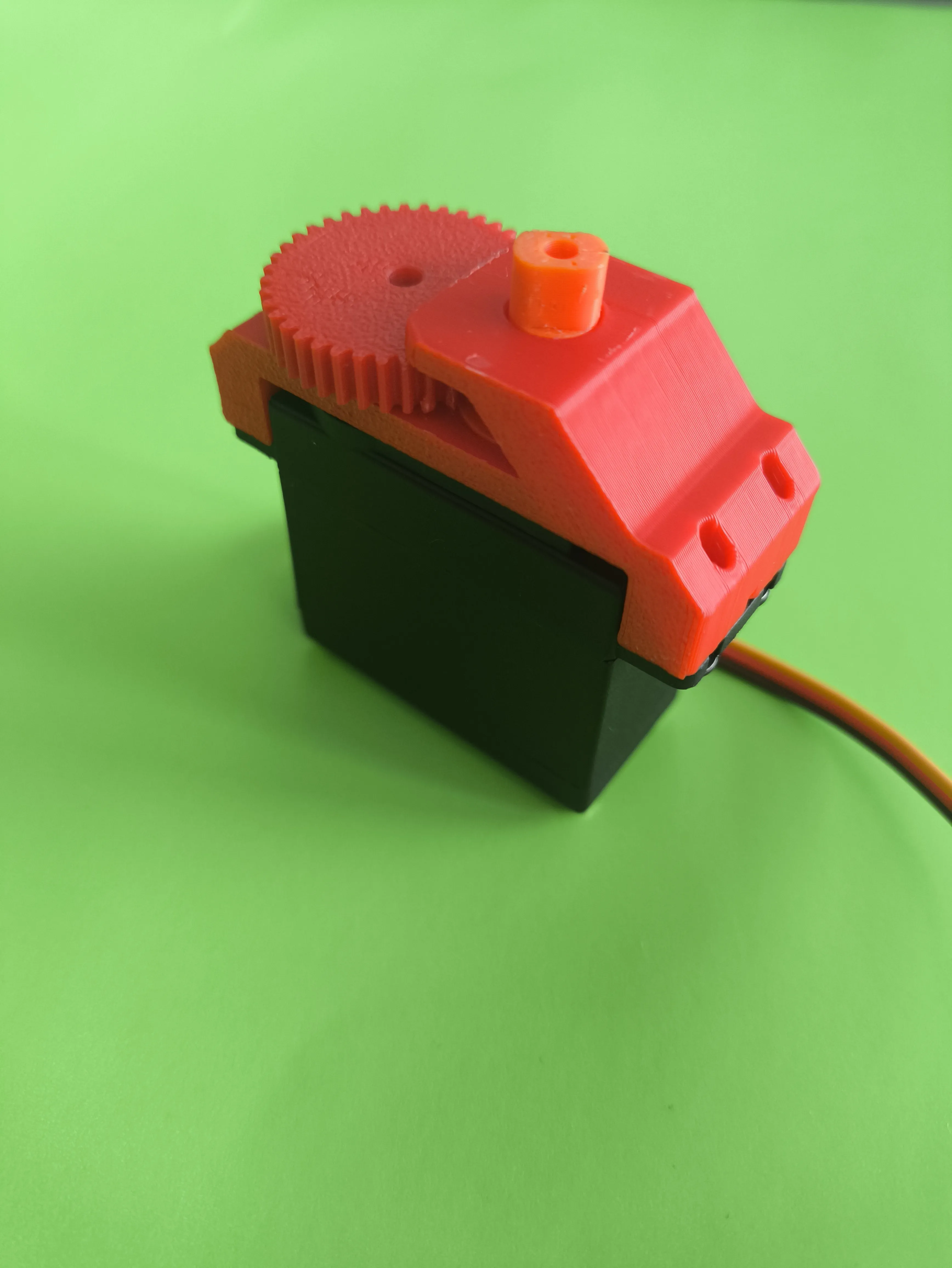

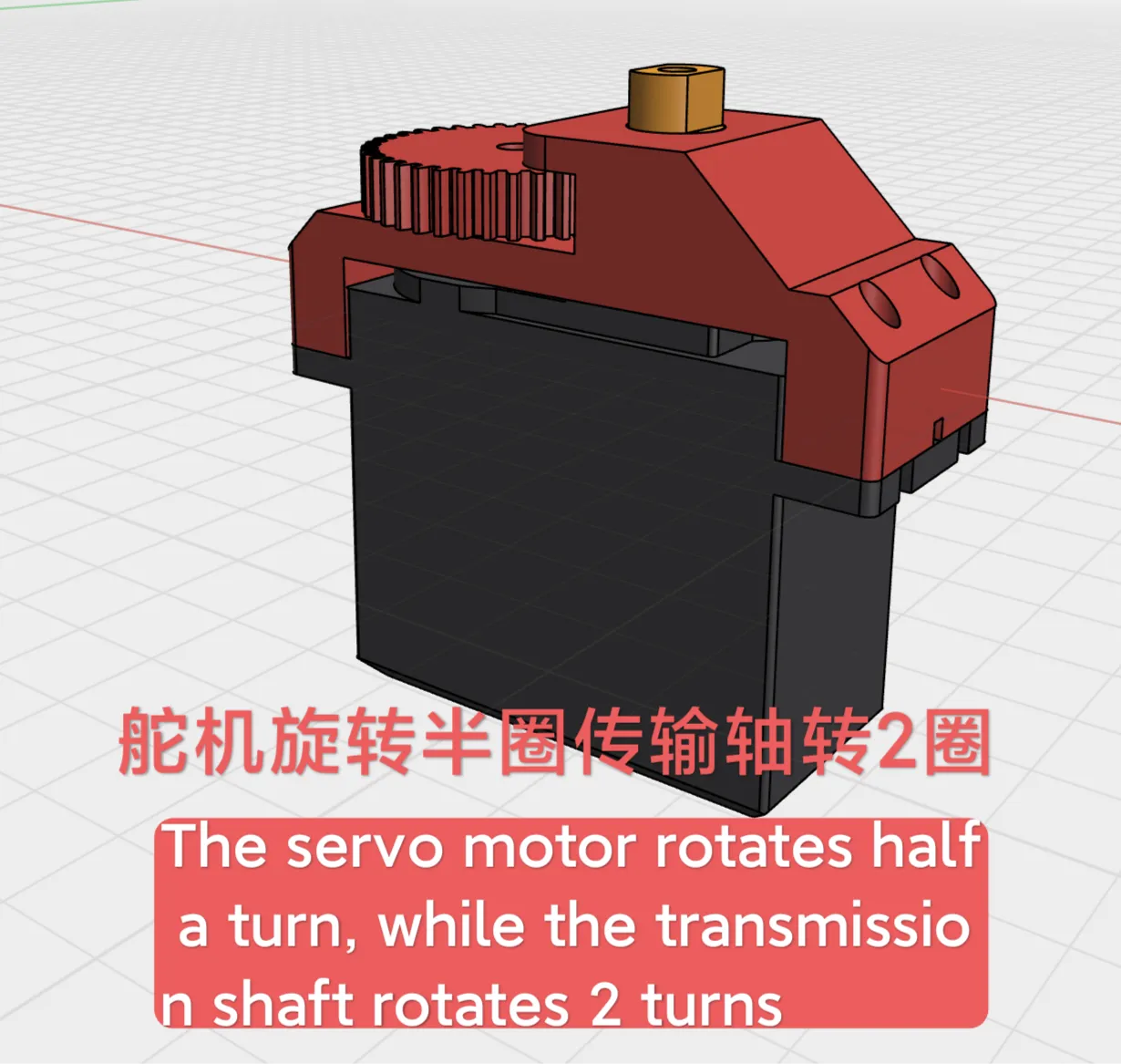

Easy to print, the servo rotates 180 degrees, and the orange transmission shaft rotates twice
For higher servo precision, please use this formula to calculate the angle
Large wheel angle = 180 ÷ 720 Small wheel angle = 0.25°
Large wheel turns 0.25° Small wheel turns 1°
The large gear represents the input shaft, and the small gear represents the output shaft

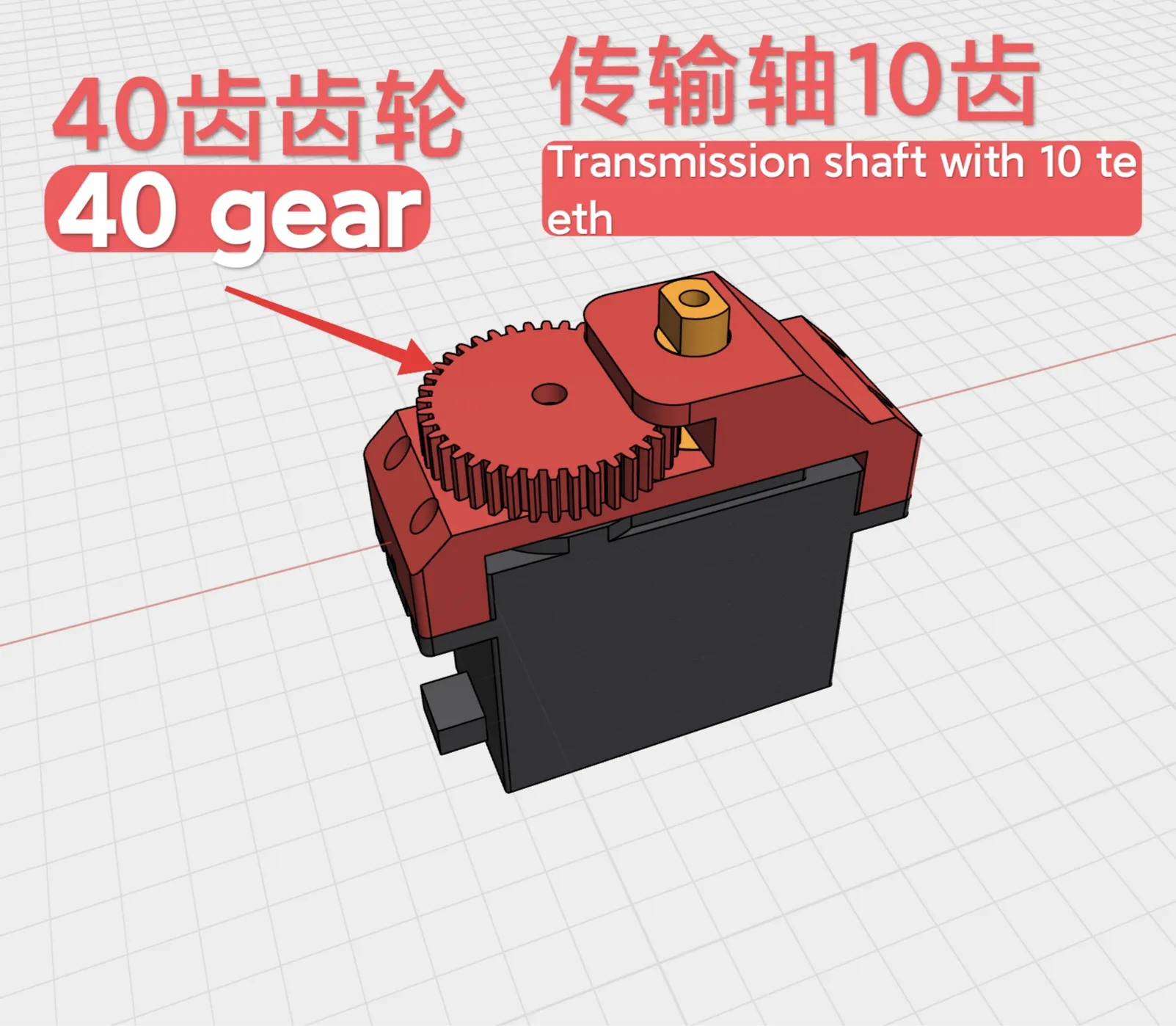

Specific parameters: module is 0.6, large gear has 40 teeth, small gear has 10 teeth

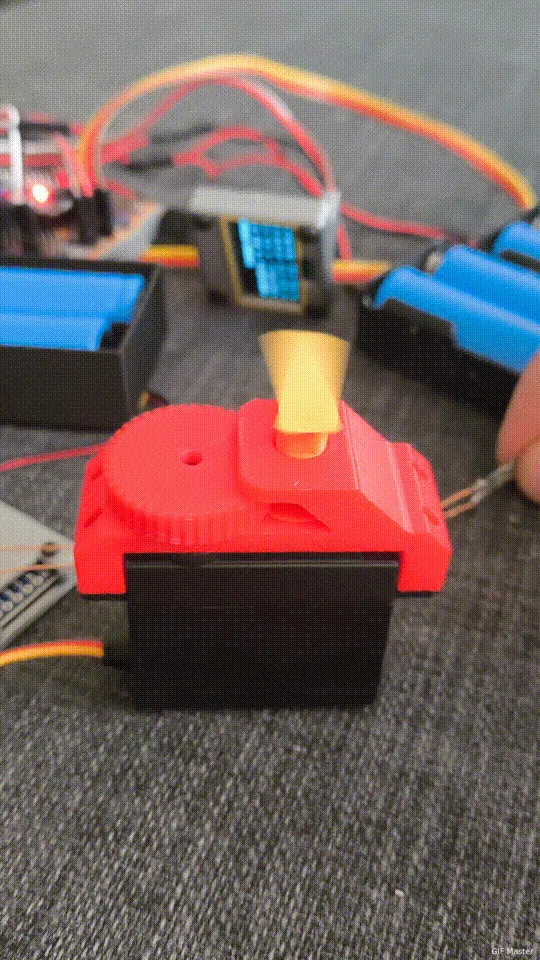

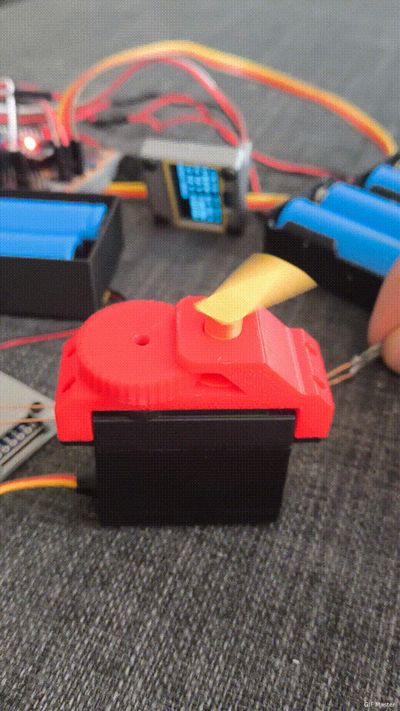

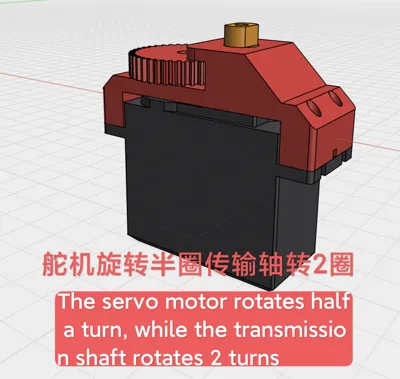

Dynamic demonstration image

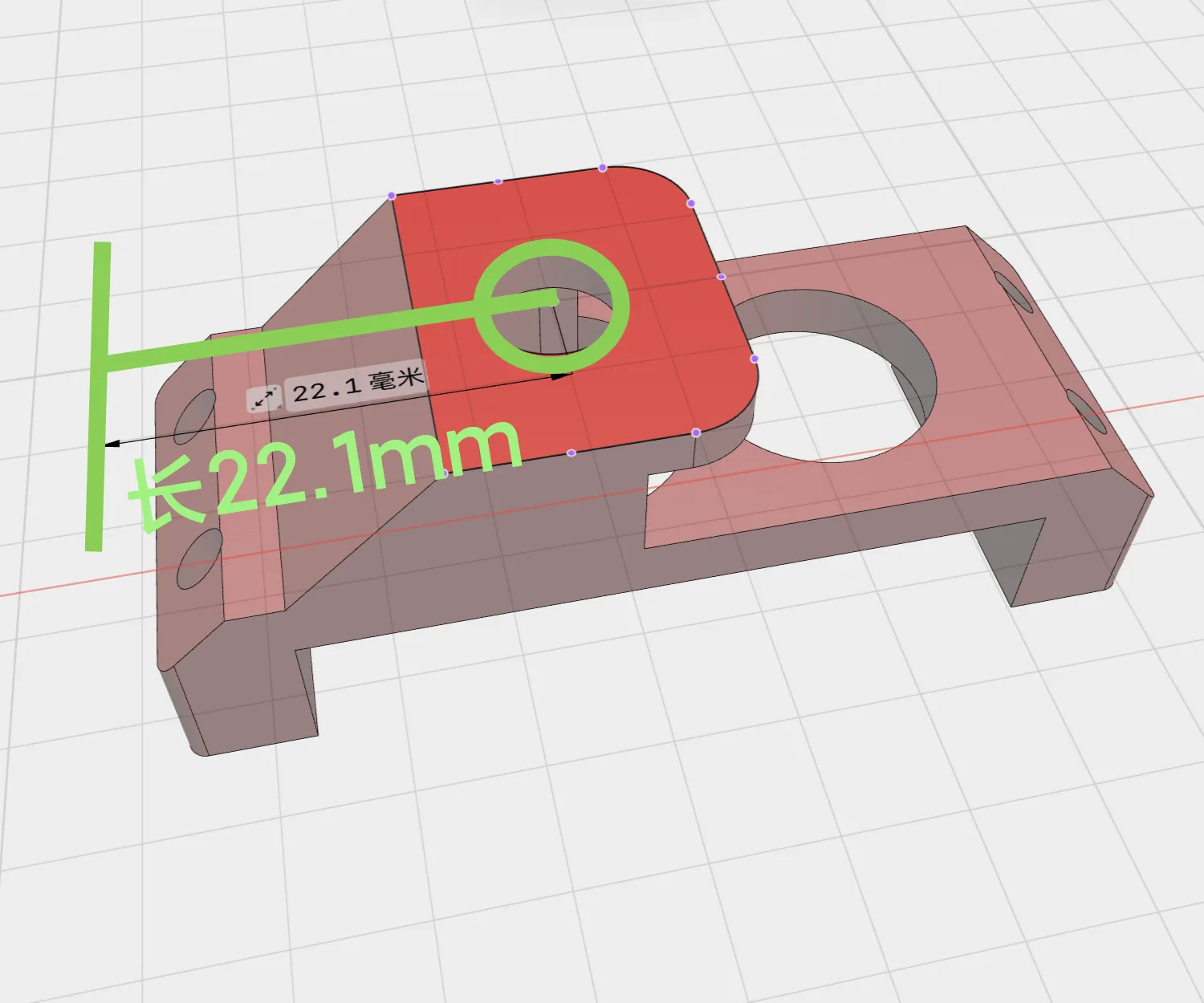

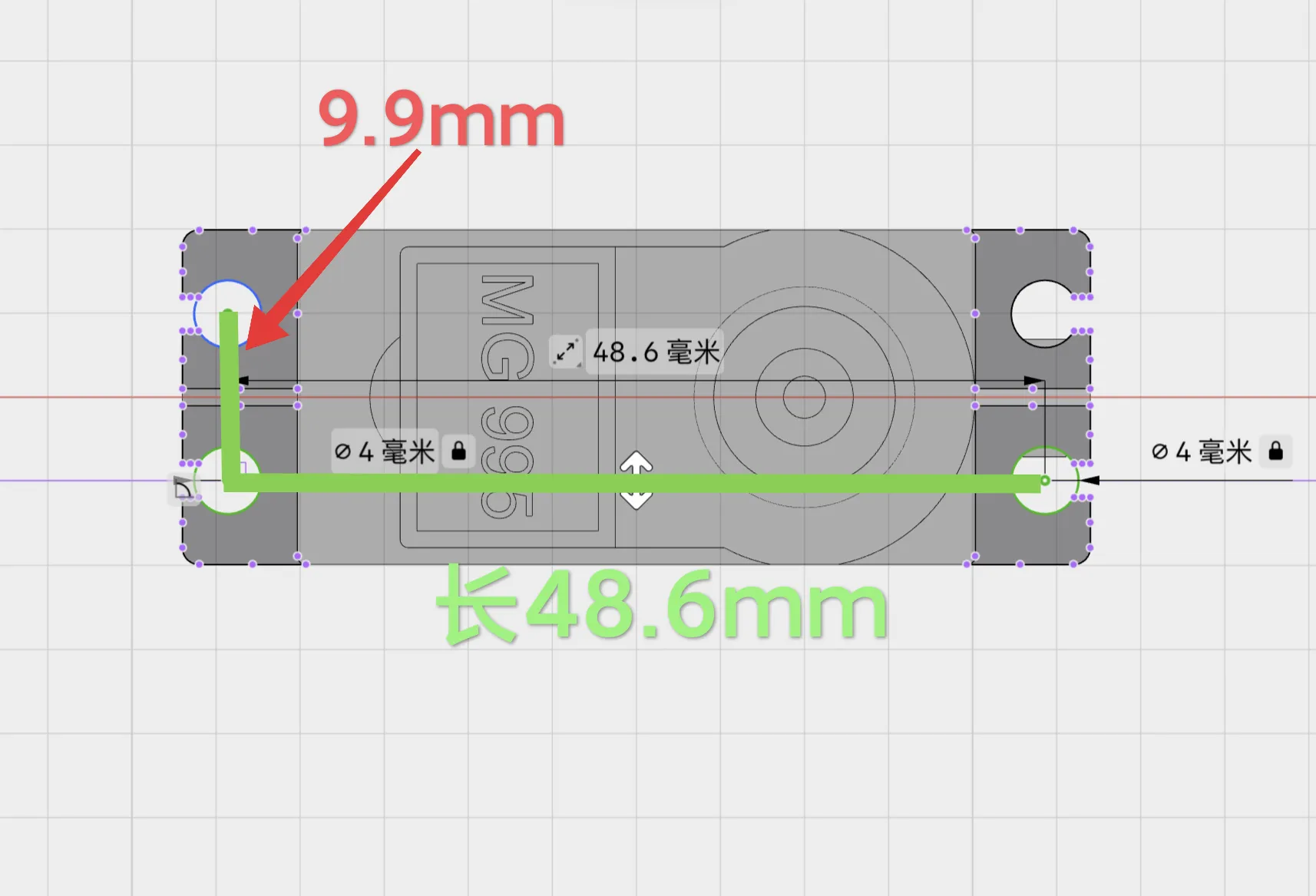

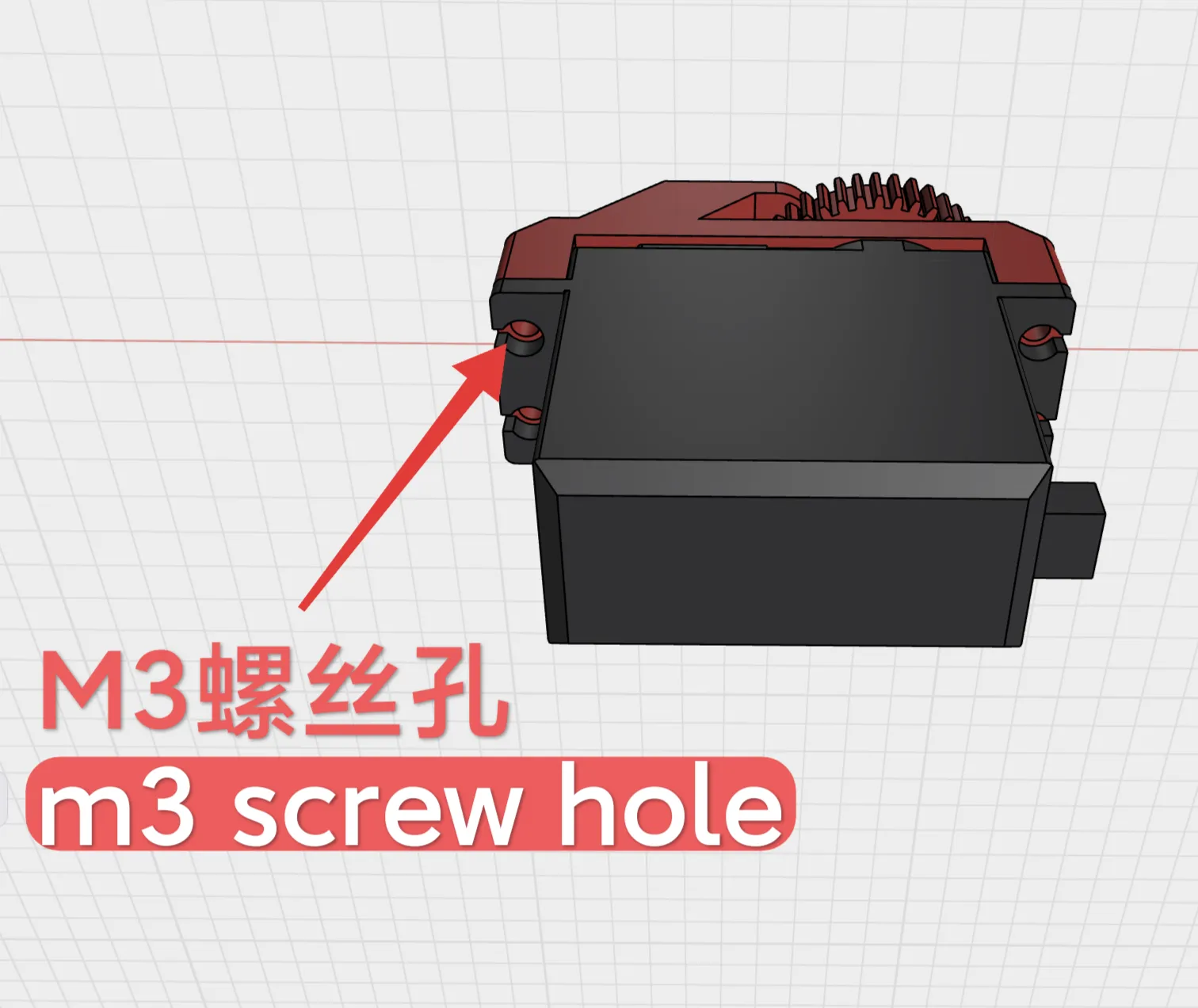

Specific image parameters

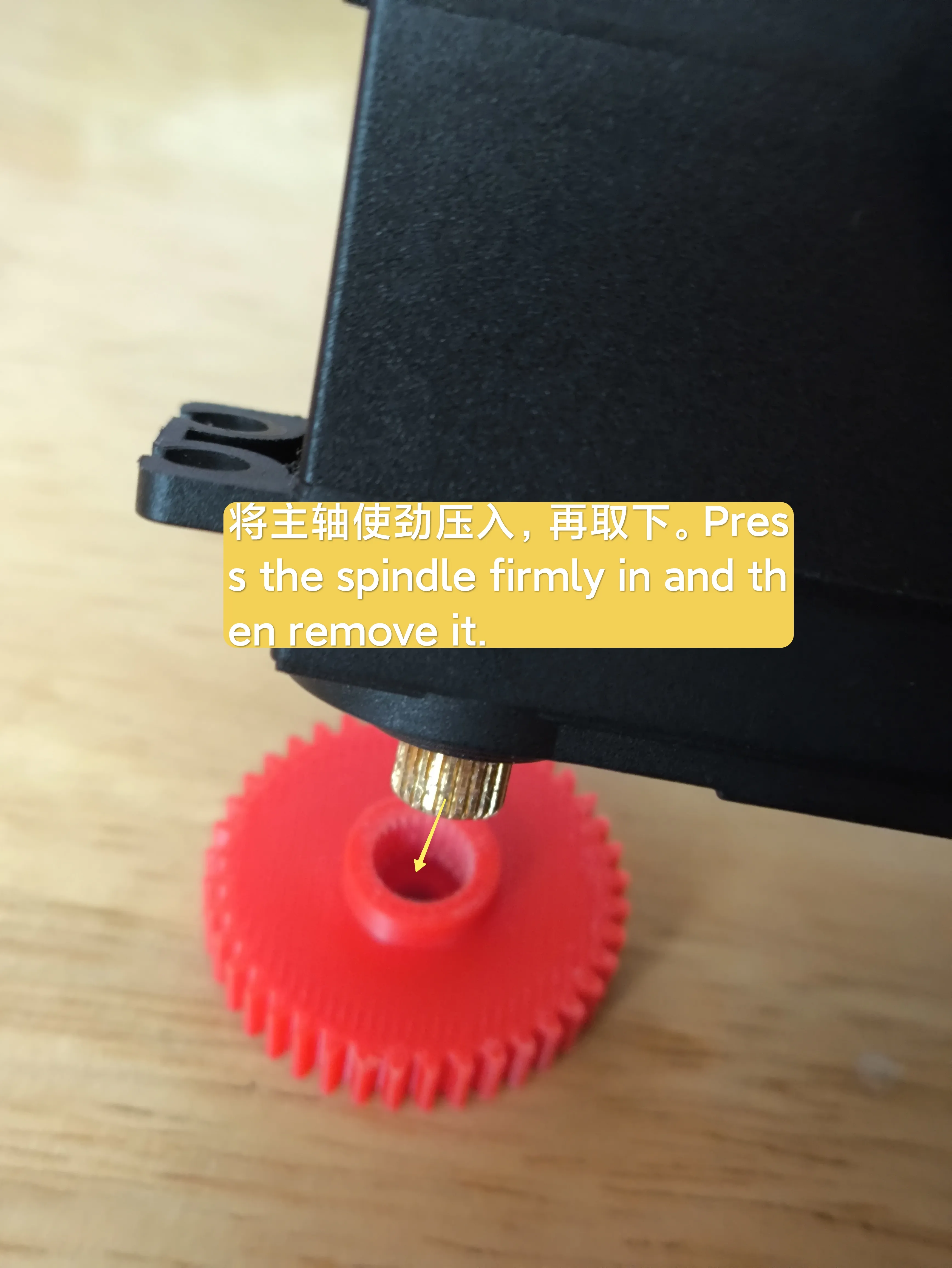

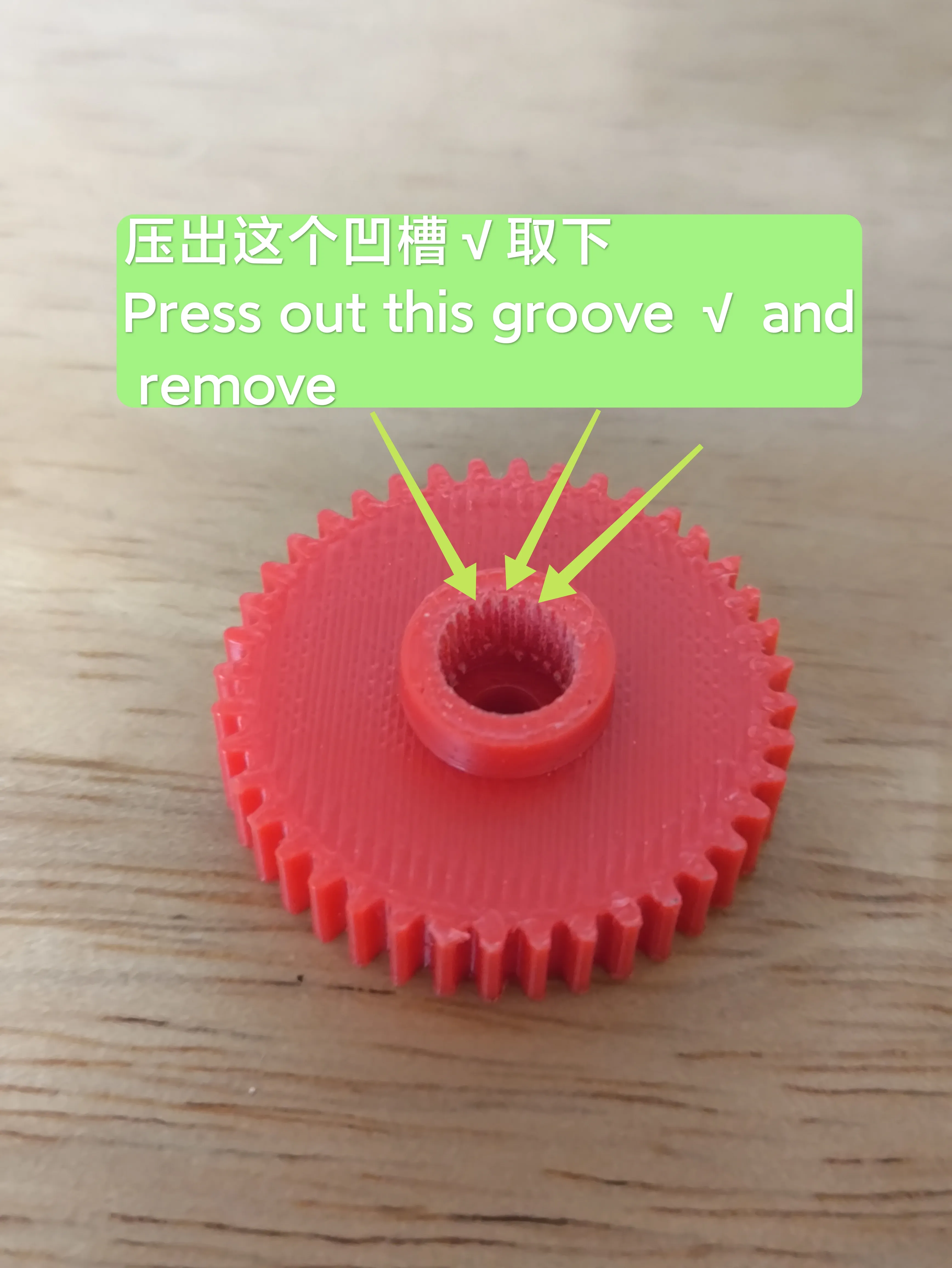

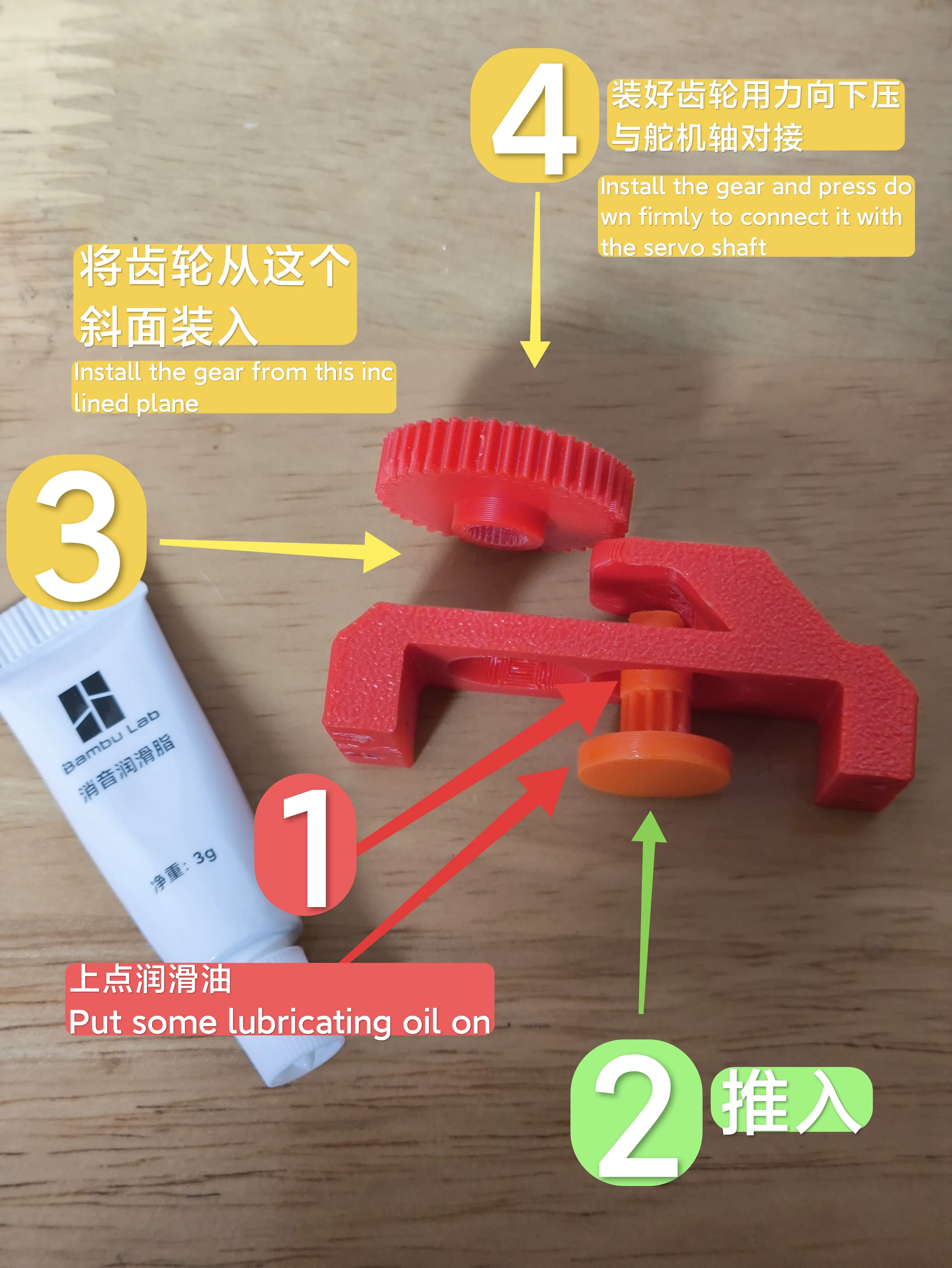

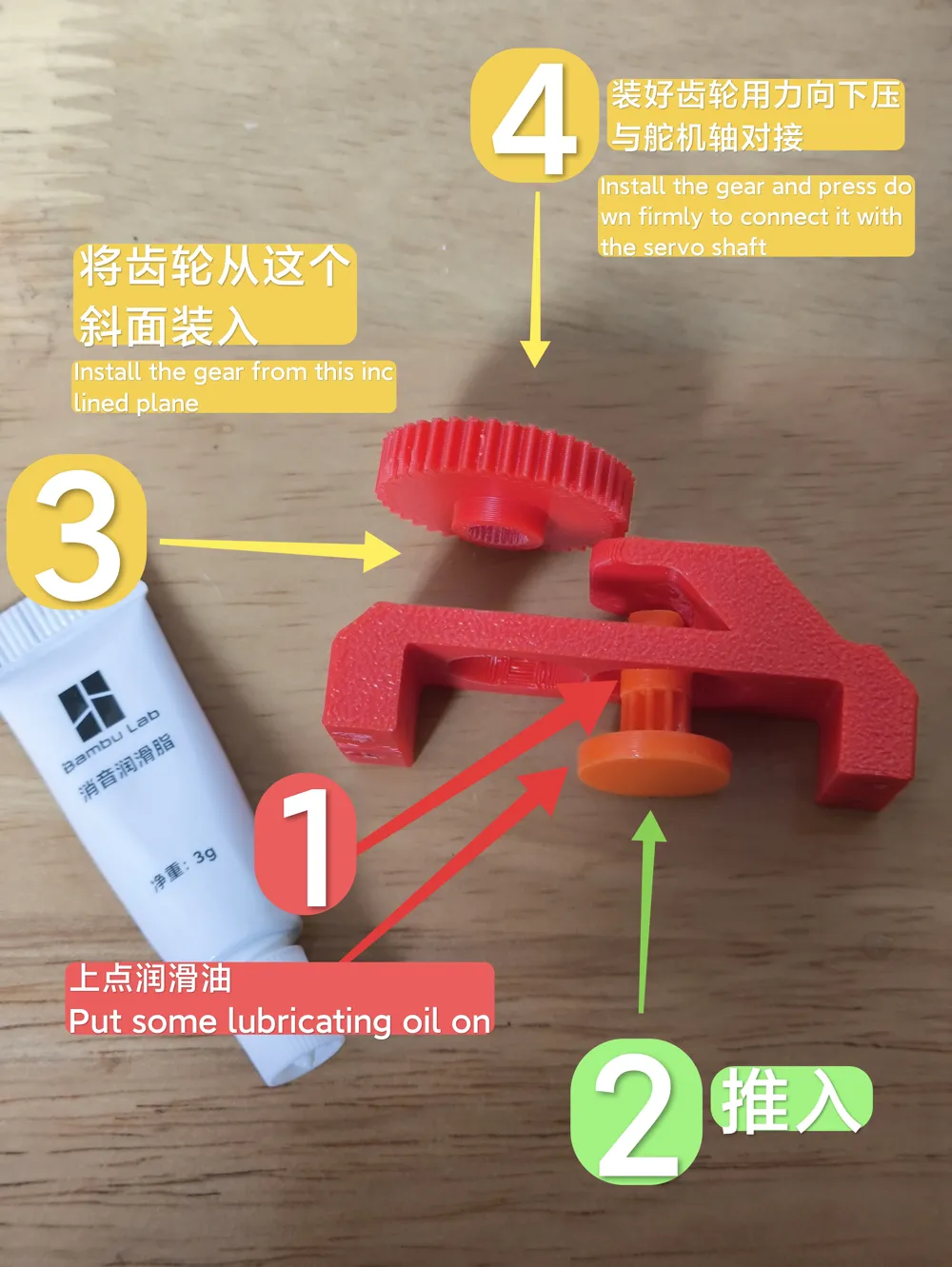

Finally, a brief explanation
