Lilac Embossed Bookmark | Heilongjiang Provincial Flower Embossed Bookmark | [Chinese Provincial Flower Bookmark Series]

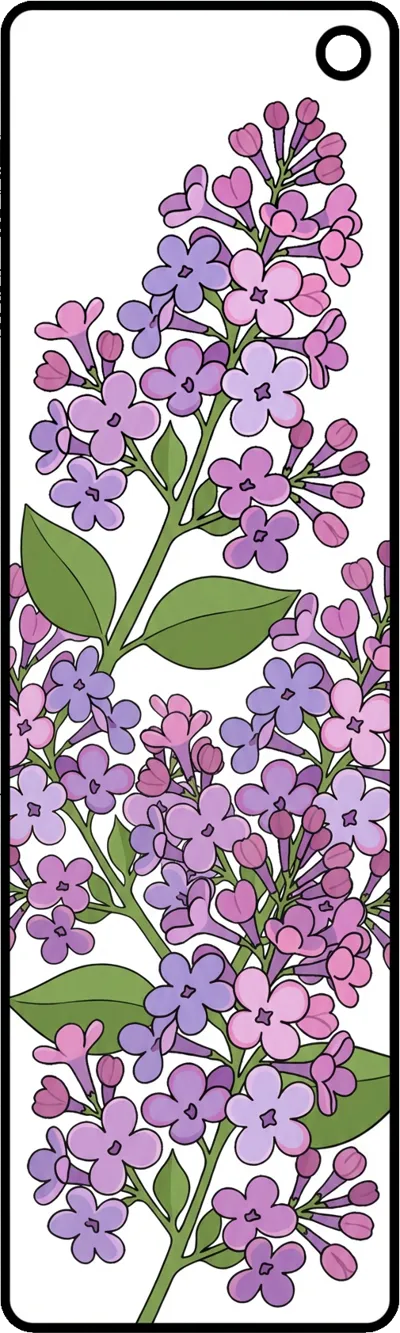

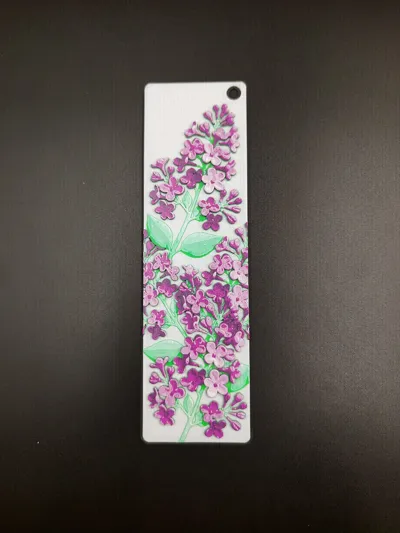

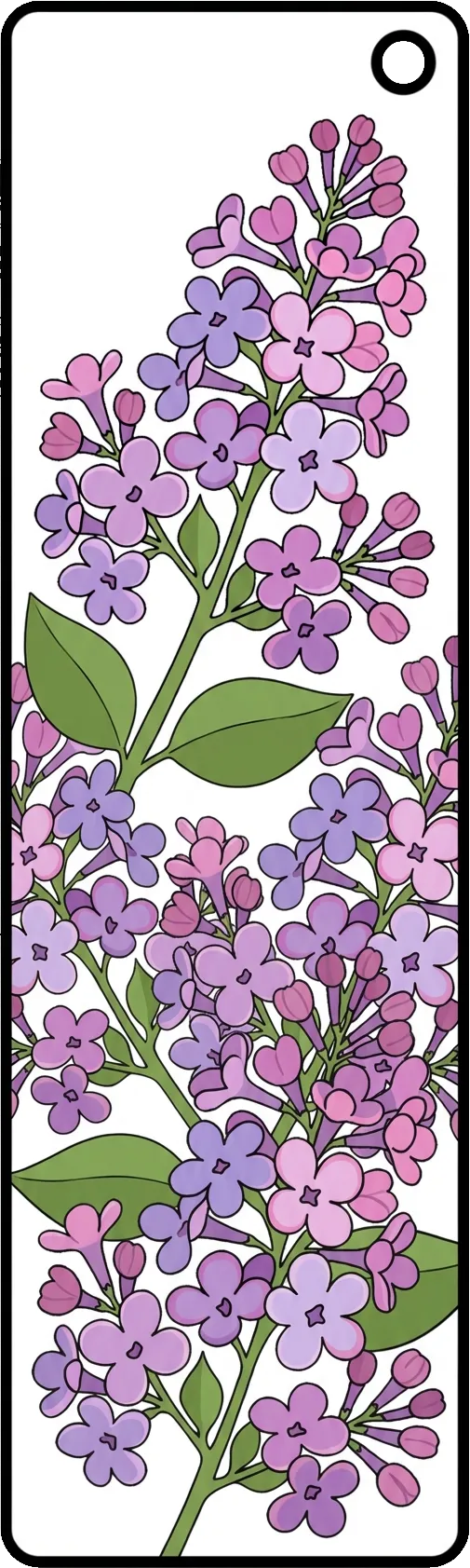

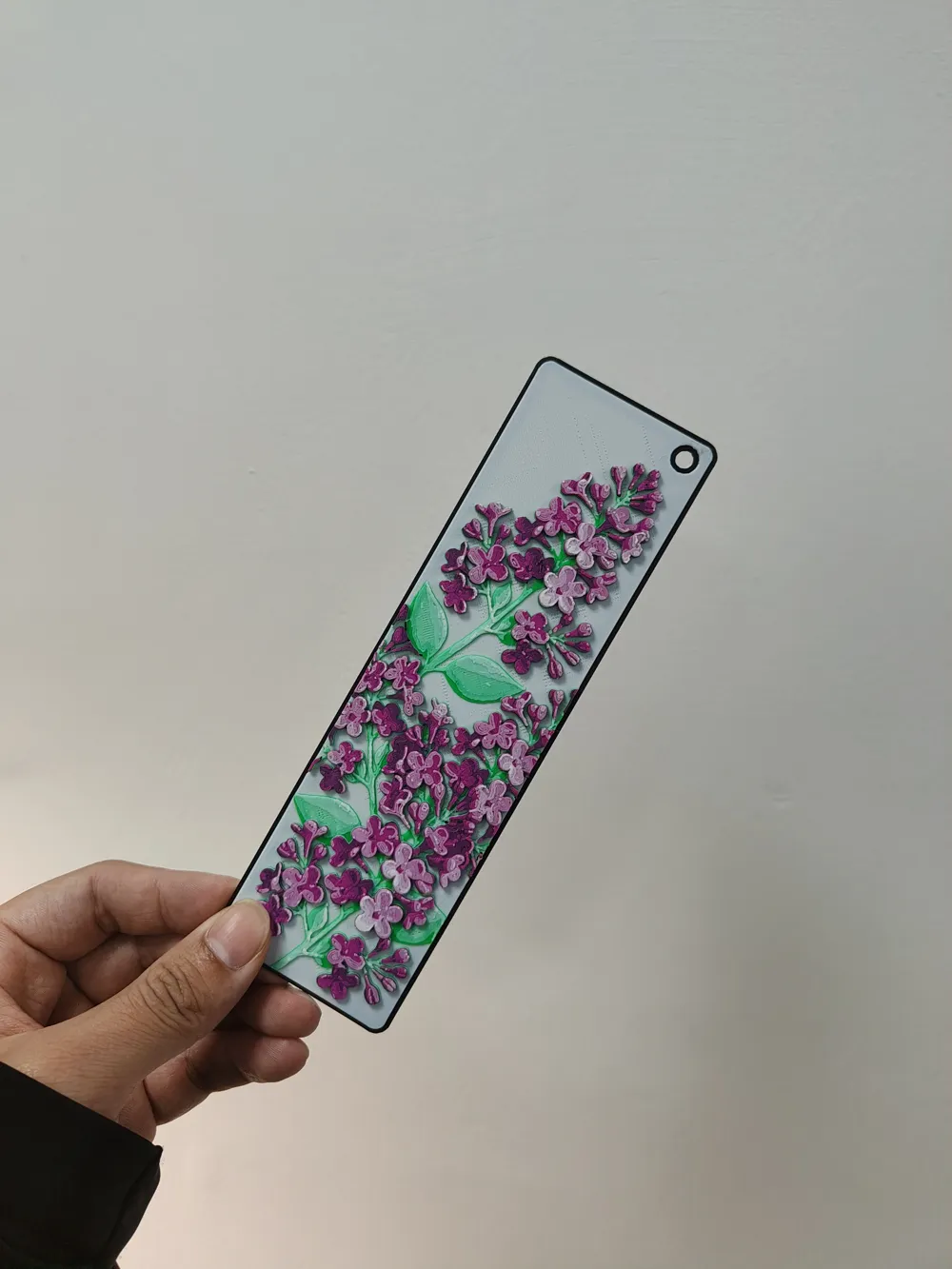

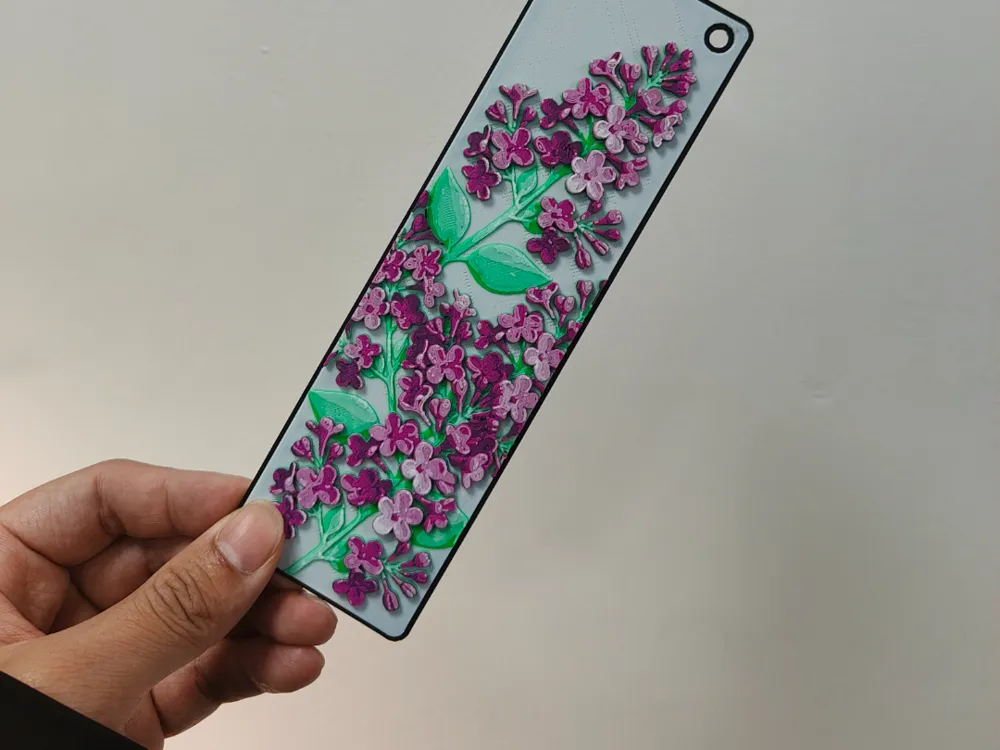

🌟 [Heilongjiang Lilac Embossed Bookmark]

🎨 Introduction | Description

Lilac, the provincial flower of Heilongjiang.

Syringa, also known as White Lilac, Hairy Syringa, North China Lilac, or Lilac, is a plant of the genus Syringa in the family Oleaceae. [7]Syringa is a shrub or small tree, reaching up to 5 meters in height; its bark is gray-brown or gray. The twigs, inflorescence axes, pedicels, bracts, calyx, both sides of young leaves, and petioles are all glabrous and densely covered with glandular hairs. The leaves are leathery or thick papery, ovate to reniform. The panicles are erect, nearly spherical or oblong; the anthers are yellow, located 0-4 mm from the throat of the corolla tube; the corolla is purple, with lobes spreading at right angles, ovate, elliptic to obovate. The fruit is obovate-elliptic, ovate to oblong-elliptic, with a long acuminate apex, smooth. The flowering period is from April to May, and the fruiting period is from June to October. (Description source: Baidu Encyclopedia)

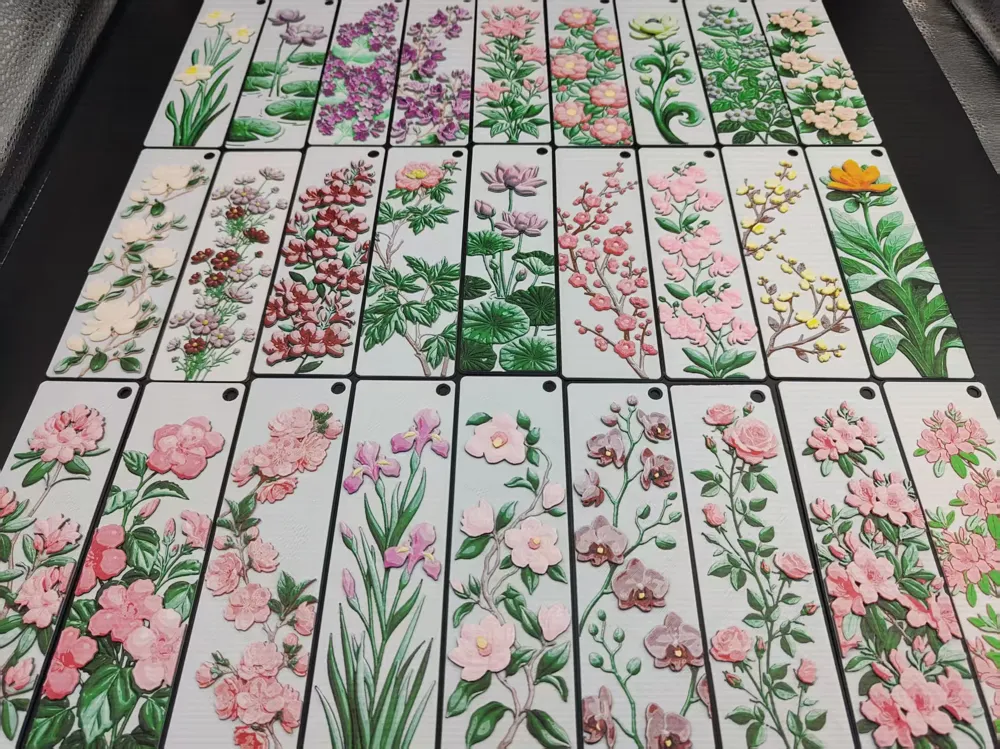

This is one of the [Chinese Provincial Flower Bookmark Series], hope you like it.

🚀 Core Technology: hicolors-3d

This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes:

No AMS color change system required: Adopting a layered color change design concept, no color change system required to print the model, simply manually change the filament at the corresponding layer, extremely material-saving.

Precise Layer Height: By physically simulating all possible color overlays, the effective height is distributed within a limited layer height, saves layer height usage.

Intuitive Matching: Based on color and region matching logic (no situation where a region cannot match the desired color), it is more intuitive than traditional grayscale matching.

Physical-level Simulation: The preview effect is the print effect, precisely simulating color overlay at different layer heights.

Light and Shadow Aesthetics: Designed specifically for FDM printing, fully utilizing the translucent and color-stacking properties of PLA materials.

🔄 Color Change Instructions | Color Change Instructions

No multi-color printer (AMS) required, a regular single-nozzle machine can manually change colors:

Color change information is already included in the 3mf file, just download and view it.

Below is the filament information used for printing, for your reference:
Base/Starting Color:black - TD: 0.1

| Change Color Height | Accumulated Layers | Change to | Brand | HEX | RGB | TD |

|----------|----------|--------|------|-----|-----|-----|

| 0.64mm | 7 | white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.12mm | 13 | green | - | #519b42 | rgb(81, 155, 66) | 2 |
| 1.44mm | 17 | white | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.92mm | 23 | black | - | #000000 | rgb(0, 0, 0) | 3 |
| 2.24mm | 27 | purple pink | - | #94357d | rgb(148, 53, 125) | 2.2 |
| 2.56mm | 31 | white | - | #ffffff | rgb(255, 255, 255) | 4.4 |

🛠️ Print Settings | Print Settings

For best results, please strictly adhere to the following settings:

Infill: 100% (mandatory)

Layer Height: 0.08mm

First Layer Height: 0.16mm

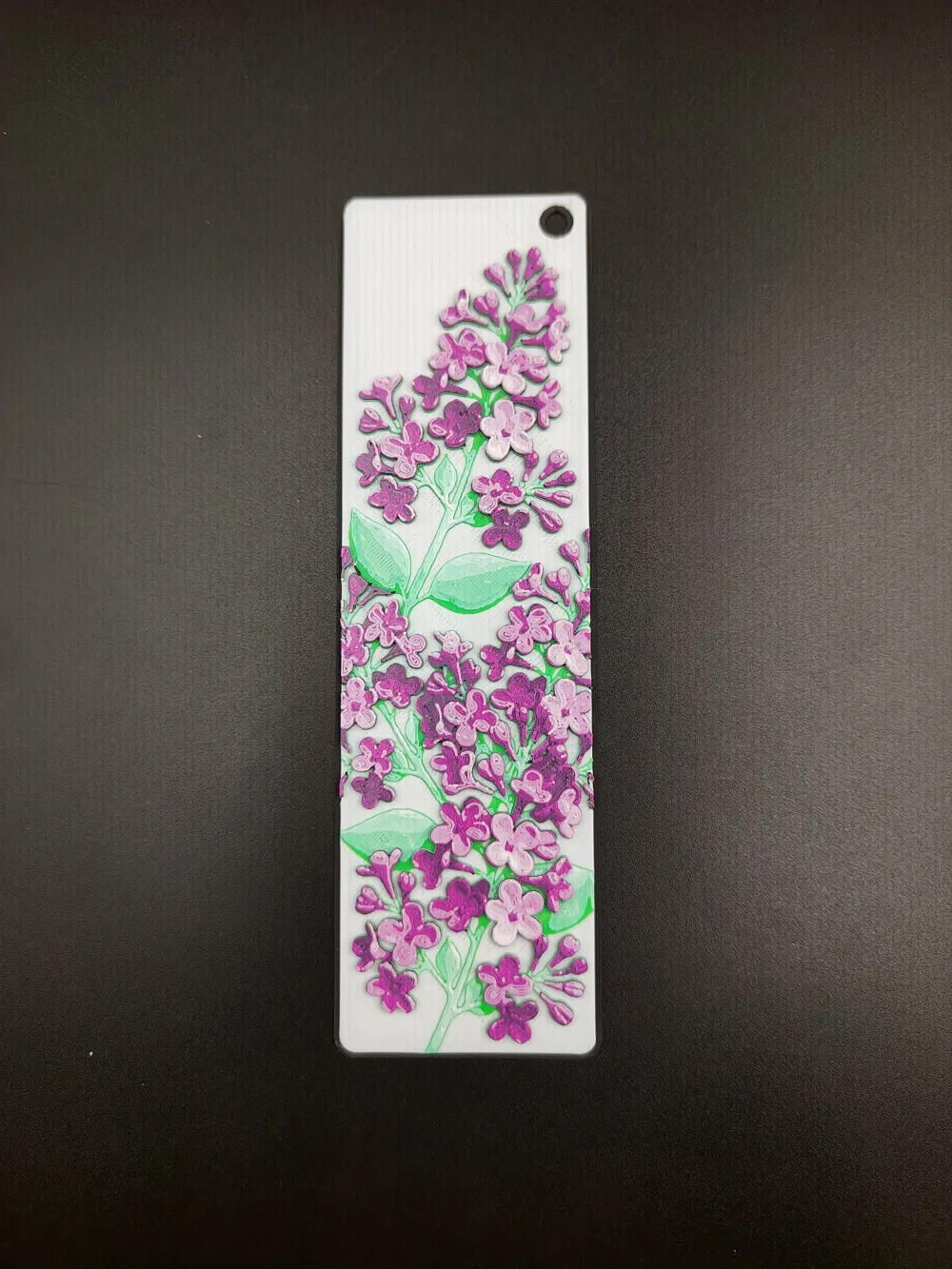

Nozzle Recommendation: 0.2mm recommended (for best detail), 0.4mm is also acceptable (actual photos are with 0.4mm).

Model Scale: Do not adjust the Z-axis scale of the model to ensure correct layered color change information, you can freely adjust the X and Y axis scaling to get your desired size.

Post-processing Tip: Quickly sweep a lighter over the model surface to perfectly remove common FDM fine stringing.🔥
