Modular fiber optic spool holder
Print Profile(1)
Description
A clean, flexible solution for managing fiber slack inside ODFs, patch panels, and enclosures.

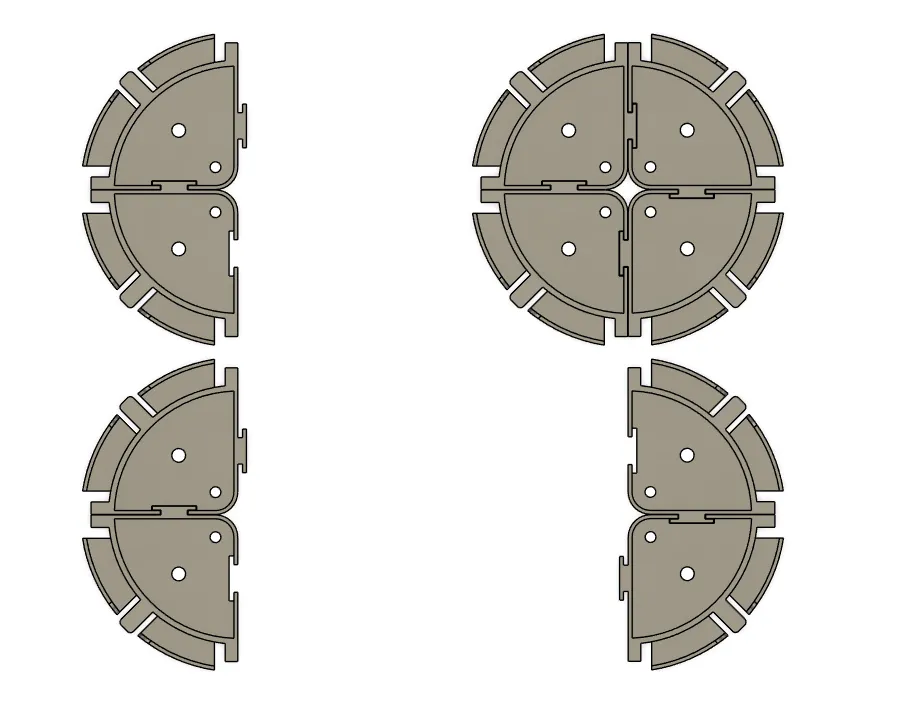

This spool holder introduces a true modular architecture that allows you to build a full circular spool, separate halves, or individual quarter guides, giving complete freedom over fiber routing and placement.
Designed with a 60 mm bend radius, it protects delicate fibers while keeping installations organized, serviceable, and visually clean.
Features:
- Modular design
- Use as a full round spool

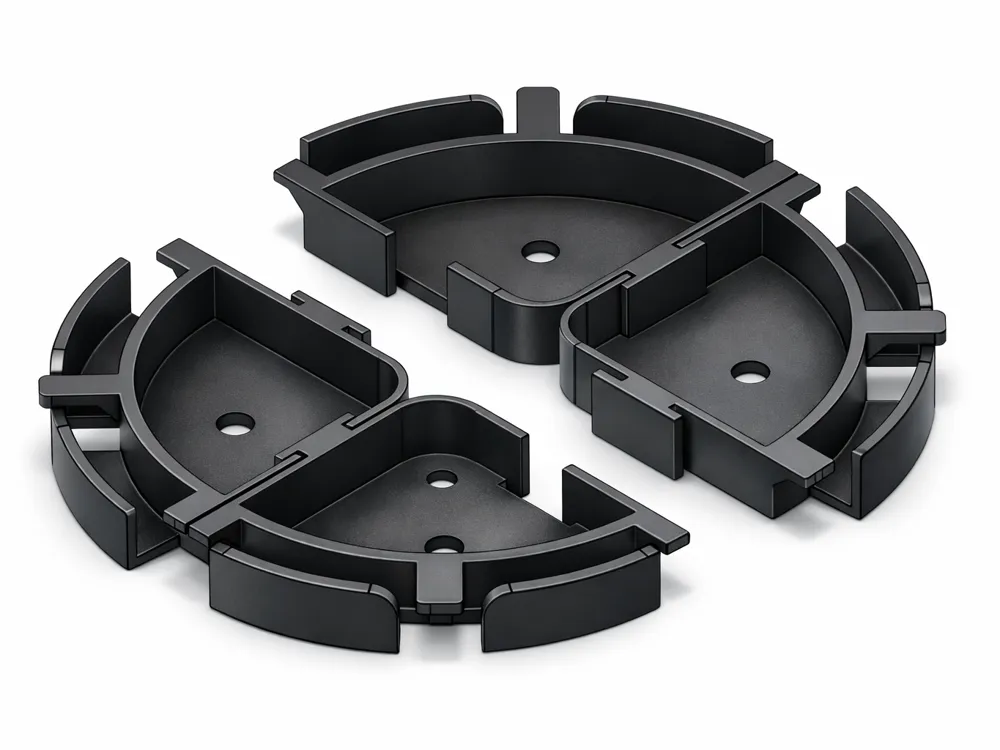

- Split into two halves for adjustable spacing
- Use quarter segments for targeted routing (rare / advanced layouts)
- 60 mm bend radius
- Safe fiber curvature
- Helps prevent signal loss and micro-bending damage
- Flexible mounting options
- M3 screw mounting hole
- Flat base for glue / liquid adhesive
- Double-sided adhesive tape support
- ODF-friendly geometry
- Optimized for tight telecom enclosures, in width and height
- Works well in patch panels and wall boxes
- Service-friendly slack storage
- Add or reroute fibers without removing the whole spool
- Easy access during maintenance
- Configurable layout

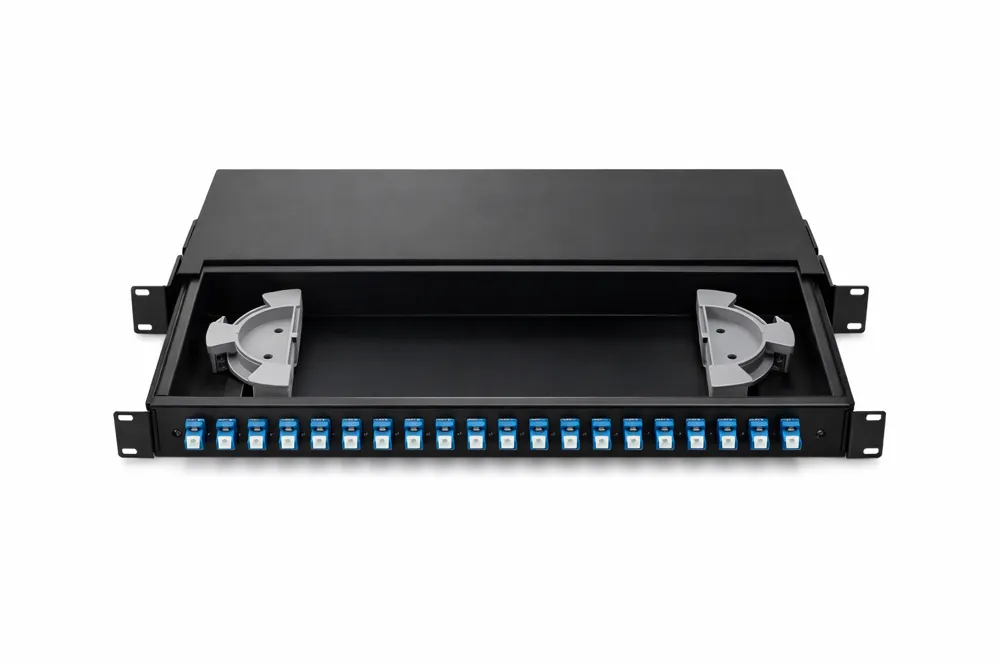

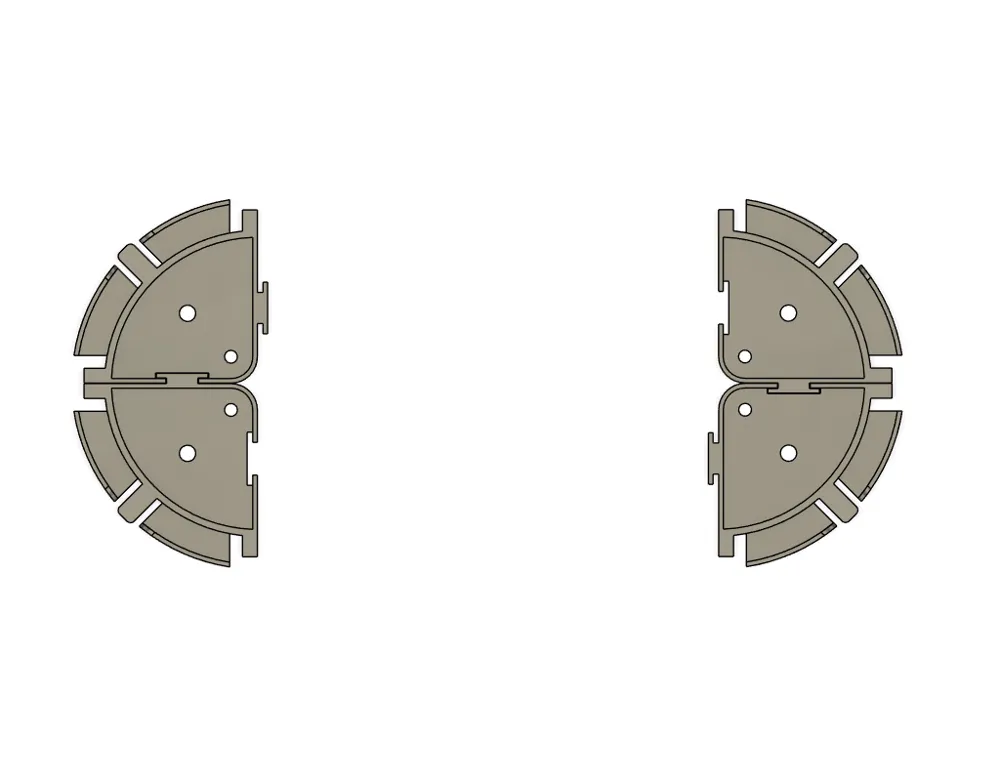

- Place halves far apart to opposite sites of an ODF
- Combine segments to adapt to available space
- Select what to print
- One plate has two quarters for a quick print, and the second 4 quarters, creating a full circle
Created for rare cases where the box is not supplied with any spool handling hardware.
Cheers!
