Spool holder 01 - for Sanja 3D AMS riser
Print Profile(5)
Bill of Materials
Description

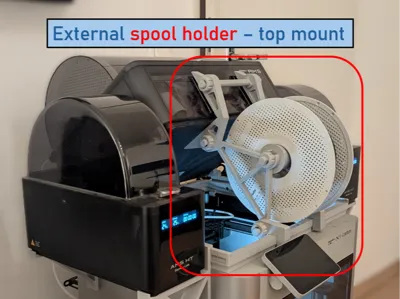

This filament spool holder allows you to attach an external spool to an AMS riser/flipper from “Sanja 3D”
This way, you can feed your flexible filament (e.g. TPU) directly into the print head from above
------------------------

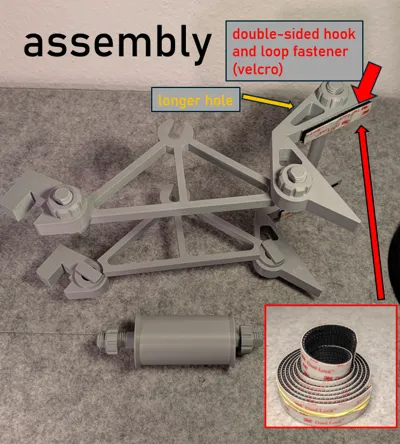

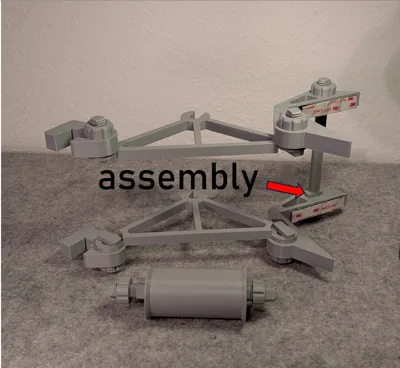

Depending on your personal preference, you may need some self-adhesive hook-and-loop tape to connect part of the holder to the AMS (see photos)
The holder also works without hook-and-loop tape, but I recommend using it
------------------------
Update 2026-03-11:
-Added holders suitable for use with the “V4 LED Strip Holder with Clips” on the inside of the riser
------------------------
Update 2026-05-10:
-Added modified side holders (additional print profile) to ensure compatibility with the latest version “X2D / P2S Riser - AMS Flipper V2” Not yet tested, as I do not use this flipper Please provide feedback if it fits
------------------------
Compatible with:

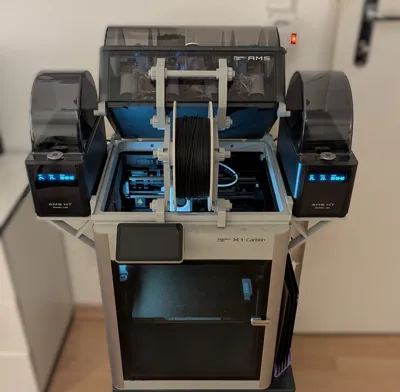

- "AMS Glass Slider Riser V5 – Tilt Function P1S X1C" (shown in photos)
- "AMS Flipper Glass Slider Riser V6 – P1S X1C"
- “P2S / X2D Riser - AMS Flipper V1”
Presumably compatible with:
- "X2D / P2S Riser - AMS Flipper V2" - please use the print profile “Addon-Mount” for the modified side holders
------------------------
This filament spool holder is theoretically designed for spools with a maximum diameter of 210mm
and a maximum width of 75mm
However, I have only tested it with Bambulab spools, which have a diameter of approx 200mm and a width of approx 70mm
------------------------
