Rain Collector 2.0 - Rain Thief DN 100
Print Profile(3)
Description

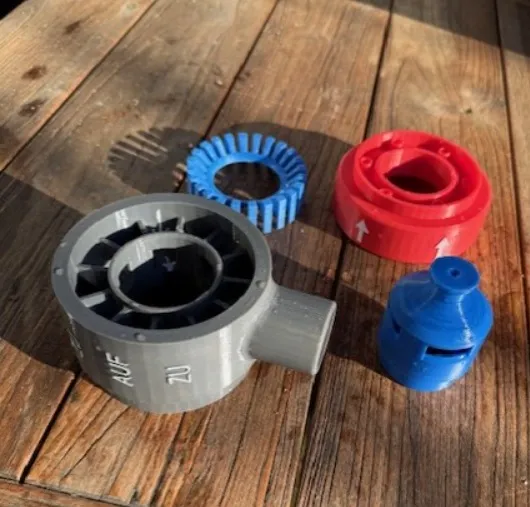

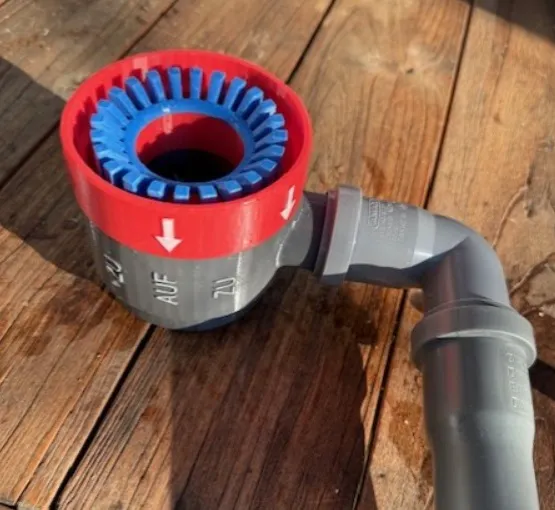

This rain collector is a compact version for DN 100:

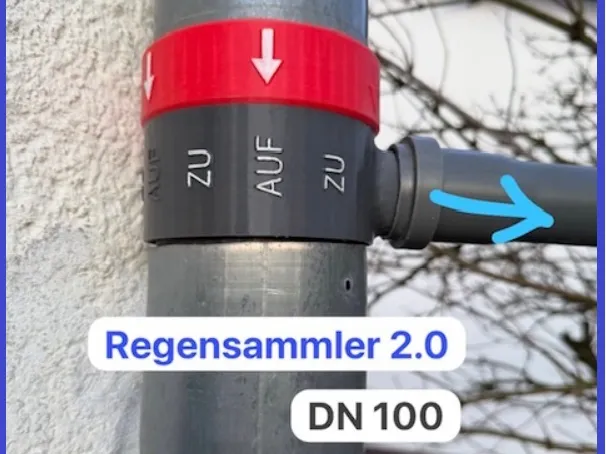

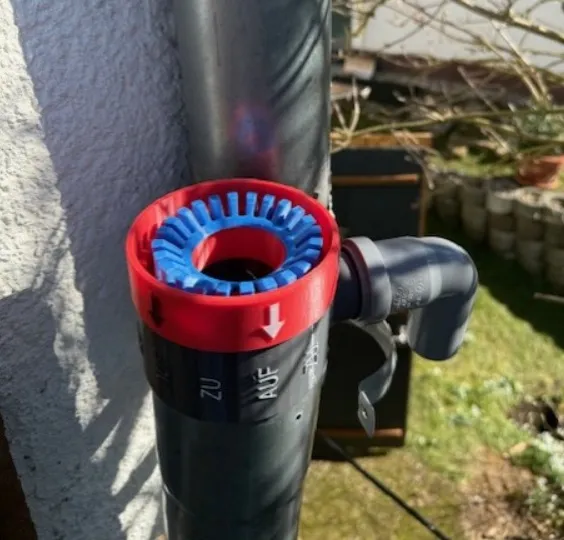

Easily mountable even with pipes installed close to the wall
Easy to open when a clamp is loosened for screen cleaning
Particularly important: For winter operation or when the container is full → can be switched off
( Outlet connection DN 40 mm )

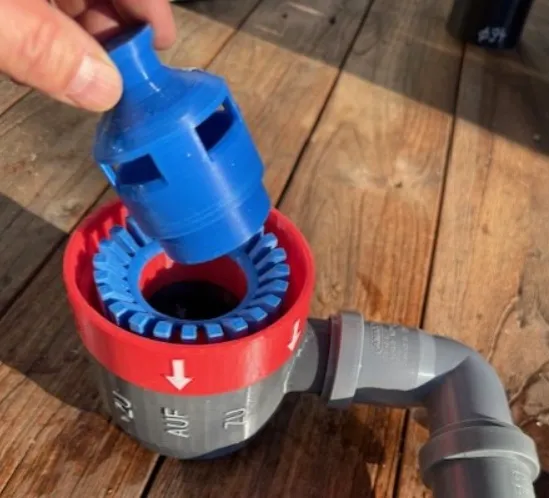

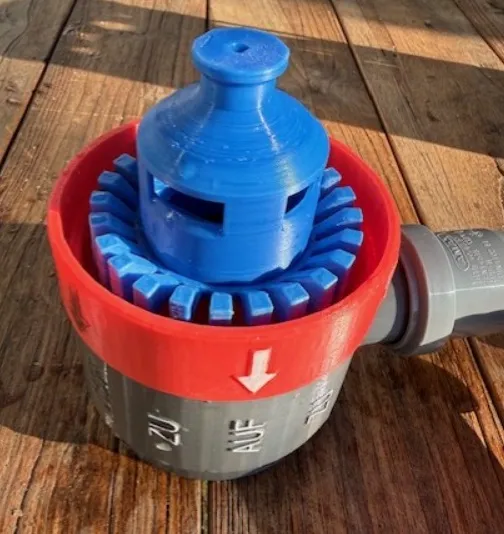

Special gimmick: the flood cap - if desired, the inner passage can be closed,
so you can reliably collect all rainwater, especially from clean roof surfaces
Without this cap, the screen is self-cleaning, the flow rinses through the middle during heavy rain
Furthermore, this cap can be drilled out from above if the heavy rain flow capacity needs to be increased
Caution - it could float up during heavy rainfall
Please feel free to post in the comments if something doesn't fit or to show the printed version
Boost Me (for free)
Boost is the new Like - please Boost if you like it
Material: Optimized for PETG; if placed directly in the sun, choose lighter material
to prevent overheating, otherwise use ASA, for example

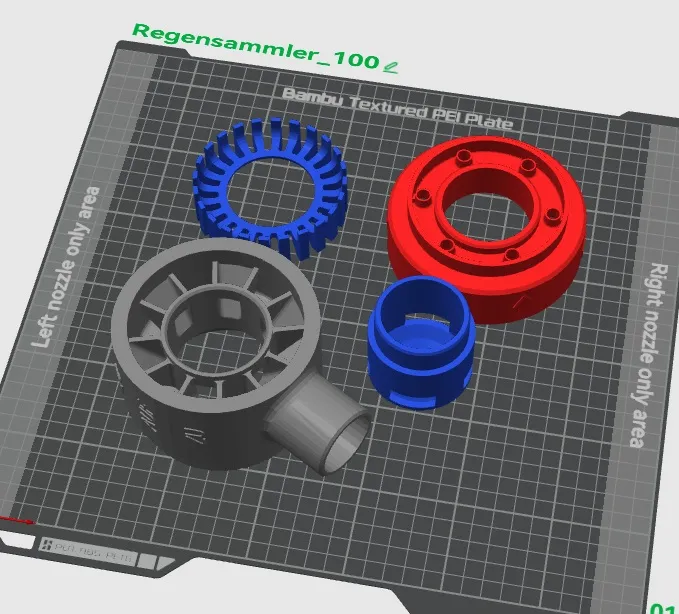

Feel free to print everything in one color or optionally activate the prime tower
Please note: Only the print profile “DESIGNER” with 33.3 hrs is from me; the others were added by other users and are optional
Info video here:
The original model is by user Feifel, here with improvements for DN 100
Model for DN 80 coming soon
