Description

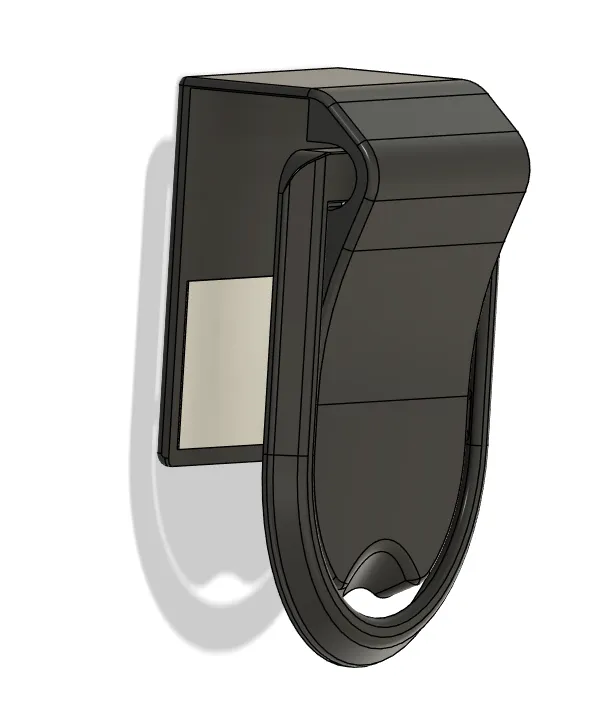

This is a flush, fold-flat handle designed for 16mm cabinet fronts, including IKEA Knoxhult and other manufacturers using the same standard thickness.

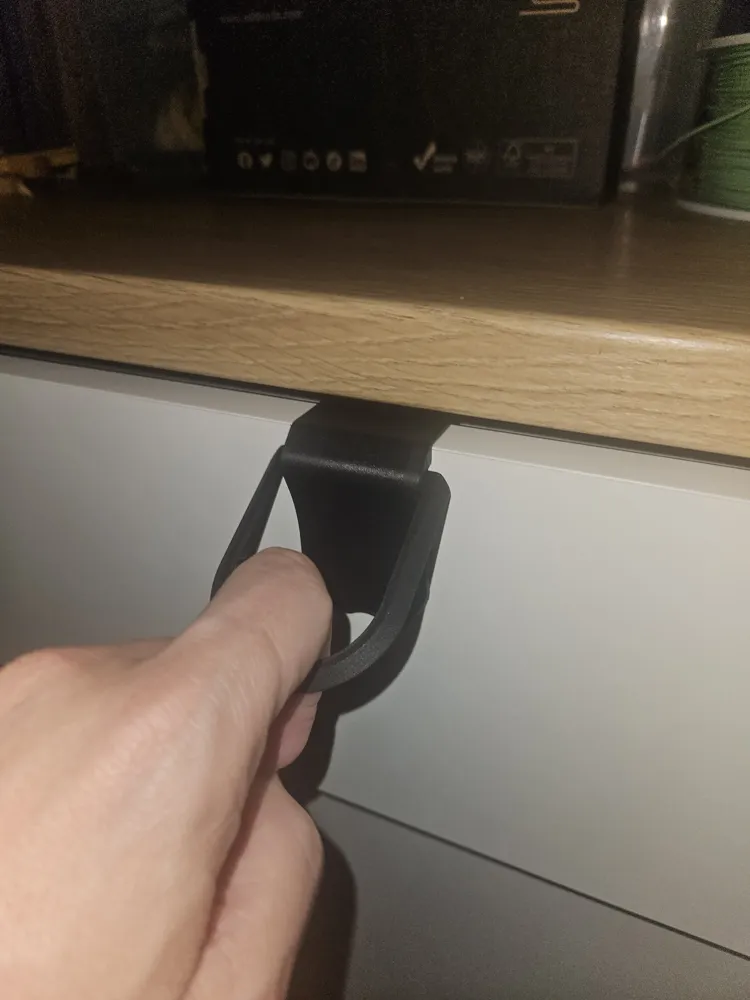

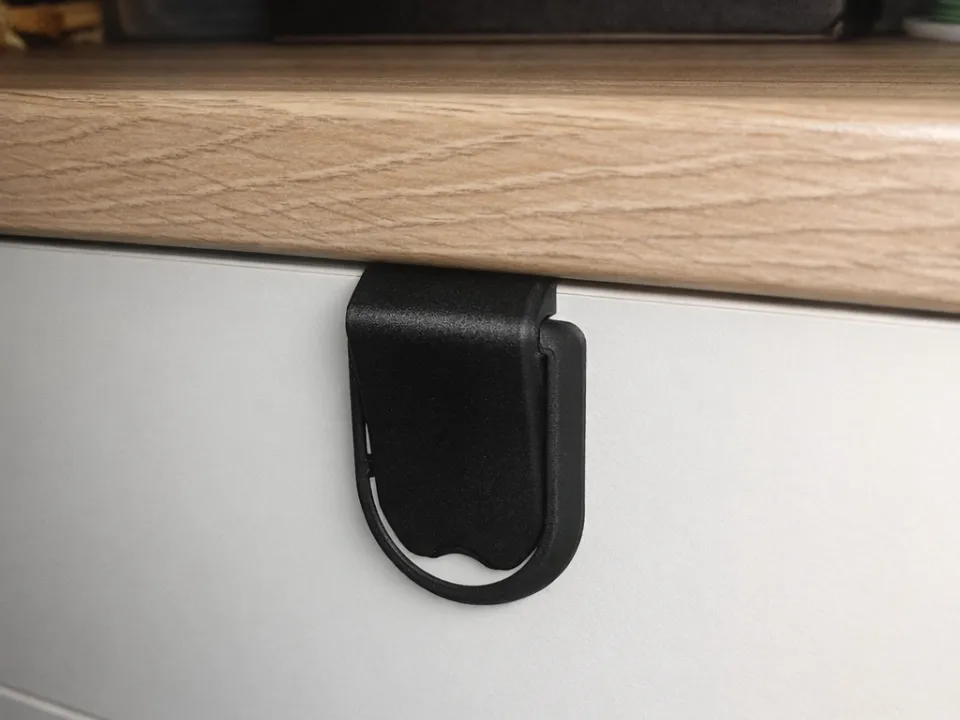

It clips onto the top edge without drilling and folds flat when not in use.
No protruding hardware.
No permanent modifications.
Minimal visual impact.
Designed as a functional solution for tight spaces.
Features
Flush, low-profile design

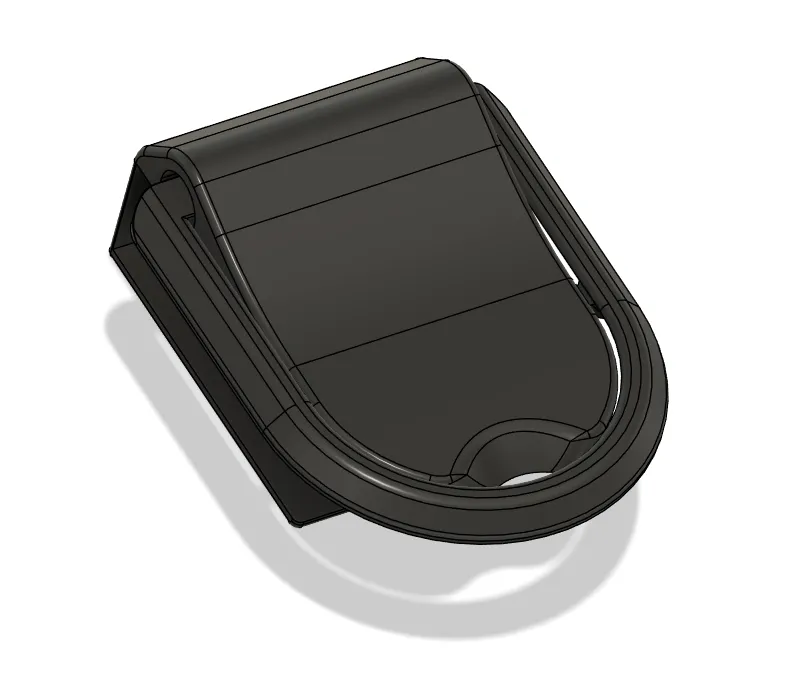

Fold-flat mechanism with integrated retention
Fits 16mm cabinet and drawer fronts
Clip-on installation – no drilling required
Works on horizontal drawer fronts and vertical cabinet doors
Chamfered inner and outer edges for comfortable grip
Mounting note
For vertical door mounting, adding a strip of double-sided tape on the flat (inside) pad area is recommended for additional stability.
Print notes
No supports required
PLA works well (tested) – PETG also suitable
0.2 mm layer height recommended
Print in the orientation shown on the build plate image. The included print profile is tested and proven.
