Modular Solder Wire Holder
Print Profile(1)
Description
This solder wire holder is specially designed for electronic repair and manual soldering scenarios, made of bright green 3D printed PETG material, and features a modular structure composed of a base, a pillar, and a rotatable core shaft. The holder's base is streamlined with an anti-slip texture, resting stably on a green camouflage mouse pad surface; the upper end of the pillar has a U-shaped slot, precisely adapted to the inner diameter of standard solder wire spools
Design Highlights
Quick-Release Spool Core Structure
The core shaft adopts a plug-and-play design; simply align the solder wire spool with the pillar's U-shaped slot and gently press to fix it. Replacing spools does not require disassembling the holder.
Anti-Slip Stability
The bottom surface of the base features a wavy pattern, which, combined with the friction of the mouse pad surface, prevents displacement even when rapidly pulling the solder wire.
Scene Color Management
The bright green color creates a high-visibility focal point amidst black keyboards and dark tool environments, reducing the likelihood of misplacing small tools.
Technical Specifications
- Compatible Spools: Standard solder wire spools (inner diameter 12mm/20mm, supports spools with diameter under 50mm)
- Recommended Material: High-temperature resistant ABS PETG (adapts to temperature fluctuations in soldering environments)
- Structural Details: Base length 10cm, pillar height 8cm, U-shaped slot opening width adjustable
- Printing Tips: The core shaft part requires 100% infill to ensure load-bearing capacity, and for the anti-slip texture on the base, it is recommended to enable "bridge" mode
Usage Scenarios

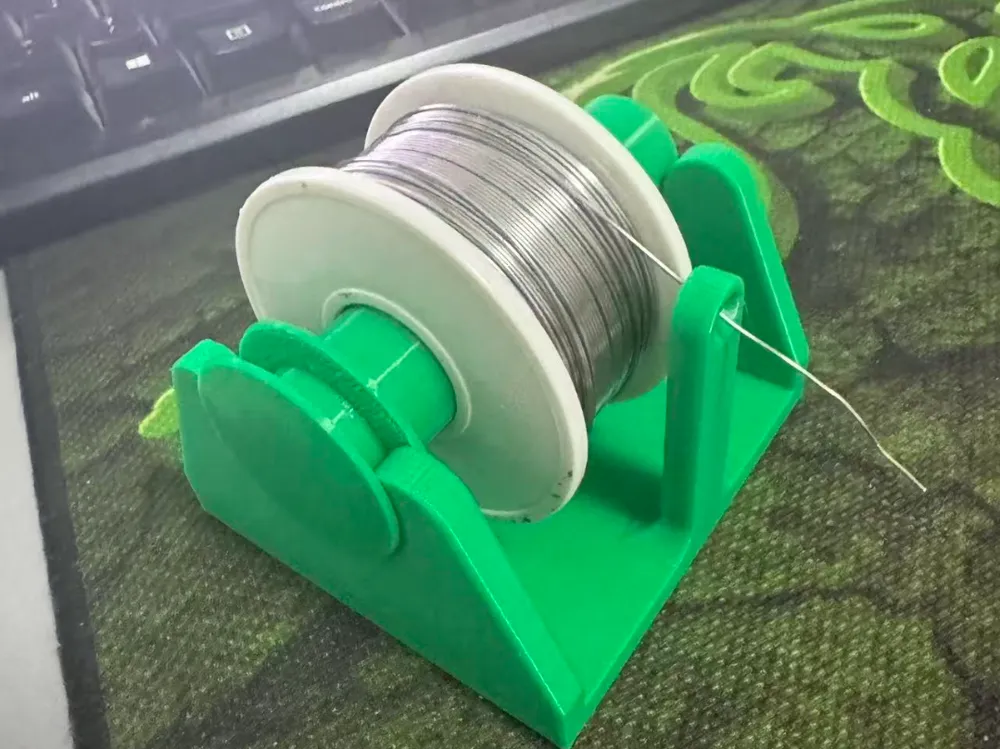

▸ Solder wire fixing and pull-out guiding on electronic repair workstations (solder wire being pulled out for use in Figure 1)

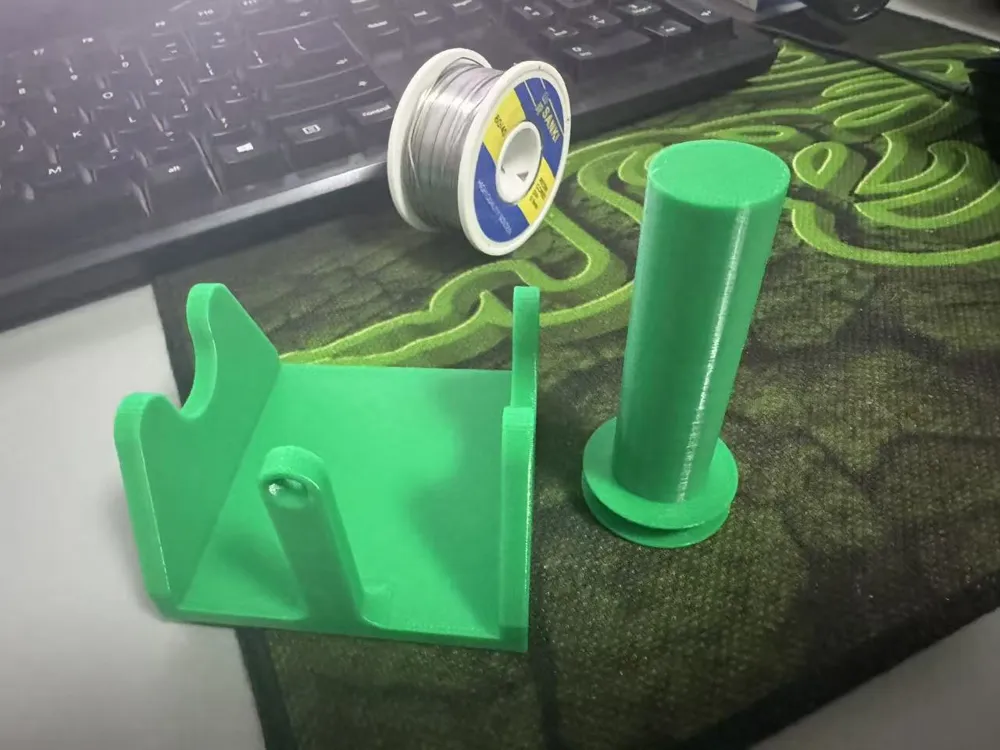

▸ Spool management for small-batch manual soldering projects (storage scenario for spare solder wire spools in Figure 2)
▸ Wire dispenser for copper wire and fine wires in model making
▸ Standardized display of soldering tools in educational settings
