Mini ITX Case with full GPU Support and flex PSU
Print Profile(1)
Description

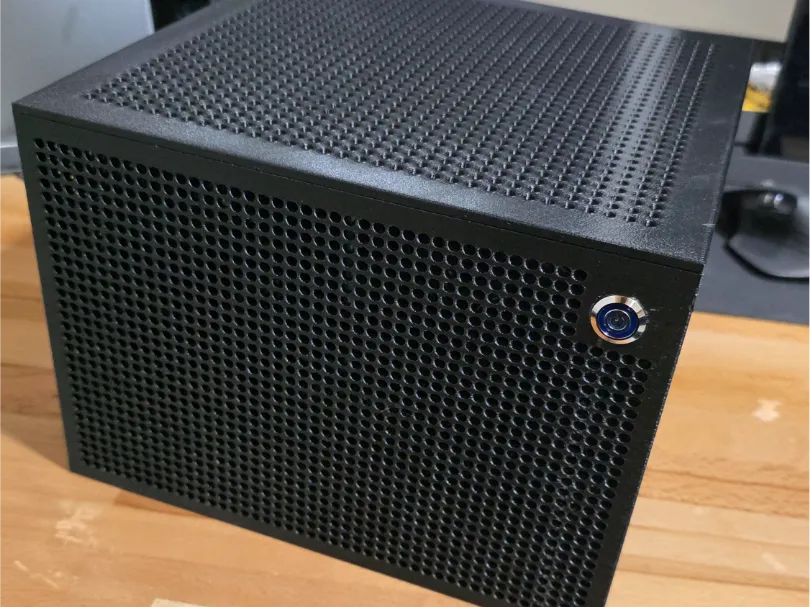

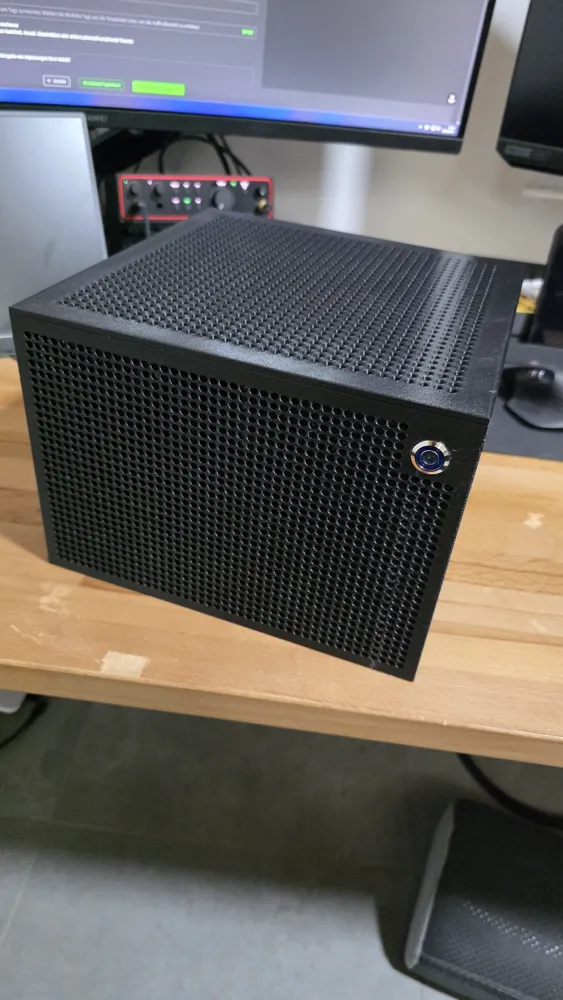

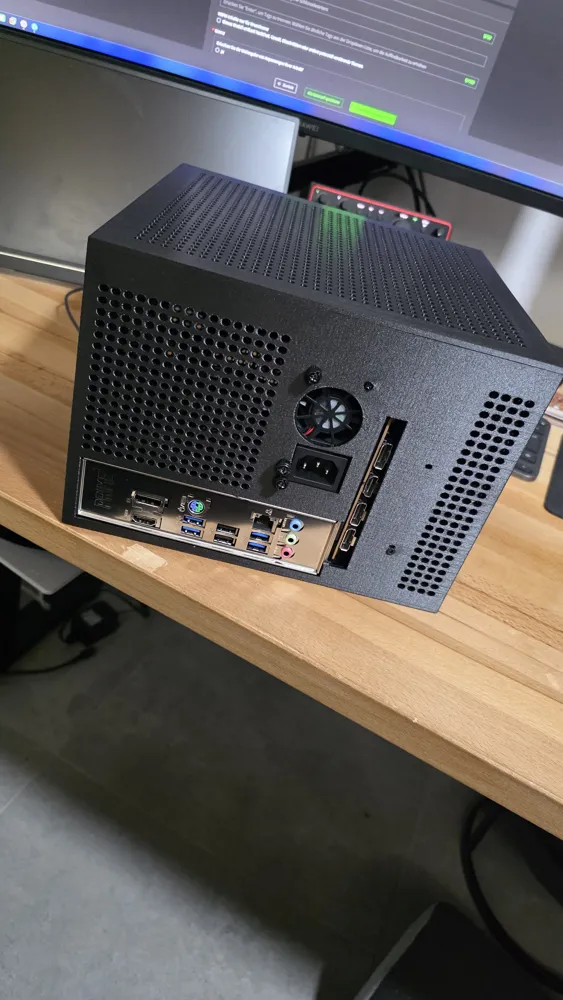

Hello Community, i designed my first ever project in Fusion. A Mini ITX case with full GPU Support and FLEX PSU.
Print Settings:
- 15% infill
- manuel Tree Support for the IO Shield
- i used PETG CF, i recdomend at least PETG
- GPU MAX 24cm Lenght!
Also you will need a Power Button 16mm, i used this one: https://www.amazon.de/dp/B0F1TP3R1B?ref=ppx_yo2ov_dt_b_fed_asin_title
And this one for the MB Screws: M3, 5x4: https://www.amazon.de/dp/B0D17FGQWW?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
The filament: amazon.de/dp/B0DJ11F3VS?ref=ppx_yo2ov_dt_b_fed_asin_title (i reccomend to dry it first for at least 8 hours)
The Case and the Lid took me ages to print. The case was about 1D1h and the Lid About 8h. Maybe you guys know how to improve the model, the printtime or other things. Just let me know.

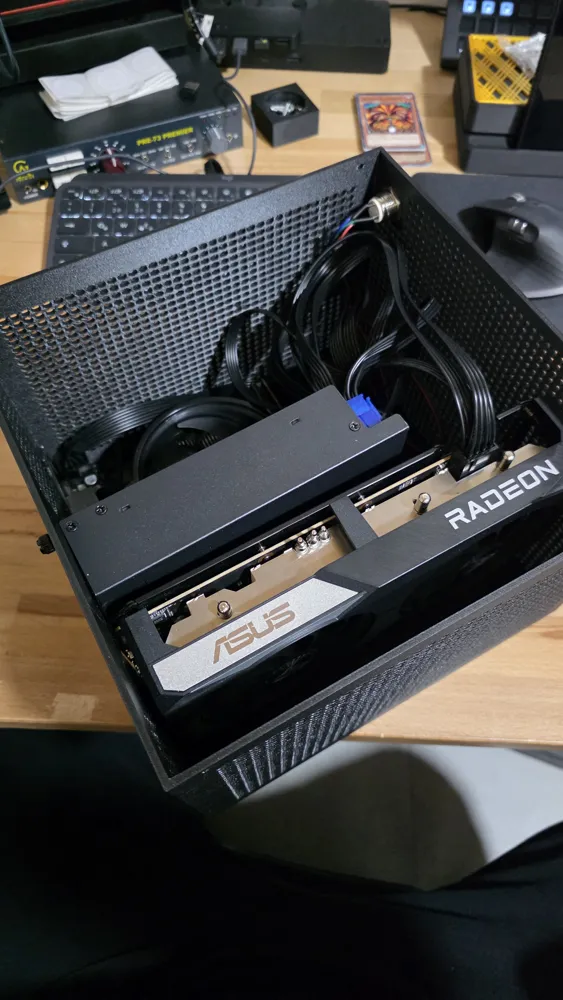

I unscrewd the rear pannel of the GPU so it can fit.

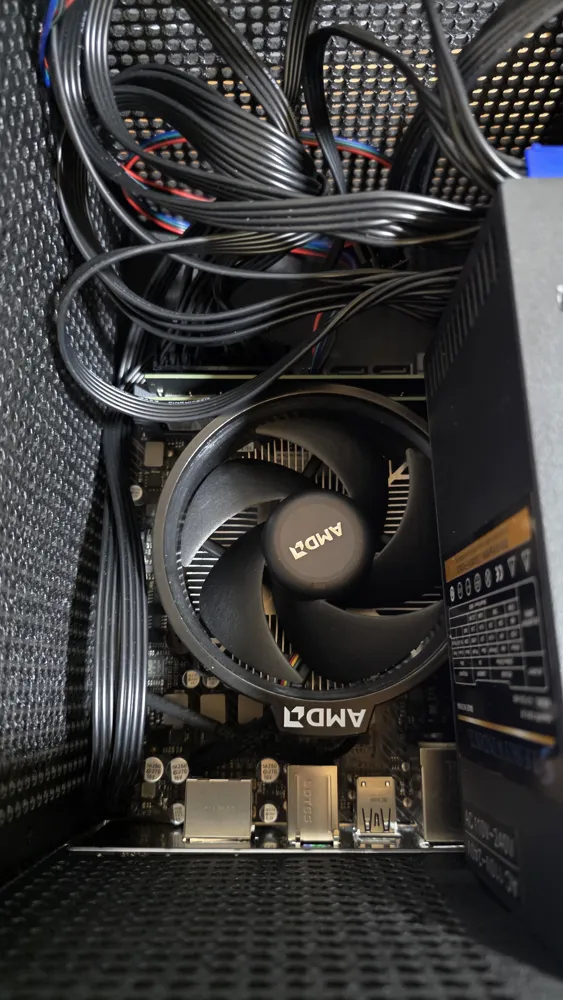

My Setup:
Prime Asus A320
Ryzen 7 5700g
16 GB RAM
Flex PSU
Asus RX 6600, 24cm lenght
Please check your mini itx motherboard for the correct alignment of the screws, and fix it by yourself :)
