🔋 3S LiPo Battery Case – Technical Specifications

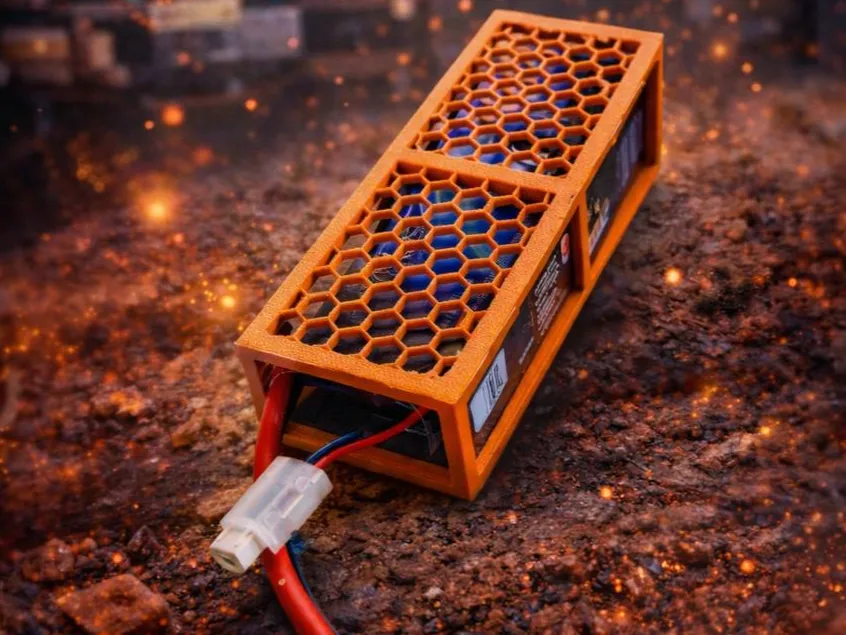

This enclosure is designed for safely housing a standard 3S LiPo battery pack while maintaining airflow and structural rigidity through a honeycomb ventilation design.
📐 External Dimensions:
- Length: 160 mm
- Width: 55 mm
- Height: 40 mm
📏 Internal Dimensions (Battery Compartment):
- Length: ~150 mm
- Width: ~48 mm
- Height: ~34 mm
(Designed with clearance tolerance for standard 3S LiPo packs and cable routing.)
🧱 Design Features:

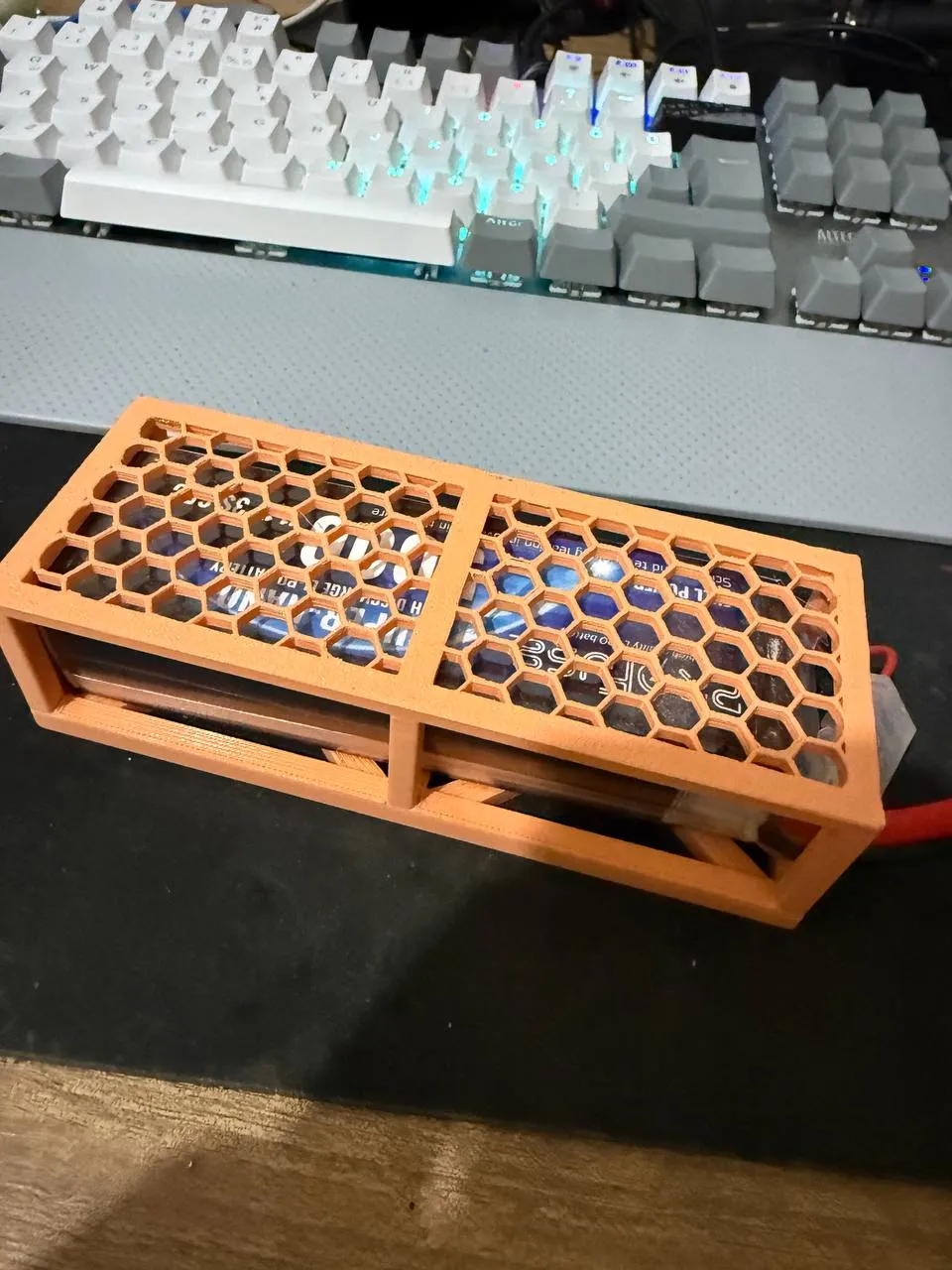

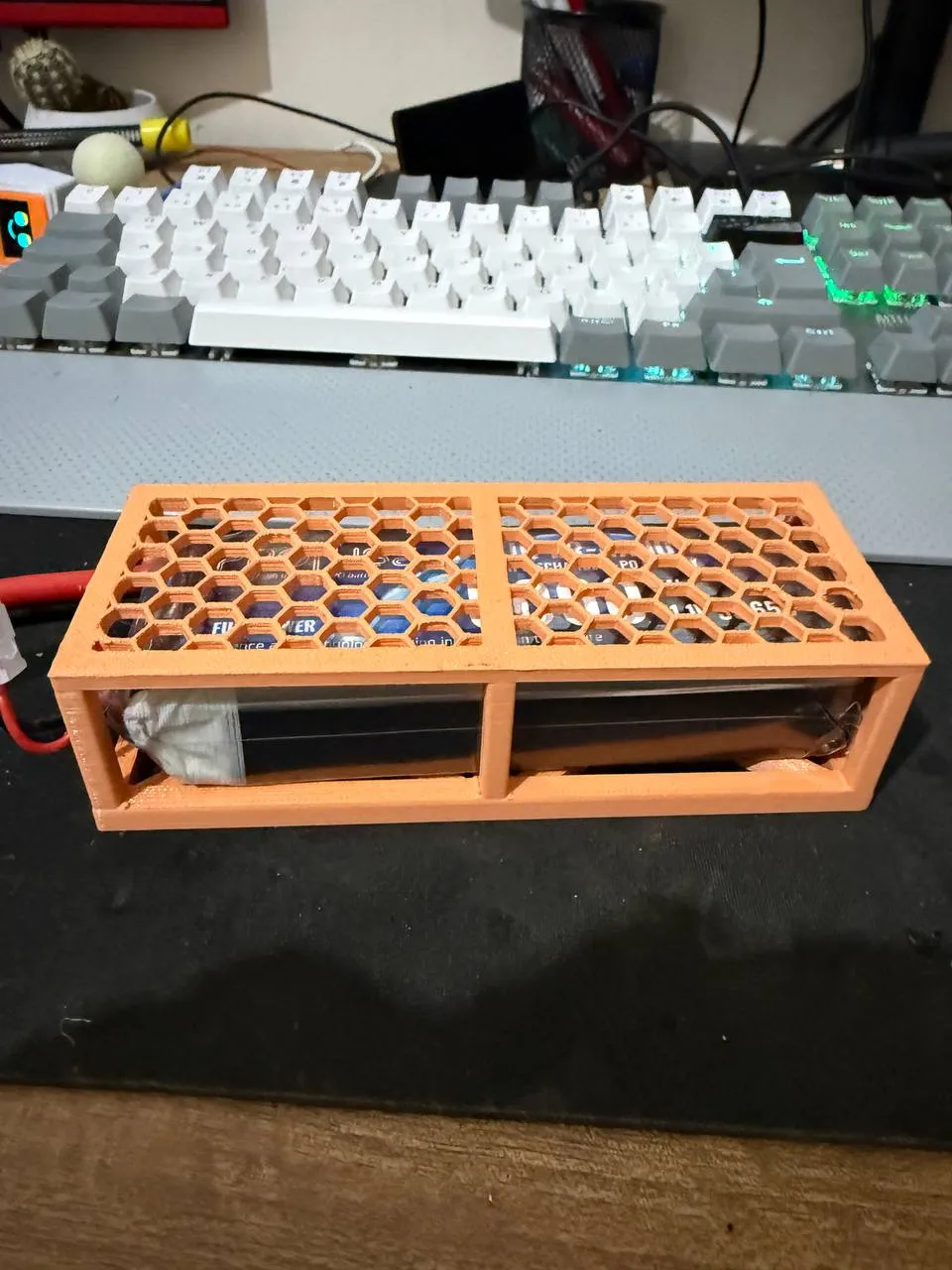

- Honeycomb top cover for optimized strength-to-weight ratio
- Passive airflow ventilation
- Front opening for XT60 connector output

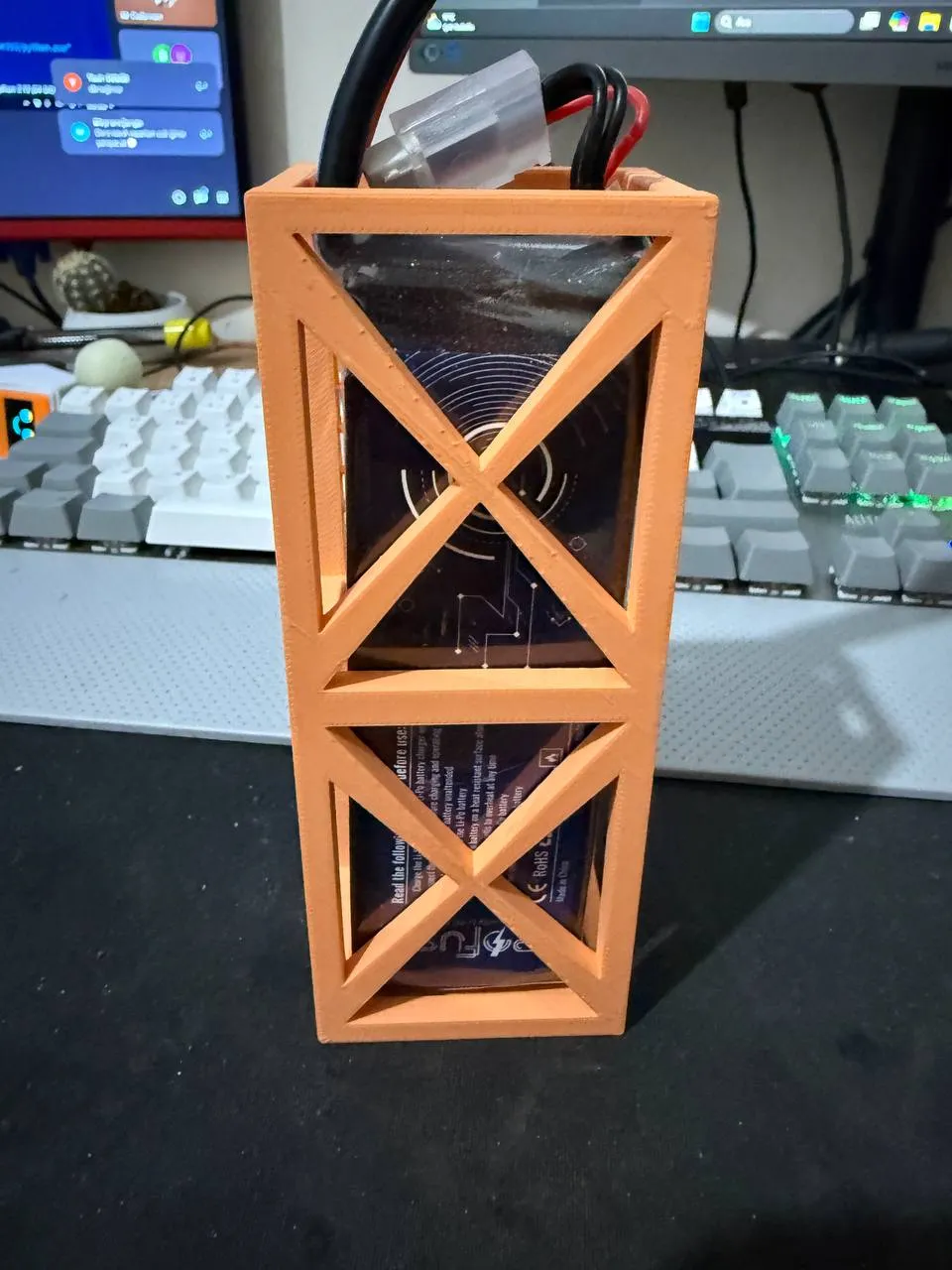

- Reinforced side frames for structural stability
- Parametric design (dimensions can be adjusted easily)
🖨 Recommended Print Settings:
- Material: PETG (recommended for higher temperature resistance) or PLA+
- Layer height: 0.2 mm
- Infill: 30–40% (Gyroid recommended)
- Wall count: Minimum 3 perimeters
🎯 Applications:
- RC vehicles
- Robotics projects
- DIY power systems
- Portable LiPo battery protection
Designed with a balance between mechanical strength, thermal management, and print efficiency.
