Shark Wandvac Deep-Reach Flexible Vacuum Nozzle
Print Profile(1)
Description
Finally Clean the Places Your Vacuum Can’t Reach
⭐ Why This Exists
If you’ve ever tried cleaning inside appliances, behind filters, or inside narrow gaps, you already know:
👉 Standard vacuum attachments are too bulky.
👉 Straight nozzles hit walls before reaching debris.
👉 Dust builds up where you physically cannot access.
This tool solves that problem.
Designed during maintenance of a Samsung Bespoke washer/dryer, this nozzle system reaches areas normally impossible to clean — especially around the condenser and hidden lint zones.
🔥 What Makes This Different
Most printed vacuum tools are rigid.
This one isn’t.
- Flexible TPU 95A extensions bend slightly to navigate tight spaces

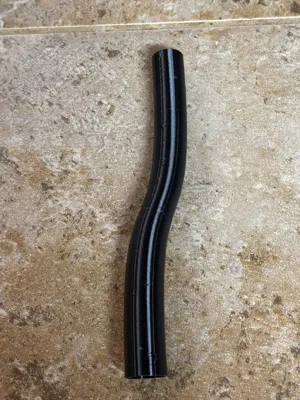

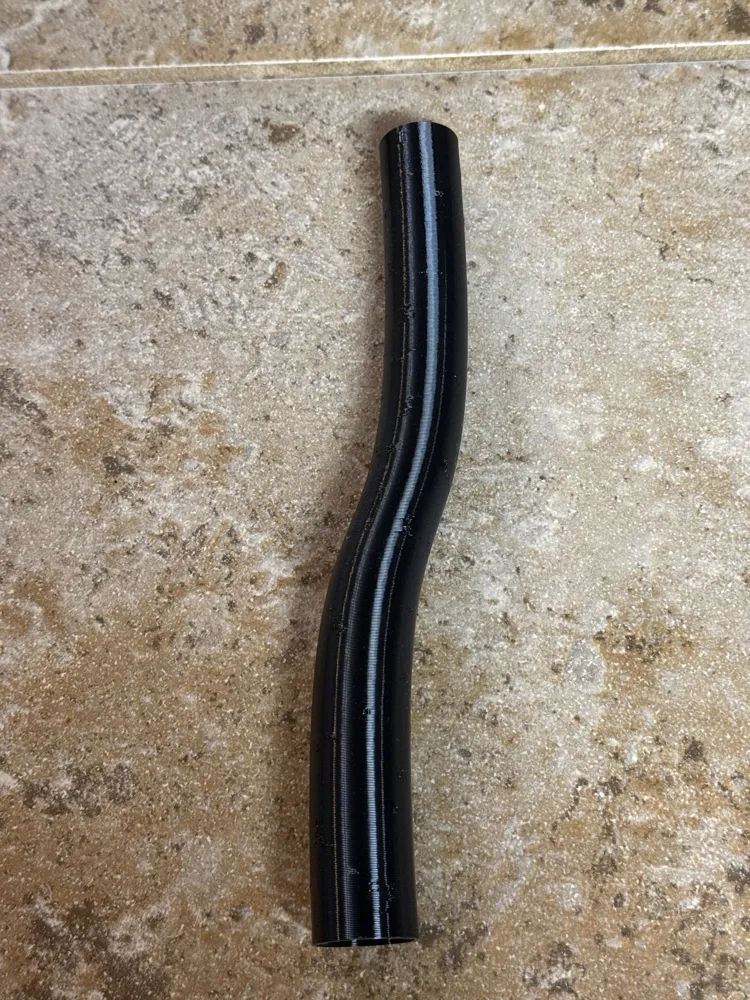

- An S-offset path reaches around obstacles

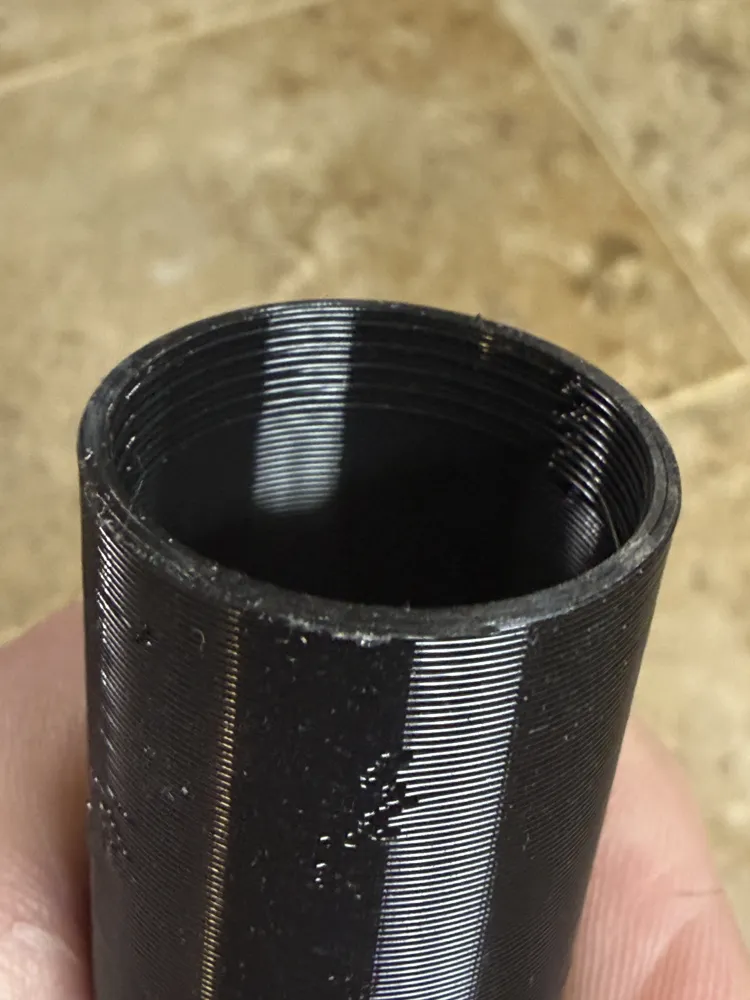

- Ribbed push-fit joints assemble instantly

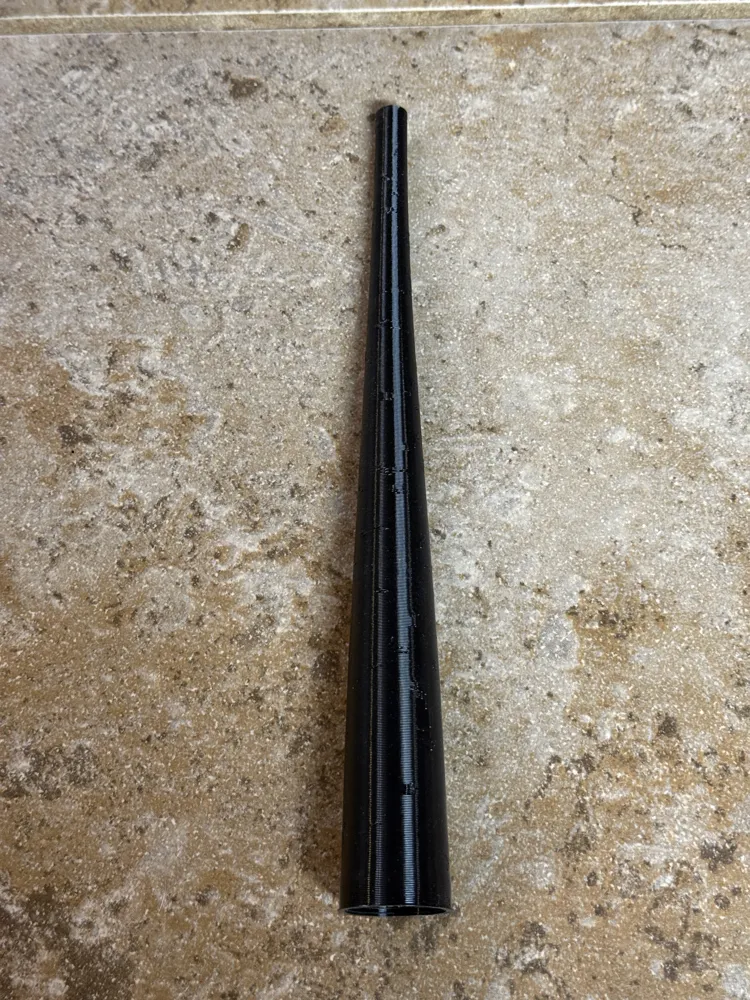

- Narrow tapered tip concentrates suction exactly where needed
Result: deeper cleaning without disassembly.

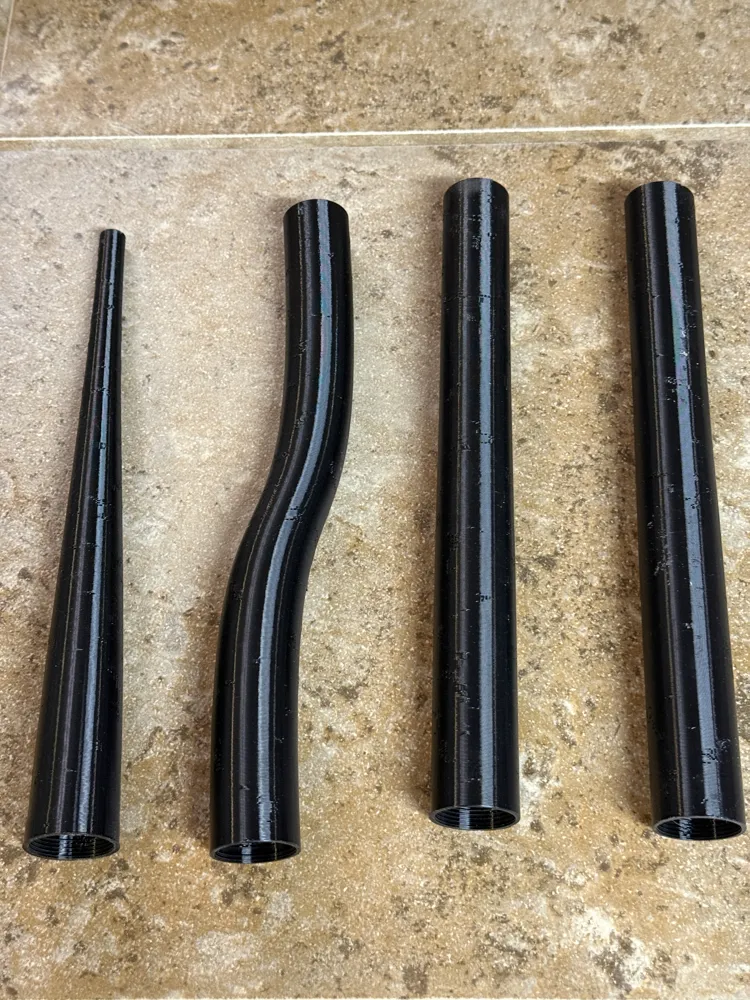

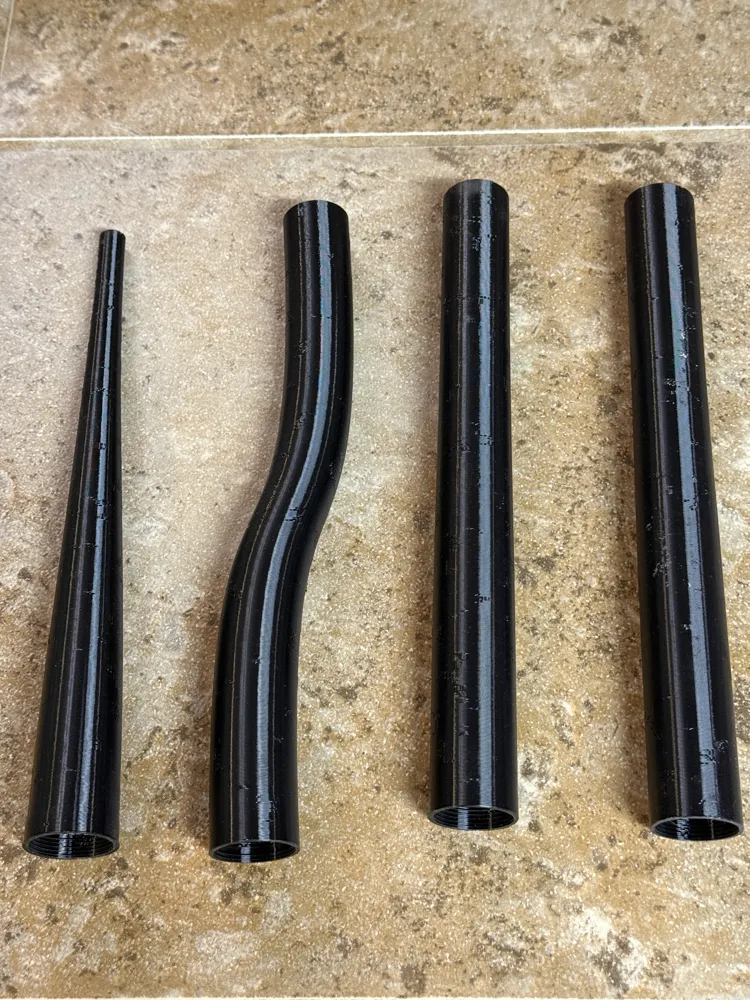

🧩 Modular System

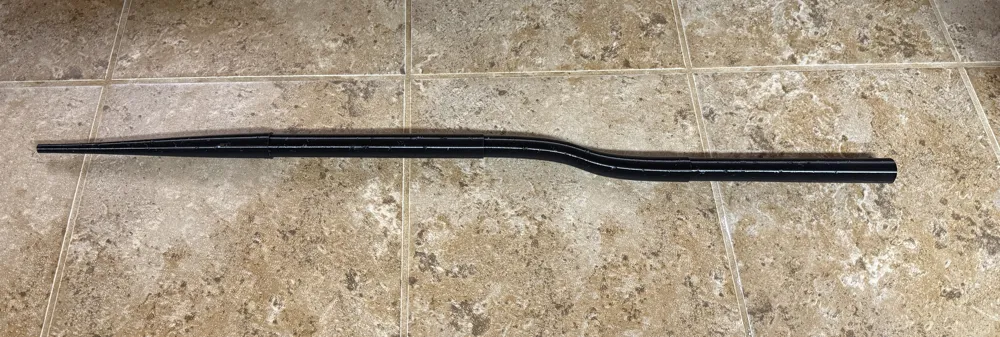

Build the length you need:

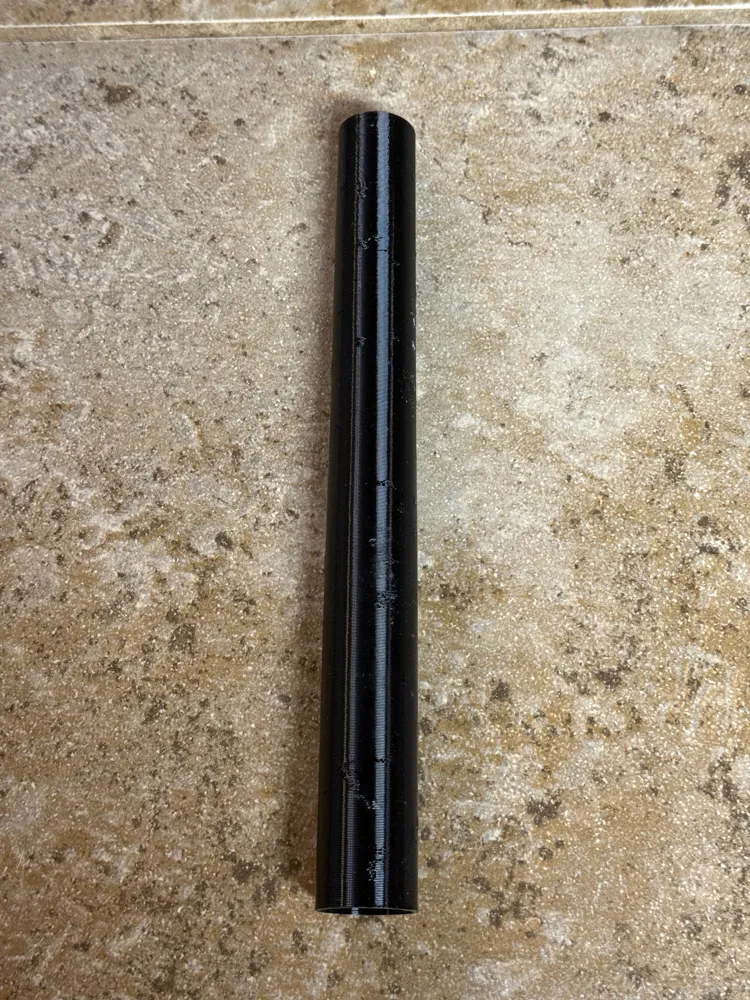

- Straight extensions for reach
- Offset section for obstacle clearance
- Precision tip for tight gaps

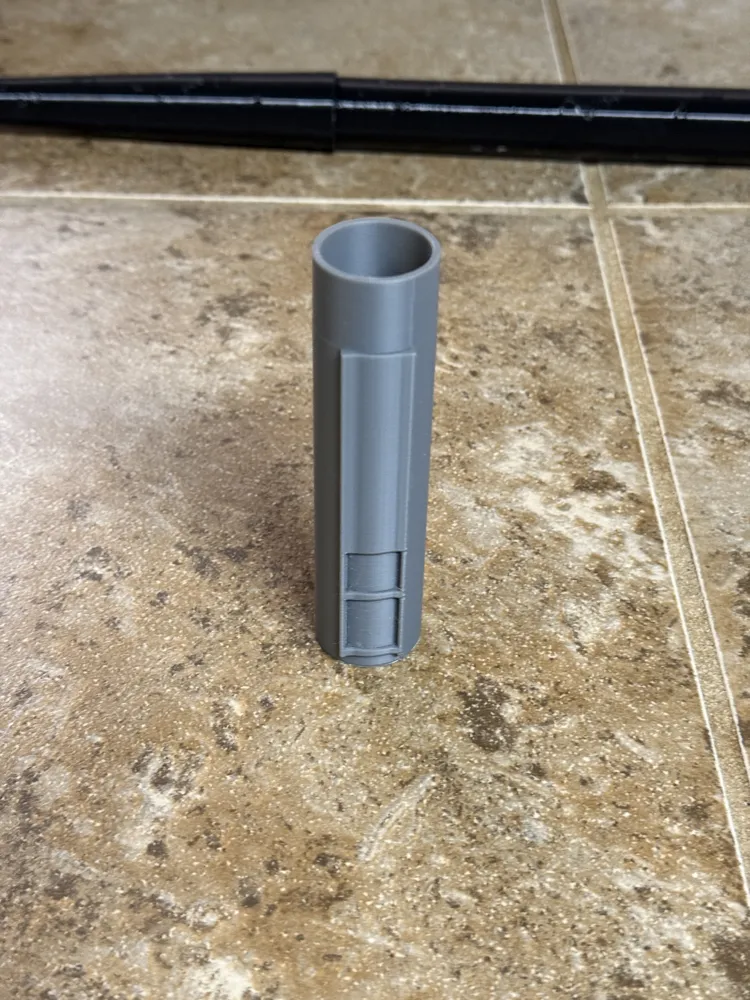

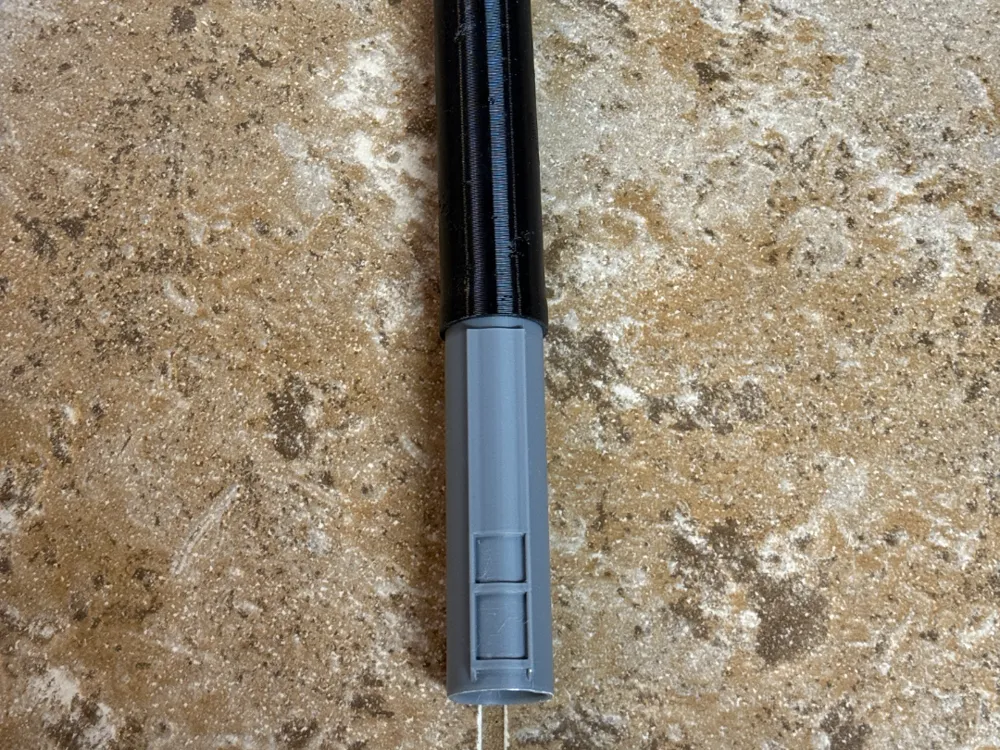

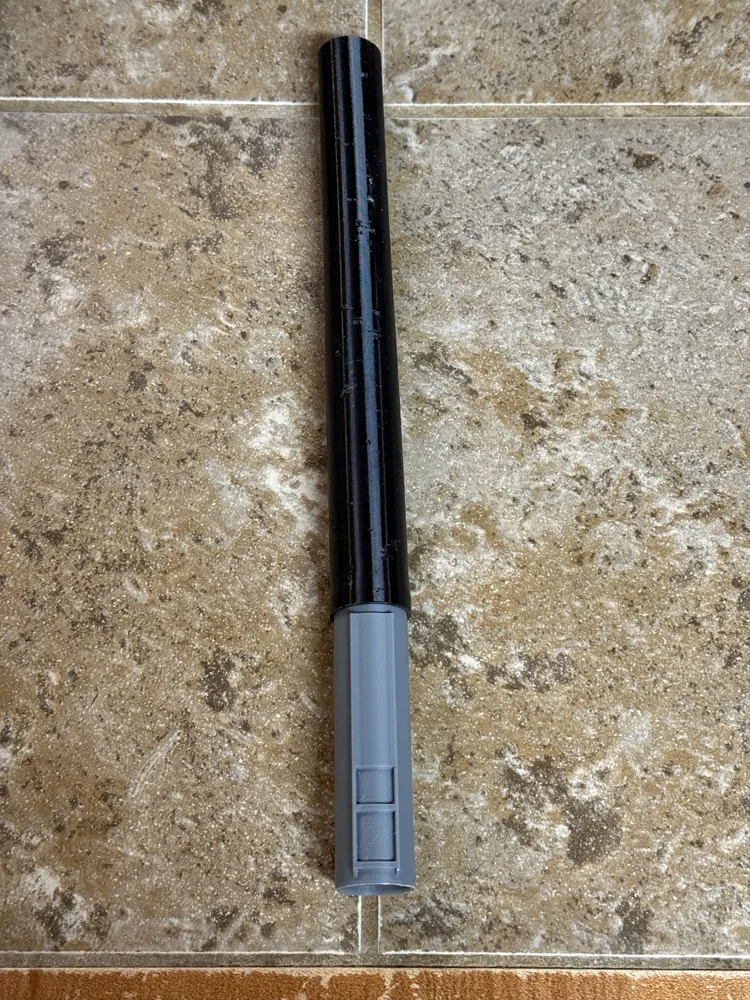

- PLA adapter for secure Shark Wandvac connection
🖨️ Multi-Material Friendly Design
This model is intentionally split for optimal performance:
TPU 95A
- Flexible tubes
- Offset section
- Nozzle
PLA
- Vacuum adapter (rigidity + sealing)
No supports required.
🛠️ Real-World Uses
✔ Washer & dryer condenser cleaning
✔ Behind lint filters
✔ Refrigerator coils
✔ Car seat rails
✔ HVAC vents
✔ Electronics and server equipment
✔ Under appliances
⚙️ Print Recommendations
TPU prints best slow:
- 0.2 mm layer height
- 20–35 mm/s
- 3–4 walls
- Minimal infill
PLA adapter:
- 20–30% infill
- 4 walls
💬 Designer Note
This wasn’t designed as a novelty print — it was built to solve a real maintenance problem where commercial tools failed.
If you maintain appliances or like practical prints, this is one you’ll actually use.
