Description

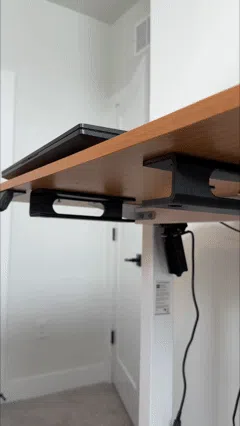

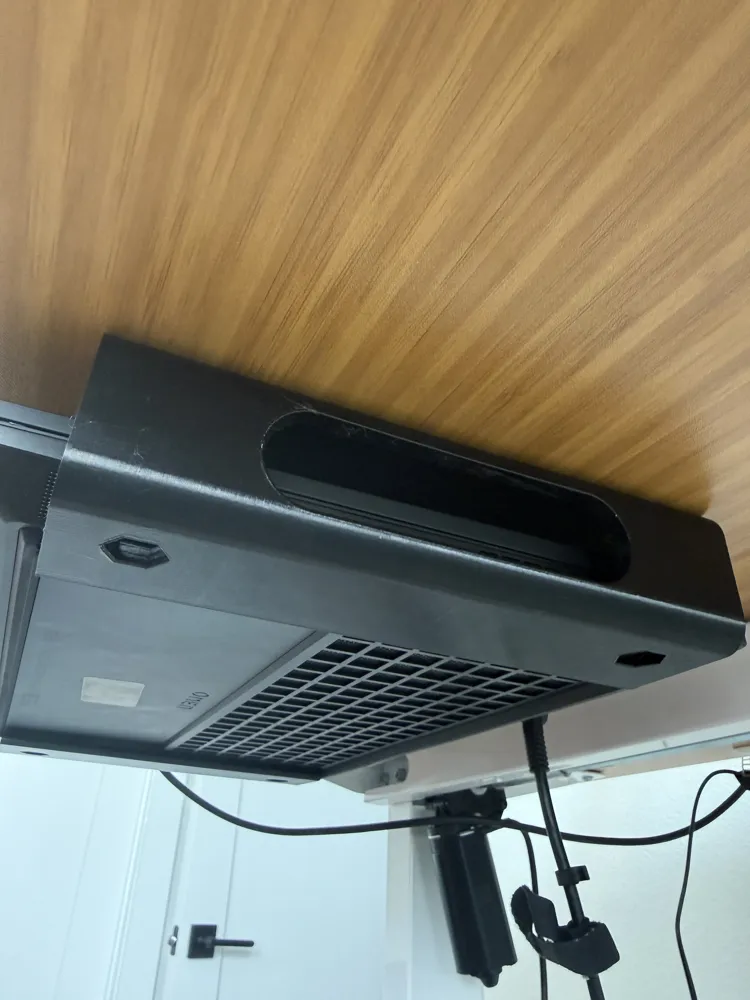

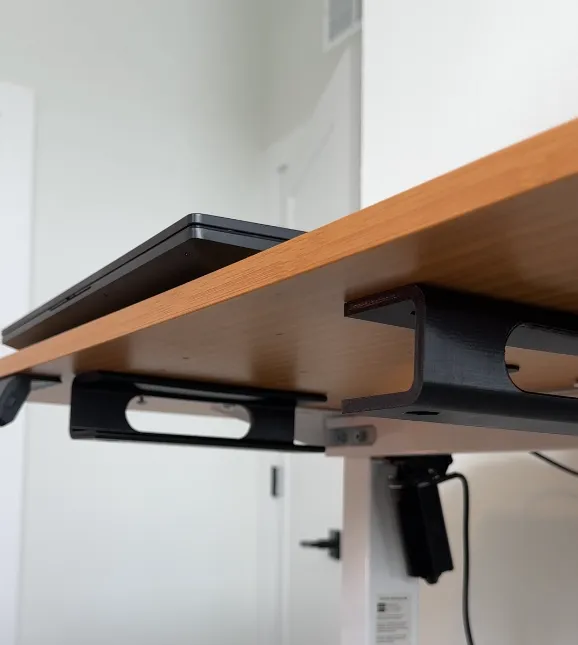

The Platforma Stealth Mount is a heavy-duty storage solution designed to reclaim your desktop. By relocating your laptop to the underside of your desk, you instantly free up valuable surface area for a cleaner, more focused workspace—perfect for users who run their setup in "clamshell" mode with external monitors.
These brackets are engineered with a focus on airflow and protection. The open-frame design ensures maximum ventilation for your machine's cooling intake/exhaust, while the wide contact surface distributes weight evenly to prevent pressure points on the chassis. Designed as a set of independent brackets, they can be spaced to accommodate any laptop size—from a 13" MacBook Air to a bulky 17" Gaming Workstation.
Boost Me (for free)
Please consider supporting my work :)
Key Features
- Universal Fit: Independent bracket design allows you to space the mounts perfectly for any laptop width or depth.
- Thermal Optimization: Minimalist geometry ensures 100% airflow to your laptop’s vents, preventing overheating during docked use.

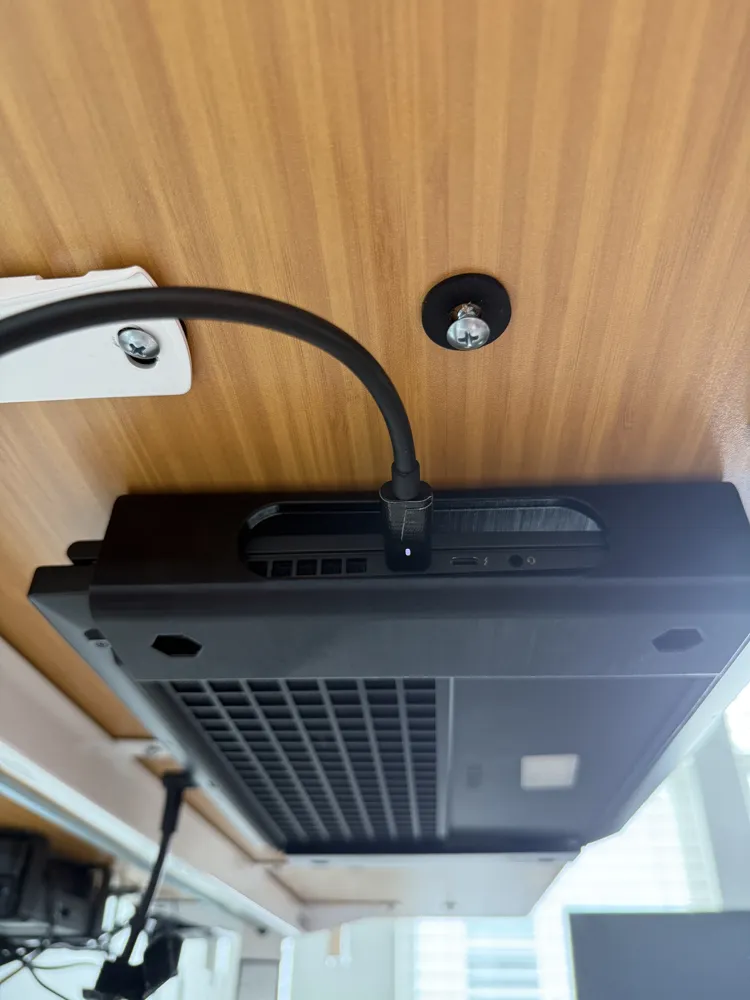

- Secure Installation: Features countersunk screw holes designed for standard #6 size wood screws, ensuring a rock-solid anchor to your desk surface.
- Easy Port Access: The wide side slot allows for maximum air flow and uninterrupted access to all of your computer's ports.
Printing Tips
- Orientation: Print the base stands with the openings for the extrusions facing upwards.
- Supports: This model is designed to print without supports.
- Scaling: It is recommended to print at 100% scale to ensure a precise fit for all accessories, if you would like a custom size please feel free to message me :)
Recommended Print Settings
- PETG RECOMMENDED
- Layer Height: 0.2mm
- Infill: 20% Cubic
- Wall Count: 3 Walls
- Top/Bottom Layers: 3 layers
- Brim: Recommended
- For "bed-slinger" style machines consider printing on the long open face and using supports.
Materials Used
- Filament: https://amzn.to/4qeGDCr
- Screws (#6 1/2" Wood Screws): https://amzn.to/4qbZKNi
- (Optional Alternative) Full Set of Wood Screws: https://amzn.to/4rq0Whb
As an amazon affiliate I may earn a small commission on qualifying purchases at no cost to you. This is a free way to support my work and I greatly appreciate it, thank you!
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
