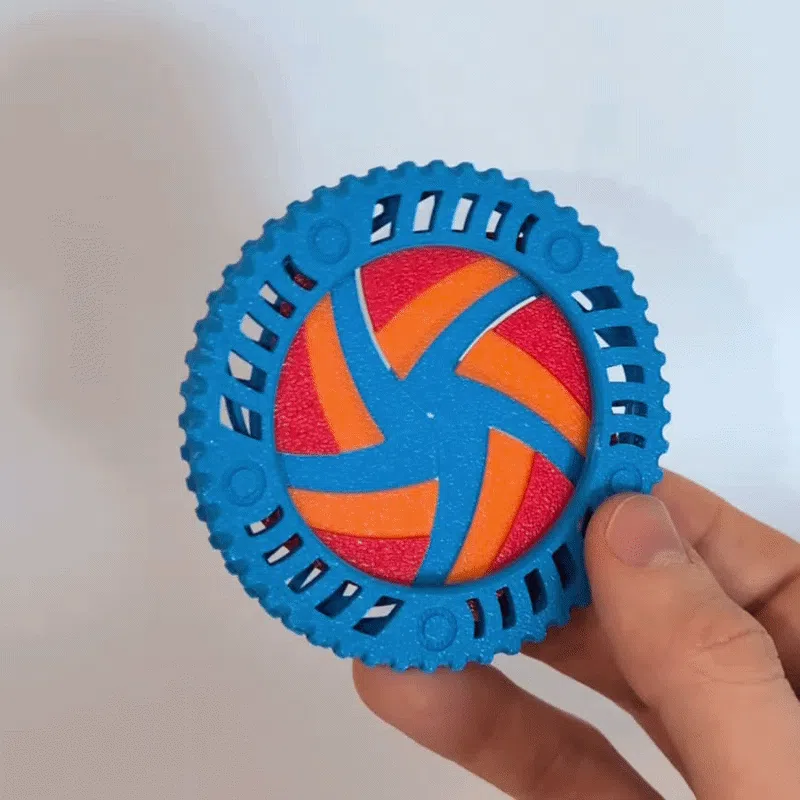

A very slim Iris with tripple stacked leaves.

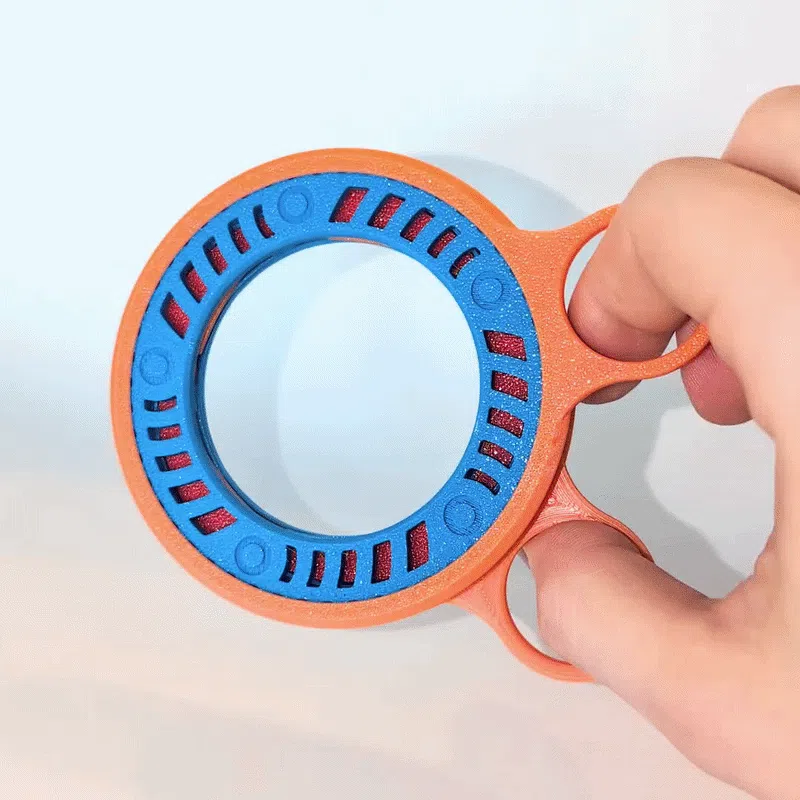

Is compatible with the Iris Handles for the fidget iris.

Assembly:

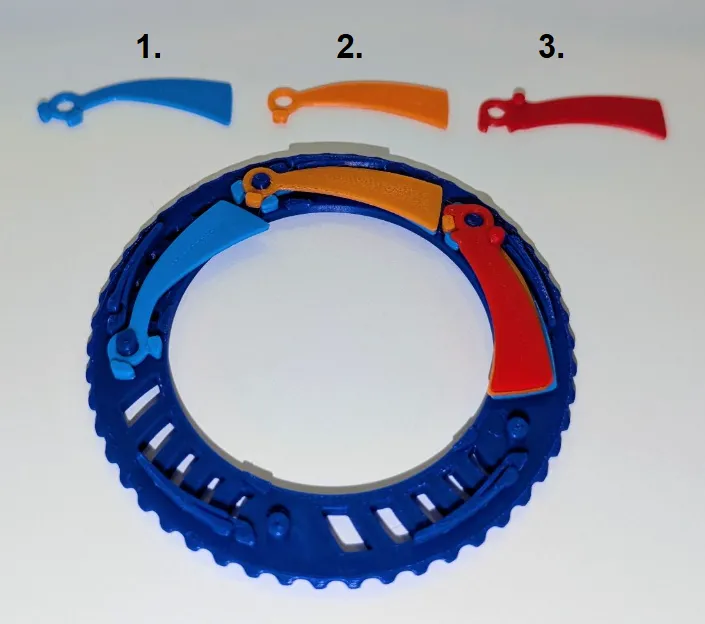

Place the sliders on the Pins. Make sure the order is correct.

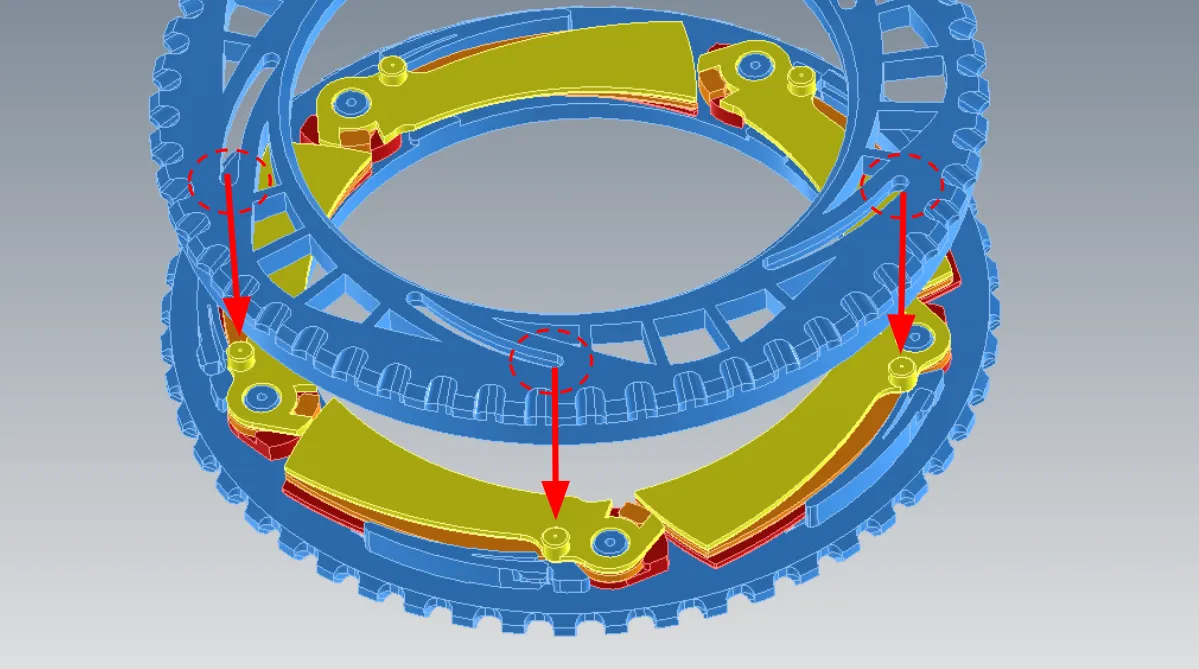

Align the end of the curved track in the housing, with the Pin on the upper slider.
Carefully push the housing closed

Infos:

When I designed the Fidget Iris I thought I had done a pretty good job of maximizing the Opening created by the mechanism.

However I was always wondering how that Housing to Opening Ratio could be increased further.

I thought of different designs and started experimenting with stacked sliders.

Finally I was able to make this concept work.

I think it is one of the slimmest iris designs that can fully close.
So far I have not seen any other iris online that has a Housing to Opening Ratio like this one.

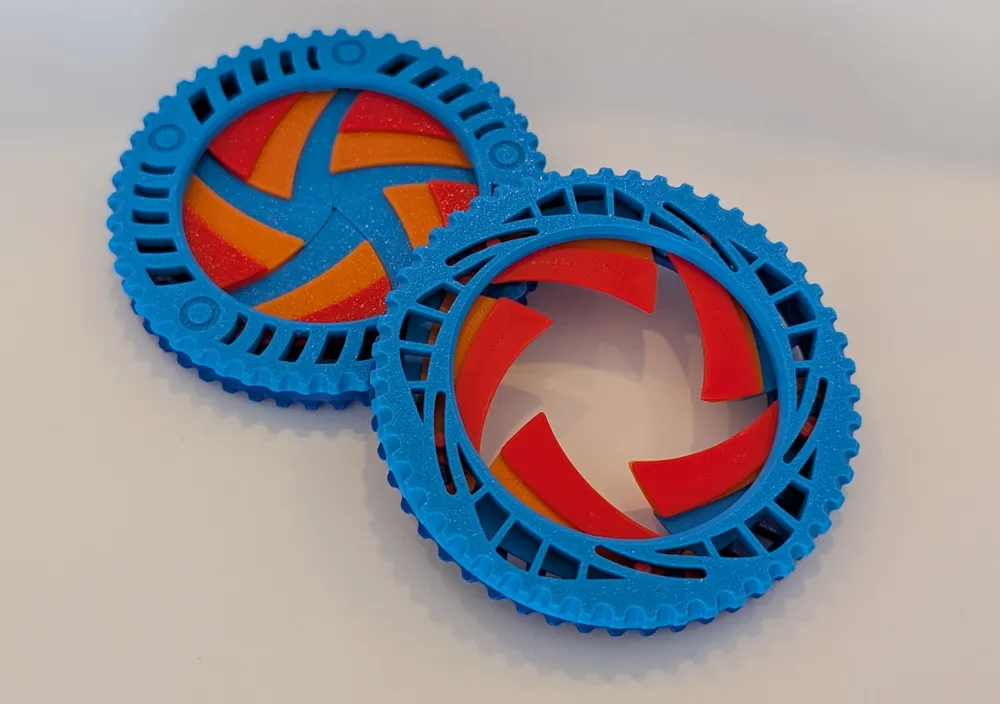

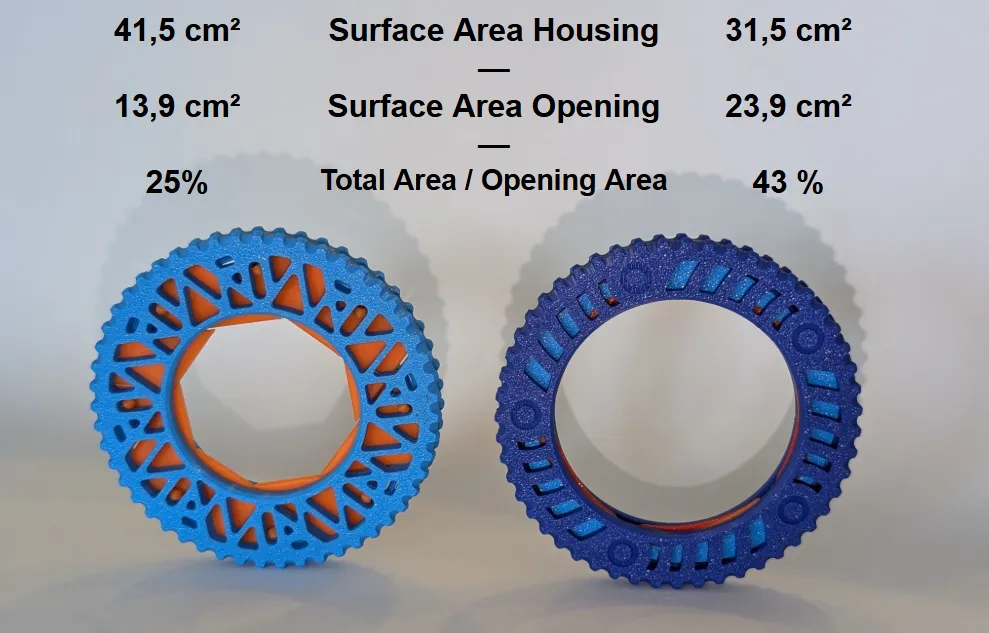

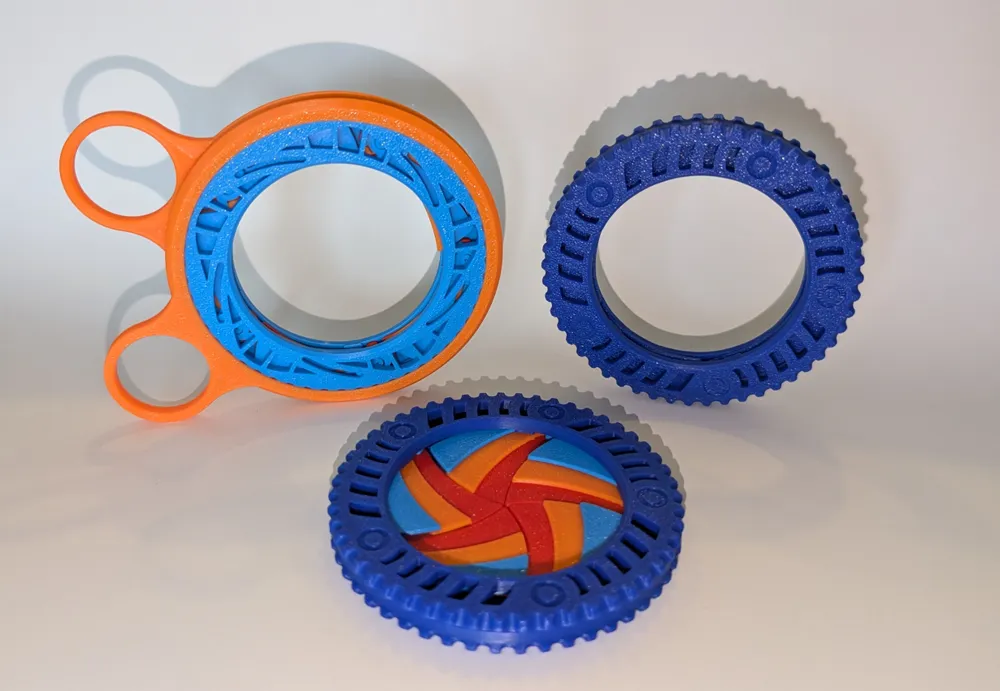

Here is the direct comparison:
