Flex Pivot Bearing

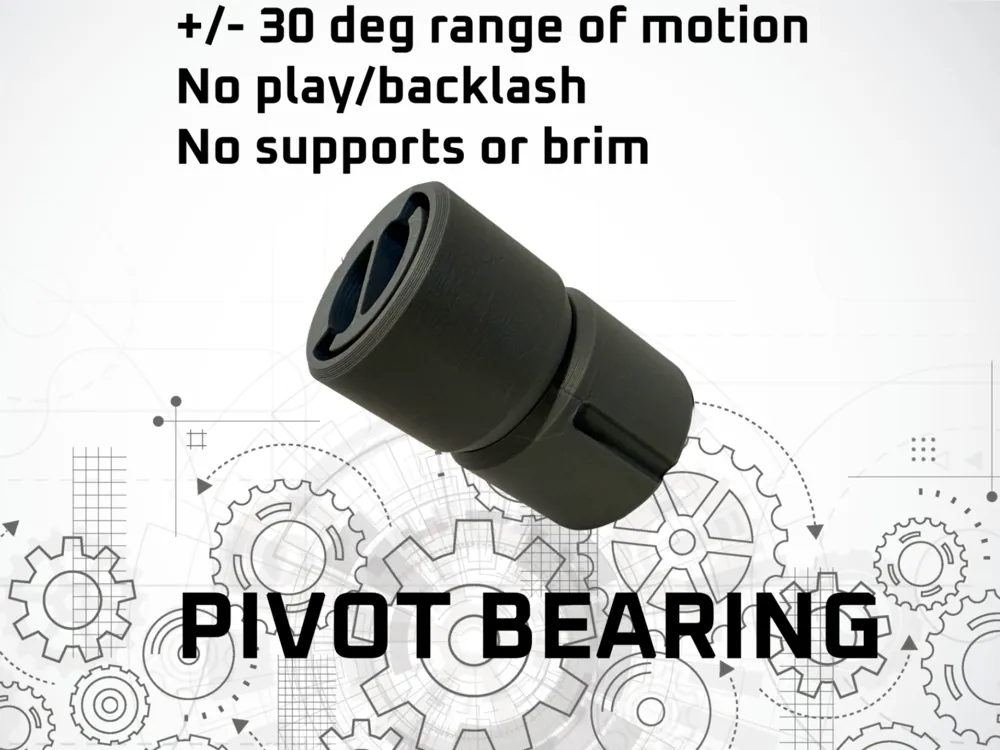

This is a pivot bearing (flexure bearing). It allows for angular rotation in a single axis while remaining stiff in the remaining 5 degrees of freedom. The benefit of this mechanism, compared to traditional ball bearings, is high precision/repeatability, as well as no backlash. The limitations are a low range of motion and a spring constant.

Allows for +/-30 degrees of motion.

Integration. To integrate, do one of the following:

• .50"D, .75"D, and 1.00"D sizes
• Using a slight press-fit (using a mallet or arbor press)
• Epoxy bond
  • For extra hold, have the mating geometry have a similar keyway/slot to allow the epoxy to mechanically hold like a key

Printing:

• .4mm nozzle maximum (or else flexures may not print)
• No support
• No brim
• Print in the vertical orientation

I've tested this successfully with PLA and PETG.  Different filaments have different stiffnesses (reference their material's elastic modulus as a proportional reference)
