GRoG - the Gridfinity openGrid Stand

I'm a big fan of both the Gridfinity and openGrid systems, and this design brings them together in a practical way - letting you keep hanging tools organized and within easy reach on a Gridfinity base.

I originally designed this as a companion to my A1 Printer Gridfinity Attachment System, but it works with any Gridfinity-compatible baseplate.

The included 3MF contains everything needed for assembly:

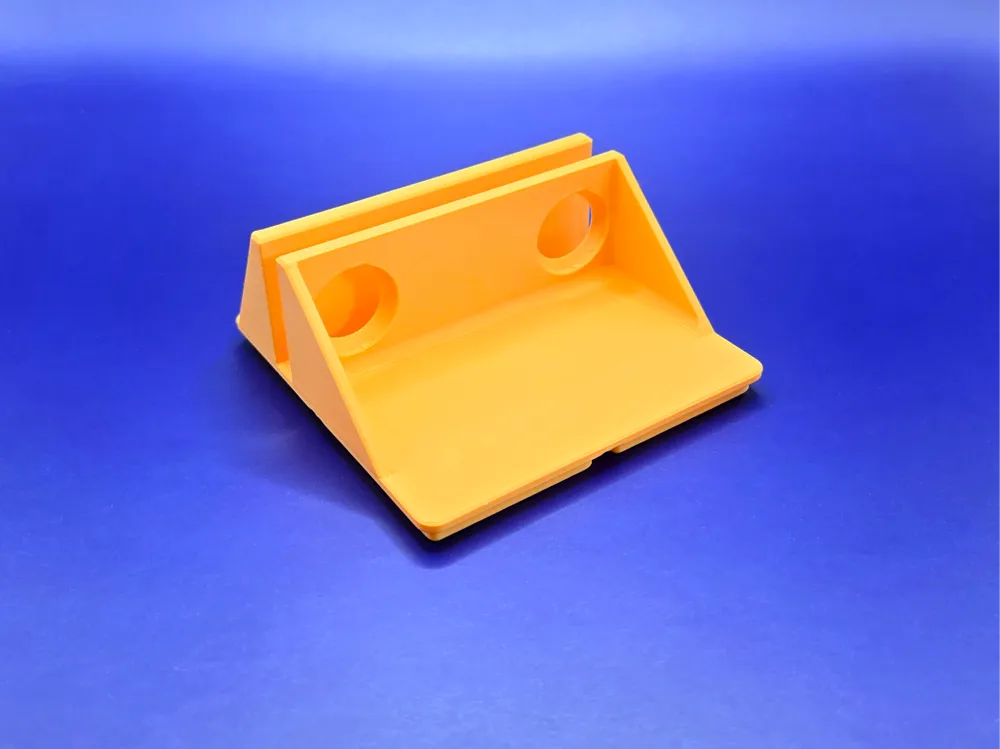

• The Gridfinity stand base model

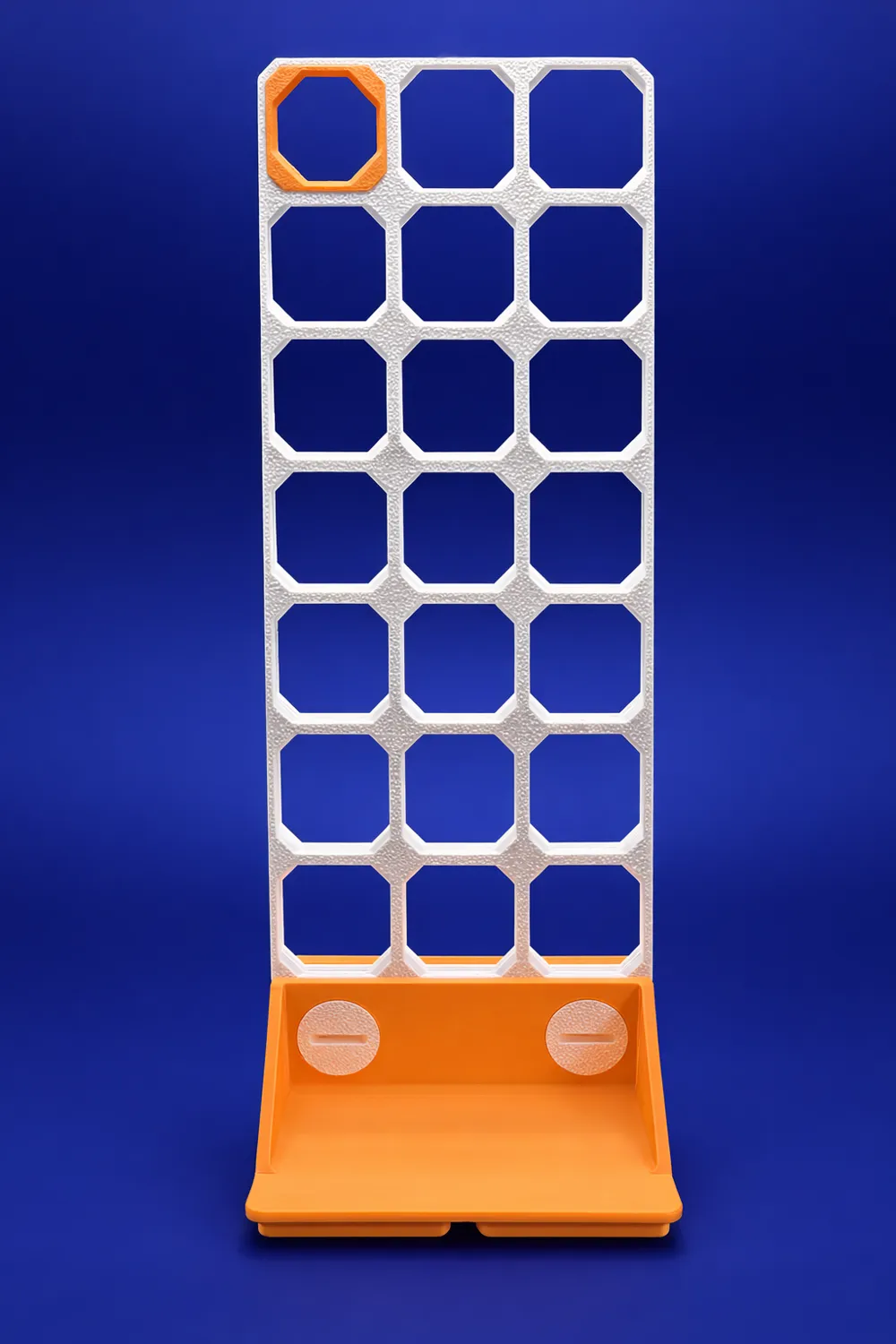

• The upright openGrid panel
• The required Multiconnect components

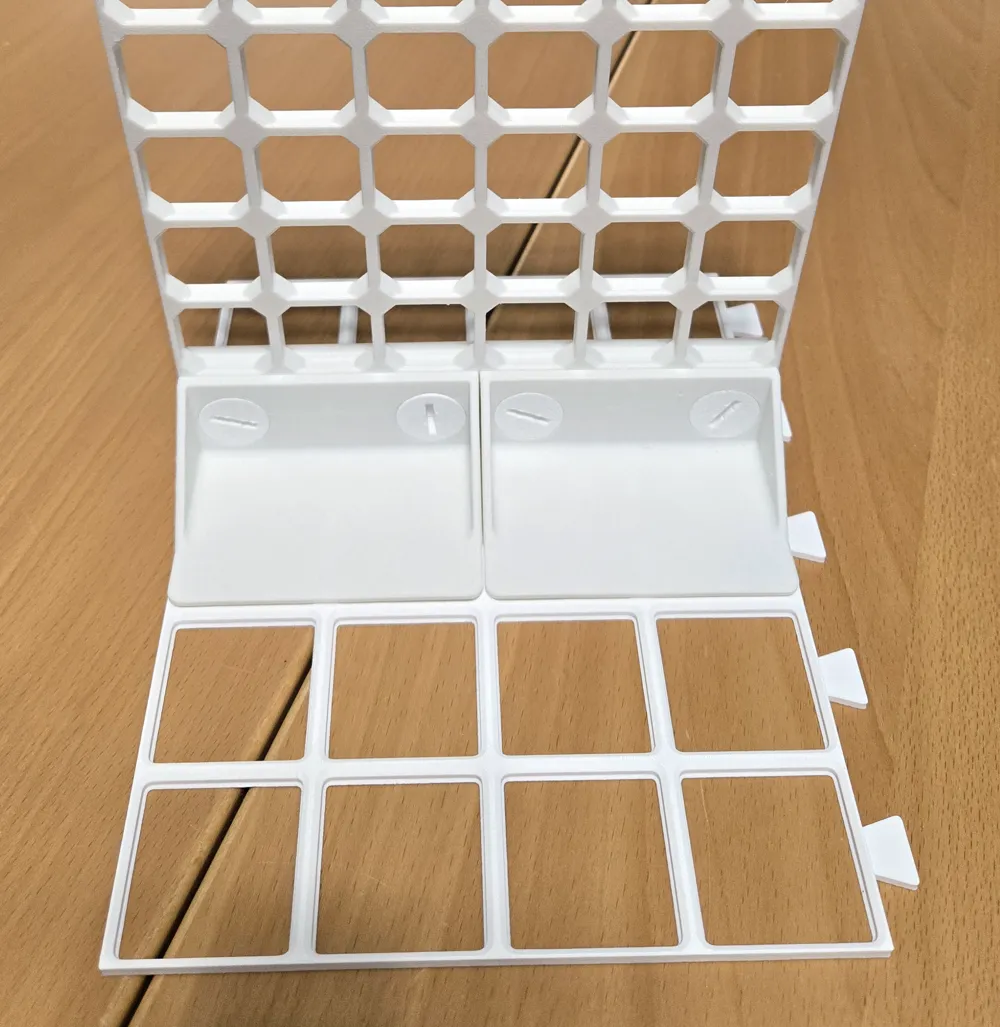

Print, assemble, mount your tool holders, and you're ready to go. If you want a wider setup, you can use two of these stands side-by-side as shown in one of the model pictures.

Update March 8, 2026

I've added a print profile to allow the use of openGrid Heavy, by KYZDesign. The 3MF file includes the modified GRoG stand, a heavy openGrid panel, and the needed Multiconnect components.

Assembly

• Print all included parts.
• Install the Multiconnect Snaps into the bottom row of the openGrid panel.
• The two outer snaps should face the long “front” side of the stand.
• The center snap should face the shorter “back” side.
• Slide the openGrid panel into the stand body.
• Secure it with two Multiconnects at the front and one at the back.
• Add your favorite openGrid-compatible tool mounts.

Optional but recommended:
Consider installing standard 6 mm × 2 mm Gridfinity magnets in the base of the stand, with matching magnets in your baseplate. I use these beside my A1 printers, and the added stability helps prevent accidental tip-overs when grabbing tools.

Acknowledgements


The included openGrid Multiconnect and Multiconnect Snaps are from David D, the creator of openGrid, at
https://makerworld.com/en/models/1179191-opengrid-wall-desk-mounting-framework-ecosystem#profileId-1194970

The Gridfinity system was created by Zack Freedman of Voidstar Lab.

The 3x8 openGrid boards (both Full and Heavy) included in the download files were generated with Perplexity https://gridfinity.perplexinglabs.com/pr/opengrid/0/0

This model is entirely my own design (not a remix), but it was inspired by this tabletop openGrid stand design by AxioPaladin:
https://www.printables.com/model/1355655-gridfinityopengrid-tabletop-stand

Links

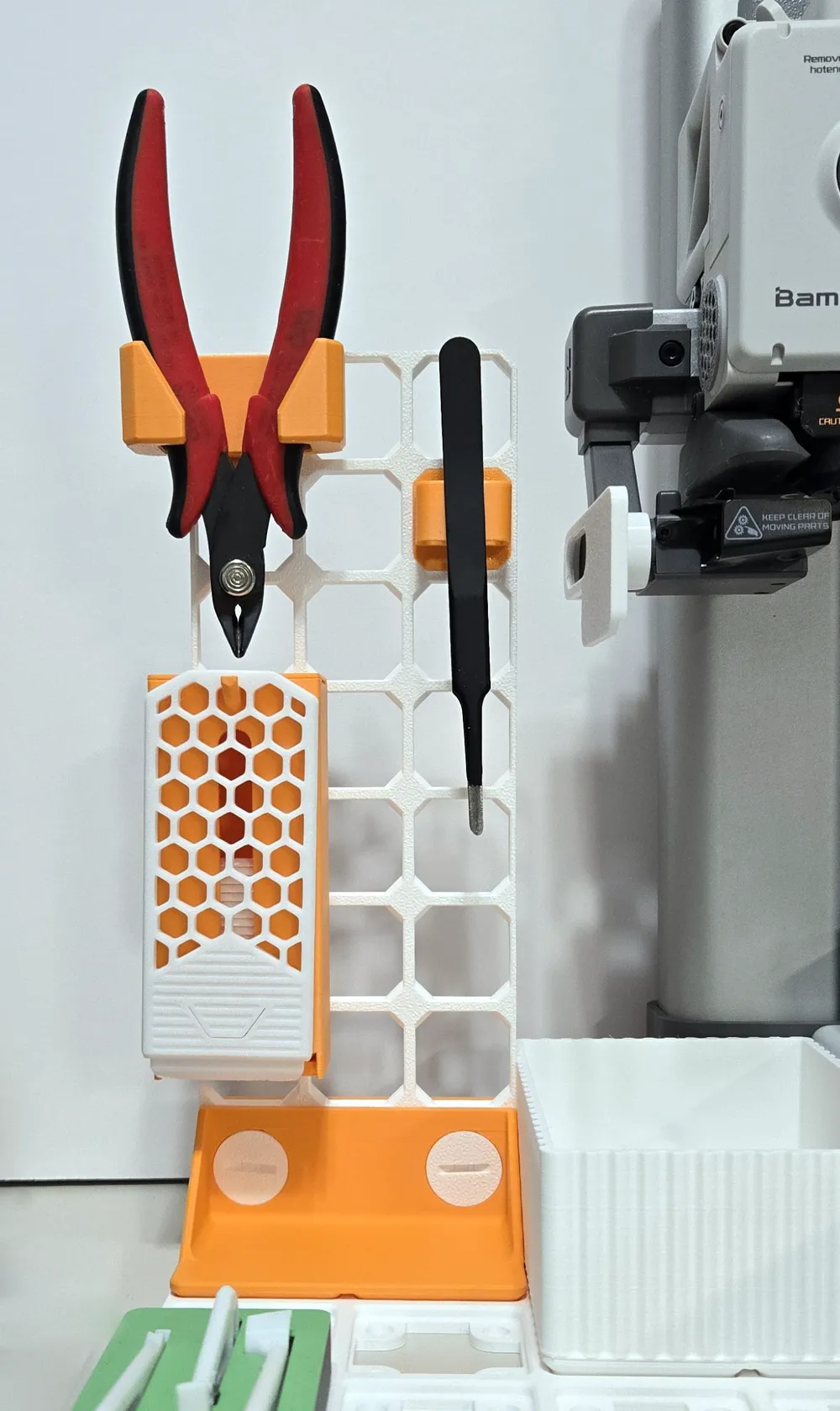

One of the model pictures here is of the setup I use for my A1 printers. I've had some requests for links to the various models shown, so here they are:

• Optimized Bed Scraper:
  https://makerworld.com/en/models/231936-optimized-bed-scraper#profileId-248951
• OpenGrid Compatible - Blade Dispenser (my own print profile/remix, but any points go to the original designer):
  https://makerworld.com/en/models/242420-blade-dispenser-for-bed-scraper#profileId-2365233
• Side-cutter hanger:
  https://makerworld.com/en/models/796397-multiboard-tool-holders#profileId-735582
• Tweezer hanger:
  https://www.printables.com/model/907594-multiboard-tool-holders-in-various-sizes
• OpenGrid snaps for Multiboard peg. The side-cutter and tweezer hangers above are mounted with this:
  https://makerworld.com/en/models/1827774-opengrid-snaps-for-multiboard-peg#profileId-1951449
