Lotus and Fish Lantern/Desk Lamp

Lotus & Fish Lantern

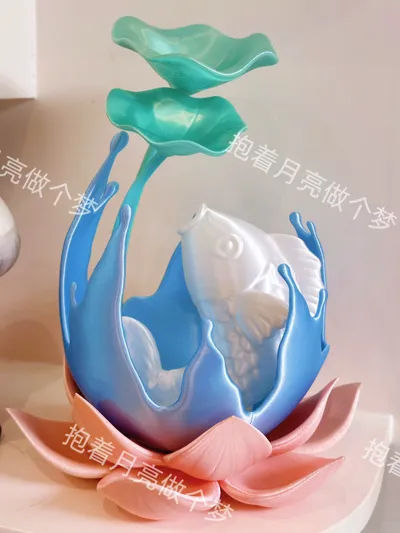

In the center of the lotus, under the lotus leaves, a fish is leaping out of the water

Inspiration

Attempting to capture a poetic scene

The scene incorporates traditional Chinese festive elements

Lotus leaves and fish symbolize "Lian Lian You Yu" (abundance year after year). We hope to convey year-round prosperity to everyone

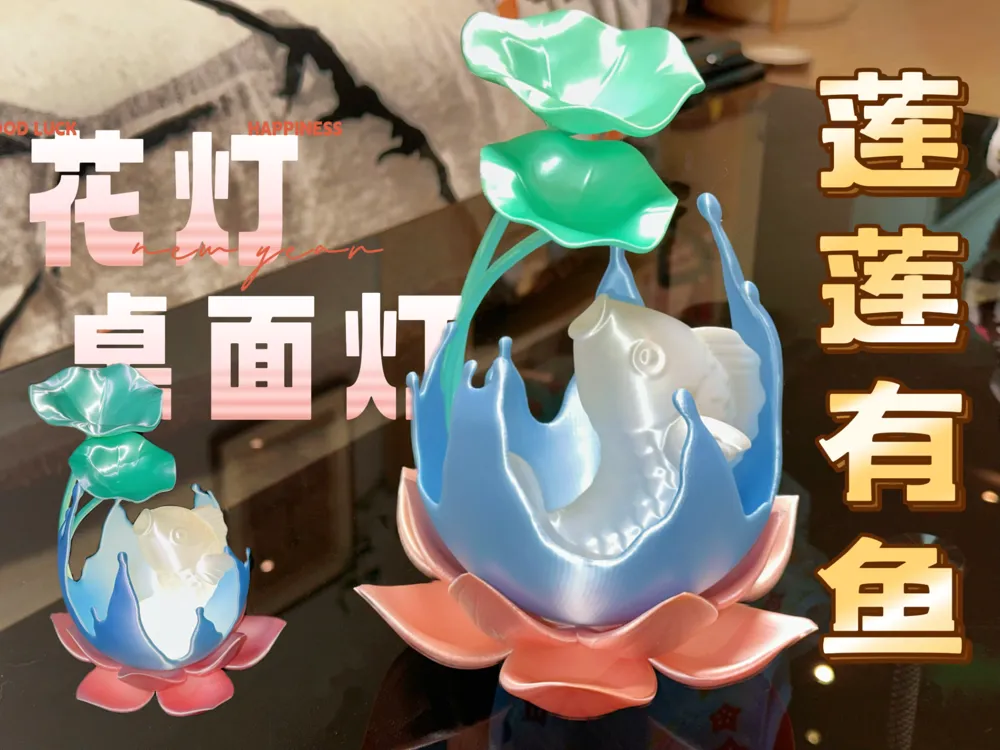

Two versions

1. Lantern version (left image): Internally equipped with light core KC008/KC017/KC8 (37.2*37.2mm) and a handle assembly

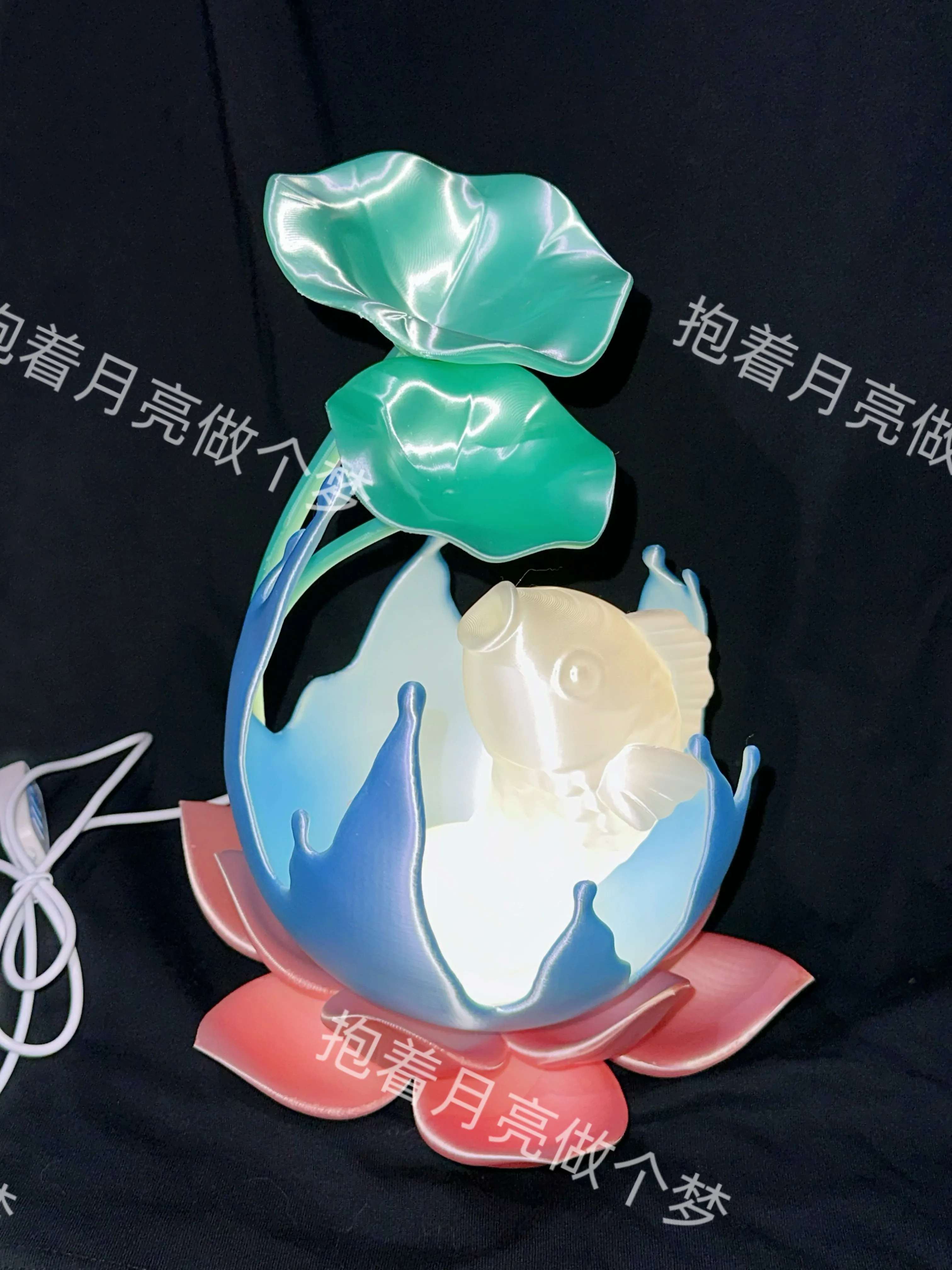

2. Desktop version (right image): Internally equipped with MH001 light



The handle frame of the Lantern version features auspicious cloud patterns, complementing the overall classical charm of the "Lian Lian You Yu" lantern

Assembly notes

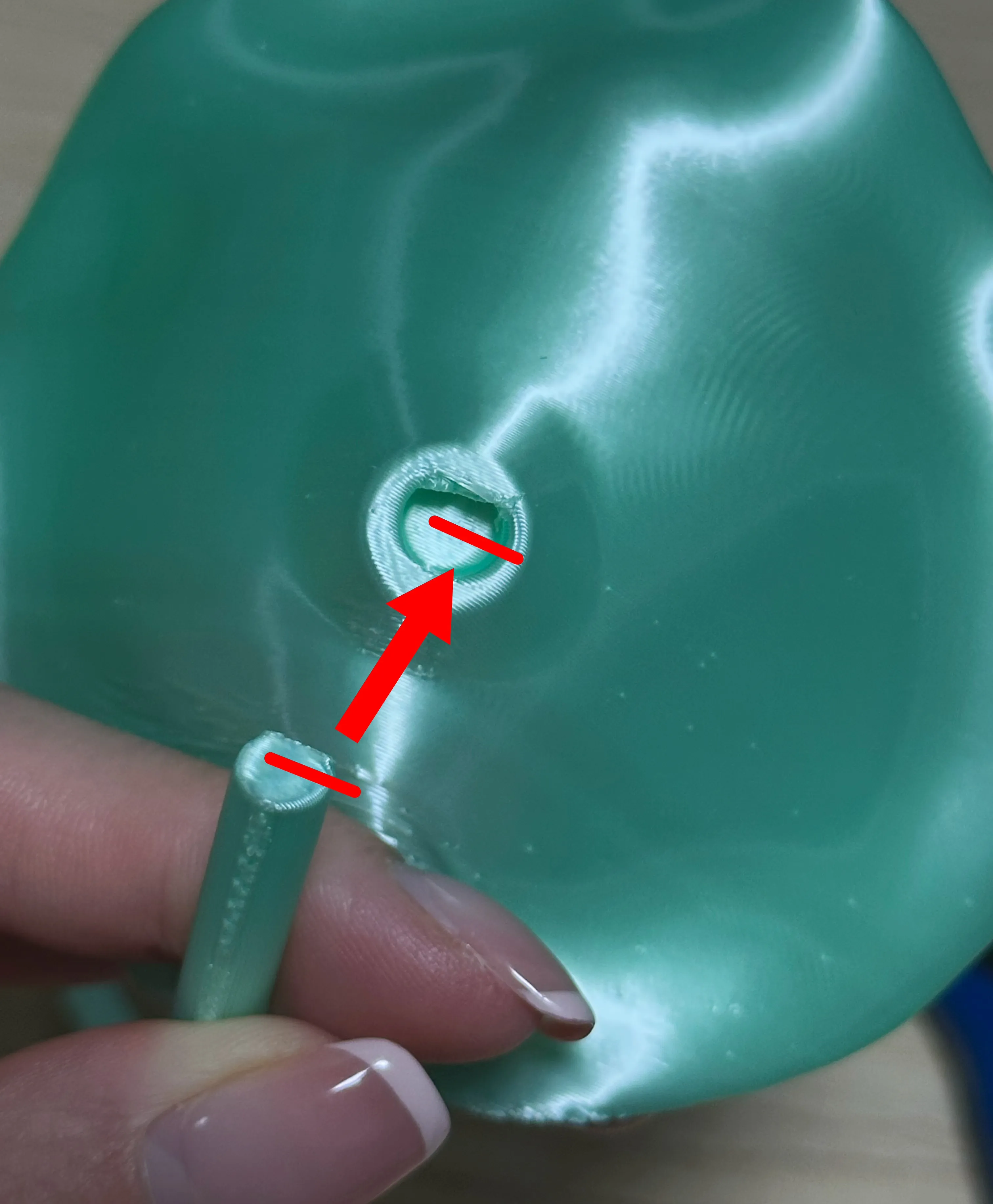

1. When assembling the two lotus leaves and stems, align the cut surfaces and press them in. Apply super glue for a secure fit



2. When assembling the lotus stems and lotus flower, also align the cut surfaces and press them directly in. The left is the large lotus leaf, and the right is the small lotus leaf

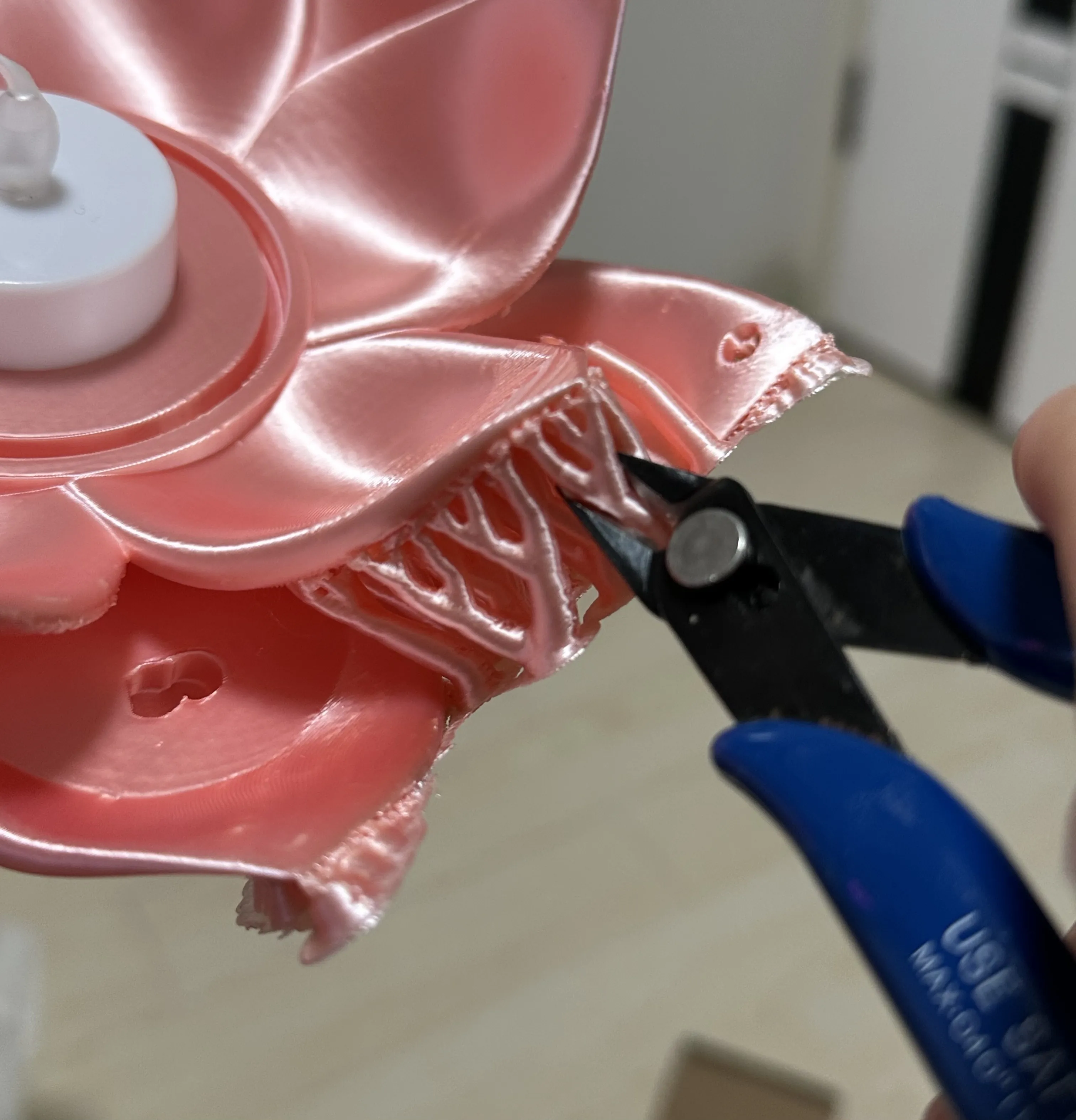

3. When removing the lotus support, use small pliers

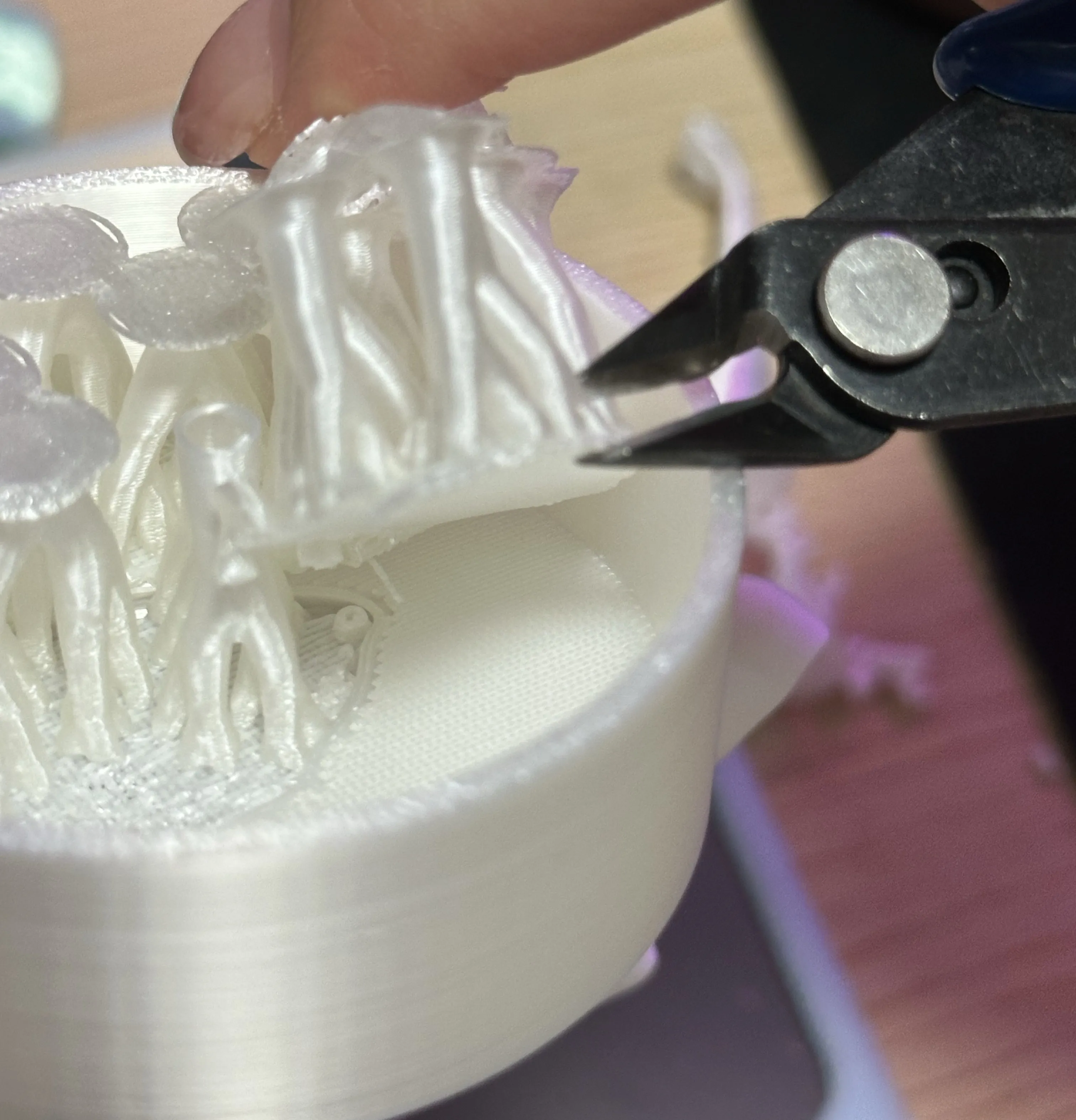

4. When removing the support from the fish's base, find the support surface of the previous layer, pull it out with some force from the root, but do not forcefully pull the fish

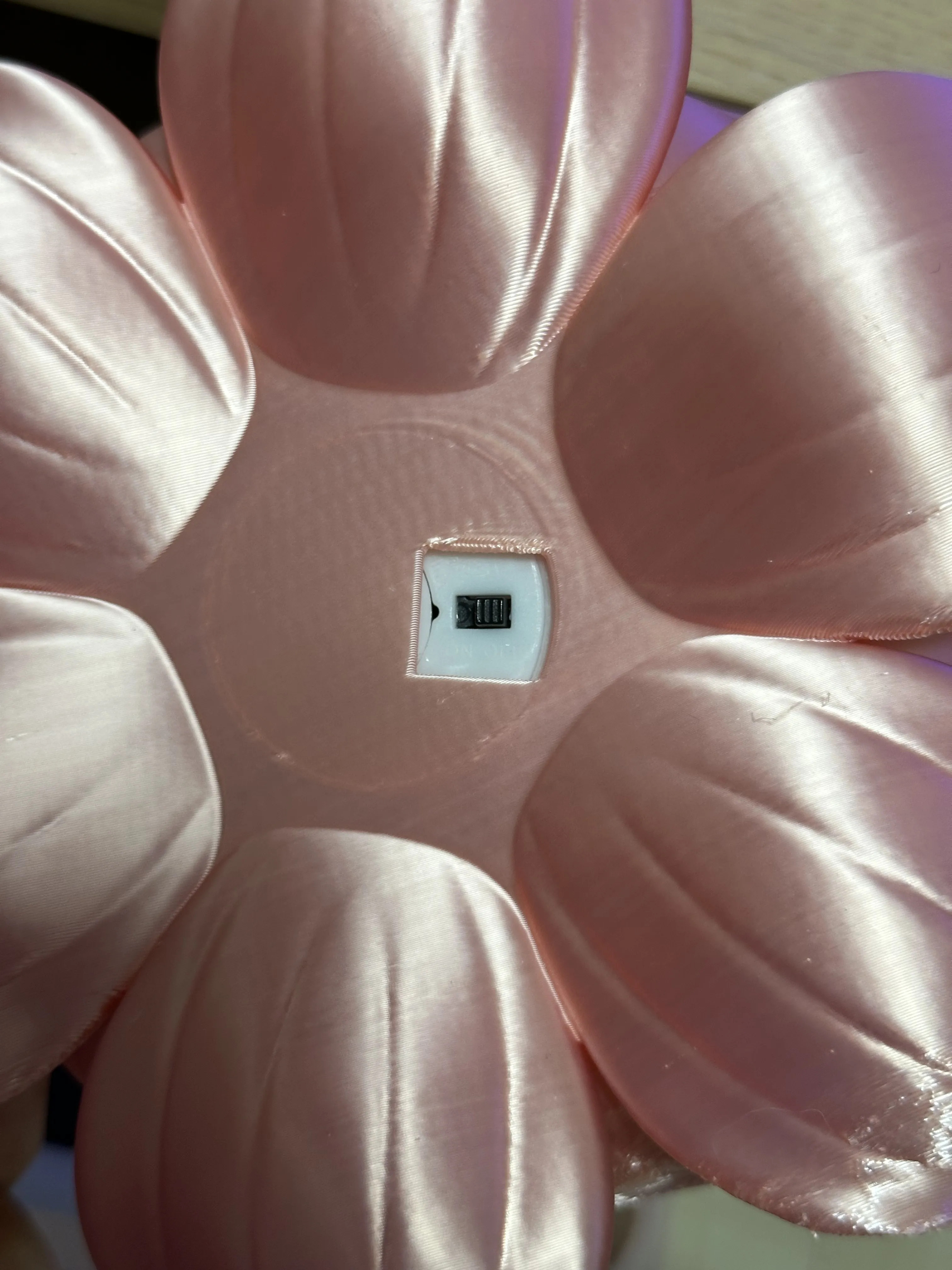

5. For the Lantern version, insert the light into the central groove of the lotus, aligning the back switch with the square slot. Then, after placing the fish in the splash, align it to embed into the outer groove of the lotus

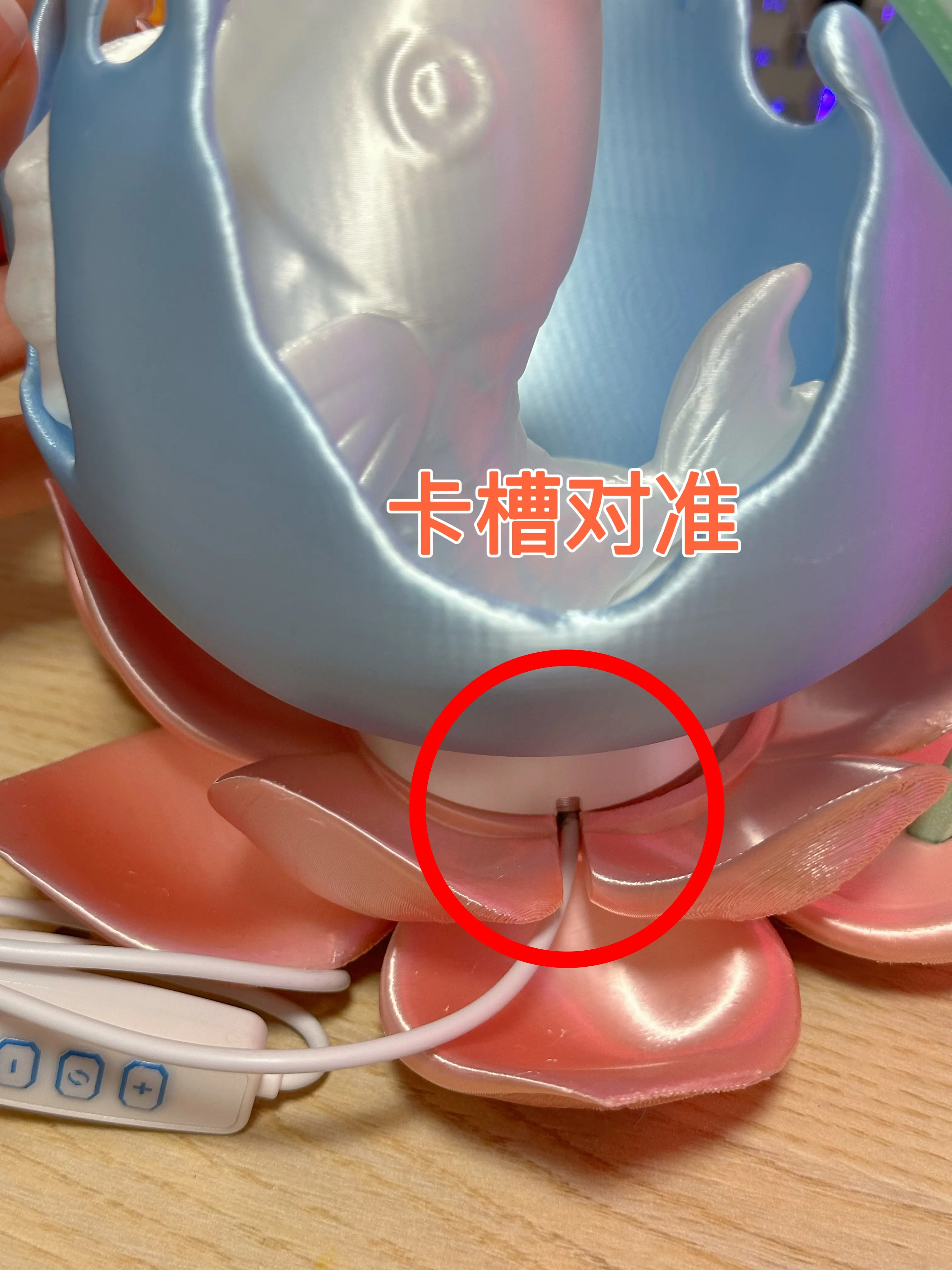

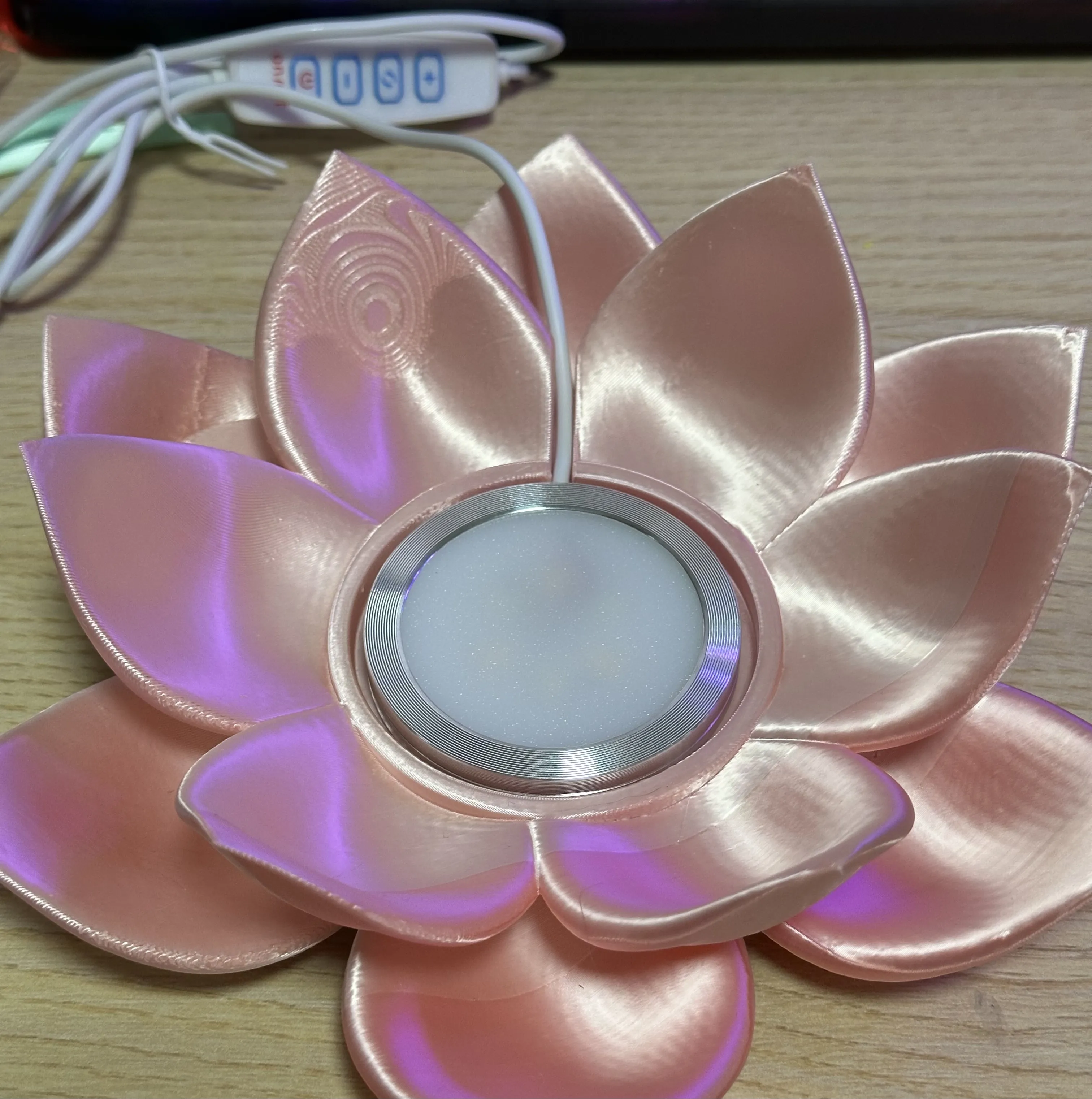

6. The Desktop version is placed in the same order, but needs to align with the wire slot at the back

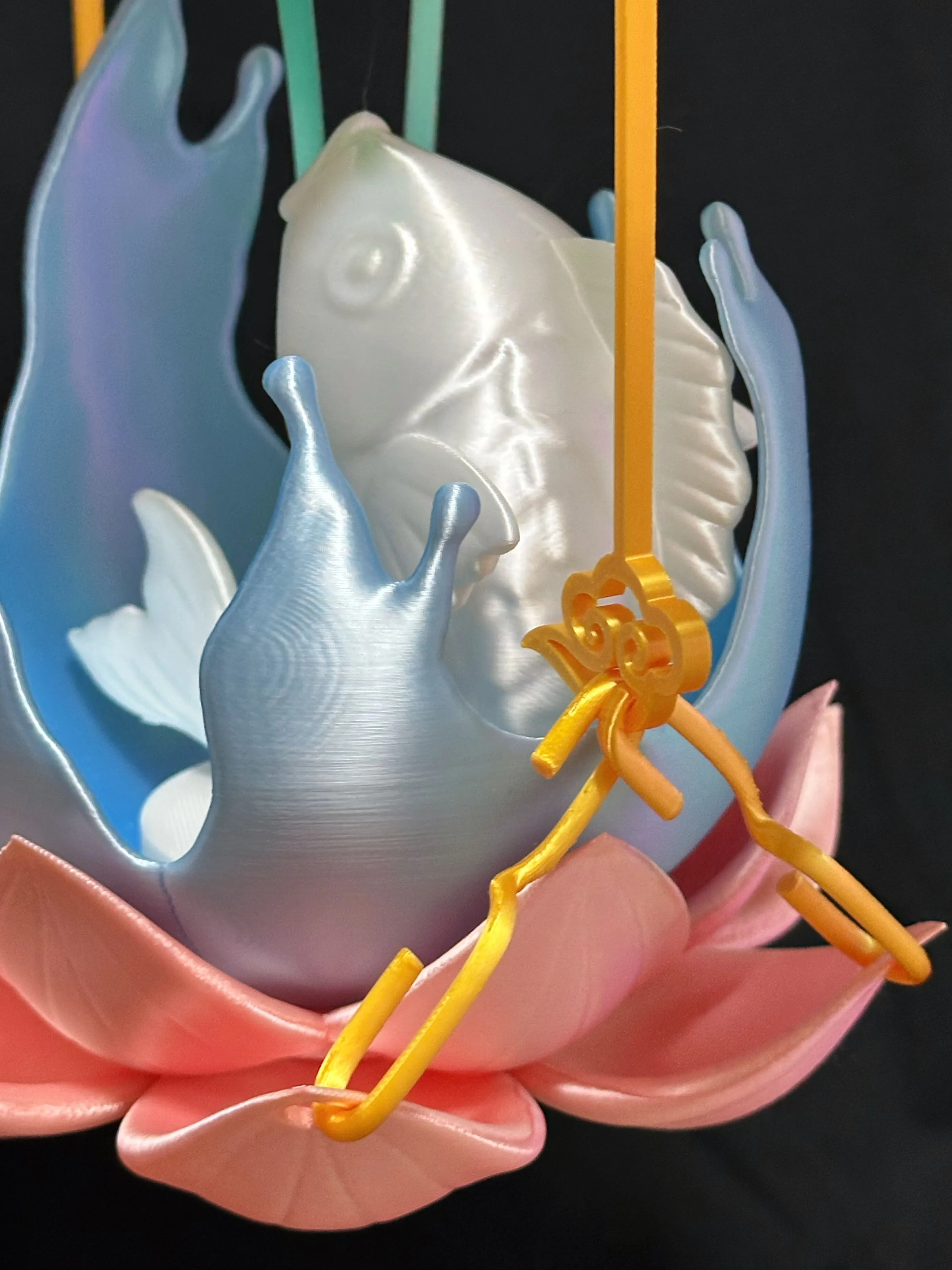

7. For the handle part of the Lantern version, first thread the 4 S-shaped hooks through the auspicious clouds on both sides of the U-shaped frame, then through the 4 holes of the lotus petals. Finally, thread the handle rod through the auspicious clouds at the top of the U-shaped frame

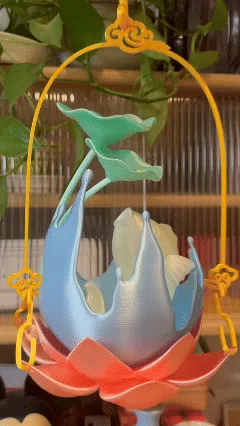

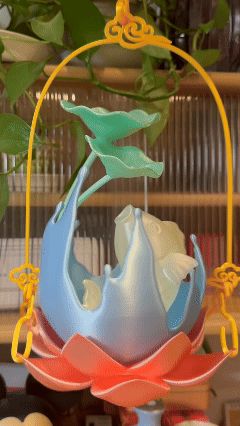

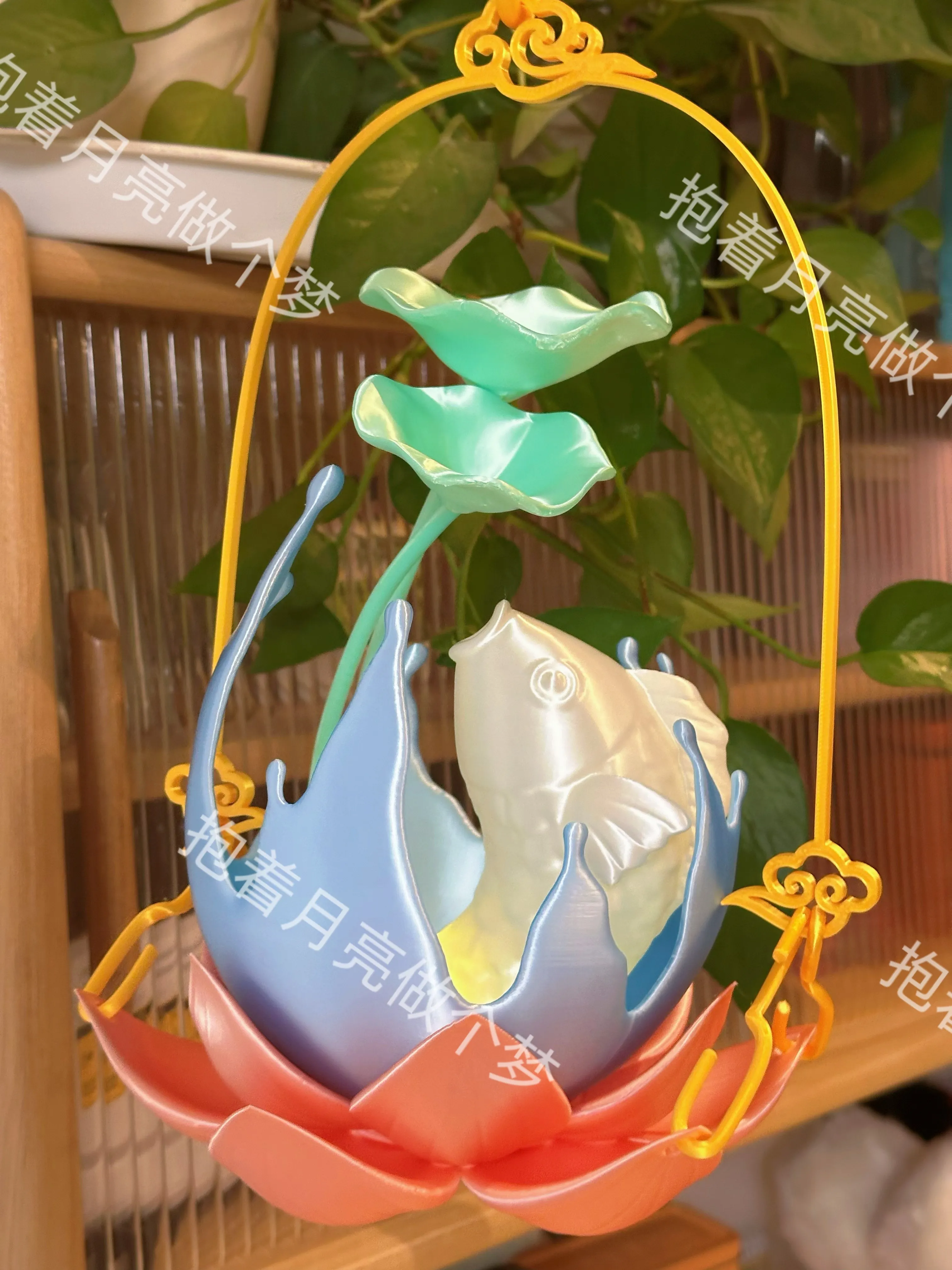

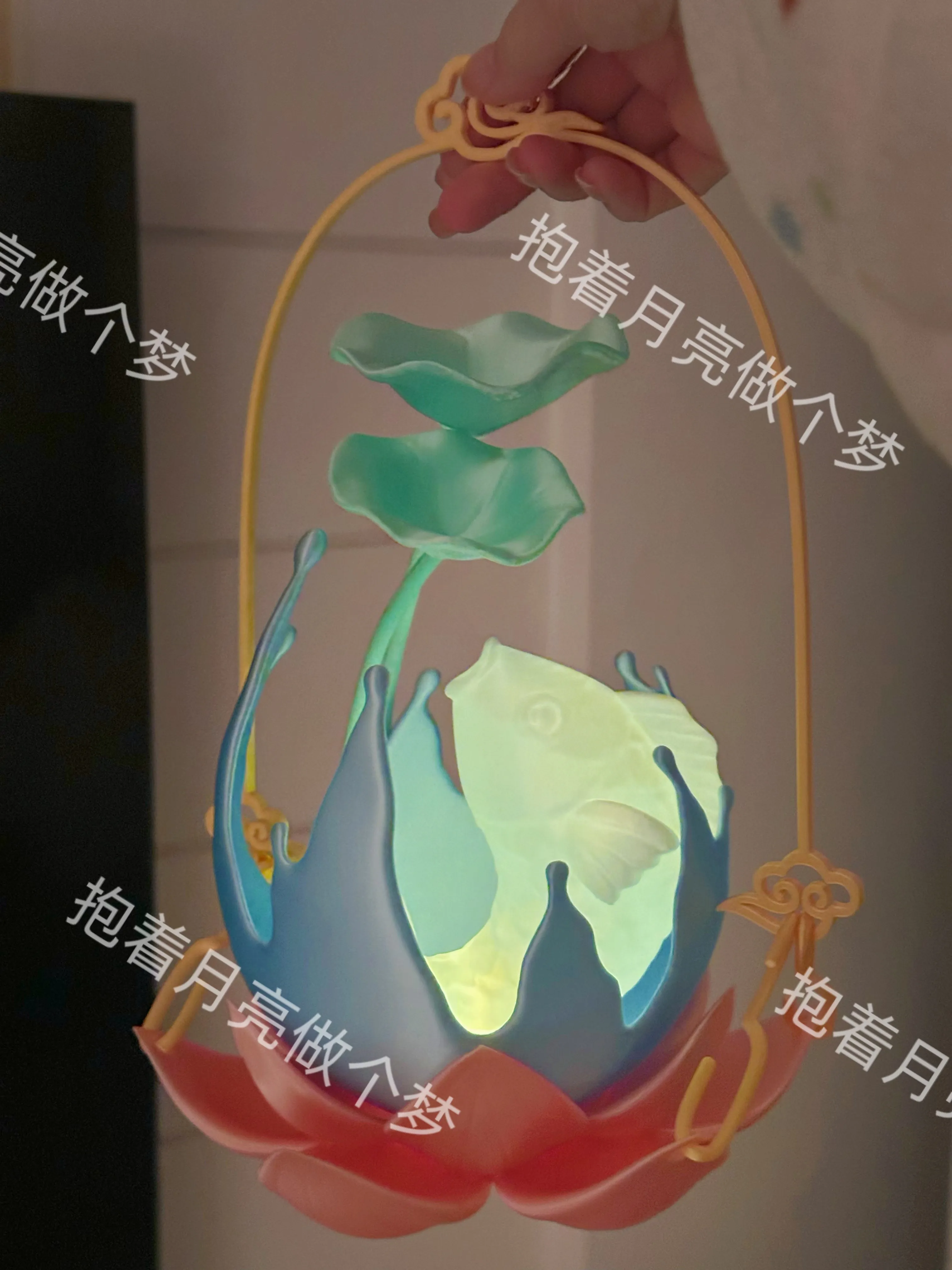

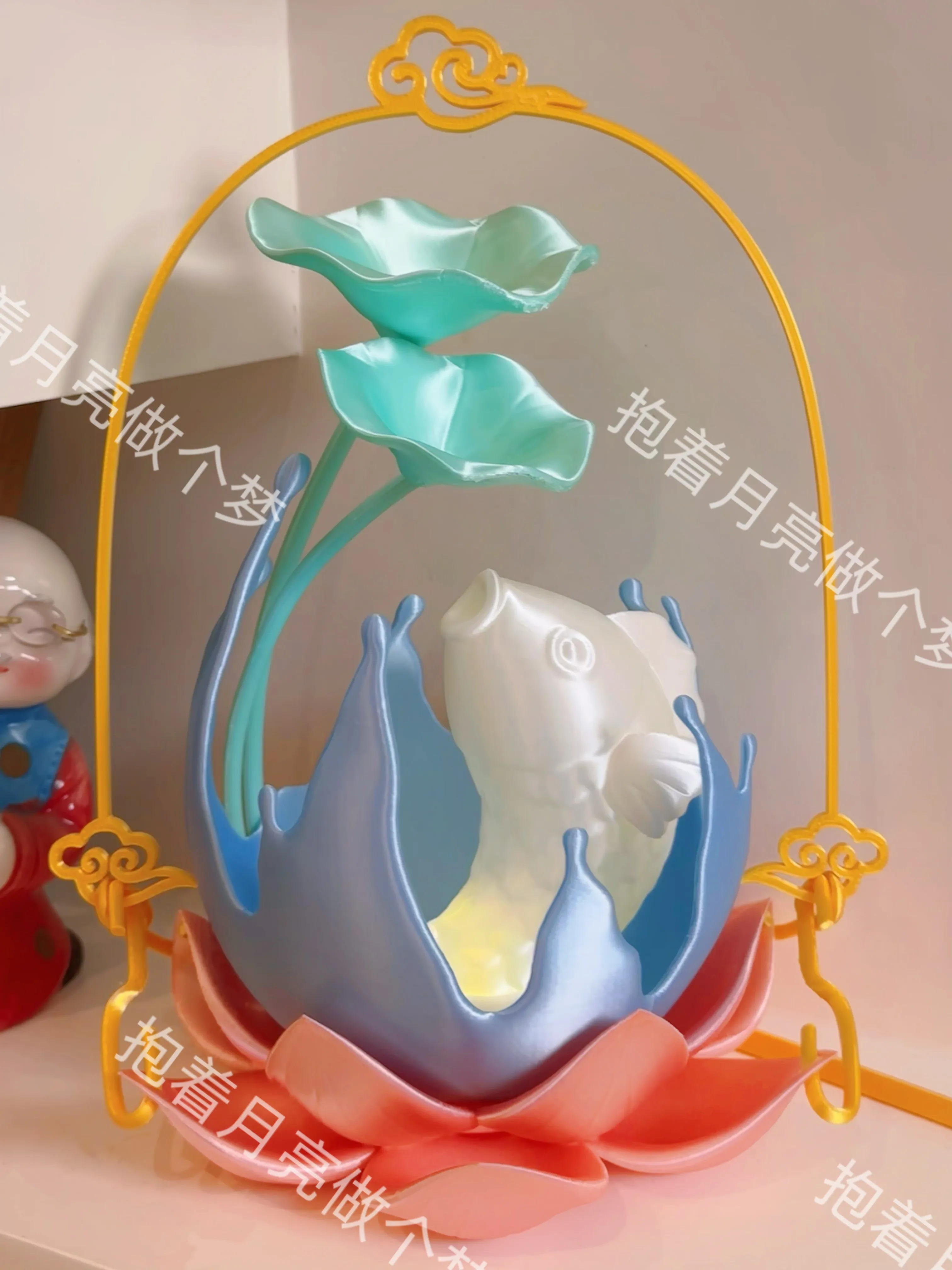

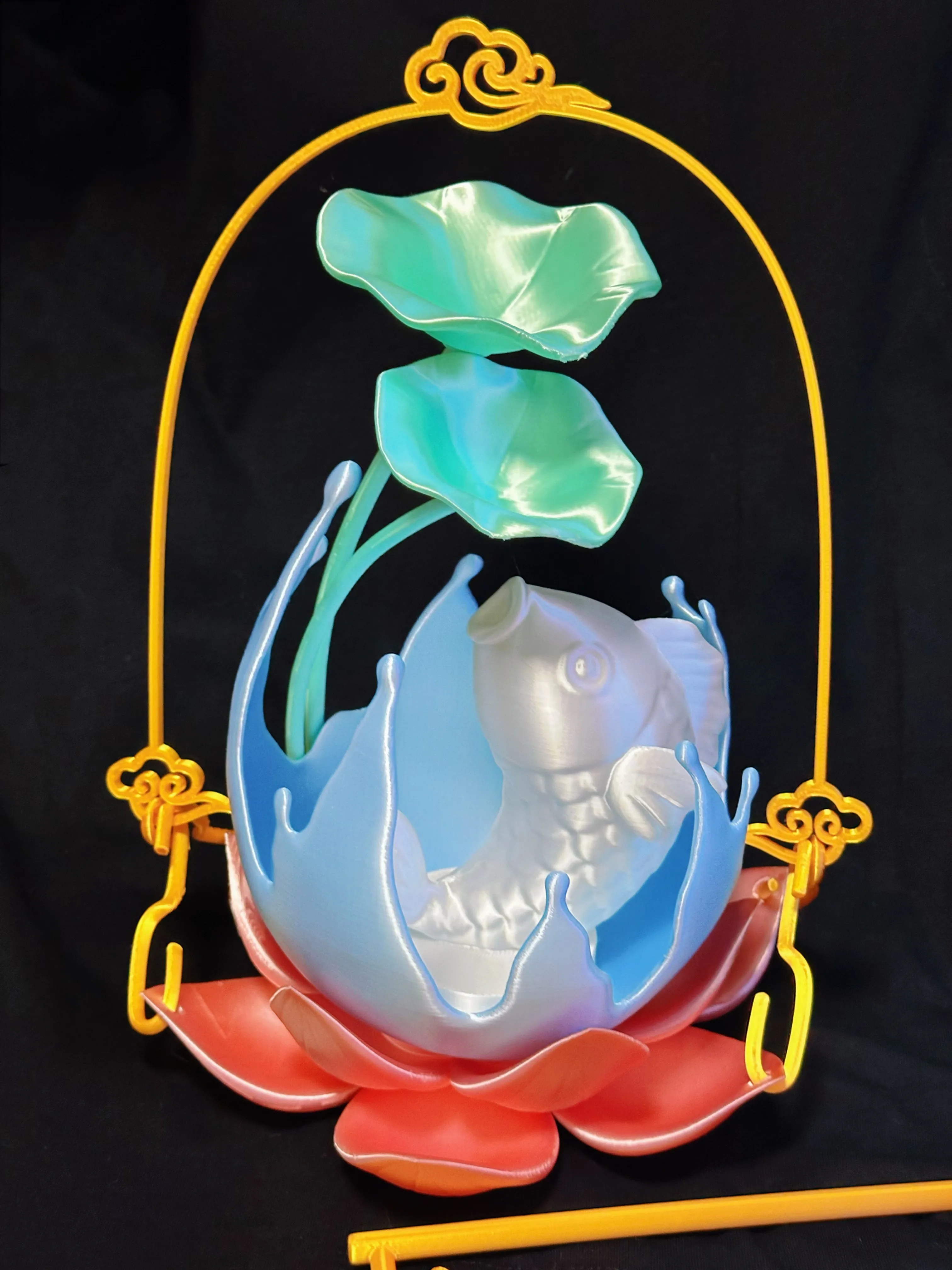

Lantern version display

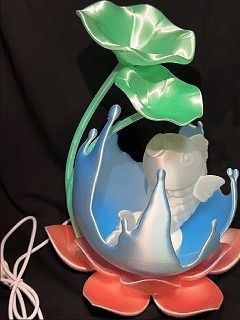

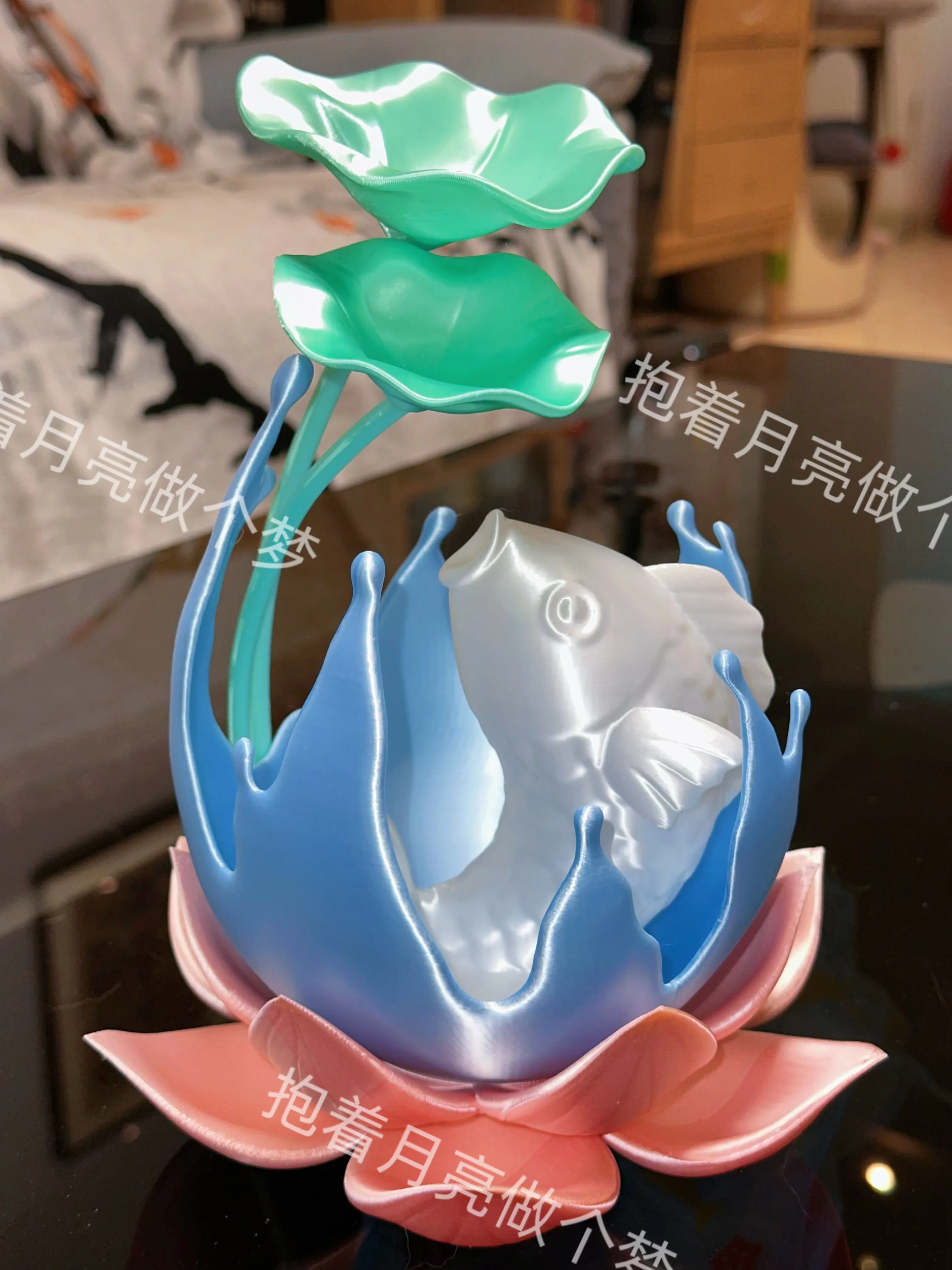

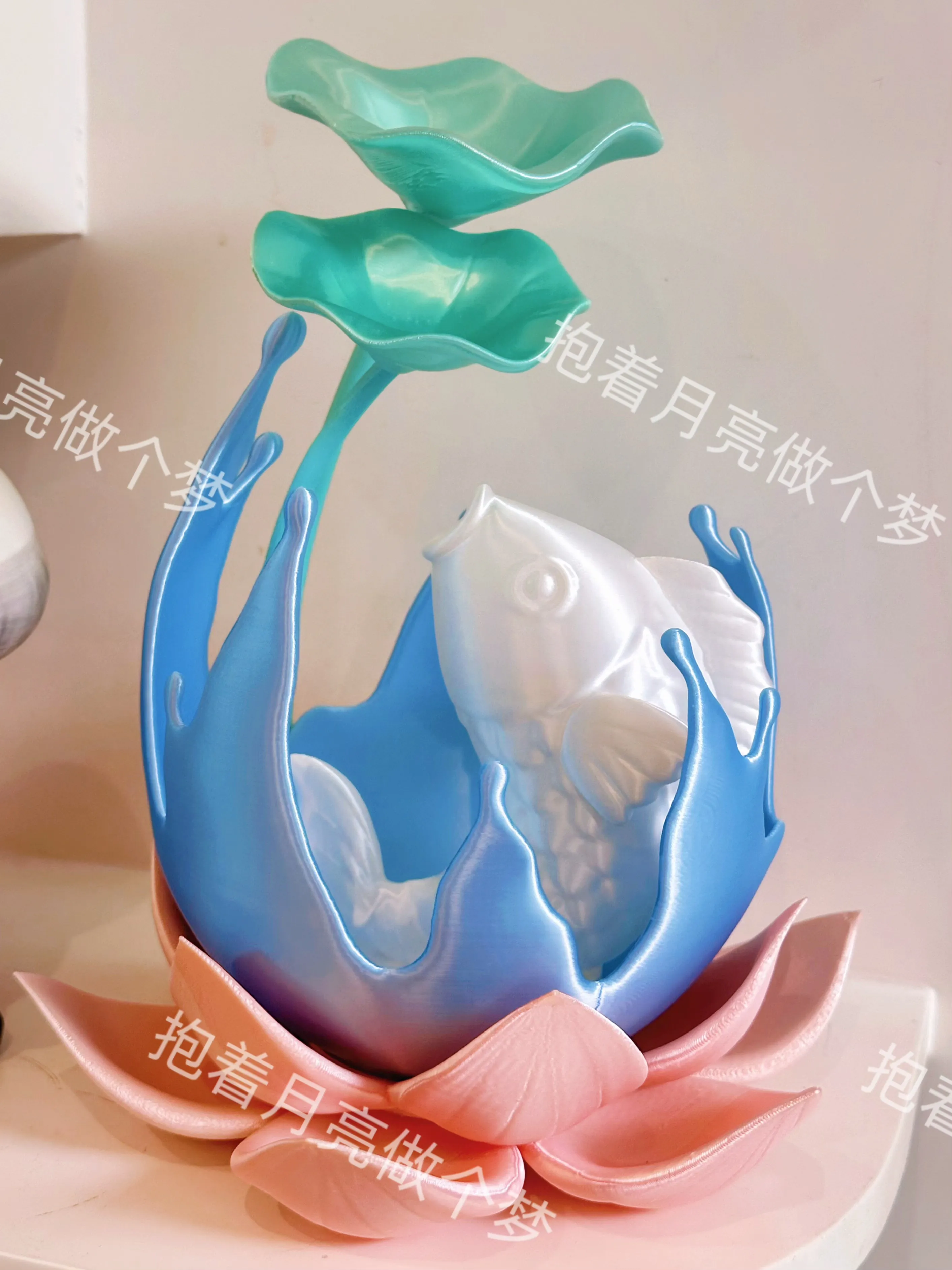

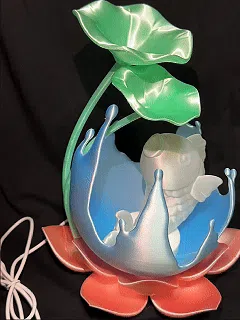

Desktop version display
