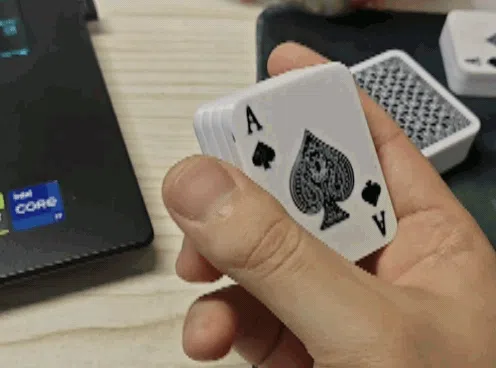

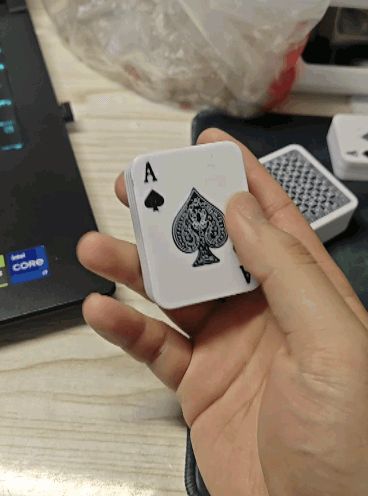

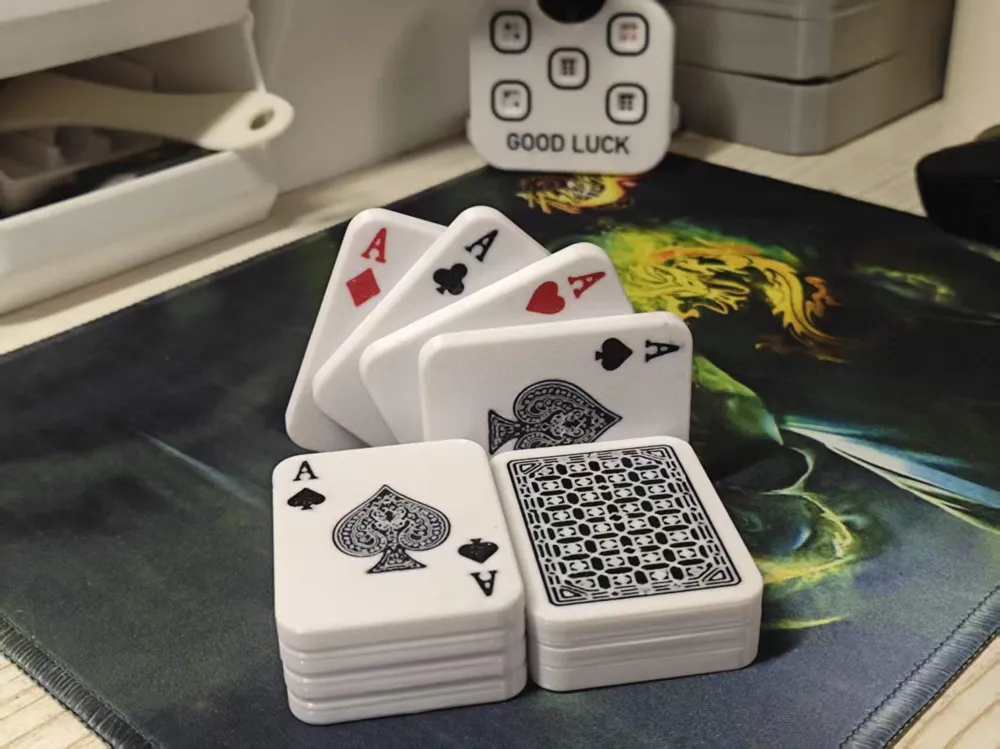

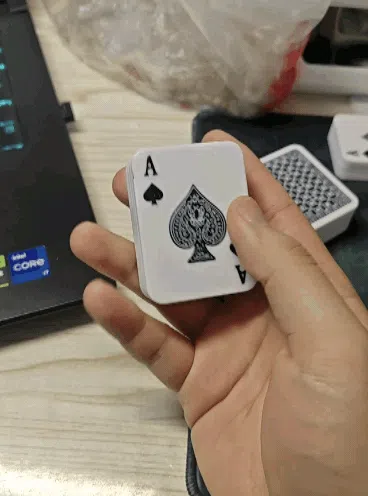

This is a magnetic EDC push card fidget toy with a playing card appearance. A complete set consists of 4 cards. You can play with a minimum of just the first and last two cards. Middle cards can be optionally added, and theoretically, middle cards can be added infinitely
The toy uses 6mm×2mm N52 neodymium magnets. The first and last cards together require 13 magnets. Each middle card requires 13 magnets. A complete set of 4 cards requires a total of 39 magnets
Notes:

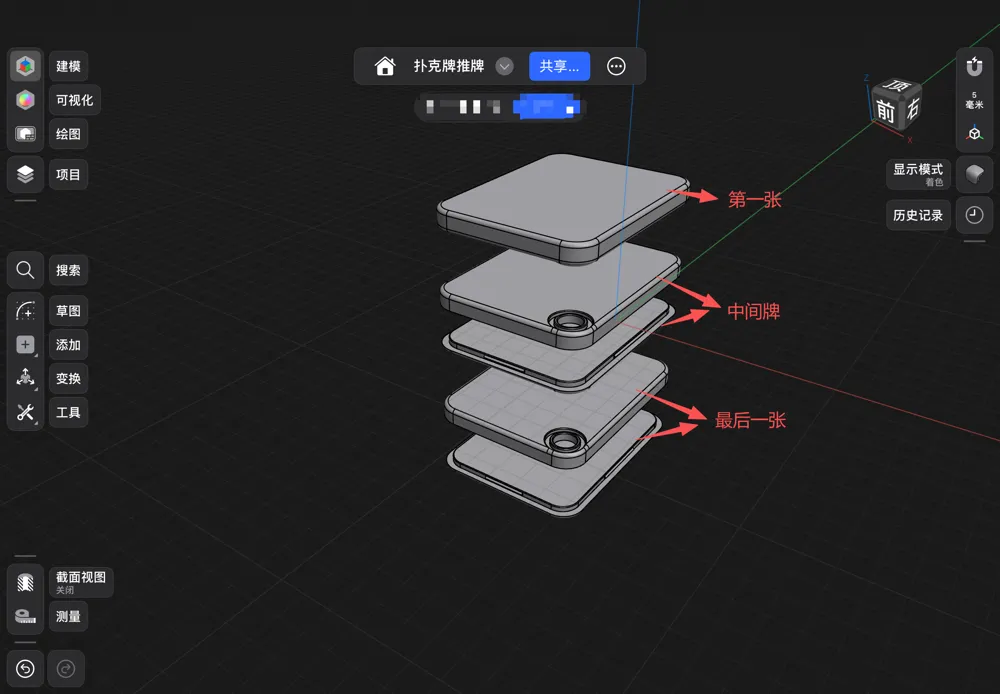

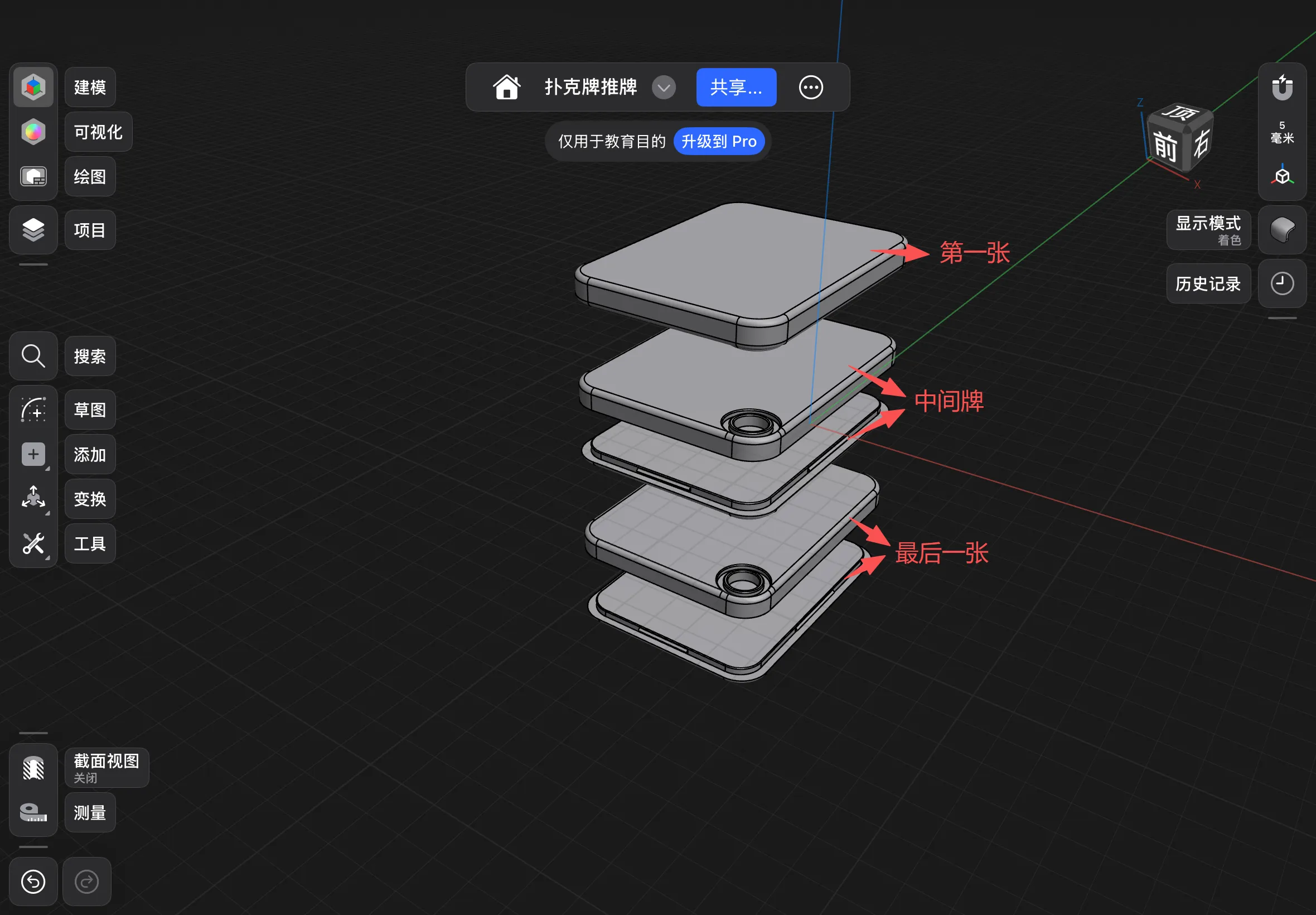

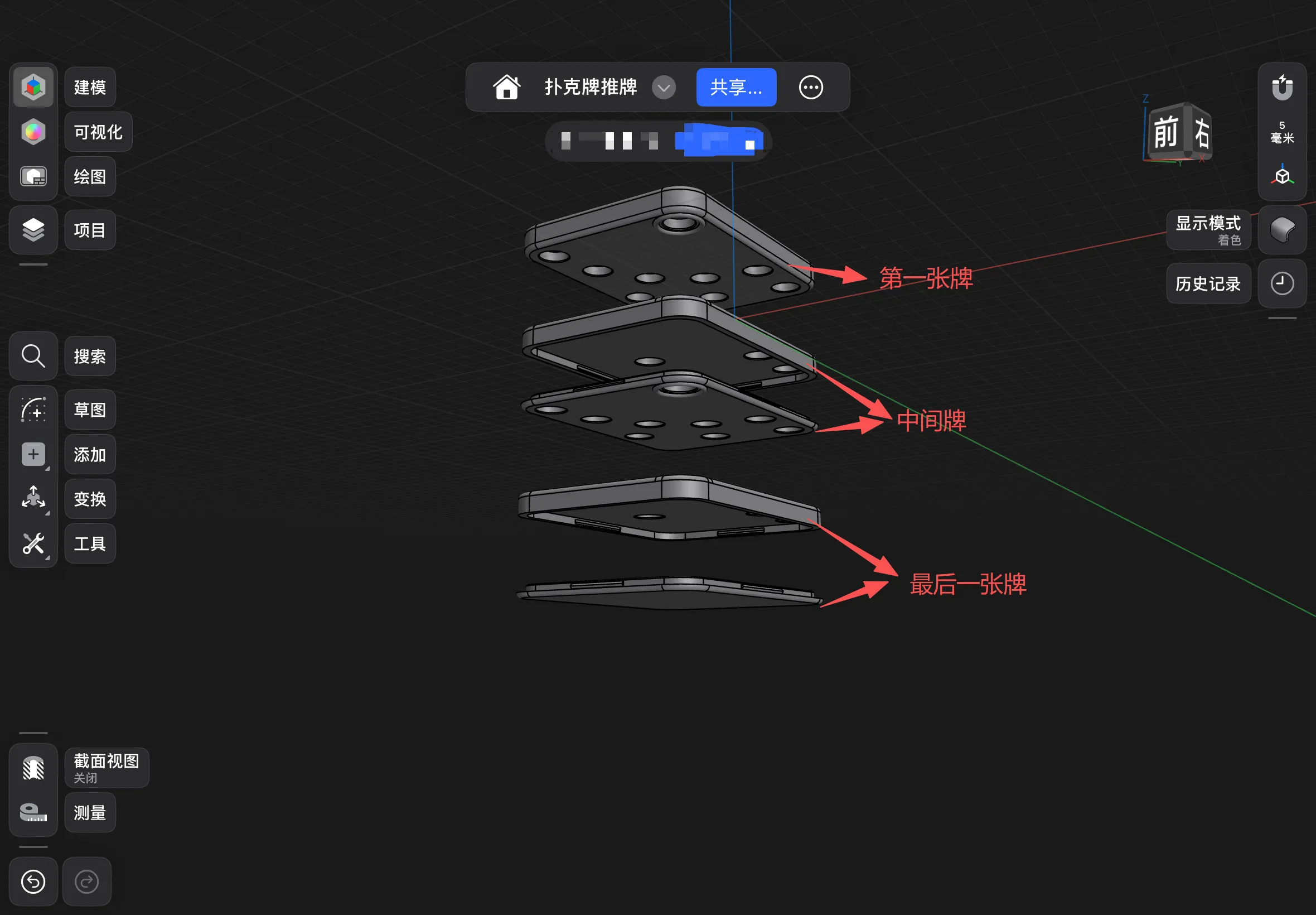

The model installation order is as shown. The first card is a single piece because only the back needs magnets pressed in. The middle cards and the last card both have a front and back cover interlocking structure, the purpose of which is to hide the magnets on the front face of the card

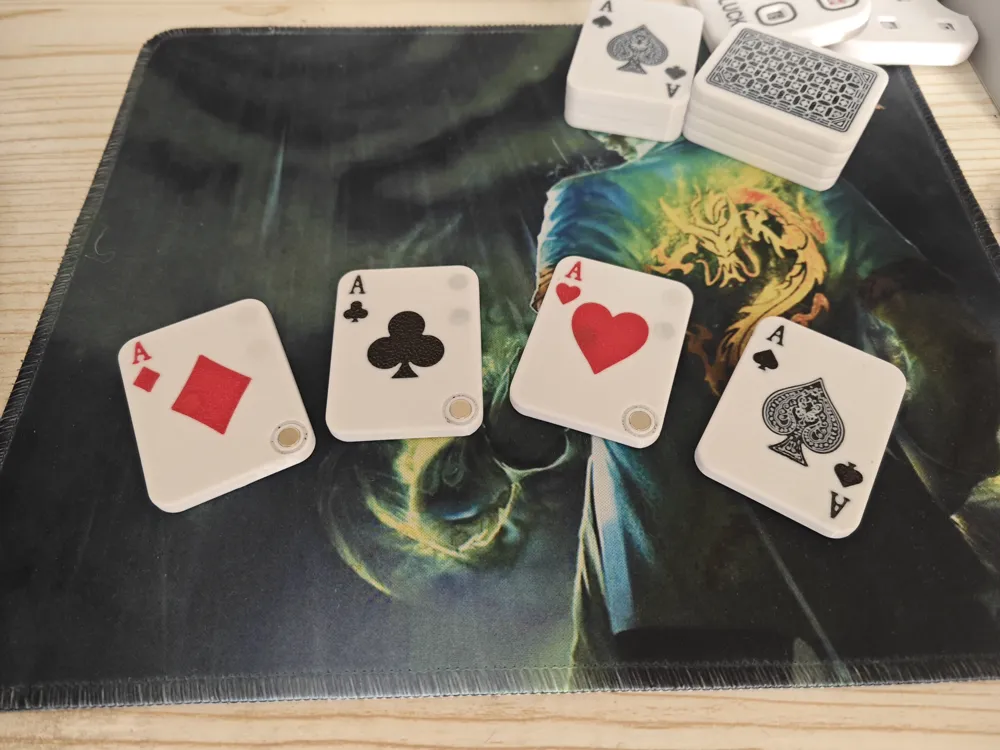

Top view

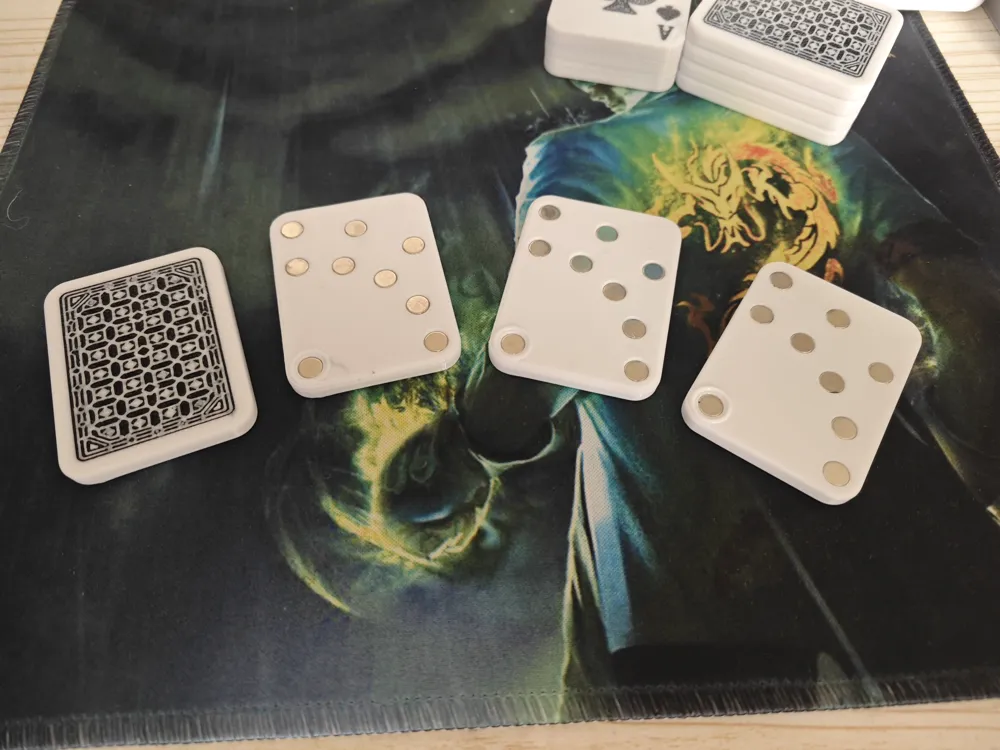

Bottom view

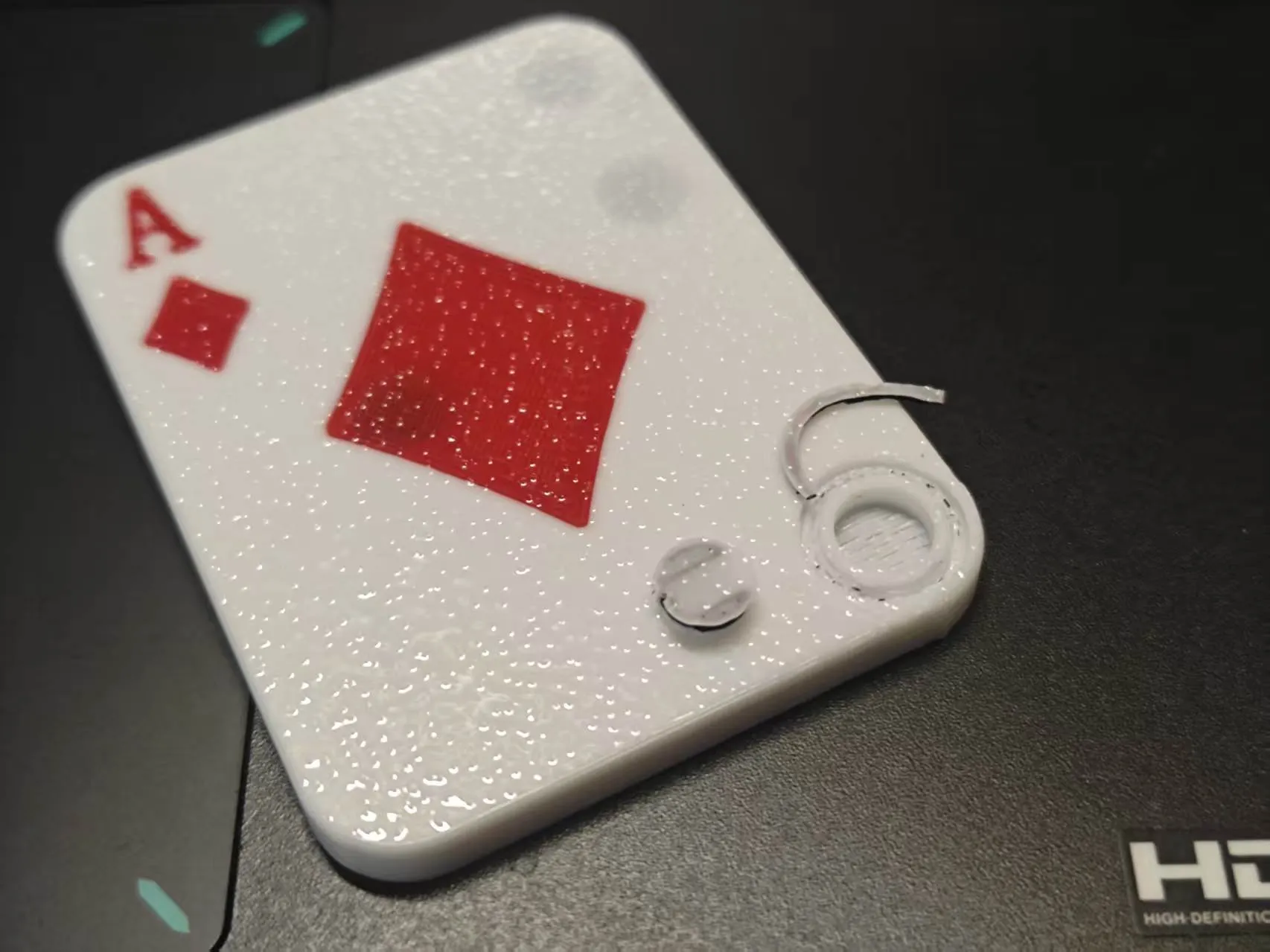

Supports need to be removed at the limiters, as shown in the figure:
When installing the magnets, it is recommended to first align the direction of the two cards. Then, press the magnets in the direction they attract each other. Make sure not to install them backward. The correct installation means that after the magnets are in, the two cards align with the limiting holes and attract each other
Be careful with the magnet polarities to avoid mistakes, then there should be no major difficulties. Finally, have fun everyone!
