fixed construction site traffic light - traffic light in 1:14
Print Profile(1)
Description

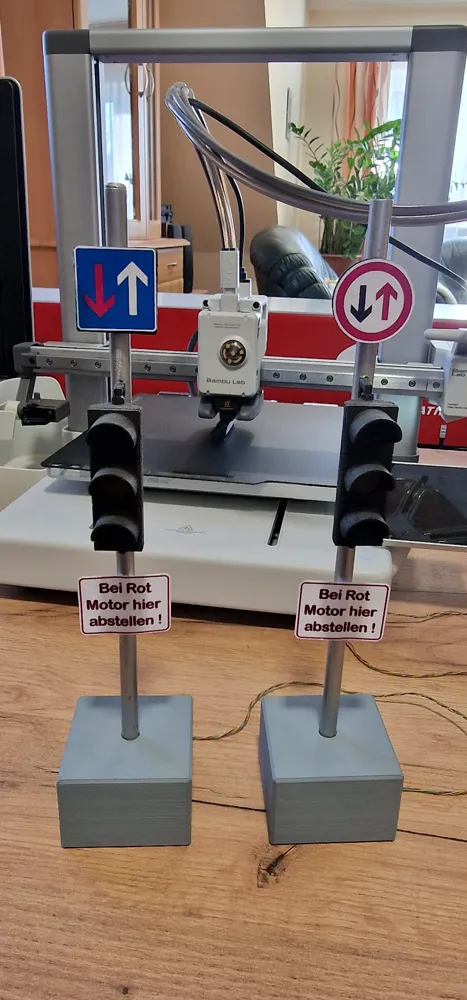

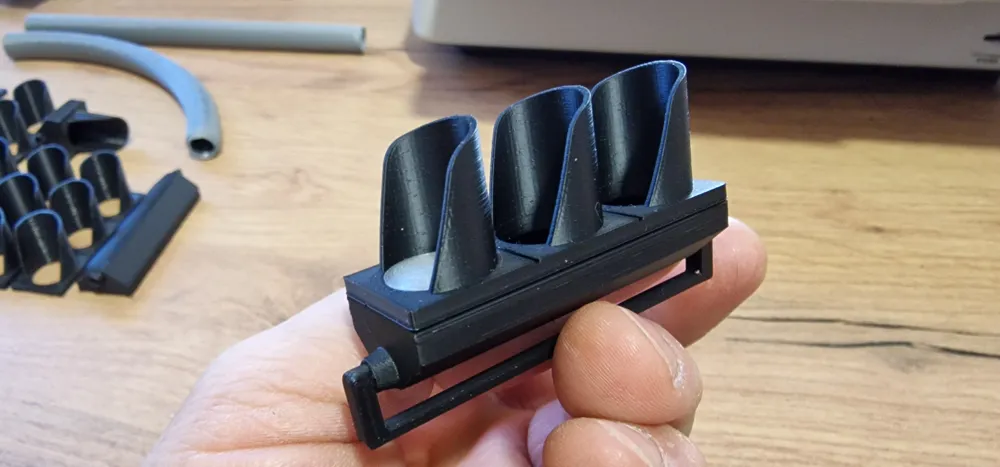

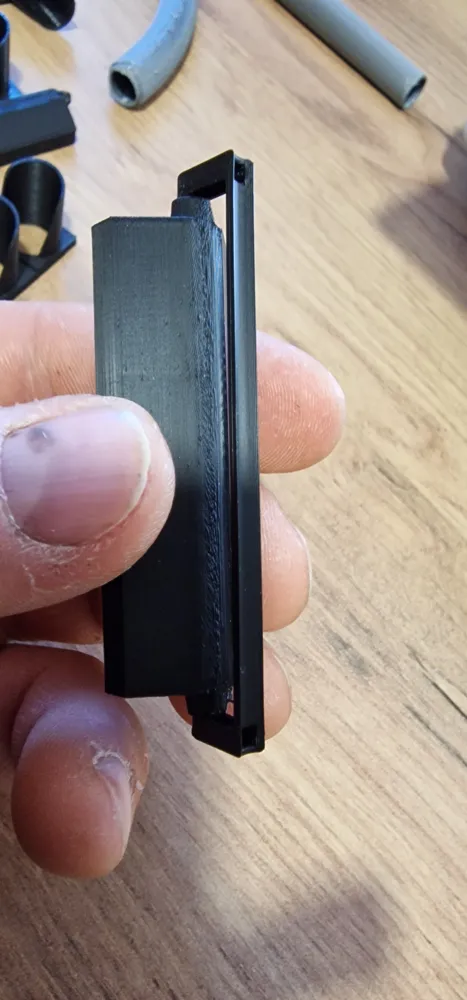

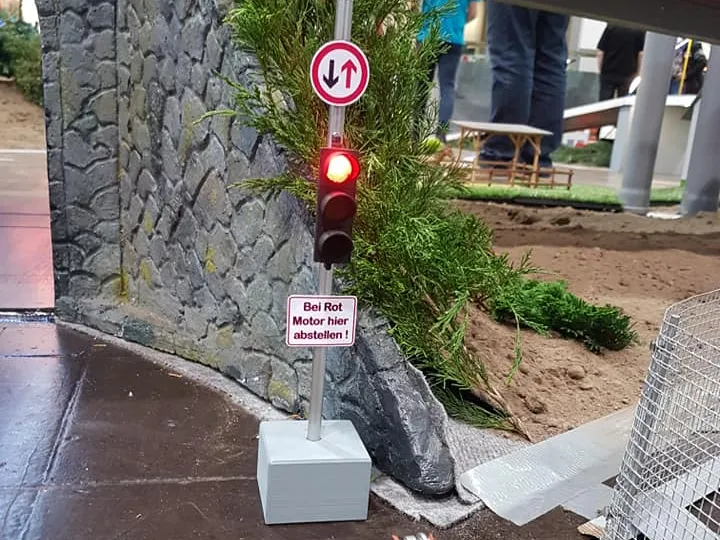

My version of a permanent construction site traffic light in 1:14, as I use it on courses. This version has already been revised and is no longer compatible with the earlier version from Thingiverse. For use on RC courses. The construction is modular

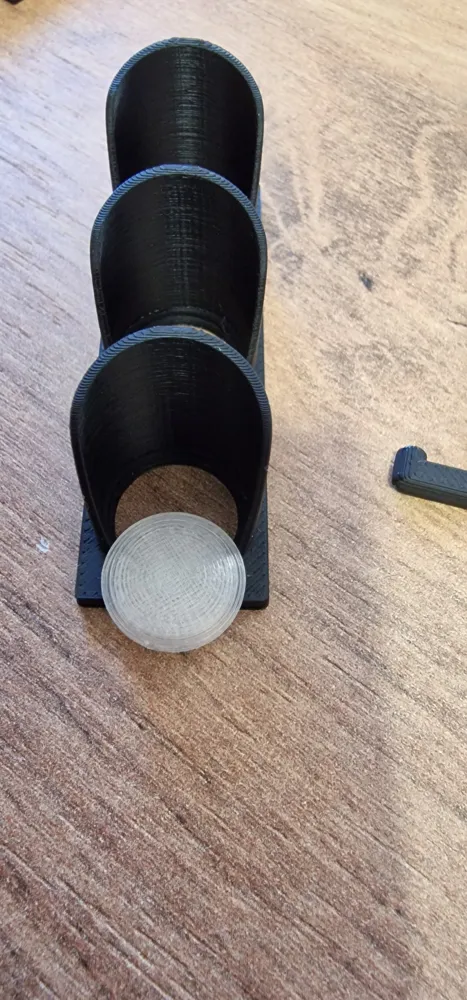

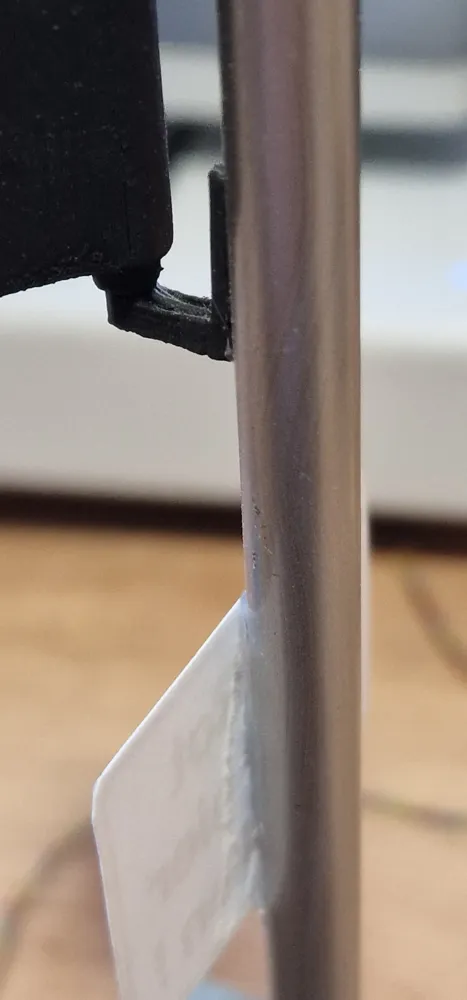

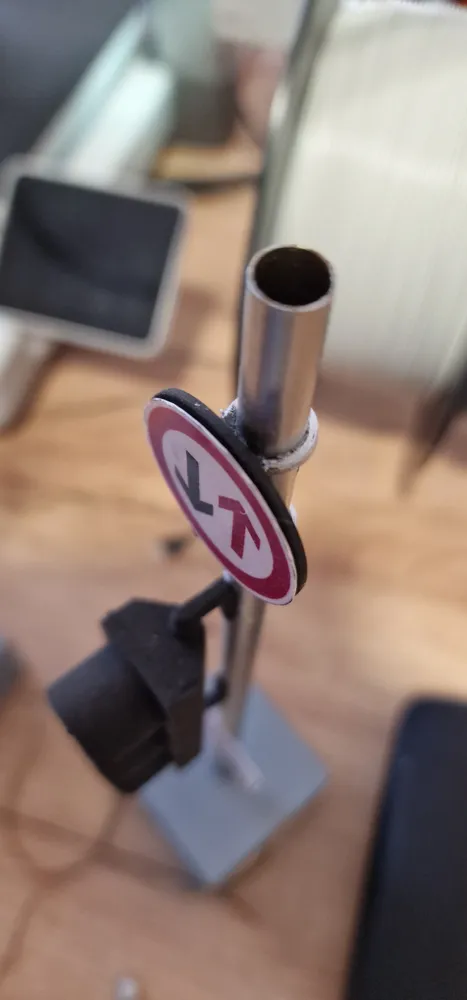

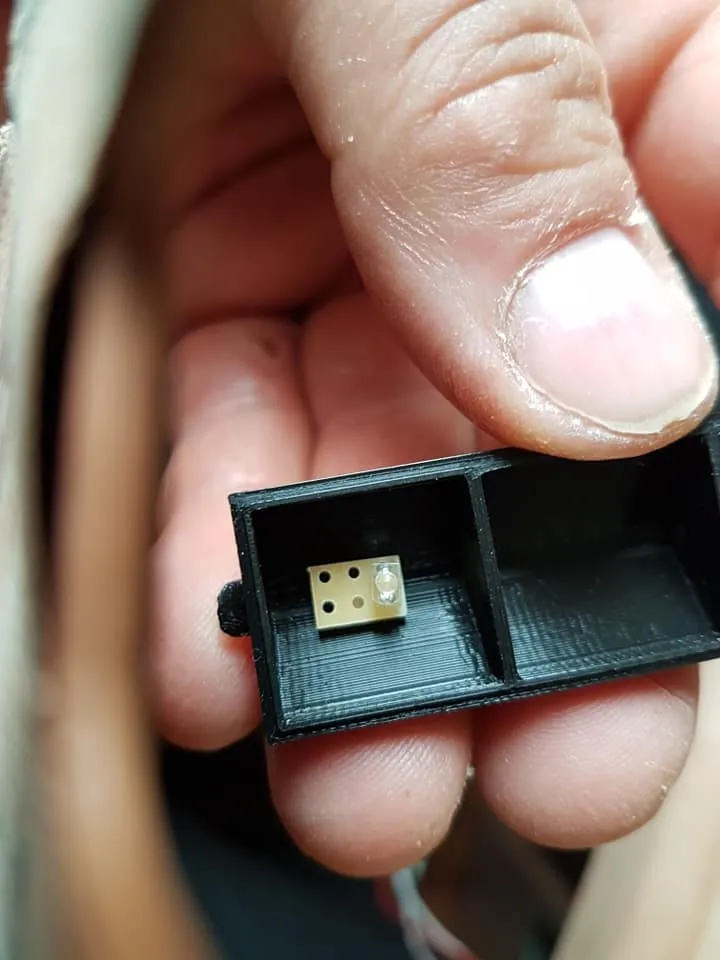

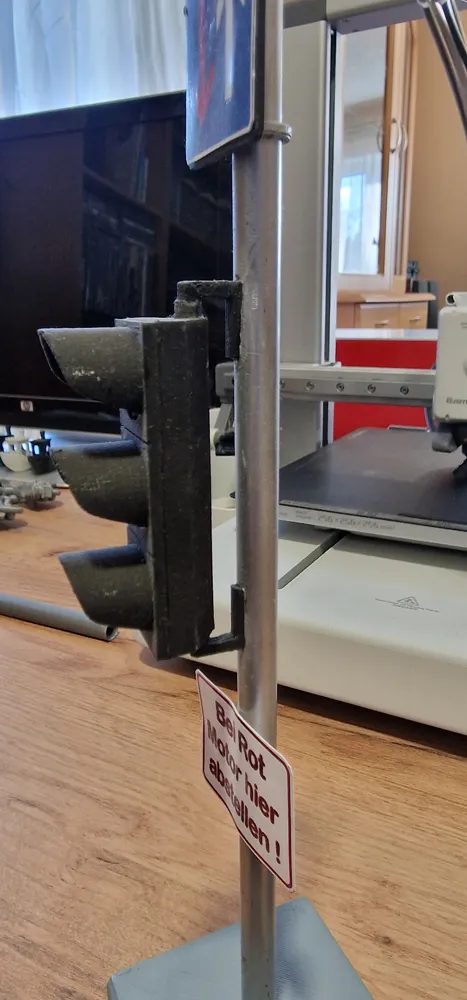

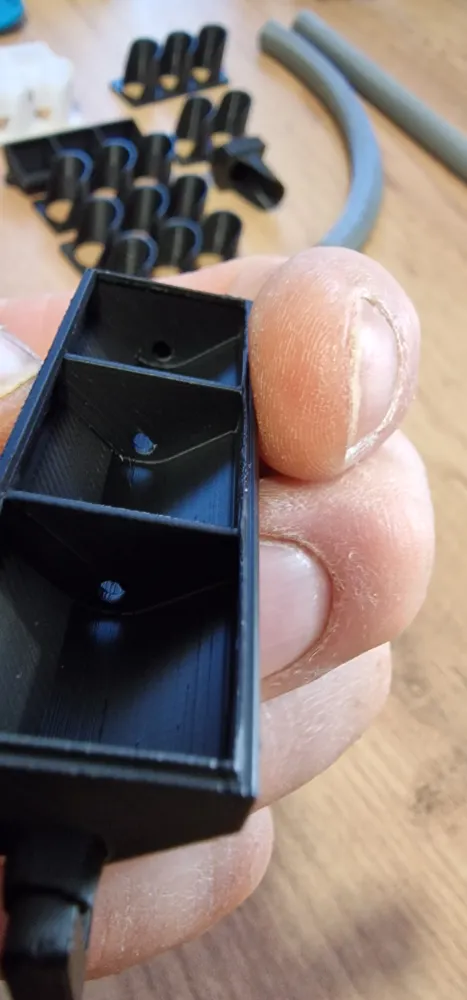

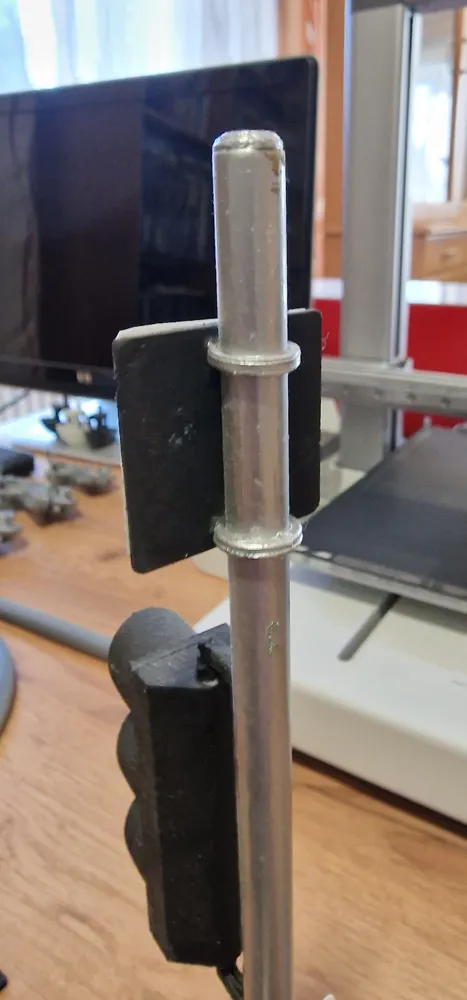

The mast is a brass tube rod (Ø x L) 8 mm x 500 mm, inner diameter: 7.1 mm and 28cm long. The lenses can be printed with 100% infill but require a smooth plate. Appropriate colors should be chosen for the LEDs. Additionally, the lenses can be printed in transparent colors or painted with transparent varnishes, e.g., from Revell. You can find the brass tube, for example, at Conrad Elektronik. The traffic light circuit comes from model railway retailers but is not optimal. The cables can be routed through the arms/spars on the traffic light body. I used 4 cables of 0.07mm² each for this. LEDs require separate resistors
Some experience is required for construction
