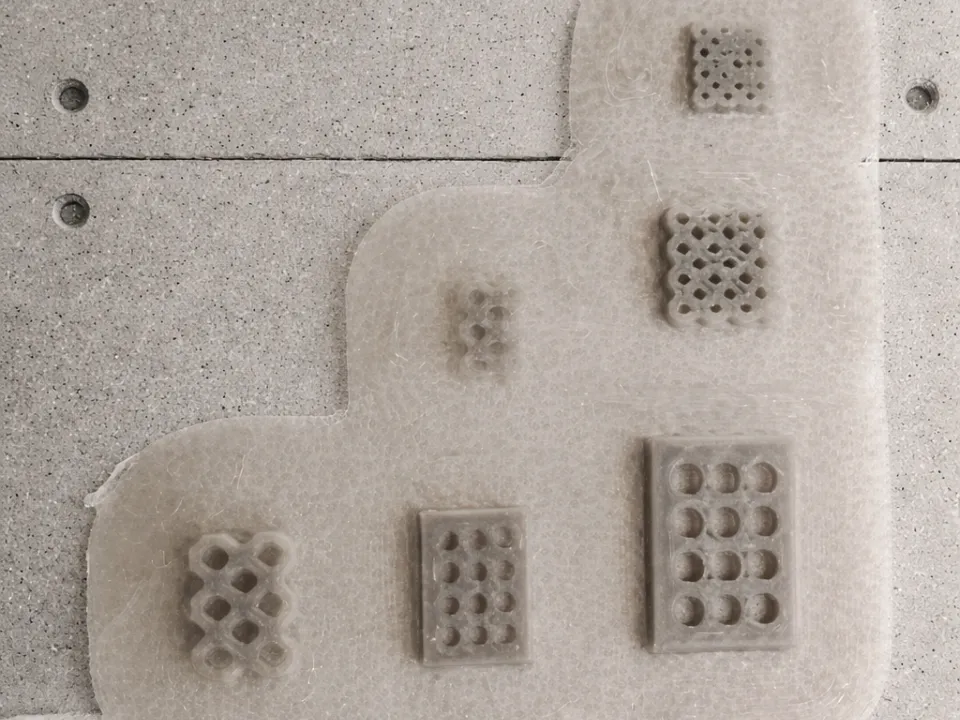

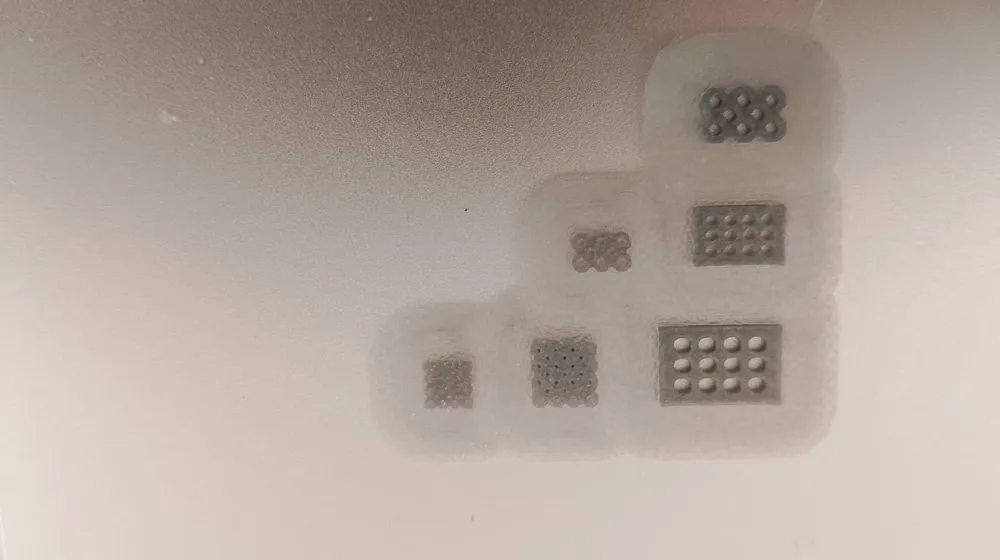

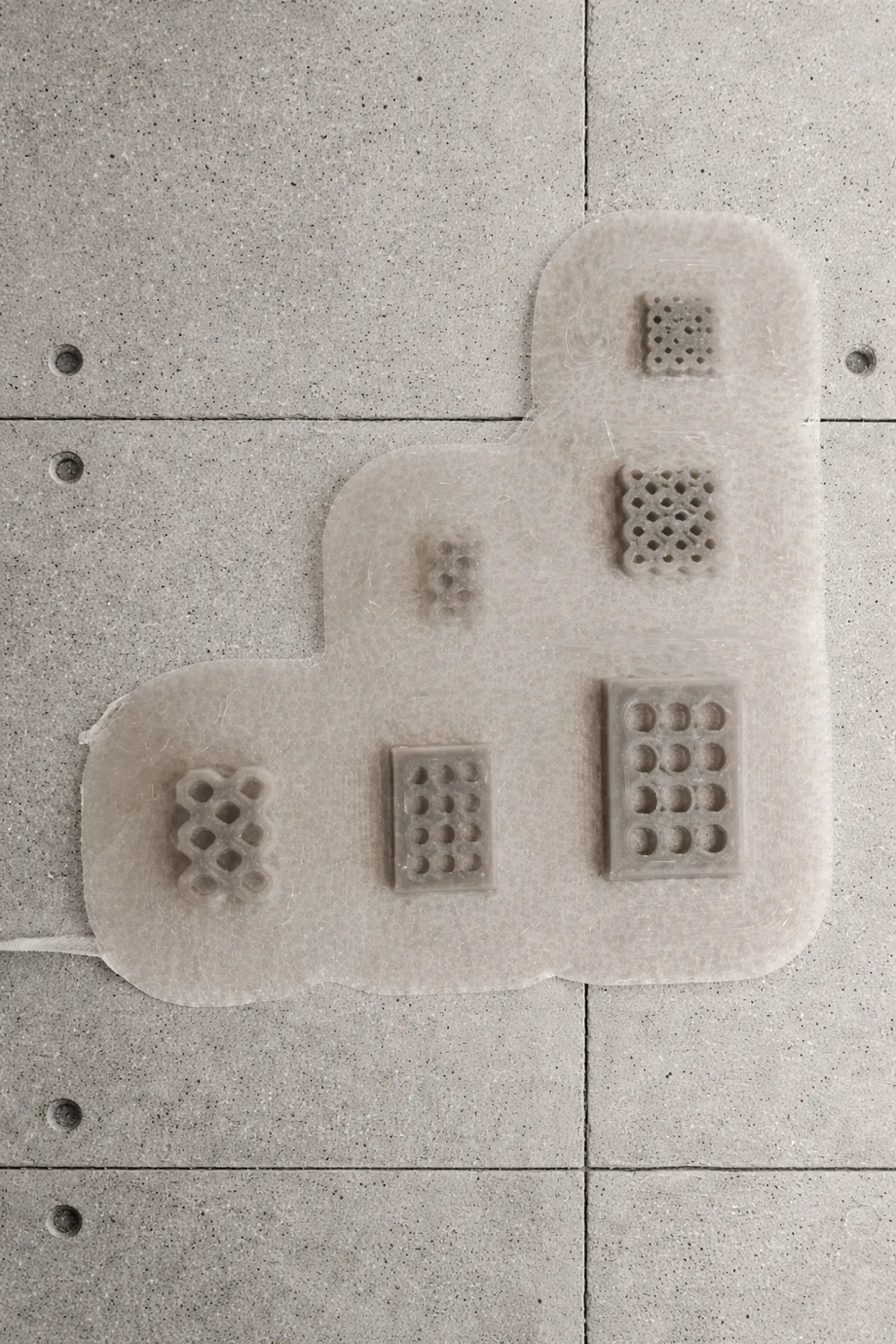

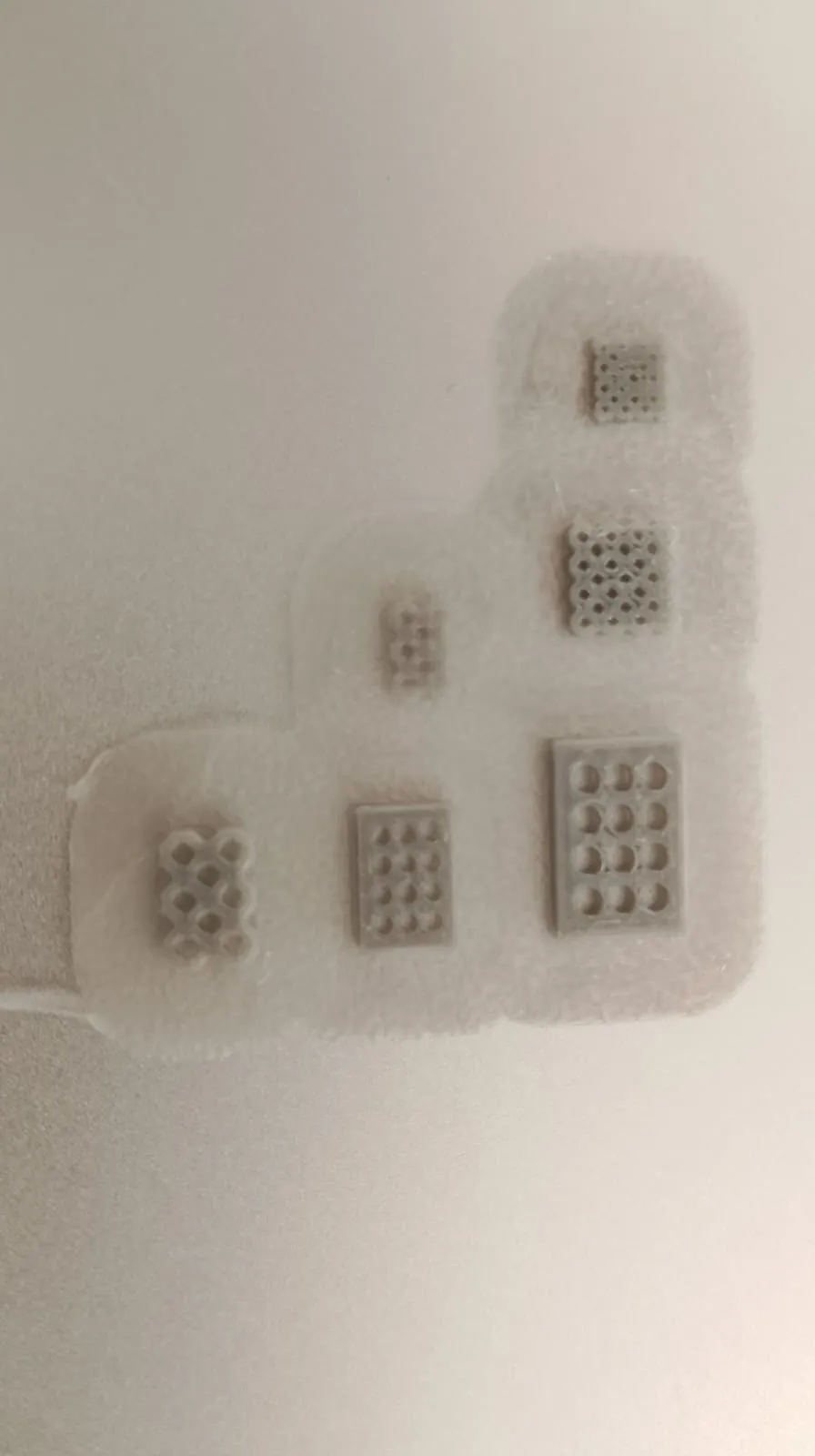

This afternoon spent with Fusion360 resulted in the creation of three types of concrete (openwork) slabs often used in parking lots and individual parking spaces.
Drawn for TT scale (1:120). Proportionally enlarged for H0 (1:87). Nozzle used: 0.2mm.
Dimensions for TT (in mm)
- Plate 01: 3,92 x 3,92 x 0.83
- Plate 02: 5.03 x 3.35 x 0.67
- Plate 03: 7.50 x 5.0 x 0.83
Dimensions for H0 (in mm)
- Plate 01: 5.40 x 5.40 x 1.15
- Plate 02: 6.93 x 4.62 x 0.92
- Plate 03: 10.34 x 6.90 x 1.15
