Festool SYS-AZ Drilling Jig (Symmetrical)

🔧 Festool SYS-AZ Drawer Slide Installation Jig

Installing Festool SYS-AZ drawers accurately can be time-consuming and error-prone.

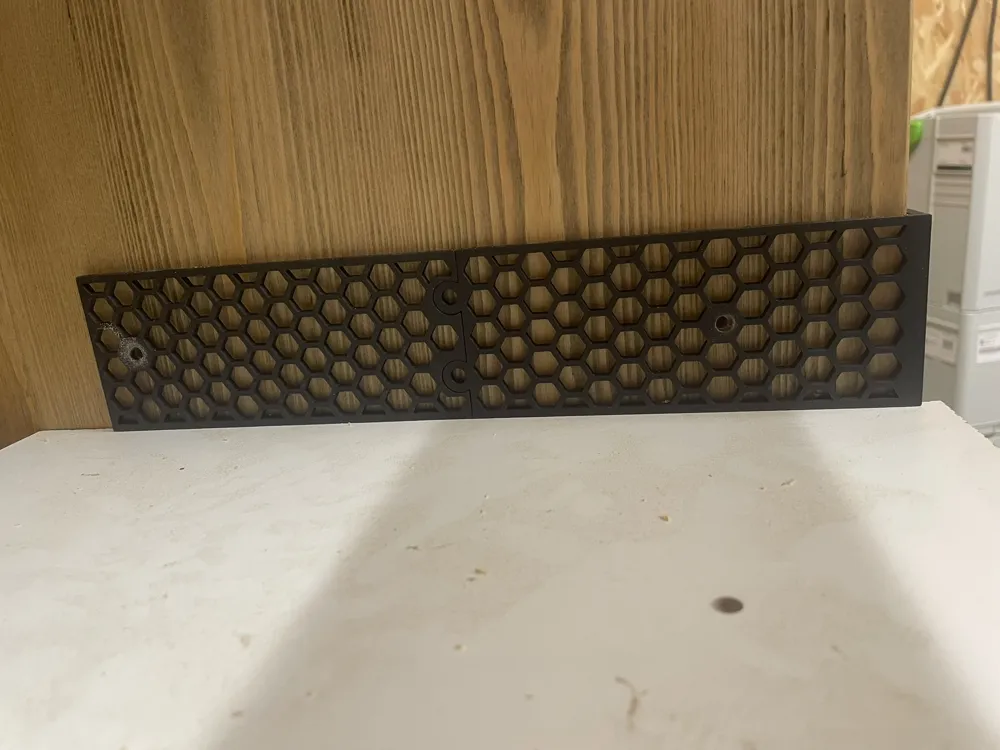

This 3D-printed drilling jig allows you to position and drill the slide mounting holes precisely — fast, repeatable, and cost-effective.

🎯 What makes this jig different?

✔ Symmetrical design → works for both left and right cabinet sides
✔ Optimized for drawer slide screw positioning
✔ Lightweight honeycomb structure → strong but filament-efficient

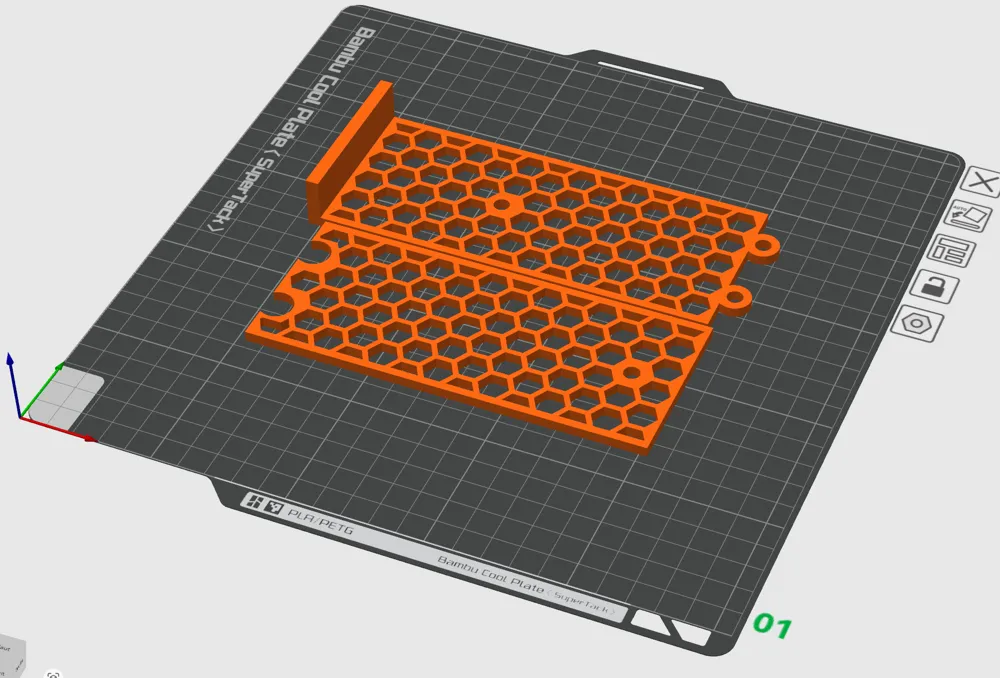

✔ No supports required
✔ Tested and validated on Bambu Lab P1S (PLA)

Unlike generic drawer slide jigs, this one is specifically dimensioned for SYS-AZ installation use.

📐 How to Use

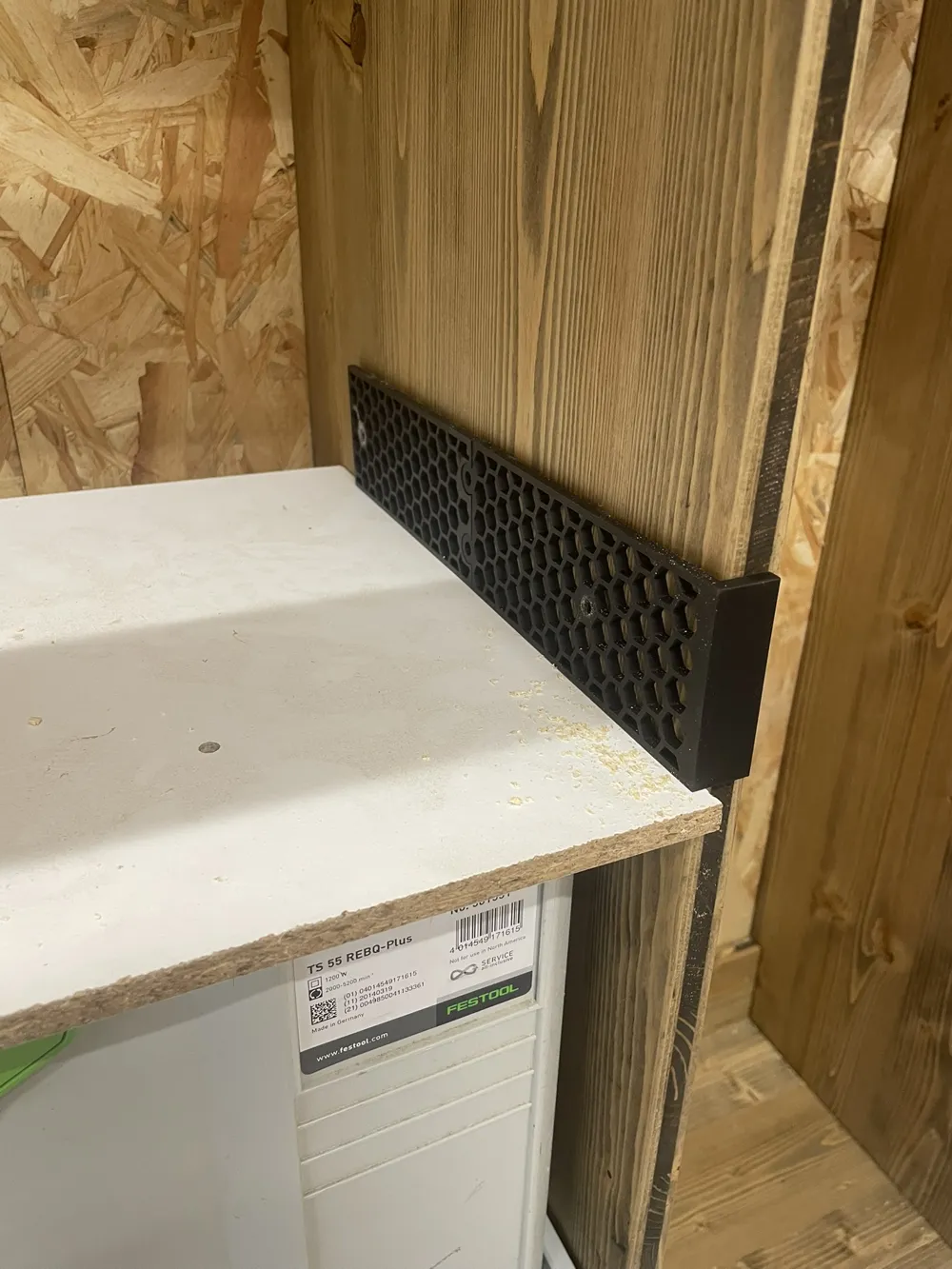

1. Align the jig with your cabinet reference line
2. Clamp lightly if needed
3. Drill pilot holes through the guide
4. Install slide
5. Flip the jig for opposite side (symmetrical design)

Fast. Clean. Repeatable.

💡 Why I Designed This

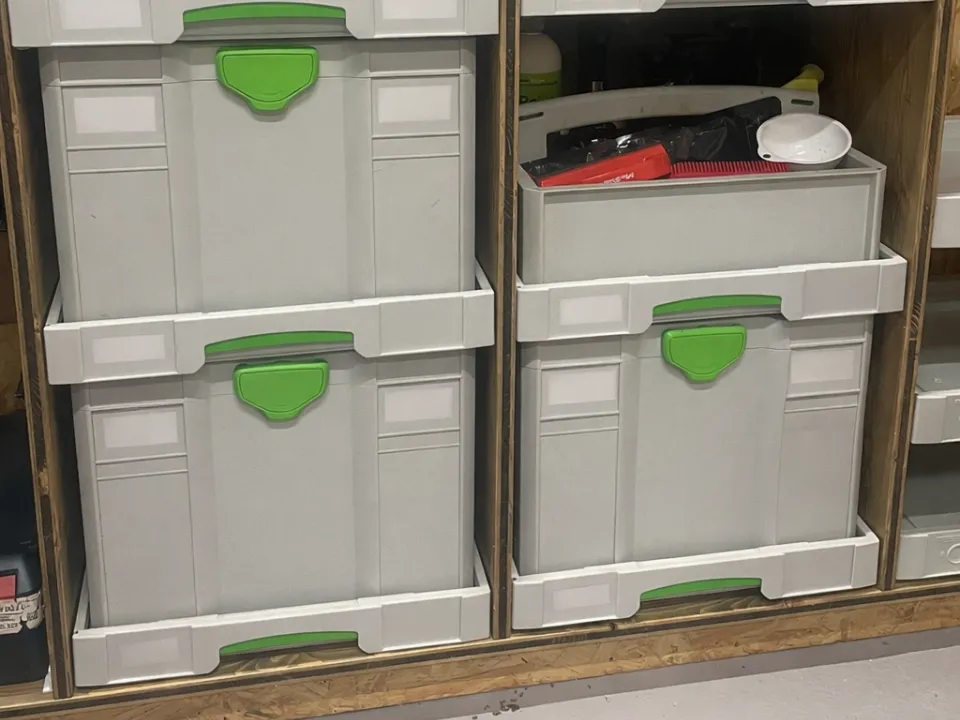

While installing multiple SYS-AZ drawers in my workshop cabinet, I wanted:

• perfect alignment
• repeatable hole spacing
• minimal measuring
• reduced installation time

So I designed this jig in Fusion 360 and optimized it for 3D printing.
