<h2>🔐 Boîtier ESP32 NFC TagReader</h2><p>Voici un boîtier 3D compact conçu pour intégrer :</p><ul><li>🧠 <strong>ESP32 DevKit (esp32dev)</strong></li><li>📡 <strong>Module NFC PN532 (I2C)</strong></li><li>💡 <strong>LED WS2812</strong></li><li>🔊 <strong>Buzzer</strong></li><li>🔘 <strong>Emplacement frontal pour bouton Aqara</strong></li></ul><p>Le tout dans un format propre et discret, idéal pour une installation murale ou près d’une entrée.</p><h2>🚨 Concept d’utilisation</h2><p>Ce boîtier est pensé pour un usage domotique orienté sécurité :</p><ul><li>🔘 <strong>Bouton Aqara en façade</strong> → Permet d’armer l’alarme</li><li>🏷️ <strong>Tag NFC</strong> → Permet de désarmer l’alarme</li><li>💡 LED + 🔊 Buzzer → Retour visuel et sonore</li></ul><p>Un fonctionnement simple, intuitif et familial.</p><h2>✨ Points forts du design</h2><ul><li>✔️ Ajustement précis pour ESP32 et PN532</li><li>✔️ Logement frontal dédié au bouton Aqara</li><li>✔️ Diffuseur intégré pour LED WS2812</li><li>✔️ Emplacement buzzer interne</li><li>✔️ Passage de câbles optimisé</li><li>✔️ <strong>Fermeture par aimants intégrés</strong></li></ul><h2>🧲 Fermeture magnétique</h2><p>Le couvercle est maintenu par :</p><ul><li><strong>Aimants néodyme 6 x 2 mm</strong></li><li>Vérifier la polarité avant collage</li></ul><p>Avantages :</p><ul><li>Ouverture rapide pour maintenance</li><li>Pas de vis apparentes</li><li>Design propre et minimaliste</li></ul><h2>🖨️ Paramètres d’impression conseillés</h2><ul><li>Hauteur de couche : 0.2 mm</li><li>Remplissage : 15–20 %</li><li>Support : non nécessaire</li><li>Matière : PLA ou PETG</li></ul><h2>🙋 À propos du projet</h2><p>Il s’agit de <strong>ma toute première création en modélisation 3D</strong>.<br>Je débute en dessin 3D, donc les retours et suggestions sont les bienvenus 🙌</p><p>Si vous améliorez le modèle ou l’adaptez à un autre bouton ou module NFC, n’hésitez pas à partager votre remix 🚀</p>

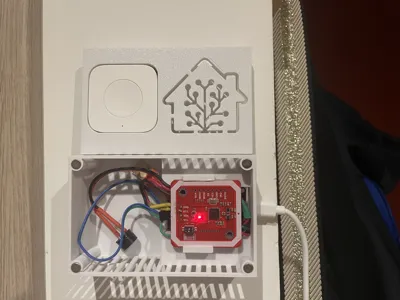

<h2>🔐 ESP32 NFC TagReader Case</h2><p>Here is a compact 3D case designed to integrate:</p><ul><li>🧠 <strong>ESP32 DevKit (esp32dev)</strong></li><li>📡 <strong>NFC PN532 Module (I2C)</strong></li><li>💡 <strong>WS2812 LED</strong></li><li>🔊 <strong>Buzzer</strong></li><li>🔘 <strong>Front slot for Aqara button</strong></li></ul><p>All in a clean and discreet format, ideal for wall mounting or near an entrance.</p><h2>🚨 Usage Concept</h2><p>This case is designed for security-oriented home automation use:</p><ul><li>🔘 <strong>Front Aqara button</strong> → Arms the alarm</li><li>🏷️ <strong>NFC Tag</strong> → Disarms the alarm</li><li>💡 LED + 🔊 Buzzer → Visual and audible feedback</li></ul><p>Simple, intuitive, and family-friendly operation.</p><h2>✨ Design Highlights</h2><ul><li>✔️ Precise fit for ESP32 and PN532</li><li>✔️ Dedicated front housing for Aqara button</li><li>✔️ Integrated diffuser for WS2812 LED</li><li>✔️ Internal buzzer slot</li><li>✔️ Optimized cable routing</li><li>✔️ <strong>Closure with integrated magnets</strong></li></ul><h2>🧲 Magnetic Closure</h2><p>The lid is held by:</p><ul><li><strong>6 x 2 mm Neodymium magnets</strong></li><li>Check polarity before gluing</li></ul><p>Advantages:</p><ul><li>Quick opening for maintenance</li><li>No visible screws</li><li>Clean and minimalist design</li></ul><h2>🖨️ Recommended Print Settings</h2><ul><li>Layer height: 0.2 mm</li><li>Infill: 15–20 %</li><li>Support: not required</li><li>Material: PLA or PETG</li></ul><h2>🙋 About the Project</h2><p>This is <strong>my very first 3D modeling creation</strong>.<br>I'm new to 3D design, so feedback and suggestions are welcome 🙌</p><p>If you improve the model or adapt it for another button or NFC module, feel free to share your remix 🚀</p>

Print Profile(1)

Description

🔐 ESP32 NFC TagReader Case

🚨 Usage Concept

✨ Design Highlights

🧲 Magnetic Closure

🖨️ Recommended Print Settings

🙋 About the Project
