Bill of Materials
- Transparent Rubber Feet for Cabinet Doors x 4: See Amazon link
Description
Boost Me (for free)
➡️ Hey! If you like this model, please consider hitting the Boost button! Every Boost helps fund the filament supply (and keeps the X1 humming!). Thanks!
The Barista Vault: Industrial Single Dose Station
➡️ Love the industrial aesthetic? Please consider hitting the Boost button! It helps fund the hardware and filament for the next coffee-tech project! ⬅️

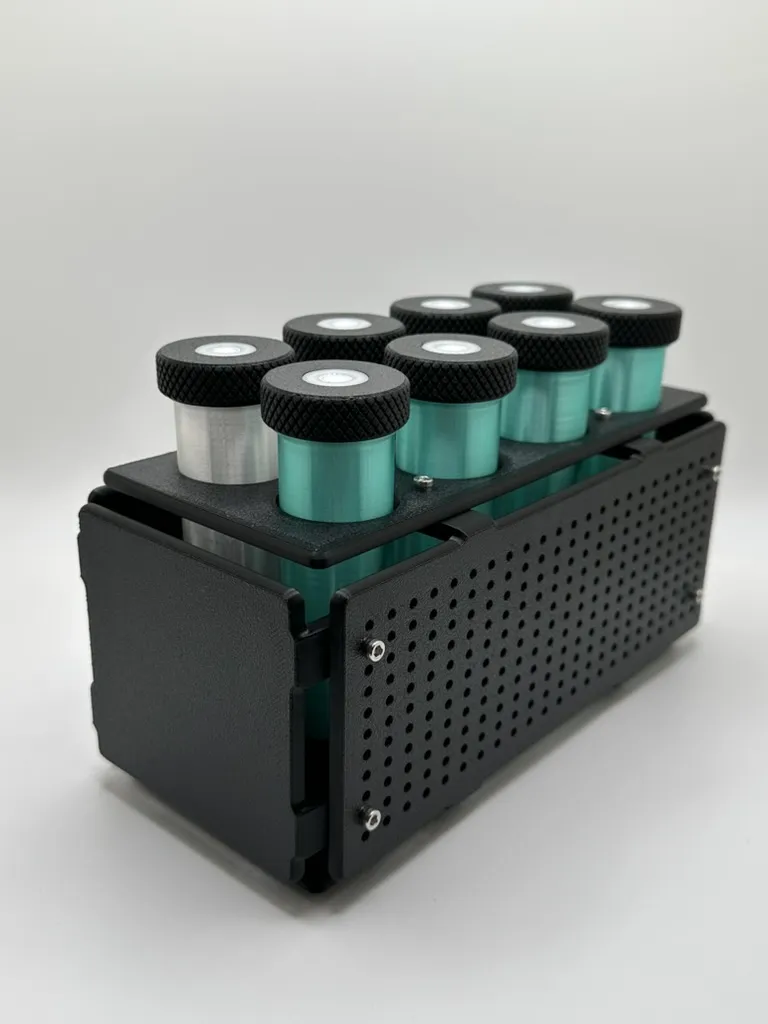

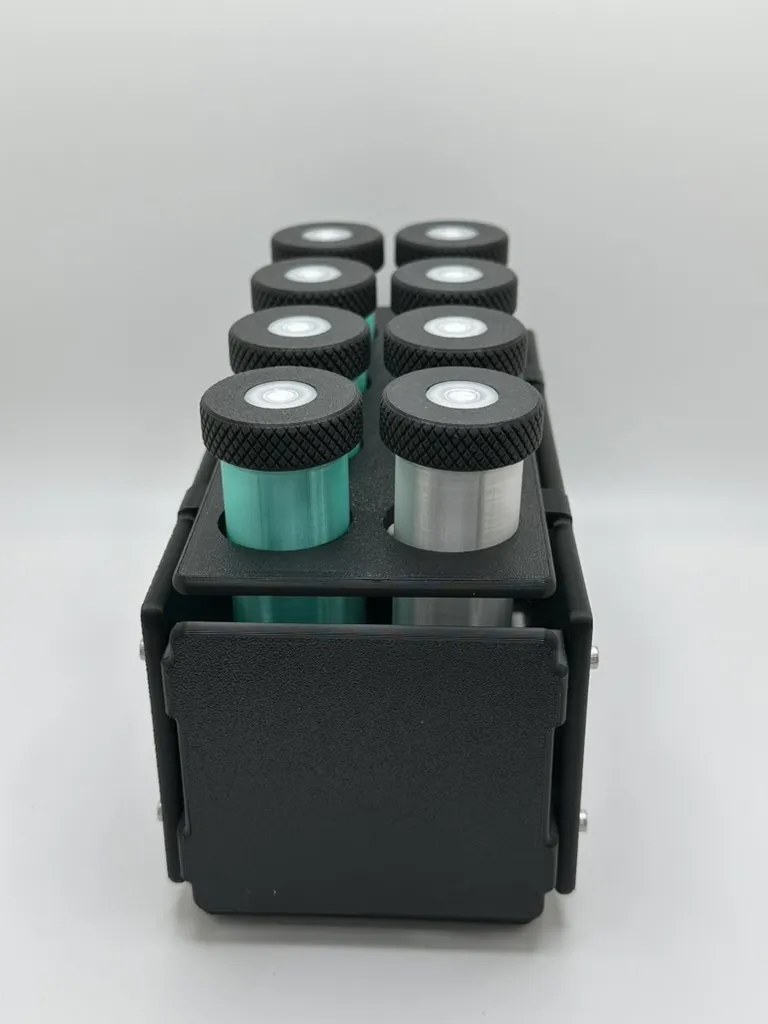

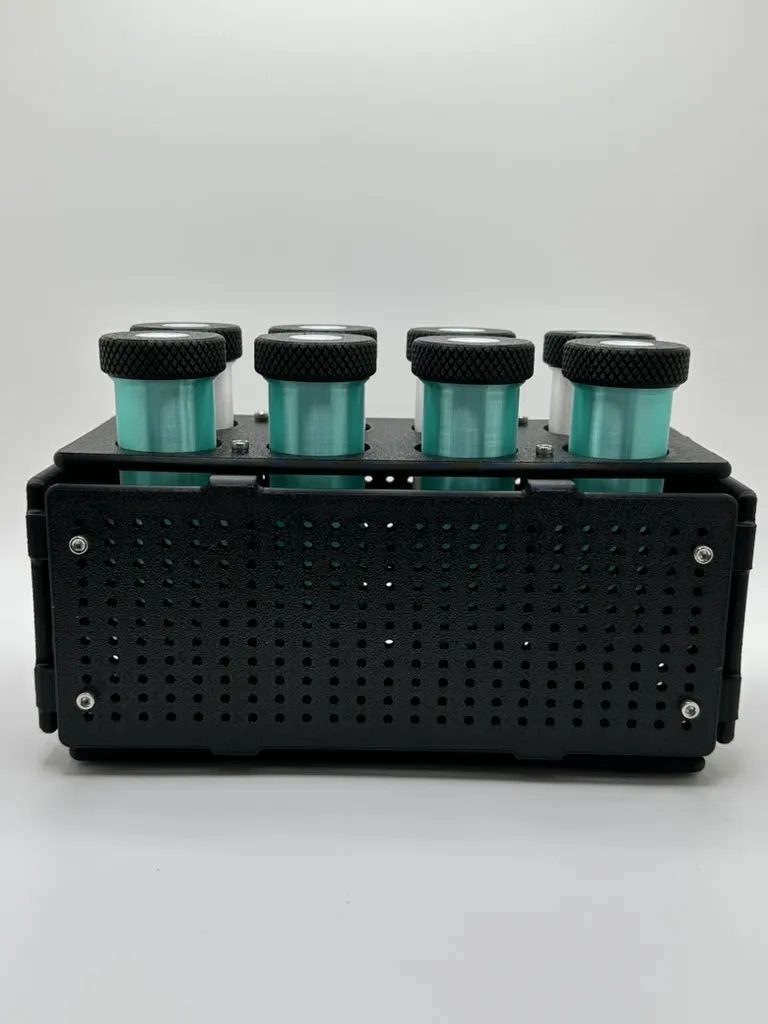

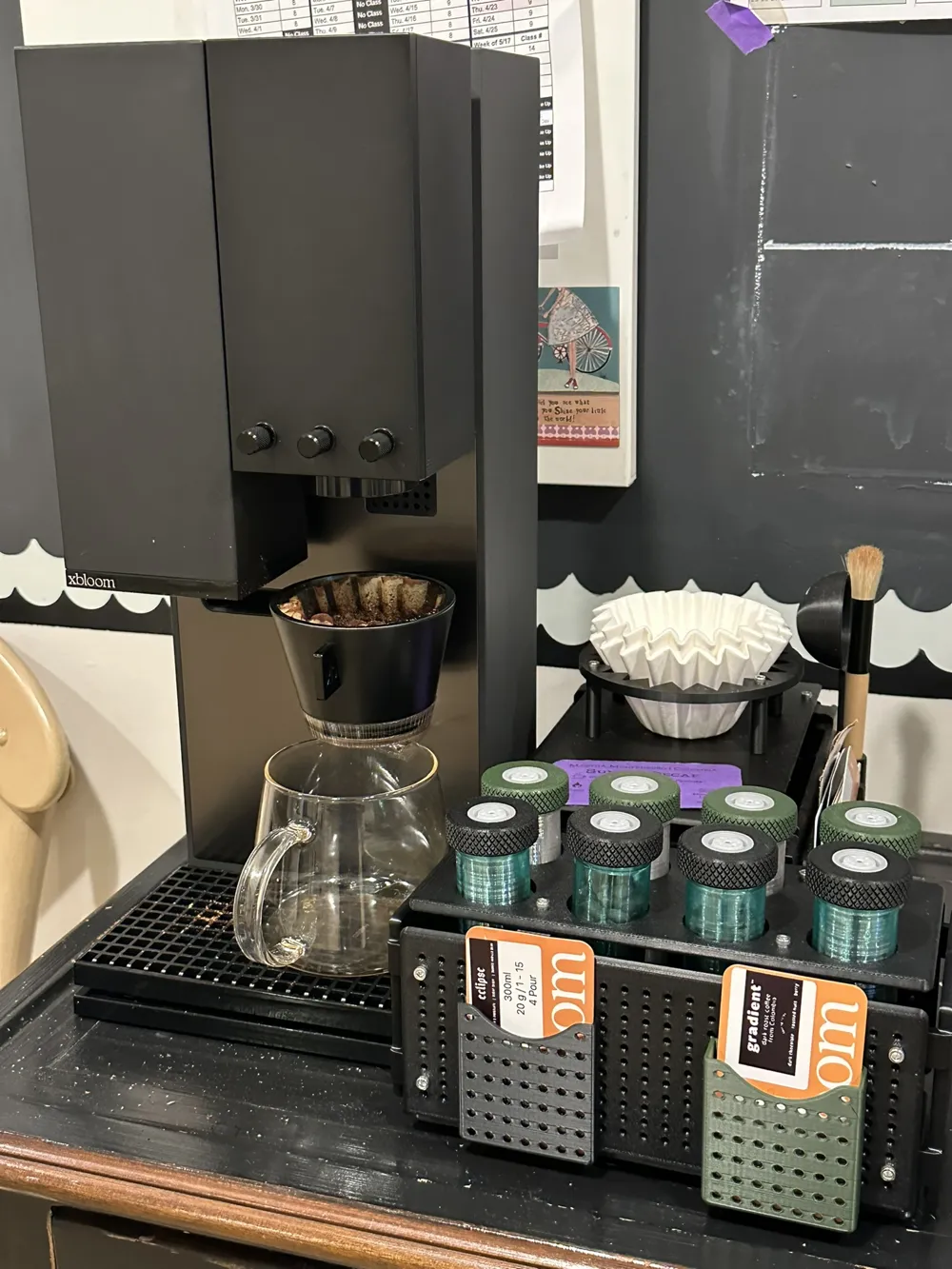

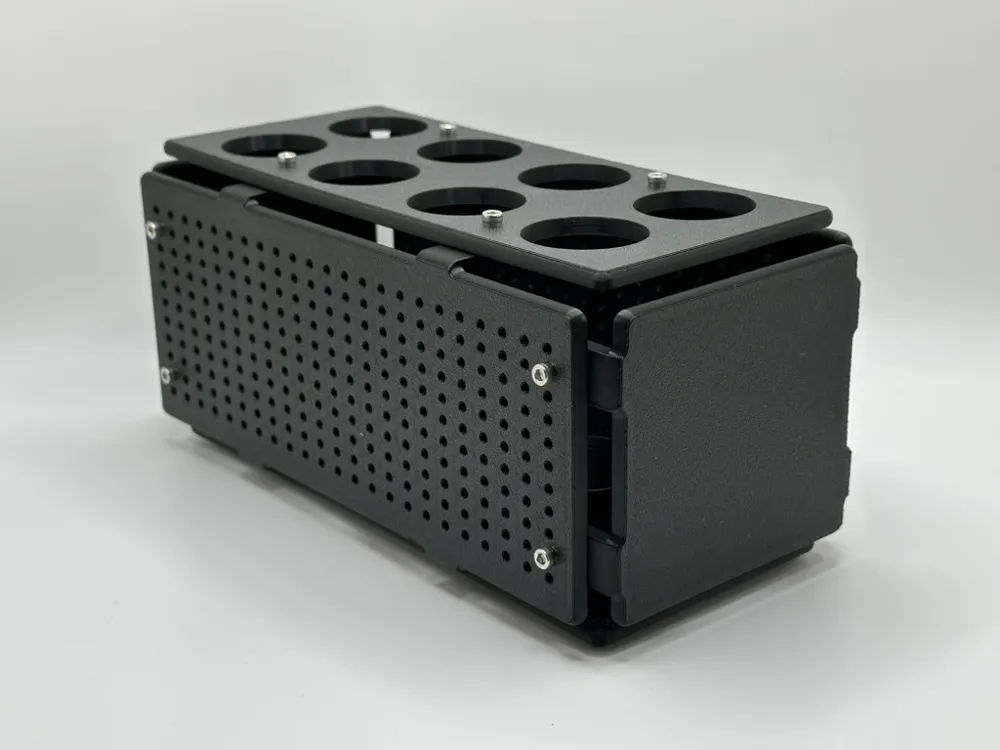

The Barista Vault Station is a heavy-duty, mechanical storage solution for the serious home barista. This is not a simple plastic organizer; it is a rugged assembly designed for those who appreciate industrial design. It is the perfect companion for high-end brewers like the xbloom, Ratio, or Moccamaster.

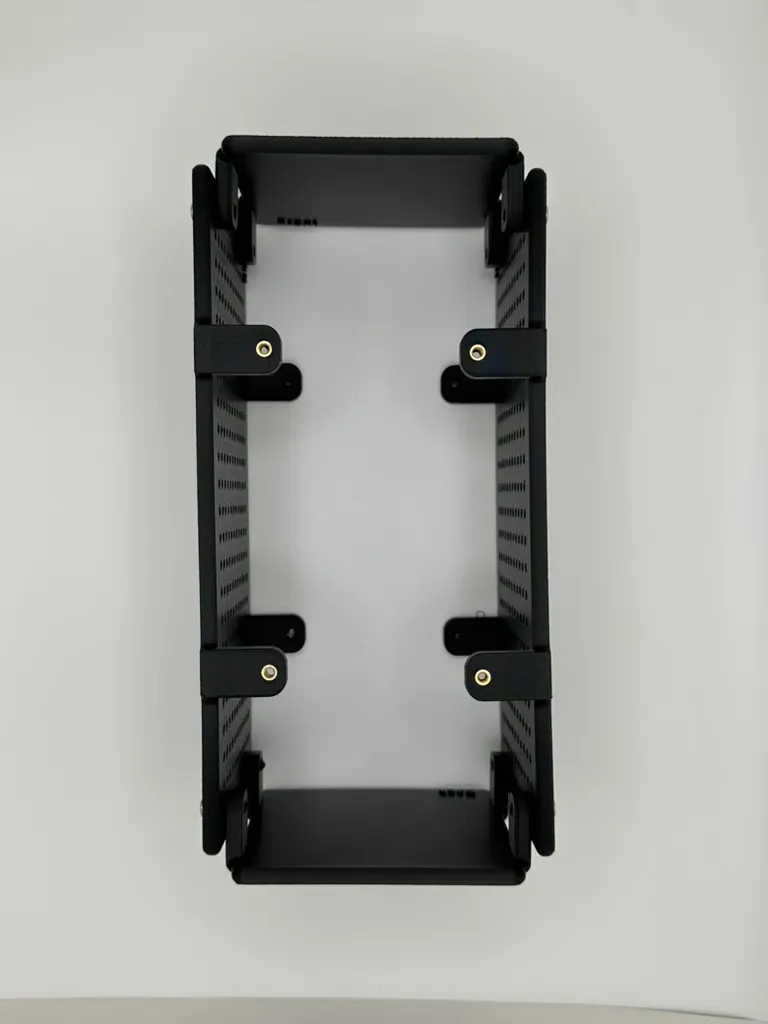

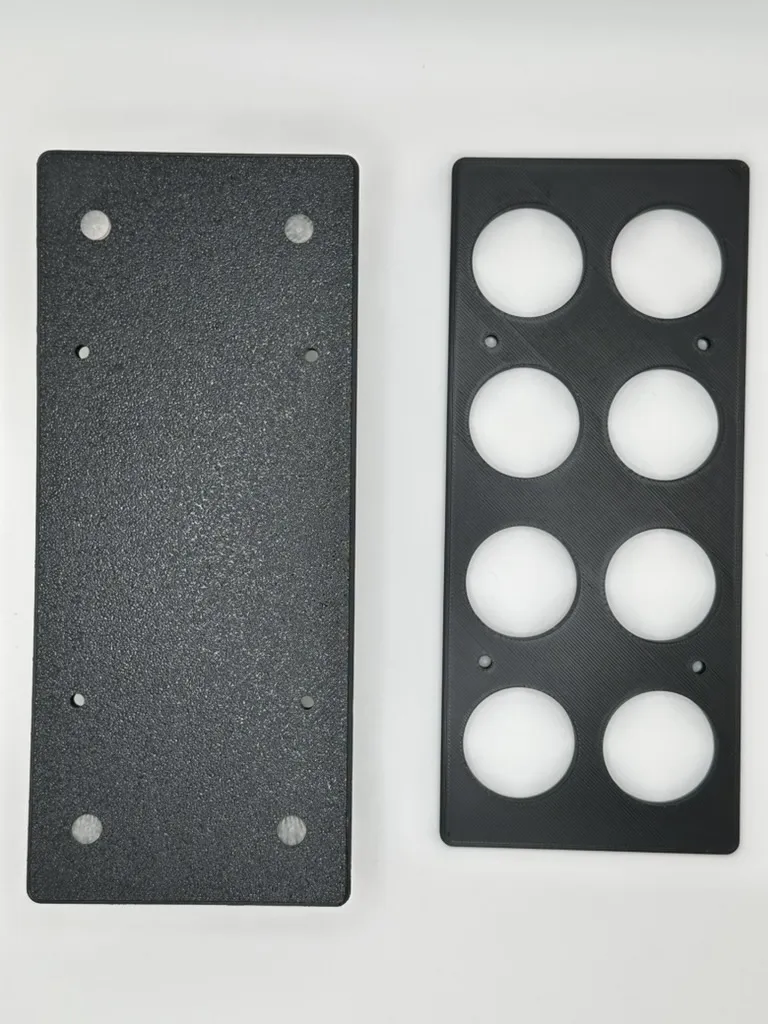

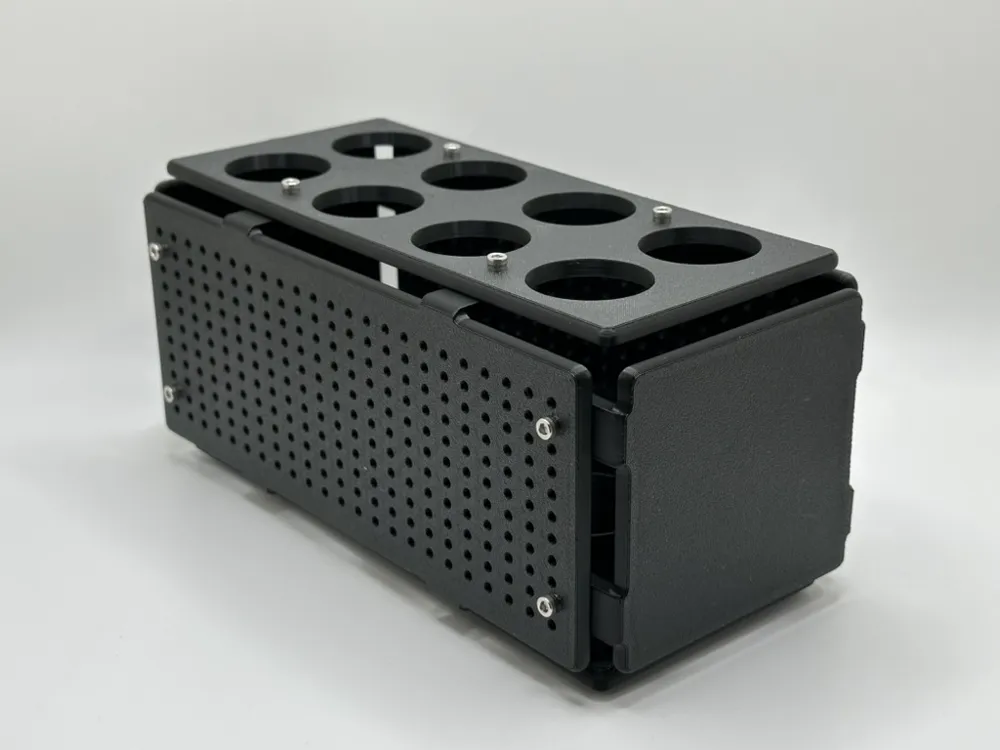

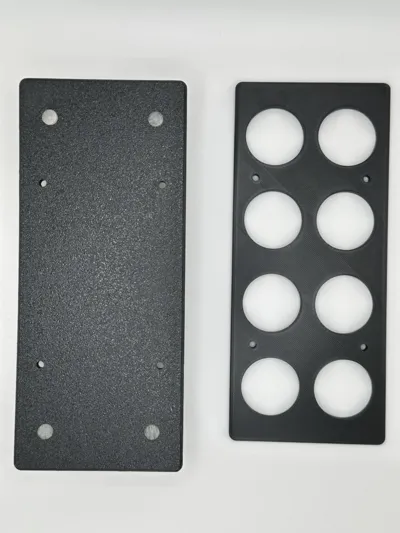

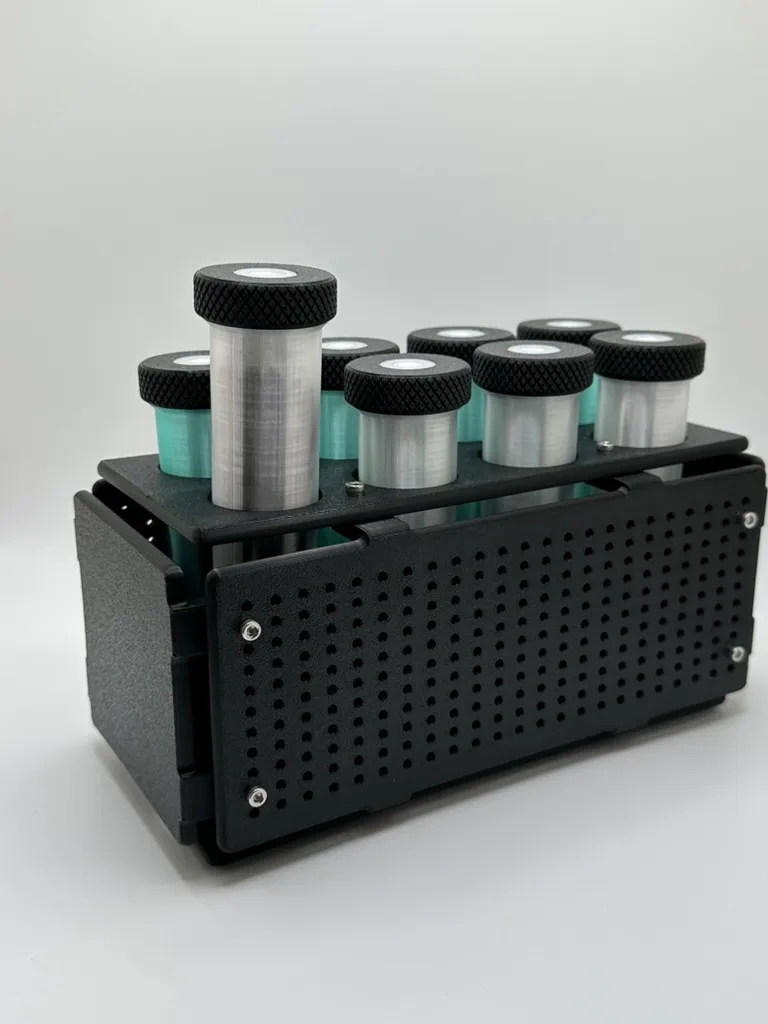

The design features perforated side panels and a precision-fit 8-vial deck. To achieve its solid, professional feel, the station utilizes a mix of exposed hex hardware and brass heat-set inserts. The base is engineered with pre-sunk holes for rubber feet and flat-head screws to ensure the unit sits flush and secure on your coffee bar without scratching the surface.
🛠️ Hardware Kit (Required for Assembly)
To build the Vault Station as intended, you will need the following hardware. I have chosen these specific sizes to ensure a professional, mechanical fit:
- Side & Top Accents: 12x M3 x 8mm Hex Socket Head Screws
- Flush Base Mount: 4x M3 Flat Head Screws (Must be flat head to sit recessed)

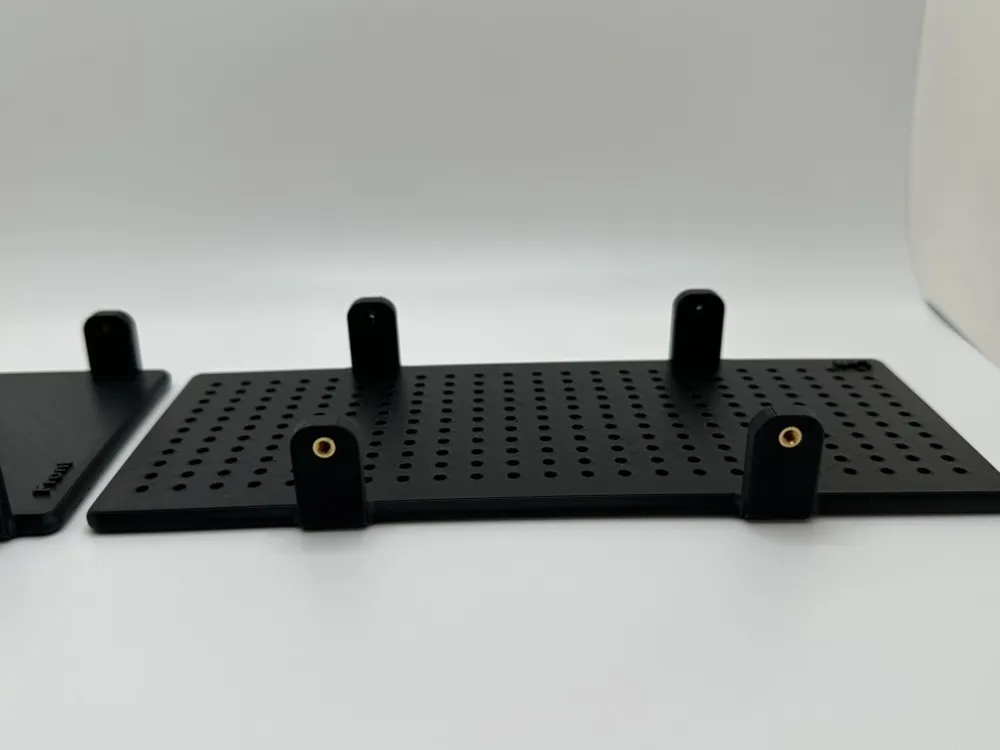

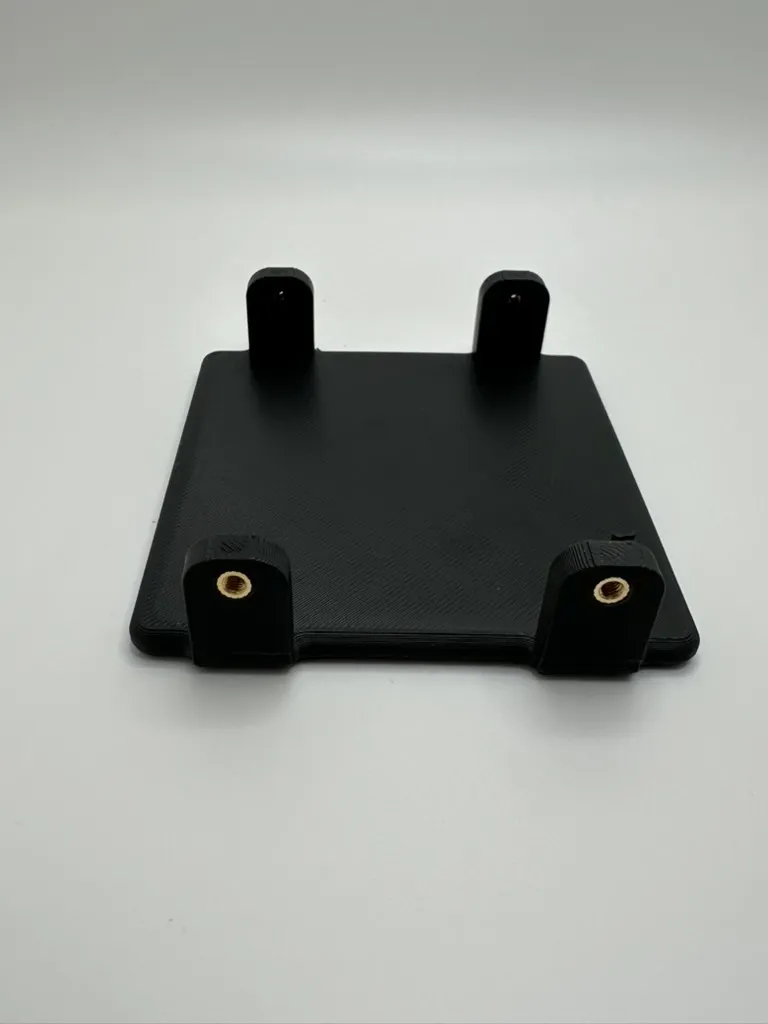

- Threaded Points: 16x M3 x 4mm Brass Heat-Set Inserts
- Non-Slip Feet: 4x 1/2" Round Adhesive Rubber Feet (Amazon Link)
⚙️ Technical Build Specs

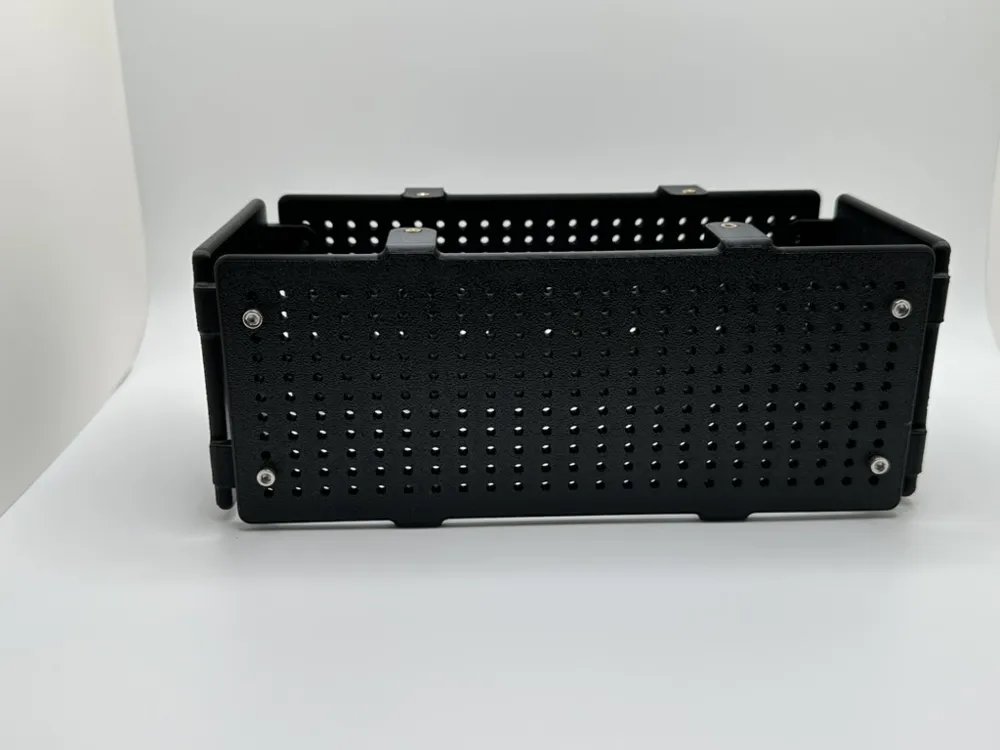

- Industrial Aesthetic: Perforated panels and modular frame for a machine-shop look.
- Mechanical Assembly: High-strength fitment using M3 hardware—no glue required.

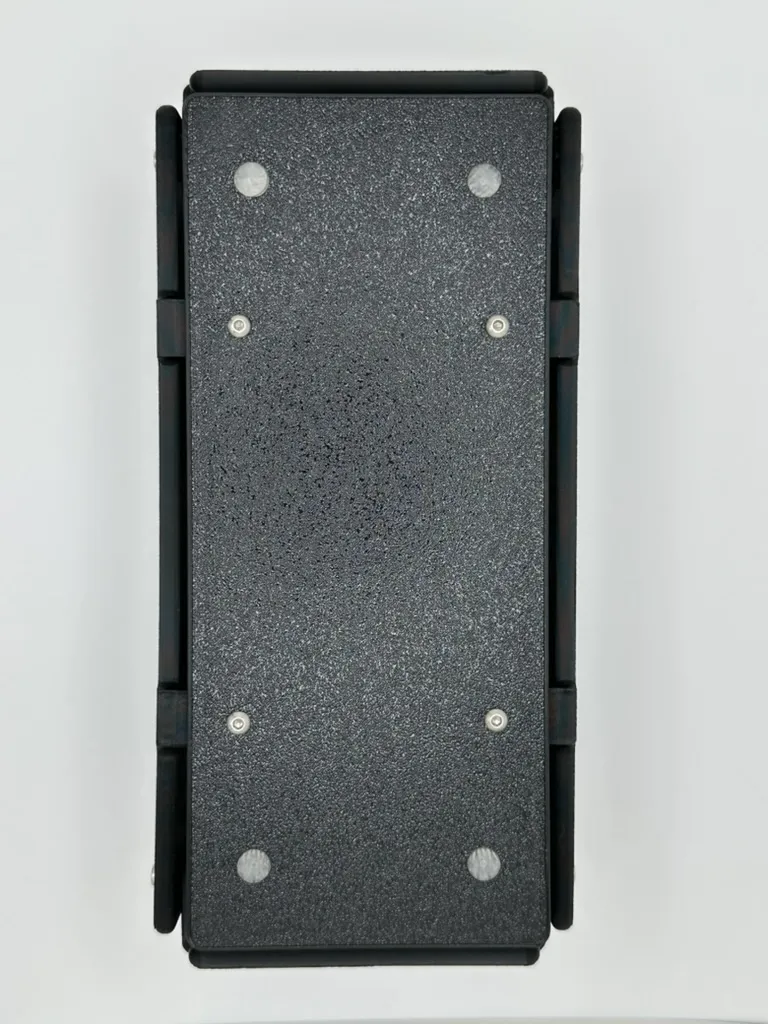

- Pro-Grade Base: Features recessed mounting points for a clean, scratch-free bottom.

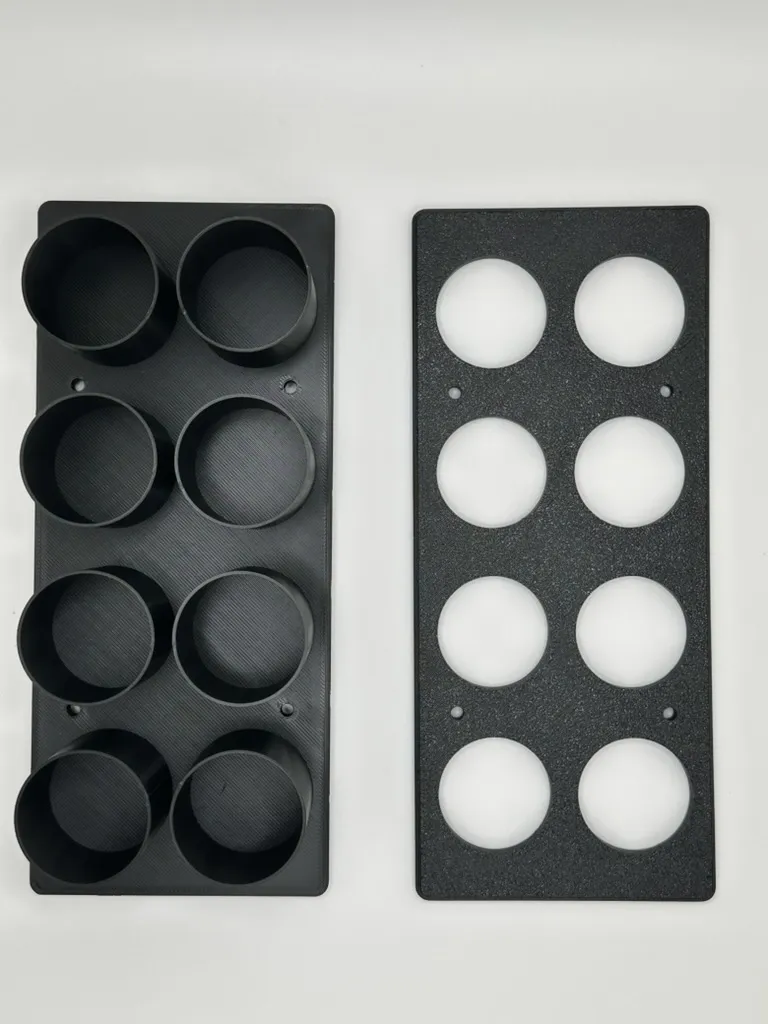

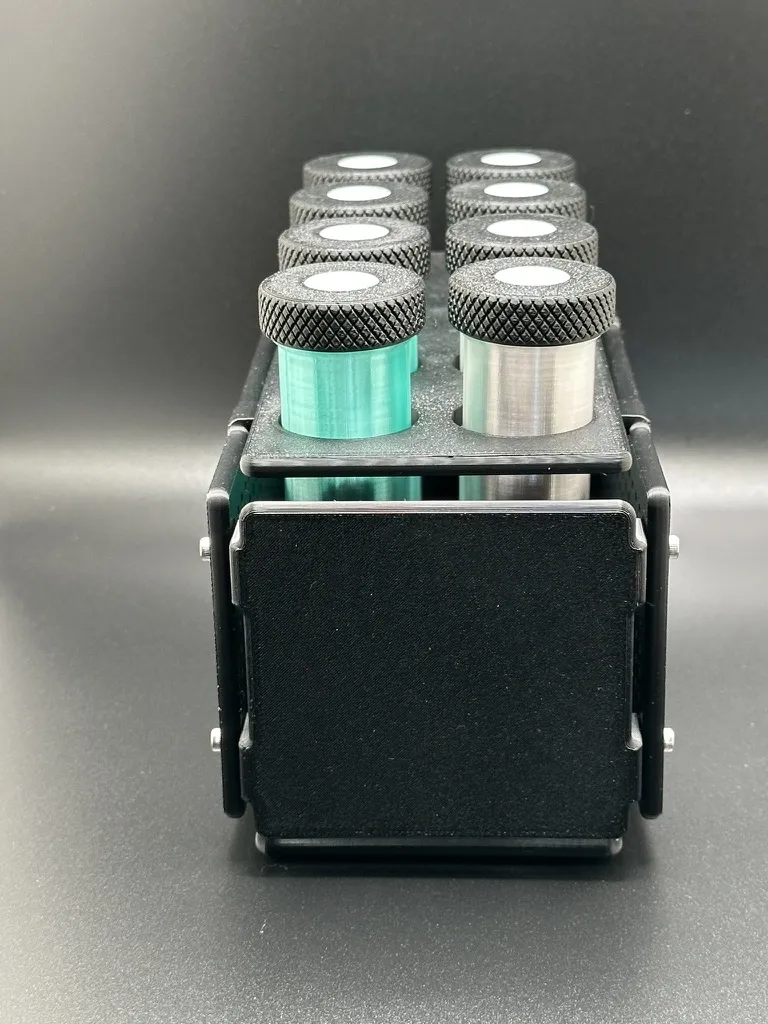

- 8-Slot Deck: Optimized for 60ml vials (Check out my Valve-Ventilated version below!).
📐 Print Settings
- Infill: Rectilinear (Highly recommended to match the technical lines of the panels).
- Wall Loops: 3–4 for a solid, premium feel.
- Material: Matte Black PLA or PA-CF (Carbon Fiber) for the ultimate industrial finish.
🔗 Complete the System
Don't stop at the station! Complete your coffee bar with the rest of the Vault Series:

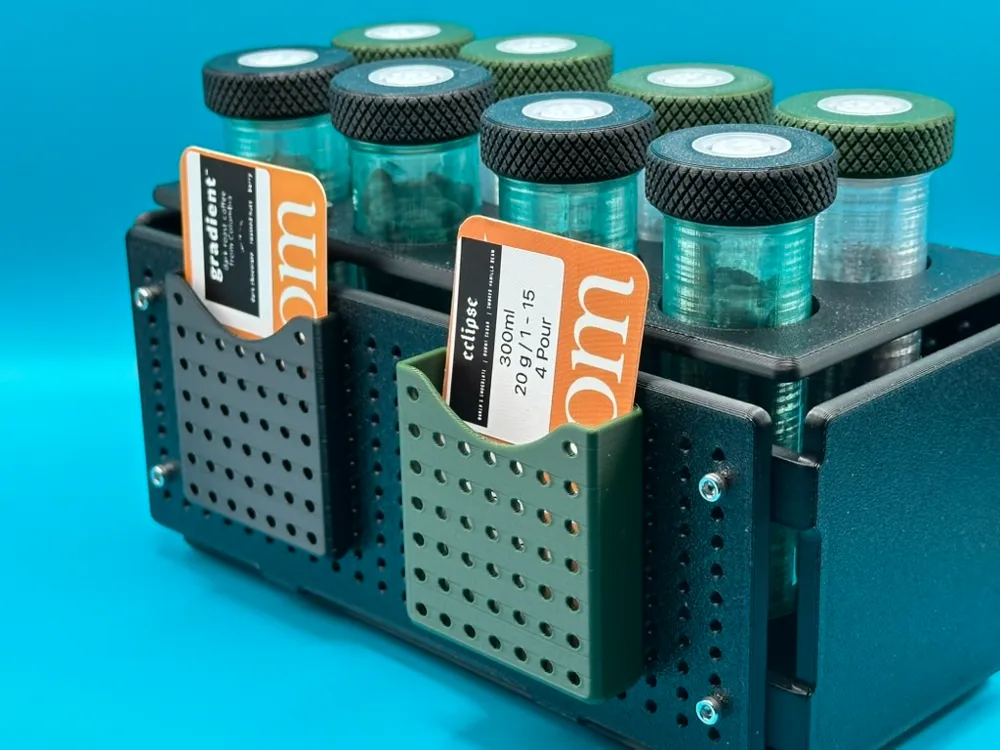

- The Barista Vault: Card Holders: https://makerworld.com/en/models/2467368-the-barista-vault-card-holders#profileId-2708687
- Valve-Ventilated Vials: https://makerworld.com/en/models/2493495-the-barista-vault-valve-ventilated-coffee-vials#profileId-2740227
