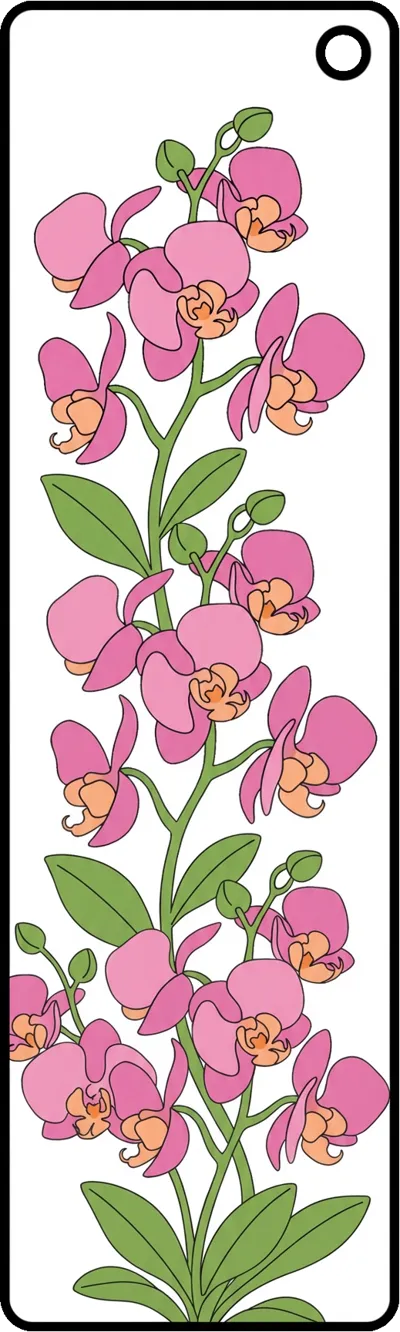

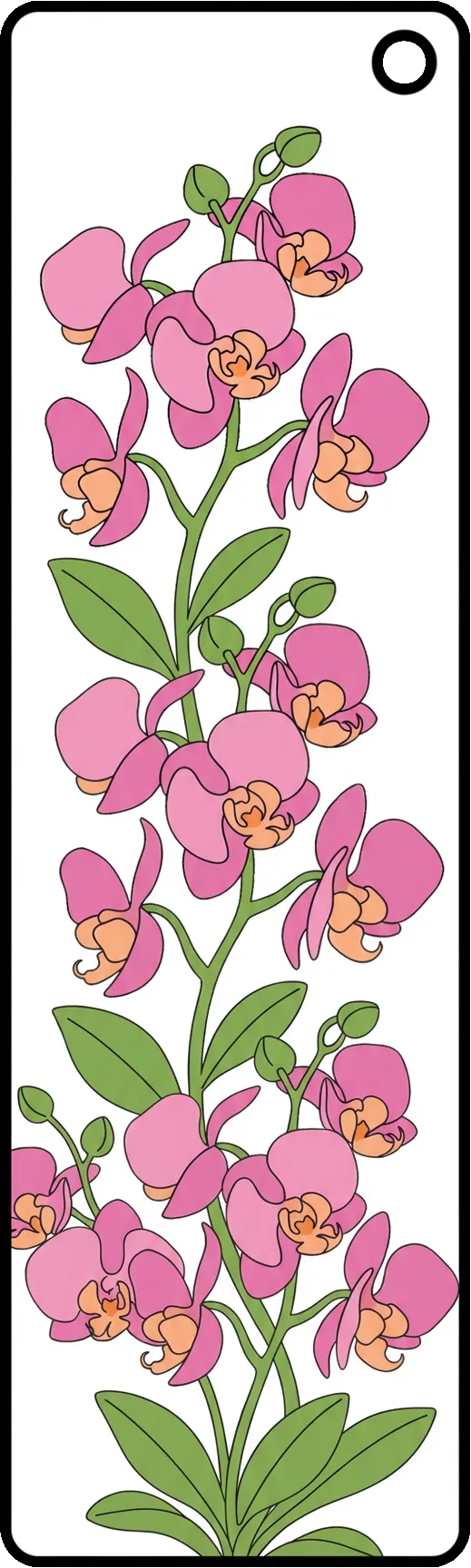

🌟 [Phalaenopsis Orchid Embosser Bookmark]
🎨 Introduction | Description
The Phalaenopsis orchid, the provincial flower of Taiwan Province
Phalaenopsis, also known as Moth Orchid, is often called the "Queen of Orchids". The Greek origin of Phalaenopsis means "orchid resembling a butterfly", named for its butterfly-like blooming posture. Phalaenopsis flowers resemble winged butterflies, with mostly broad-circular petals. They come in rich colors, commonly white, pink, purple, and variegated varieties. The inflorescence is long and graceful, with a single stem bearing several to over ten symmetrically arranged flowers. The leaves are thick and fleshy, deep green, and smooth on the surface, with robust, exposed aerial roots adapted to an epiphytic nature. Its main value is reflected in its ornamental, economic, and cultural aspects, serving as a high-end indoor potted plant and a fine gift for festivals, symbolizing purity and happiness, and also an important economic crop in the floral industry (from "Baidu Baike")

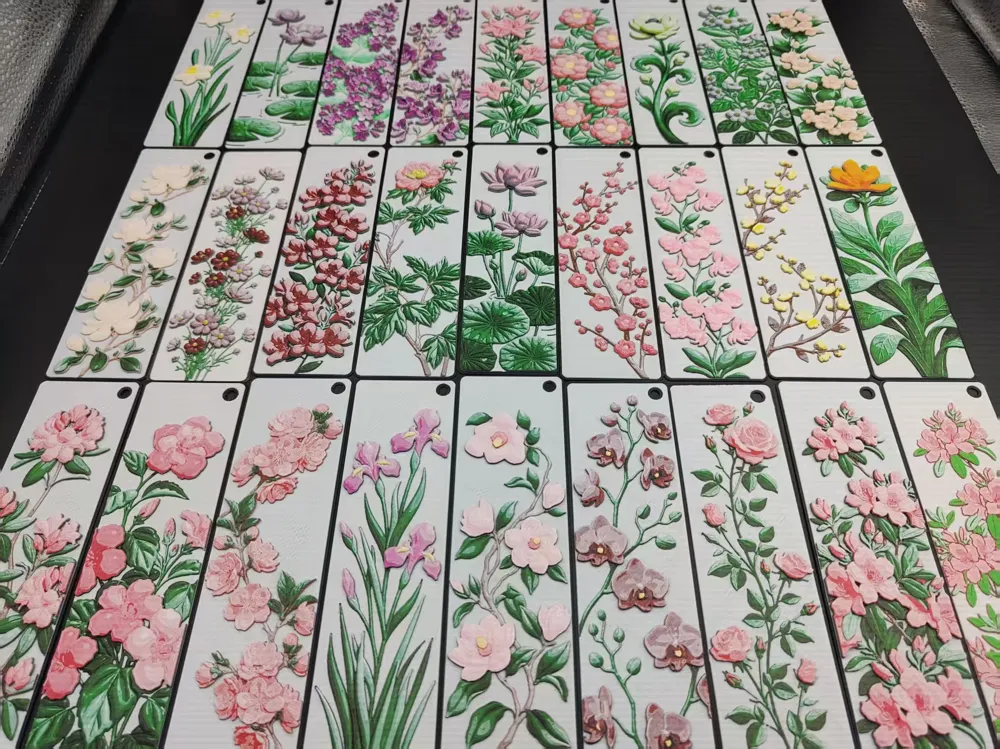

This is one of the [Series of Bookmarks Featuring Provincial Flowers of Chinese Provinces], we hope you like it
🚀 Technical Core: hicolors-3d
This model is generated using the hicolors-3d workflow, which offers the following advantages compared to traditional processes
No AMS color changing system needed: It adopts a layered color-changing design concept, allowing models to be printed without a color-changing system. You only need to manually change the filament at the corresponding layers, which is extremely material-saving
Precise Layer Height: By physically simulating all possibilities of superimposed colors, effective height is allocated to limited layer heights, saving layer height usage
Intuitive Matching: Based on color and area matching logic (no situation where an area cannot be matched to the desired color), it is more intuitive than traditional grayscale matching
Physical-level Simulation: Preview effect is the print effect, precisely simulating color superposition at different layer heights
Light and Shadow Aesthetics: Designed specifically for FDM printing, fully utilizing the translucent and overlaying color properties of PLA and other materials
🔄 Color Change Instructions | Color Change Instructions
No multi-color 3D printer (AMS) is needed, a regular single-nozzle machine can change colors manually
Color change information is included in the 3mf file, just download and view it
Below is the filament information used for printing, for your reference
Base/Starting Color: black - TD：0.1
| Color Change Height Accumulated Layers | Change to | Brand | HEX | RGB | TD |
|----------|----------|--------|------|-----|-----|-----|
| 0.64mm | 7 | bai | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 1.12mm | 13 | black | - | #000000 | rgb(0, 0, 0) | 0.1 |
| 1.28mm | 15 | green | - | #519b42 | rgb(81, 155, 66) | 2 |
| 1.60mm | 19 | bai | - | #ffffff | rgb(255, 255, 255) | 4.4 |
| 2.08mm | 25 | flame pink | - | #cf5f88 | rgb(207, 95, 136) | 5.7 |
| 2.48mm | 30 | bai | - | #ffffff | rgb(255, 255, 255) | 4.4 |
🛠️ Print Parameters | Print Settings
For best results, please strictly follow these settings
Infill: 100% (mandatory)
Layer Height: 0.08mm
First Layer Height: 0.16mm

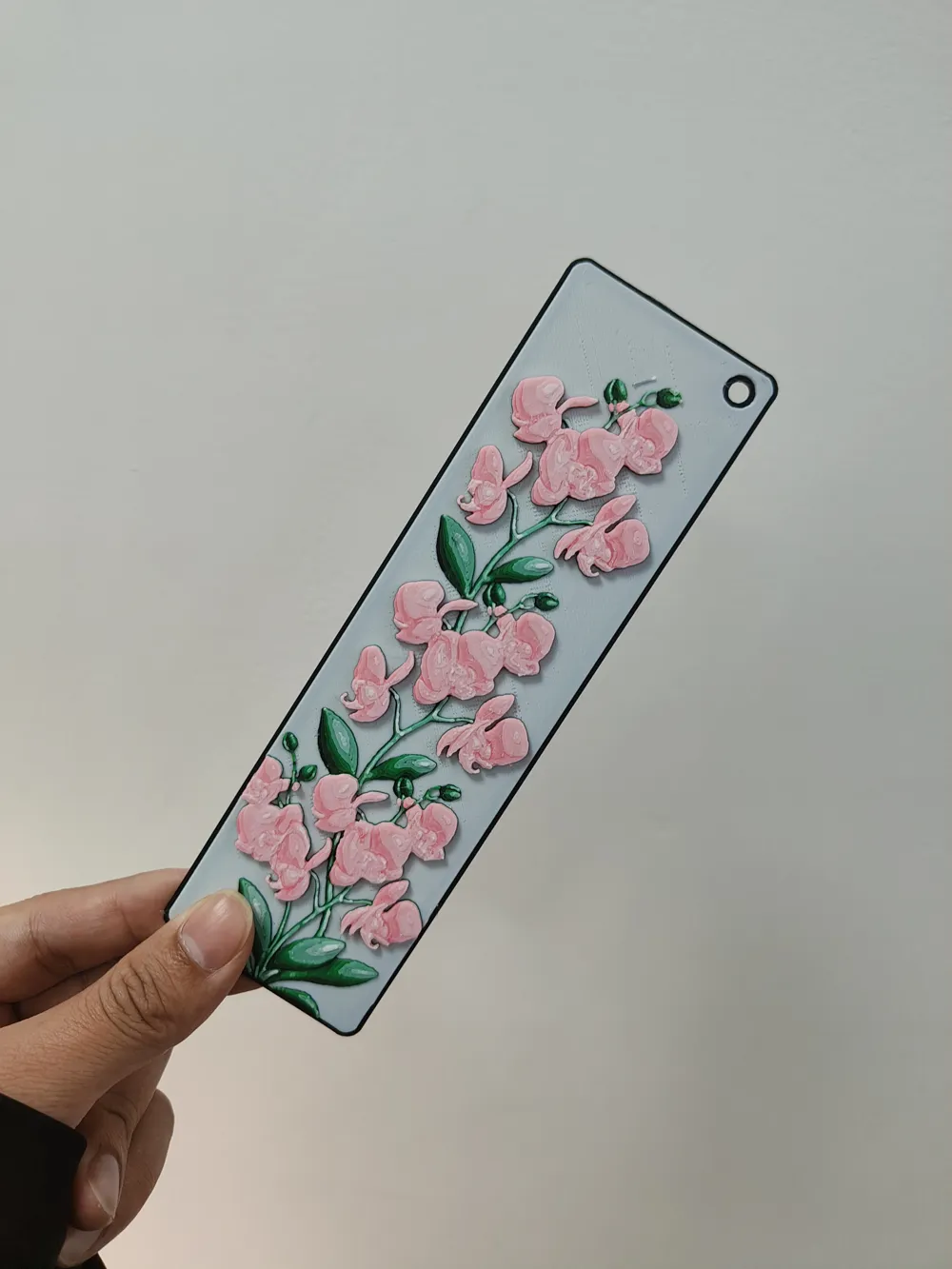

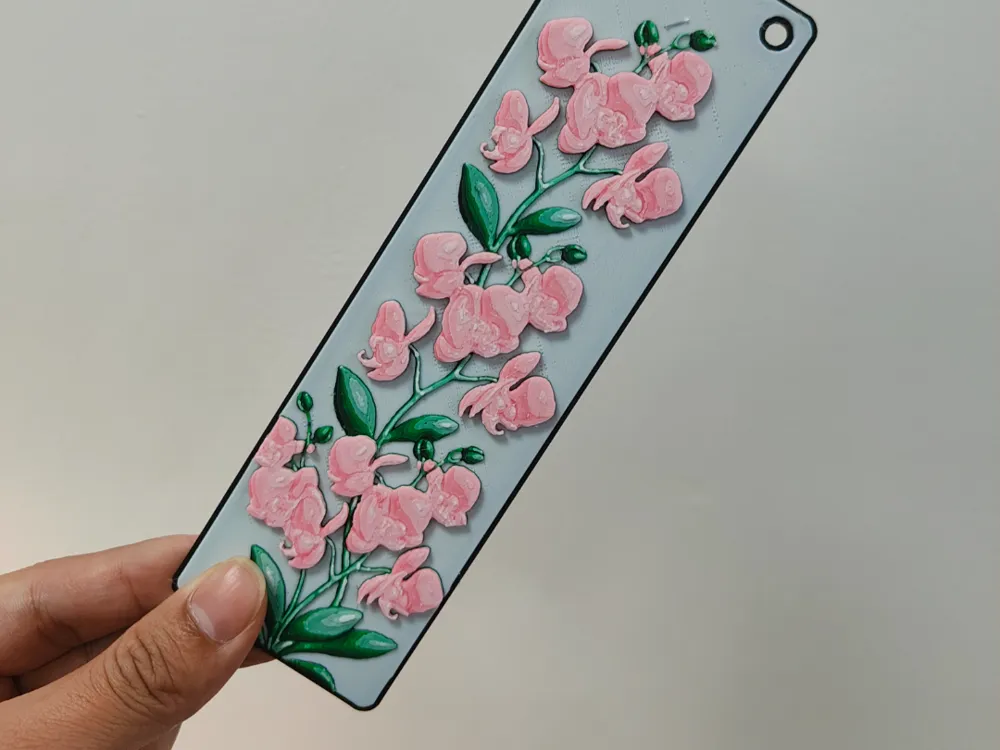

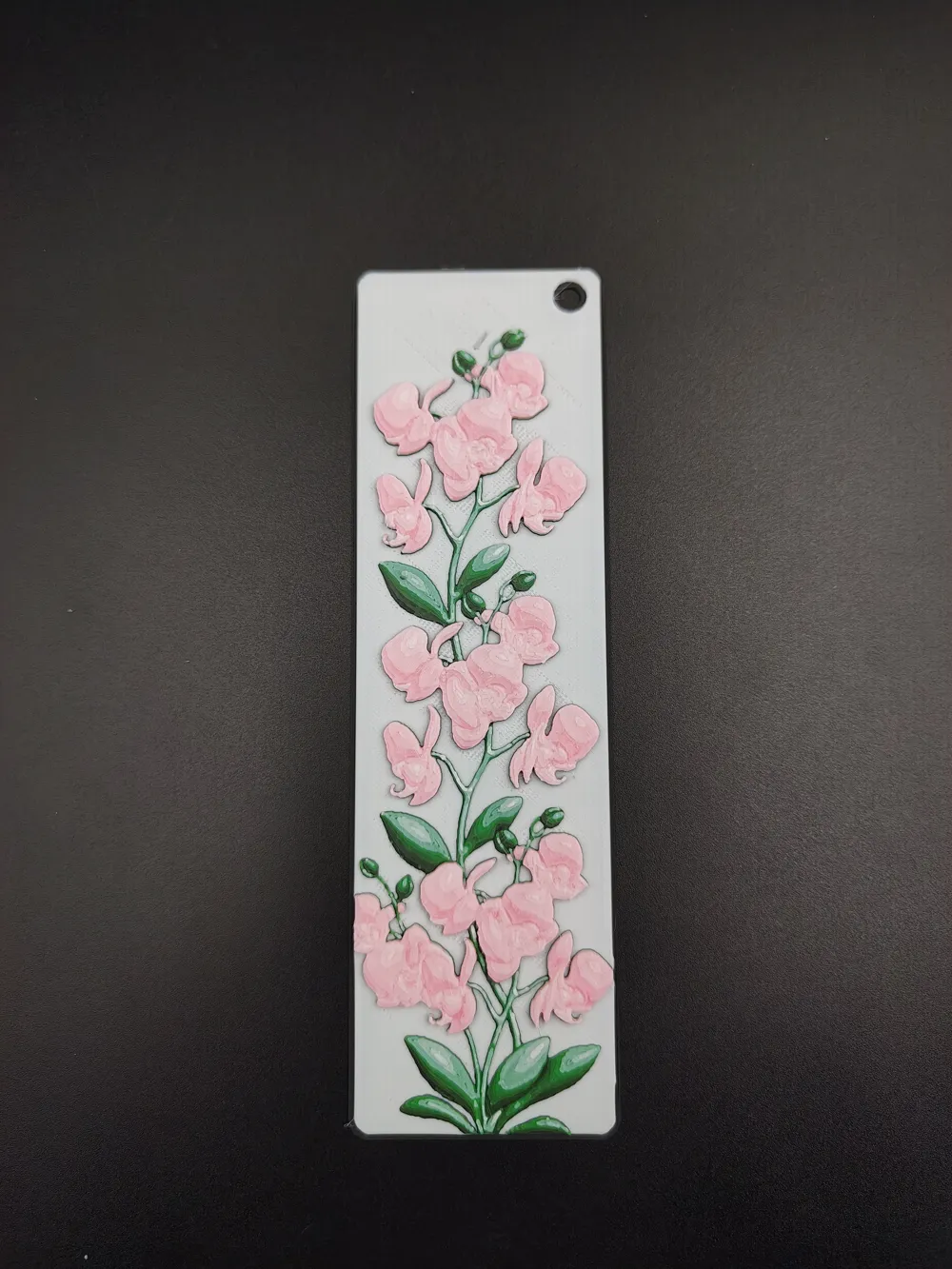

Nozzle Recommendation: 0.2mm is recommended (for strongest detail), 0.4mm is also acceptable (actual photo uses 0.4mm)
Model Scaling: Do not adjust the Z-axis scale of the model to ensure correct layered color change information. You can freely adjust the X and Y-axis scaling to get the desired size
Post-processing tip: Quickly run a lighter over the model surface to perfectly remove common fine stringing from FDM printing 🔥
