Door & Window Trim Reveal Tool
Precision in Every Corner – 1mm Increments!

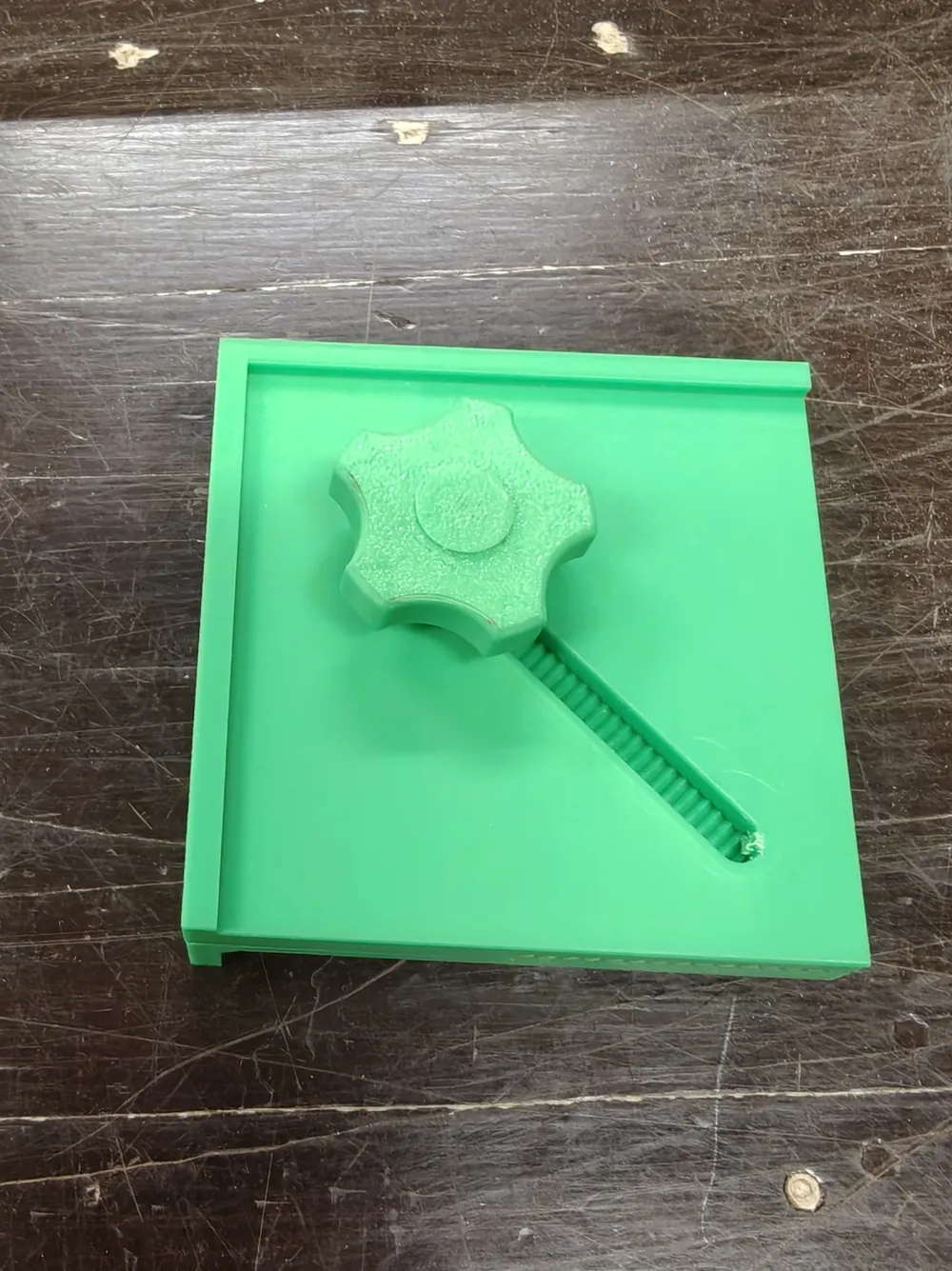

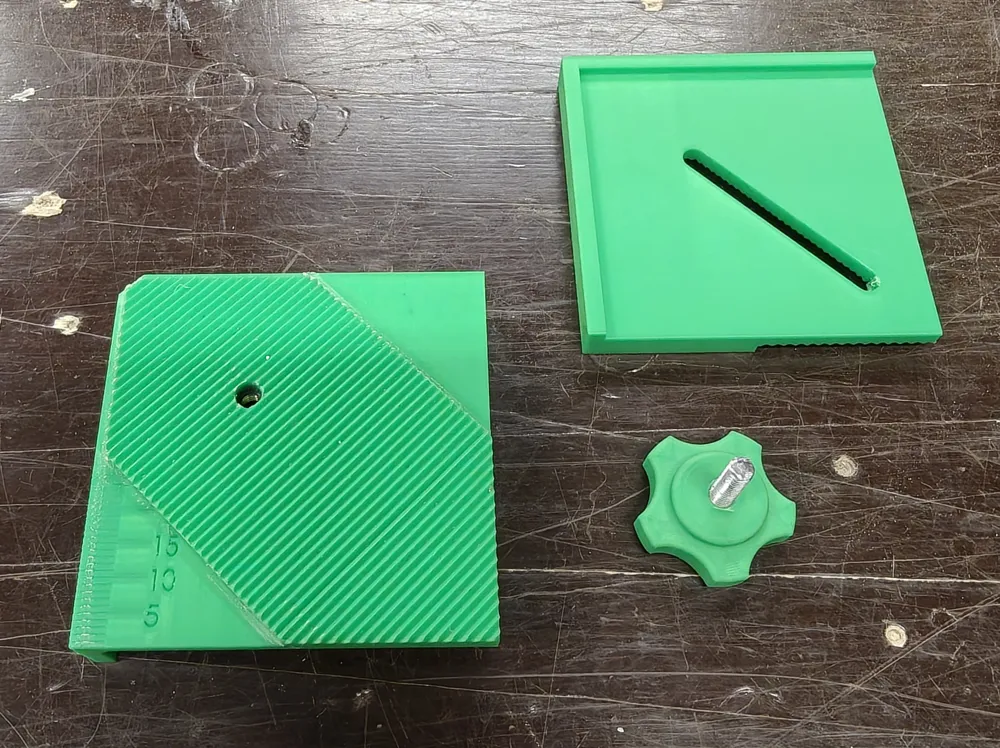

Forget the guesswork and inconsistent markings. This professional-grade adjustment tool is designed for creating perfect reveals on door and window trims. With an adjustable range of 1mm to 25mm in precise 1mm increments, you’ll achieve a symmetrical and flawless finish every time.

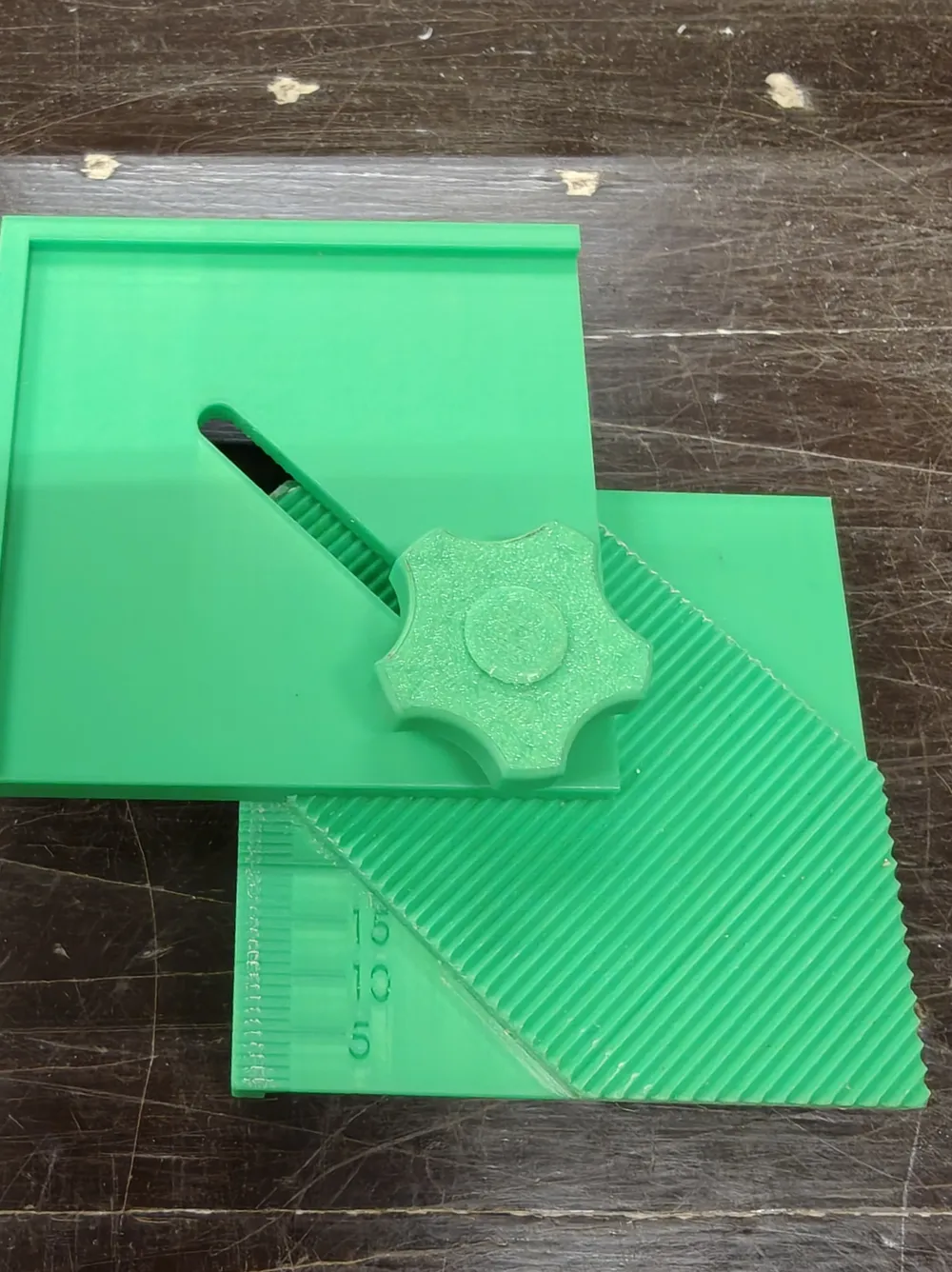

- 1–25mm scale ensures your reveals stay consistent throughout the entire installation.
- Professional Results: Significantly simplifies the alignment of miters and trims, saving you time and reducing material waste.
- Adjustment Range: 1–25 mm (in 1 mm steps)

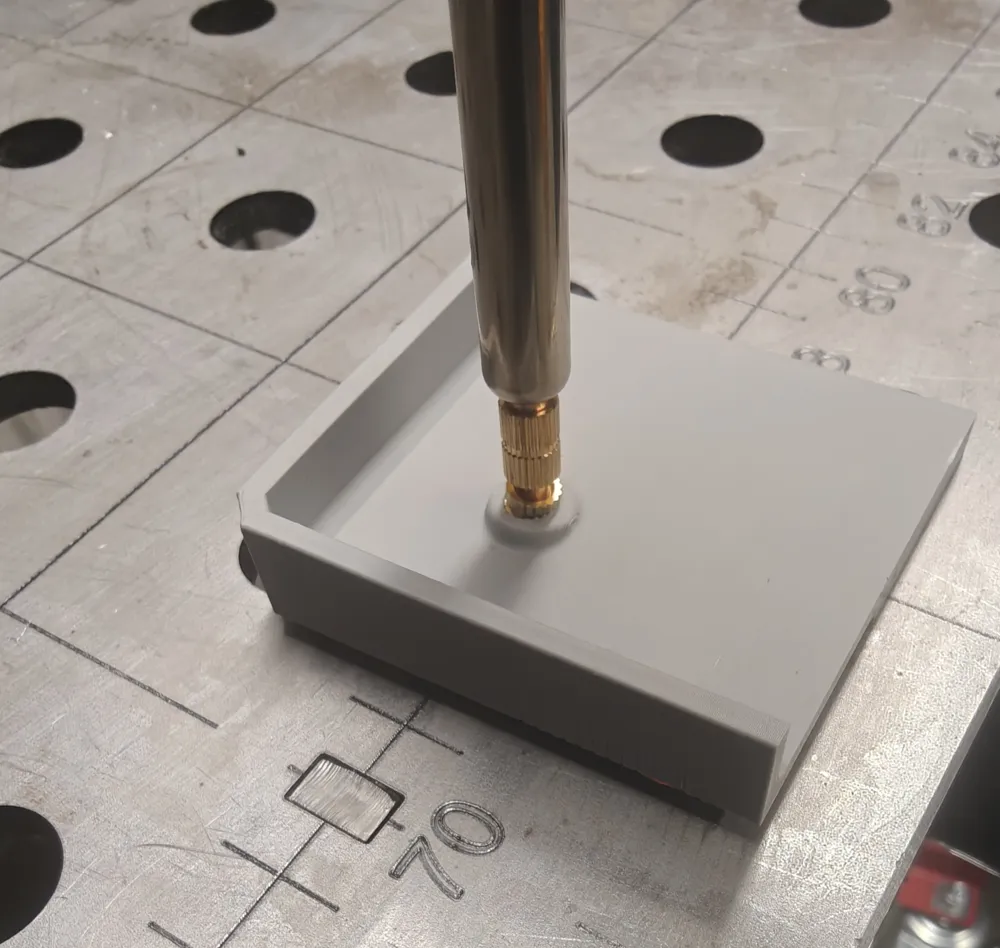

- Hardware: Requires one M4x4x6 mm heat-set insert and an M4 bolt

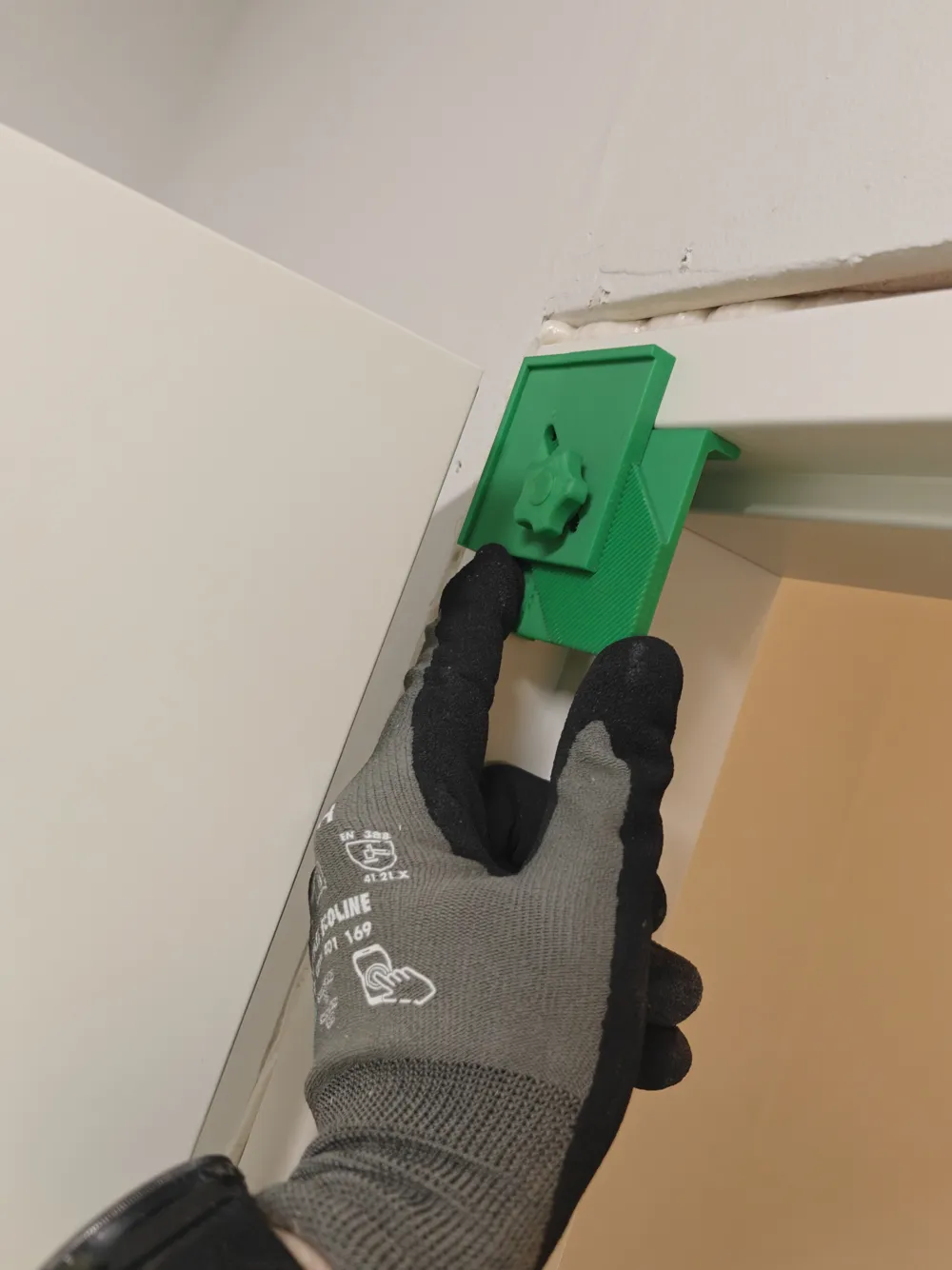

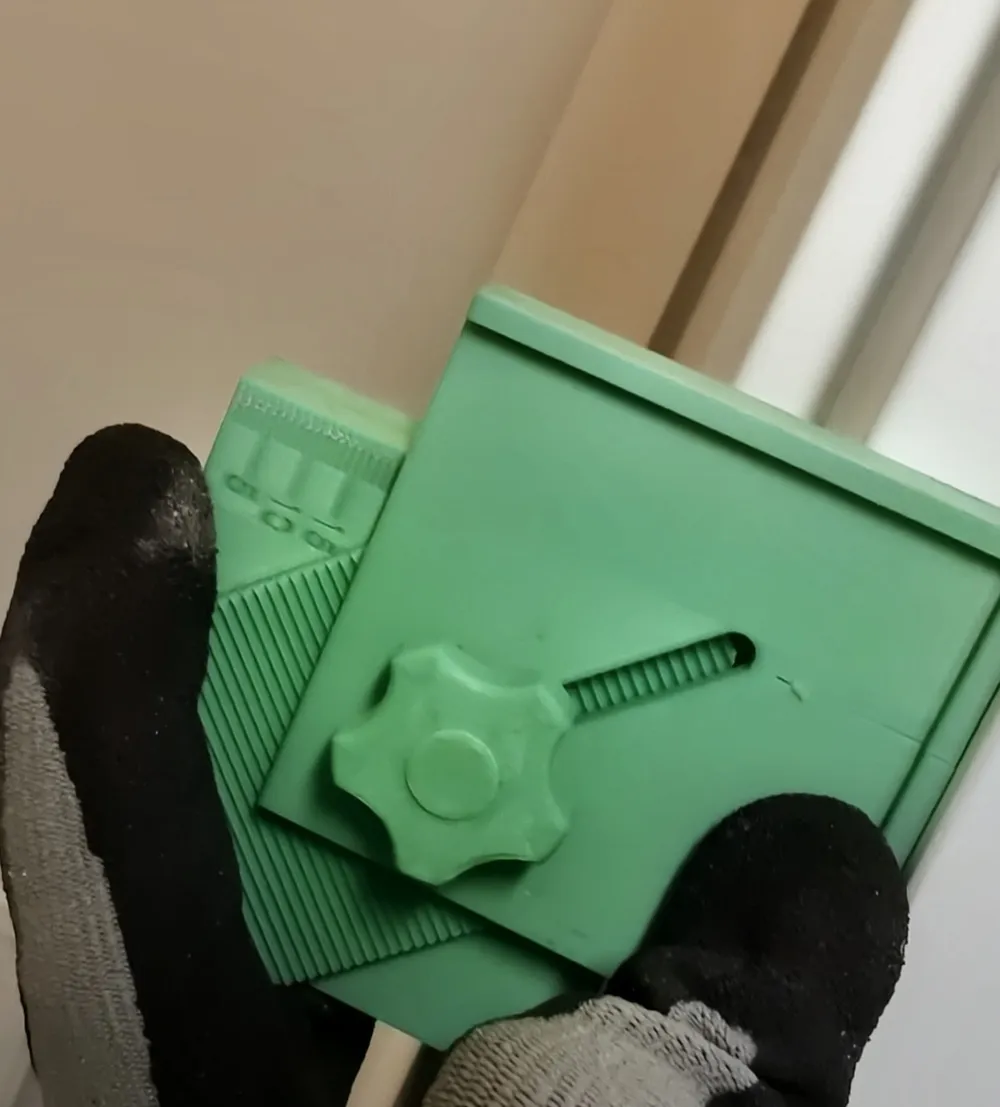

- Applications: Window and door trim reveals, cabinet installations

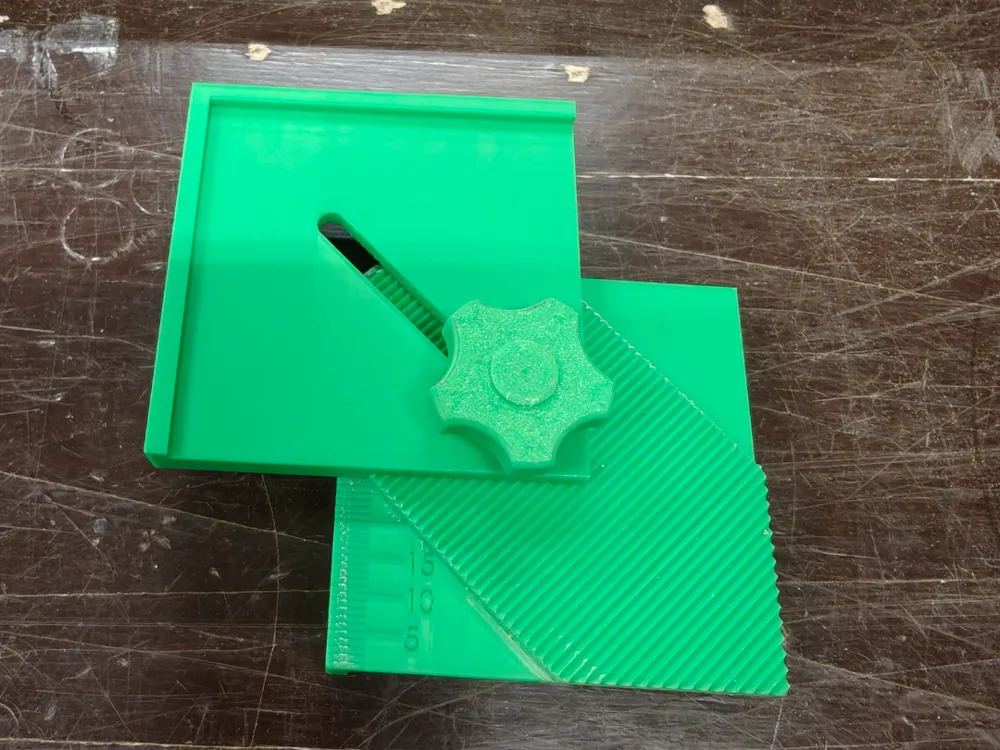

- i added a toothless version for stepless adjustment with m5 nut
- Imperial scale on the toothless model
Be sure to check out my other designs as well
Please don't hesitate to let me know if you have any requests for changes
If you like this design, please leave a ⭐⭐⭐⭐⭐ rating and upload your photos
Boost Me (for free)
If you like this model, a Boost would be much appreciated. It motivates me to create even more!
