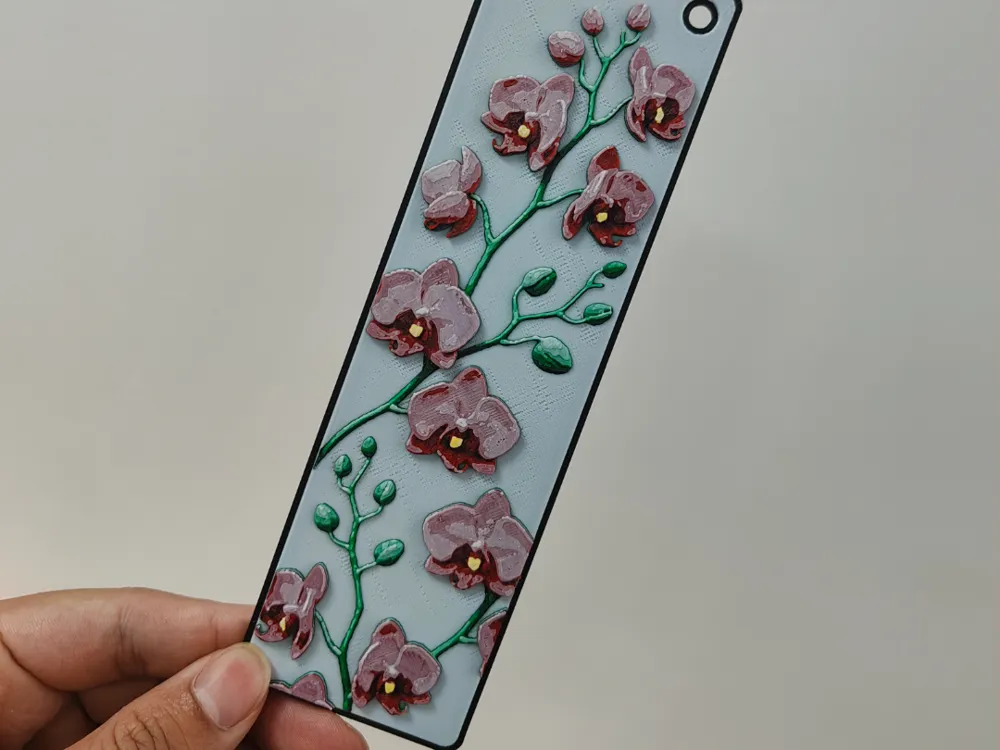

🌟 [Orchid Embossed Bookmark]

🎨 Introduction to the Work | Description

Orchid, the provincial flower of Zhejiang Province.

Chinese people have always regarded orchids as a symbol of nobility and elegance, ranking them alongside "plum, bamboo, and chrysanthemum" as the "Four Gentlemen." "Orchid chapters" are often used to describe the beauty of poetry and prose, and "orchid friendships" to describe true friendship. Orchids are also used to express pure love, with phrases like "Their fragrance, like orchids, never changes, their hearts, like orchids, never waver" and "Finding a secluded orchid to repay a confidant, a single sprig gifted to the dream of Xiaoxiang." In May 1985, the orchid was named one of China's top ten famous flowers.

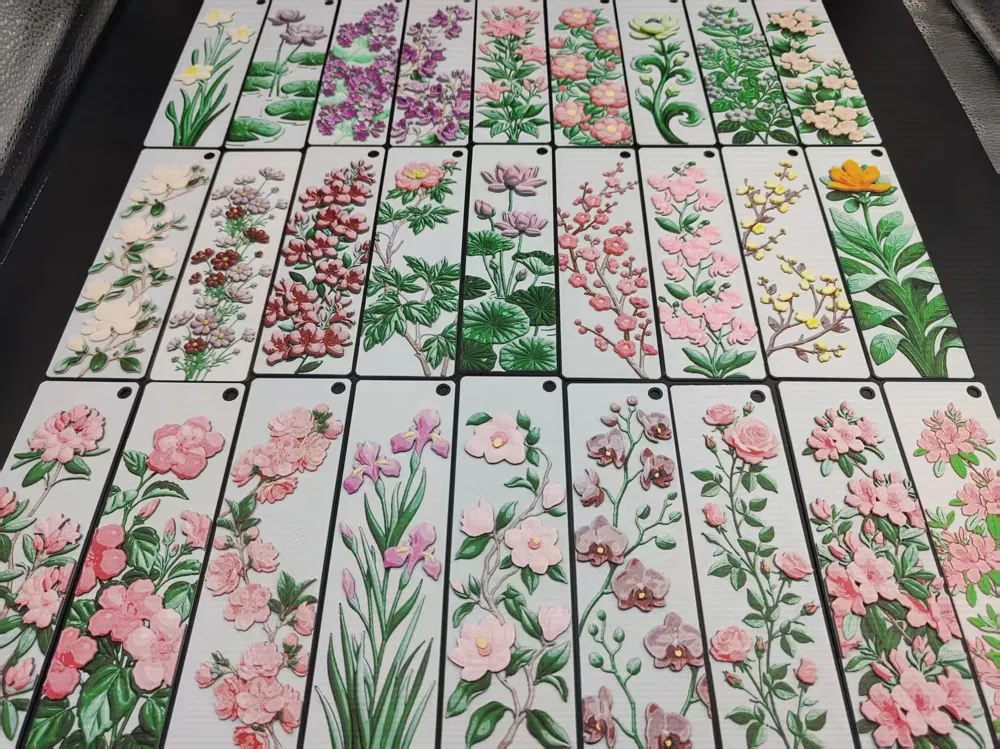

This is one of the [Chinese Provincial Flowers Series Bookmarks]. We hope you like it.

🚀 Core Technology: hicolors-3d

This model is generated using the hicolors-3d workflow, which offers the following advantages over traditional processes:

No AMS color change system required: Utilizes a layered color change design concept, allowing models to be printed without a color change system; simply manually change the filament at the corresponding layers, maximizing material savings.

Precise layer height: By physically simulating all possible color overlays, effective height is distributed within a limited layer height, saving layer height occupation.

Intuitive matching: Based on color and area matching logic (there are no cases where an area cannot be matched to the desired color), it is more intuitive than traditional grayscale matching.

Physical-level simulation: The preview effect is the print effect, accurately simulating color overlays at different layer heights.

Light and shadow aesthetics: Designed specifically for FDM printing, fully utilizing the translucent and color-stacking properties of PLA and other materials.

🔄 Color Change Instructions | Color Change Instructions

No multi-color 3D Printer (AMS) is needed; manual color change with a regular single nozzle machine is sufficient:

Color change information is included in the 3mf file; simply download and view it.

Below is the filament information used for printing, for your reference:
Base/Starting color: black - TD：0.1

| Color Change Height | Accumulated Layers | Change Color To | Brand | HEX | RGB | TD |

|----------|----------|--------|------|-----|-----|-----|

| 0.64mm | 7 | test-white | - | #ffffff | rgb(255, 255, 255) | 4.2 |

| 1.12mm | 13 | test-black | - | #181a16 | rgb(24, 26, 22) | 0.1 |

| 1.28mm | 15 | 18-green | - | #4d943d | rgb(77, 148, 61) | 1.8 |

| 1.60mm | 19 | test-white | - | #ffffff | rgb(255, 255, 255) | 4.2 |

| 1.92mm | 23 | test-black | - | #181a16 | rgb(24, 26, 22) | 0.1 |

| 2.08mm | 25 | 18-red | - | #a82b2d | rgb(168, 43, 45) | 3.1 |

| 2.40mm | 29 | test-white | - | #ffffff | rgb(255, 255, 255) | 4.2 |

| 2.80mm | 34 | test-yellow | - | #ffff39 | rgb(255, 255, 57) | 4.4 |

| 3.12mm | 38 | test-white | - | #ffffff | rgb(255, 255, 255) | 4.2 |

🛠️ Print Settings | Print Settings

For best results, please strictly adhere to the following settings:

Infill: 100% (required)

Layer Height: 0.08mm

First Layer Height: 0.16mm

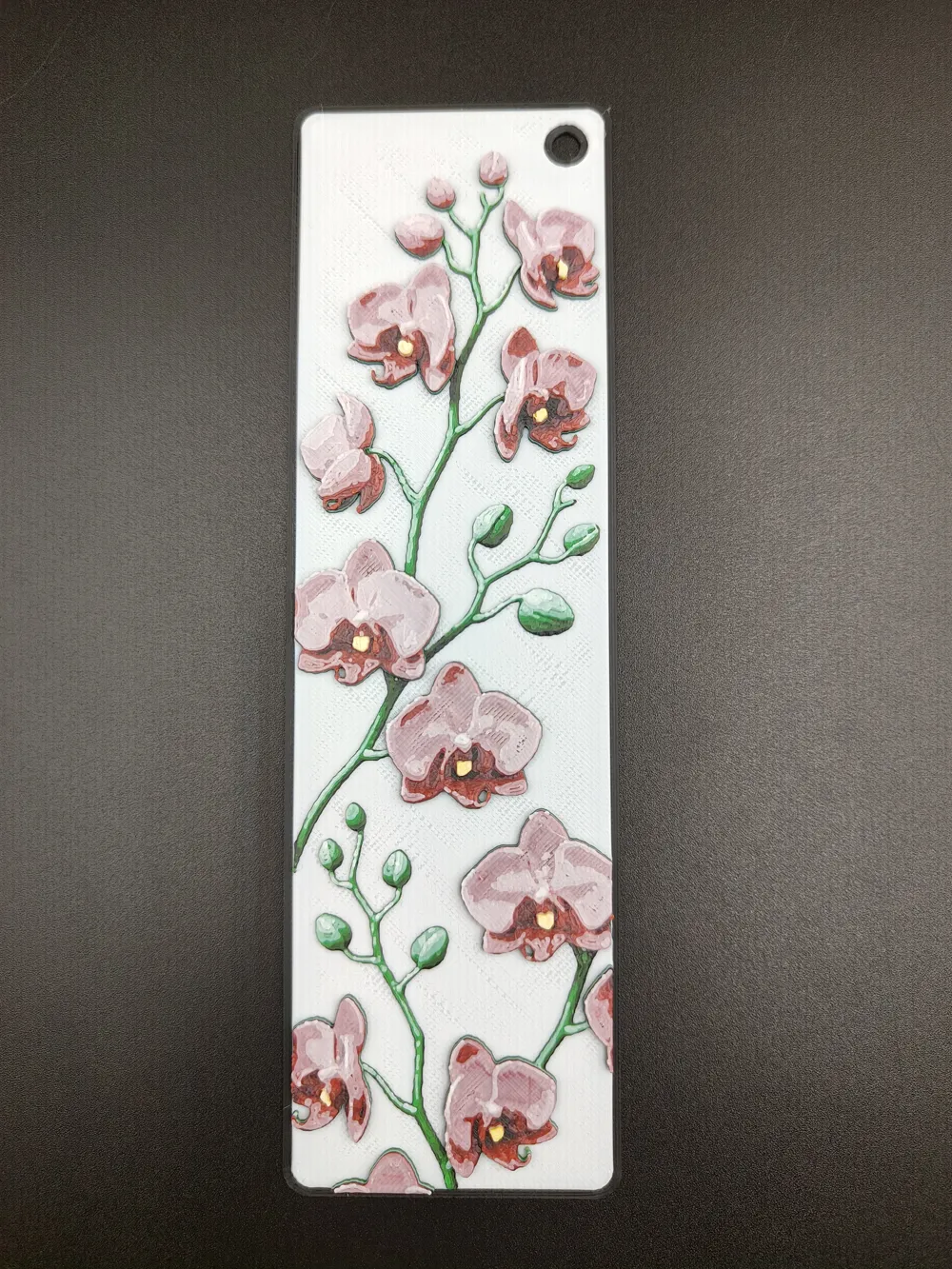

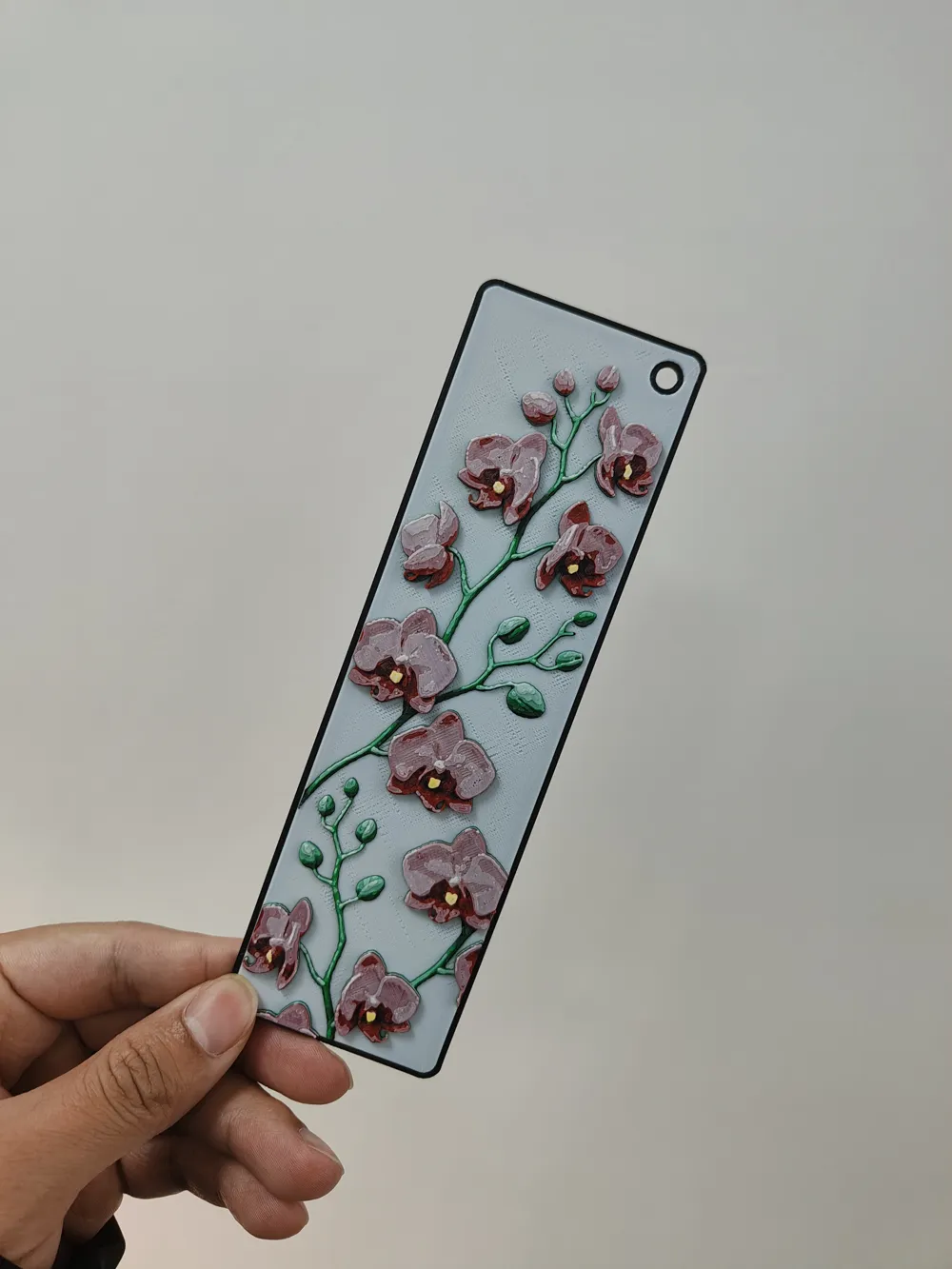

Nozzle Recommendation: 0.2mm recommended (for strongest detail), 0.4mm is also acceptable (the actual photos were taken with 0.4mm).

Model Scale: Do not adjust the model's Z-axis scale to ensure correct layered color change information; you can freely adjust the X and Y axis scale to get your desired size.

Post-processing Tip: Quickly pass a lighter over the model surface to perfectly remove common FDM fine stringing.🔥

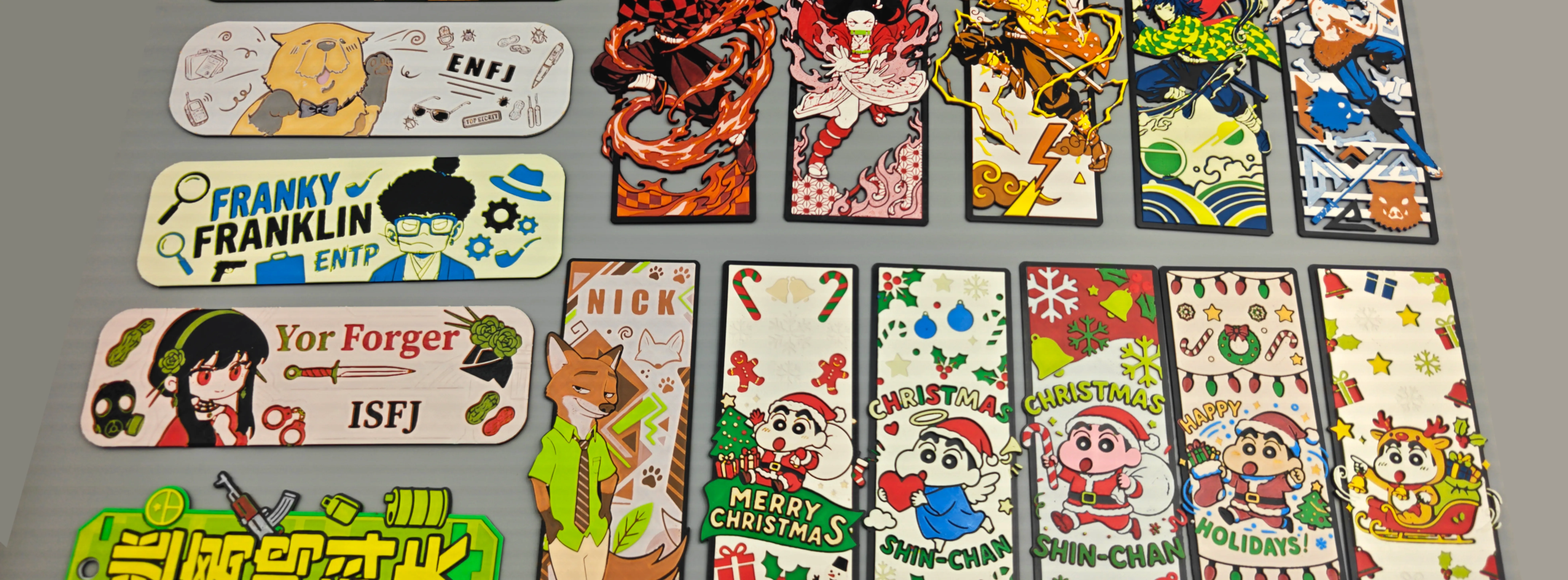

✨Click on the homepage to view more of our high-quality works

💰 Commercial Authorization and Support | Commercial License

Software Communication: Want to experience hicolors-3d software? Please follow our social media accounts. Our Bilibili account has the same name.
