[Lifestyle] Mini Cosmetics Drawer Organizer

⭐Precisely modeled with SolidWorks, with sufficient assembly clearance reserved

🚀Model Introduction

As shown in the figure, the size has been modified to 120-78, with buckles for fixing. It is recommended to glue the bottom connectors and lubricate the buckles. The base size is 120-78, and it can be stacked three layers high

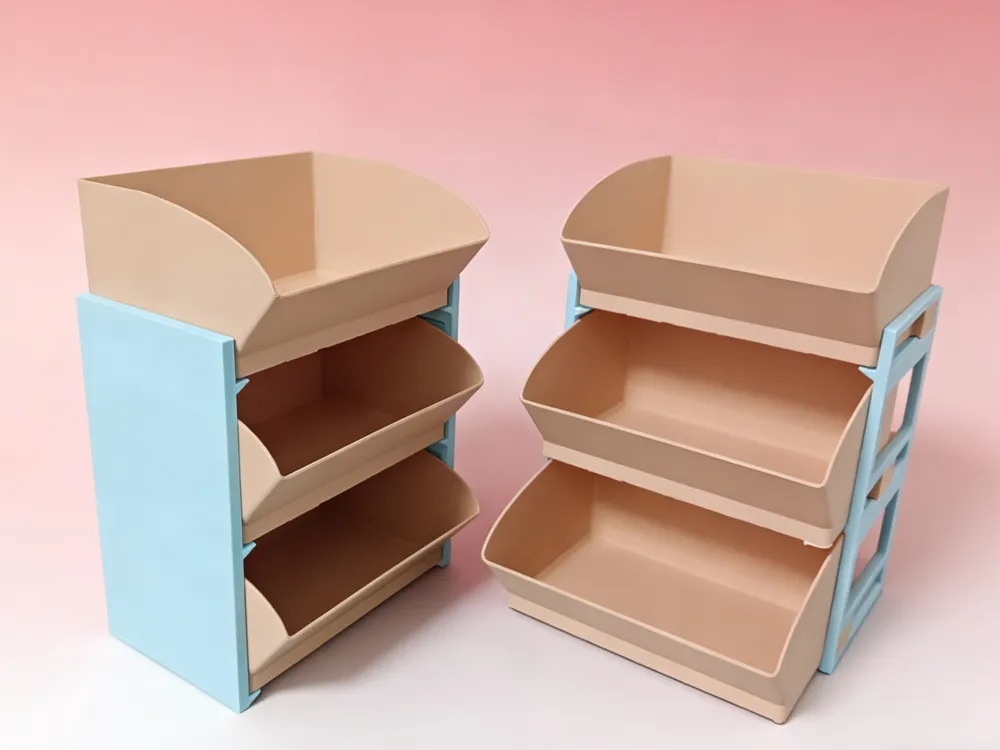

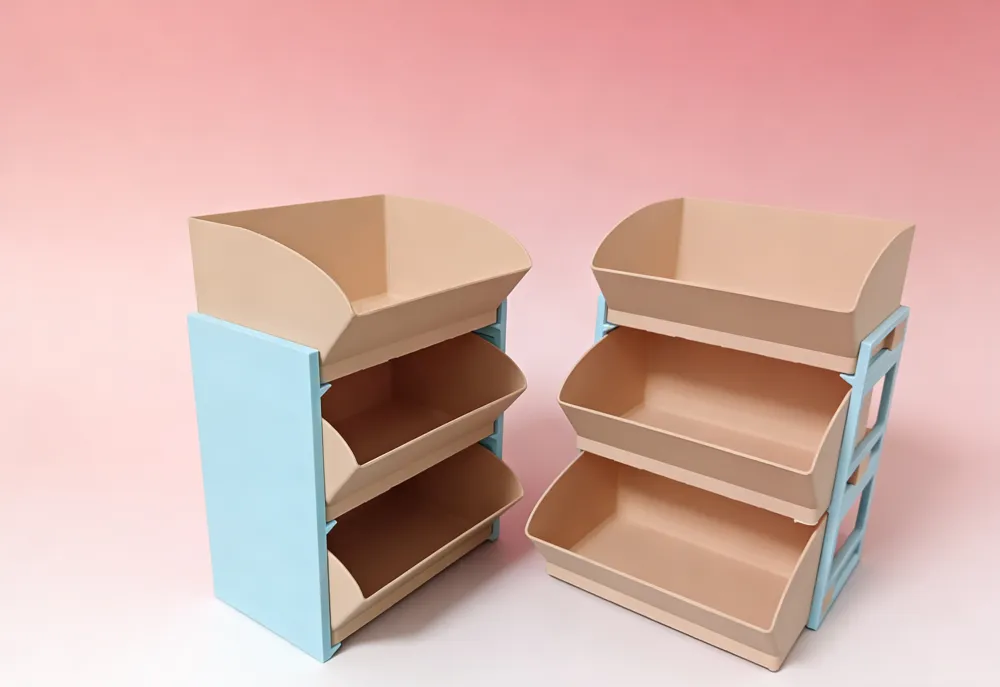

This mini drawer storage rack is a compact storage tool designed specifically for living areas and office environments, featuring a minimalist 'ins style' aesthetic. It is suitable for organizing small items such as cosmetics, stationery, and small tools. It utilizes a no-support 3D printed structure, requiring no additional support material during printing, making it easy for beginners to produce, with simple and efficient post-processing, while saving on filament costs

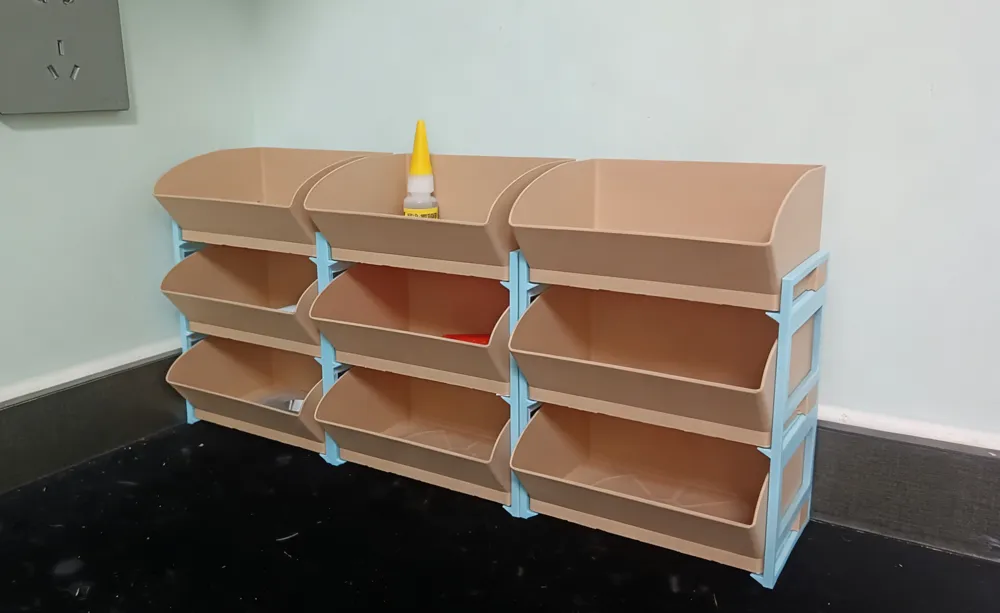

The drawer-style slide rail design makes retrieving and storing items more convenient. Multi-layer drawers can be pulled out independently, allowing for detailed classified management of items. The mini size is perfect for small spaces like desktops and dressing tables, taking up minimal space but significantly improving space utilization. Its modular structure supports the expansion of multiple storage racks, allowing for free combination into a larger capacity storage system as needed

🚀Printing Suggestions

To ensure sufficient assembly accuracy, it is recommended to calibrate the flow rate in advance

Additionally, print with a lower outer wall speed to reduce outer wall dimension errors

🚀Assembly Instructions

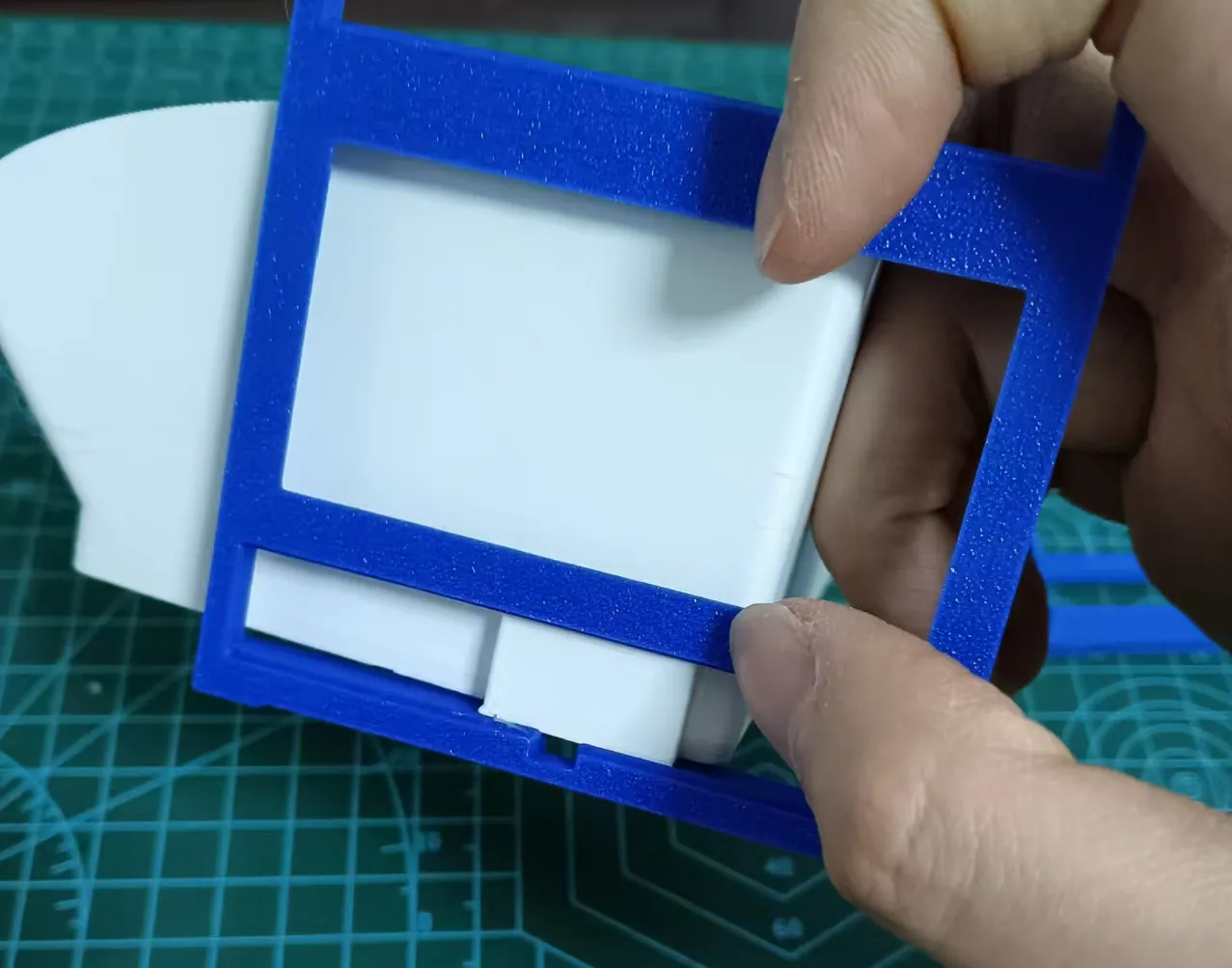

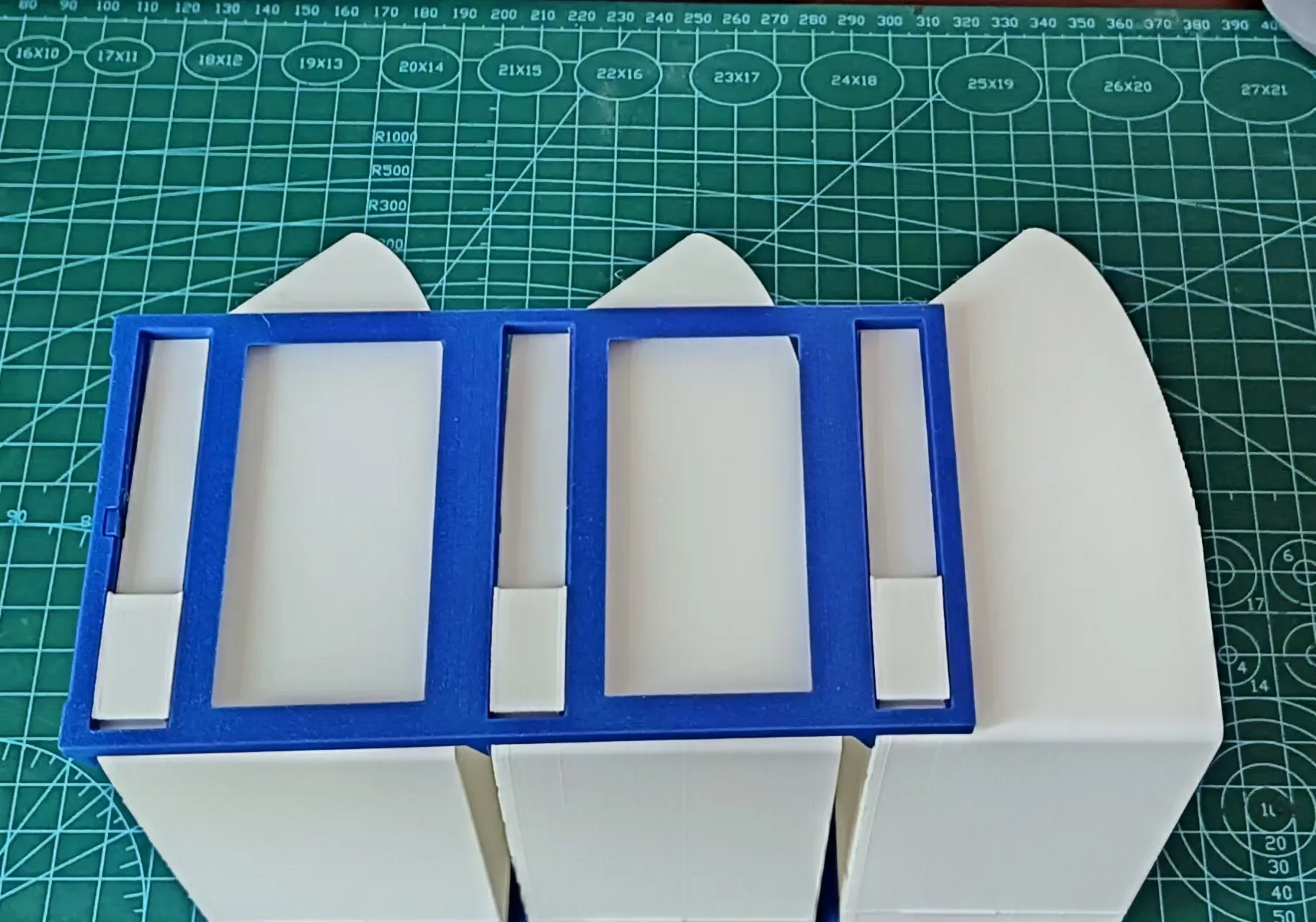

1 Assemble the side supports for the first layer of drawers from the midpoint of the frame

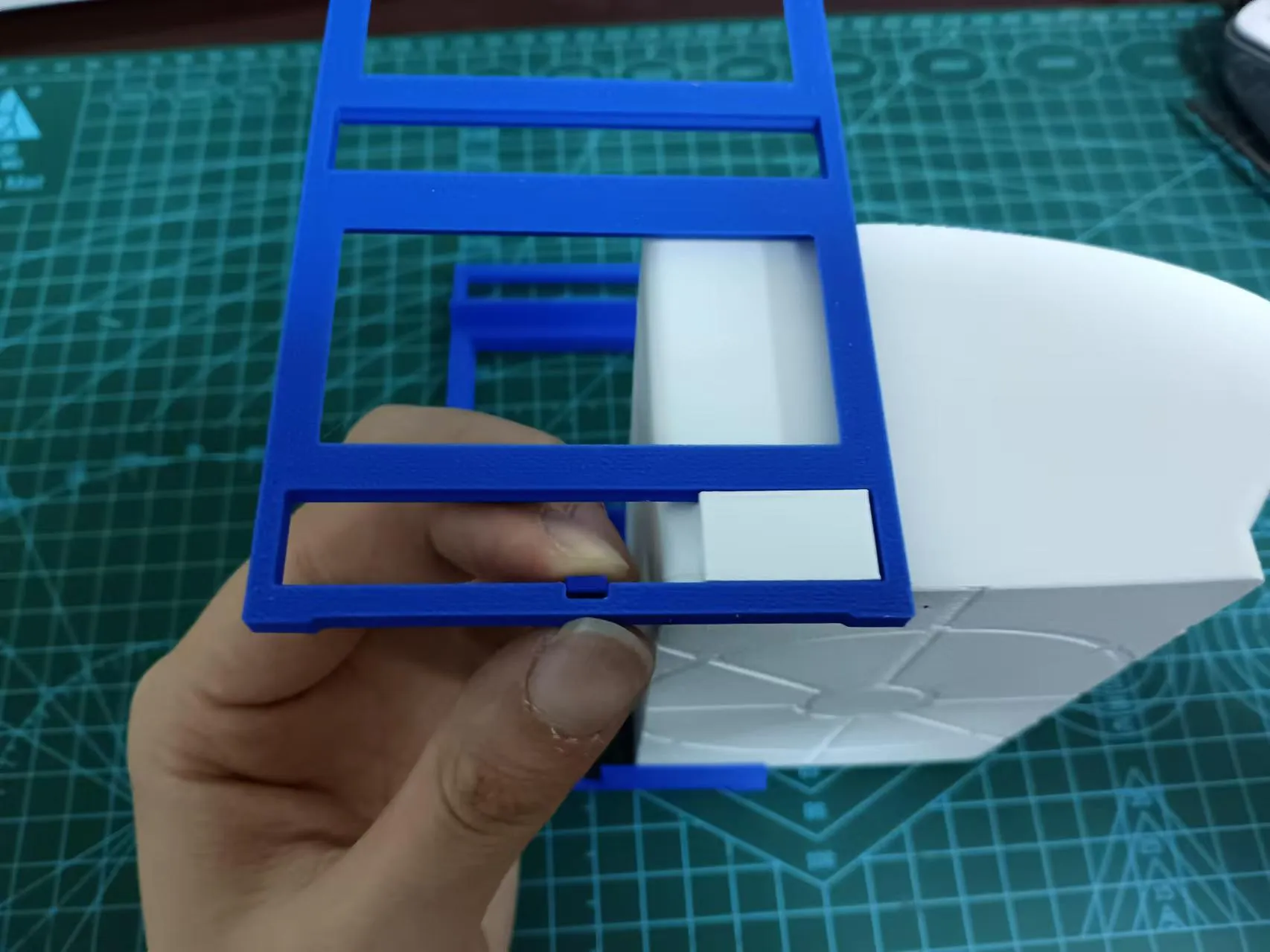

2 Push the drawer forward and install the connectors

3 Install other drawers

*Detailed assembly instructions are in the attachment

Also available: a larger 160*130 version: https://makerworld.com.cn/zh/models/2185651
