3D Printed filament storage box
Print Profile(1)
Description

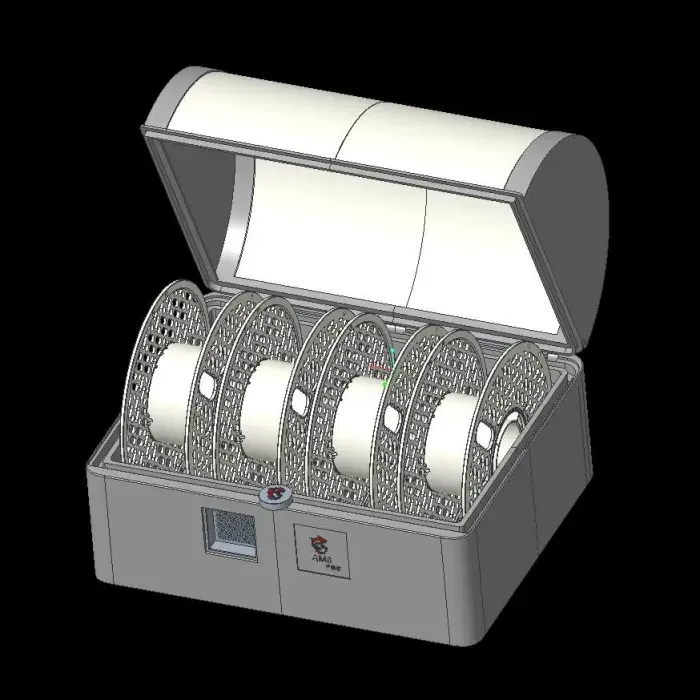

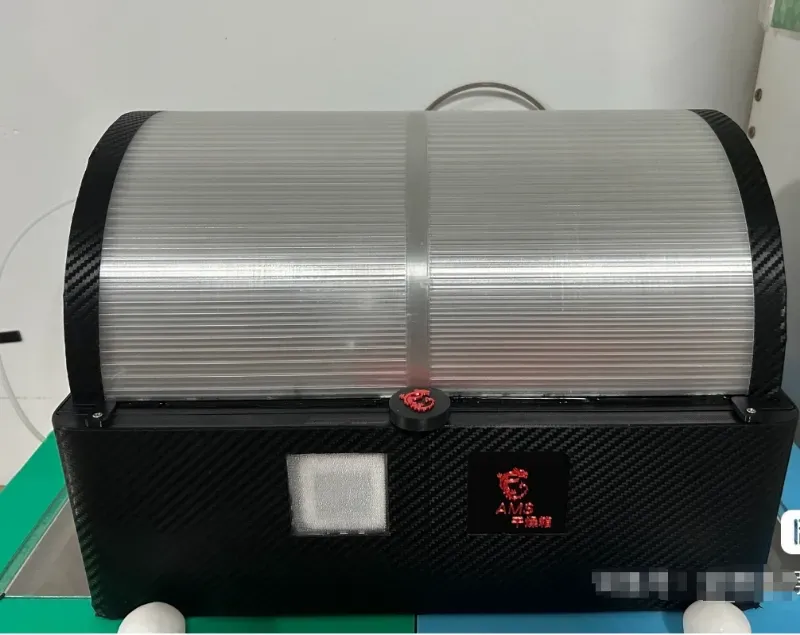

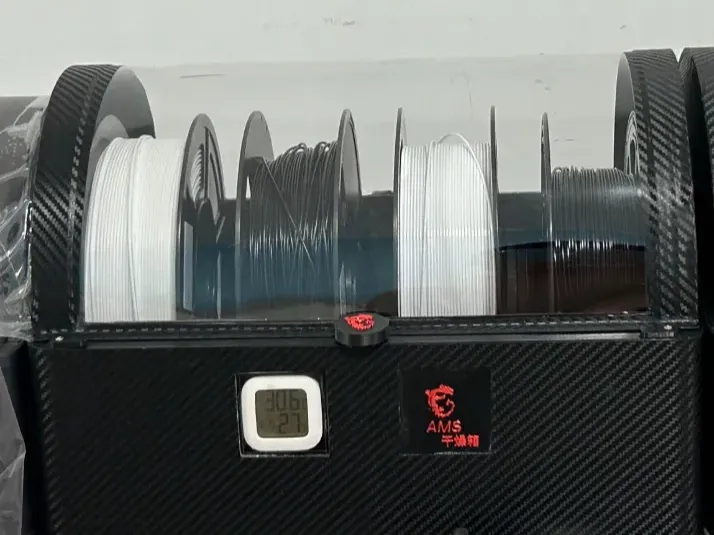

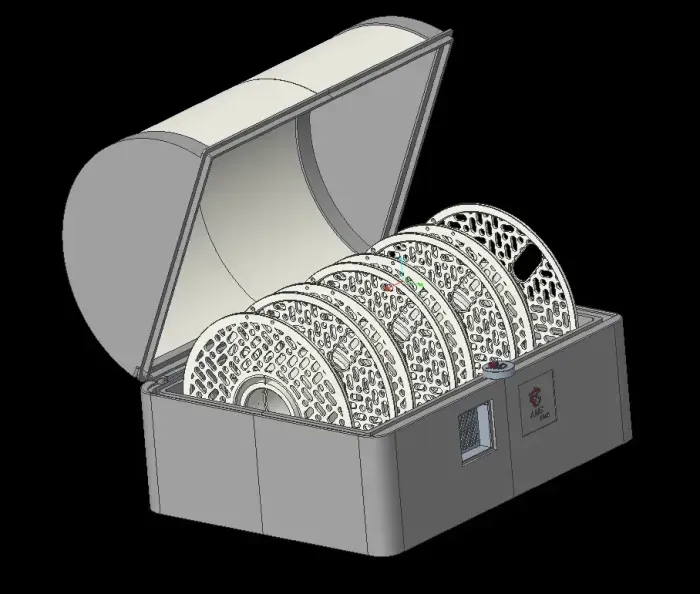

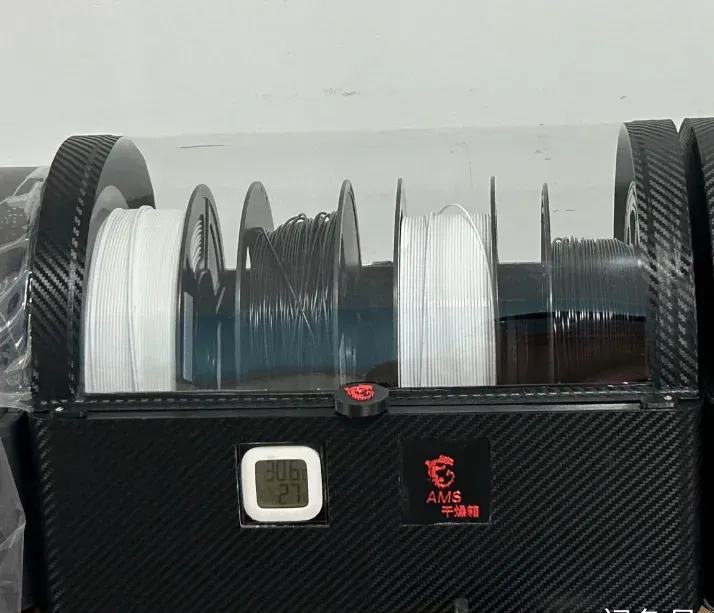

Since I already have a P-series printer and use it with AMS, for overall aesthetic coordination, I designed a drying box for storage with A1 mini using Creo modeling software according to my needs, to facilitate filament storage. Materials and installation methods are as attached.
Special note: As this is for personal use and not for mass production, the structure and installation methods were designed based on my ideas at the time.
In plain terms, the structural design is not perfect. You can download the attachments to see if it meets your needs before printing, to avoid waste.
Installation methods are as shown in the attached PDF file. The required materials are as follows, also viewable in the attachments:
| BOM | ||||
| Name | Model | Quantity | ||
| 1 | 605 bearing | 605 | 16 | |
| 2 | Screw | M3*8 countersunk | ||
| 3 | Heat-set brass nut | M3*4.5*5 | ||
| 4 | Heat-set brass nut | M6*8*8 | 4 | |
| 5 | Fishing rod grip cover | Inner diameter 20 | 32 | |
| 6 | Transparent PVC sheet, self-heat bent | Length 384mm, width 320mm, T:1mm | 1 | or choose the 2mm one from the print files |
| 7 | Acrylic sheet can also be printed from file | 50*50*3 | 1 | |
| 8 | Dowel pin | Φ4*20 | 2 | |
| Φ4*40 | 17 | |||
| 9 | PTFE tube | 2.5*4mm | / | |
| 10 | Pneumatic connector | PC4-M6 | 4 | |
| 11 | White silicone sealing strip | Width 10mm, thickness 1mm | ||
| 12 | Nano strong traceless adhesive | Width 5mm, thickness 0.5mm or thickness 1mm | Use 1mm thickness for 1mm transparent PVC sheet, use 0.5mm thickness for printed parts | |
| 13 | Black silicone sealant | Kafuter K-704BL | 1 | |
| 14 | Carbon fiber sticker | Optional | ||
| Total 3D printed material consumed: approx. 3KG | ||||
