Heltec V4 Holder w/Antenna Pigtail Stress Relief
Print Profile(2)
Description

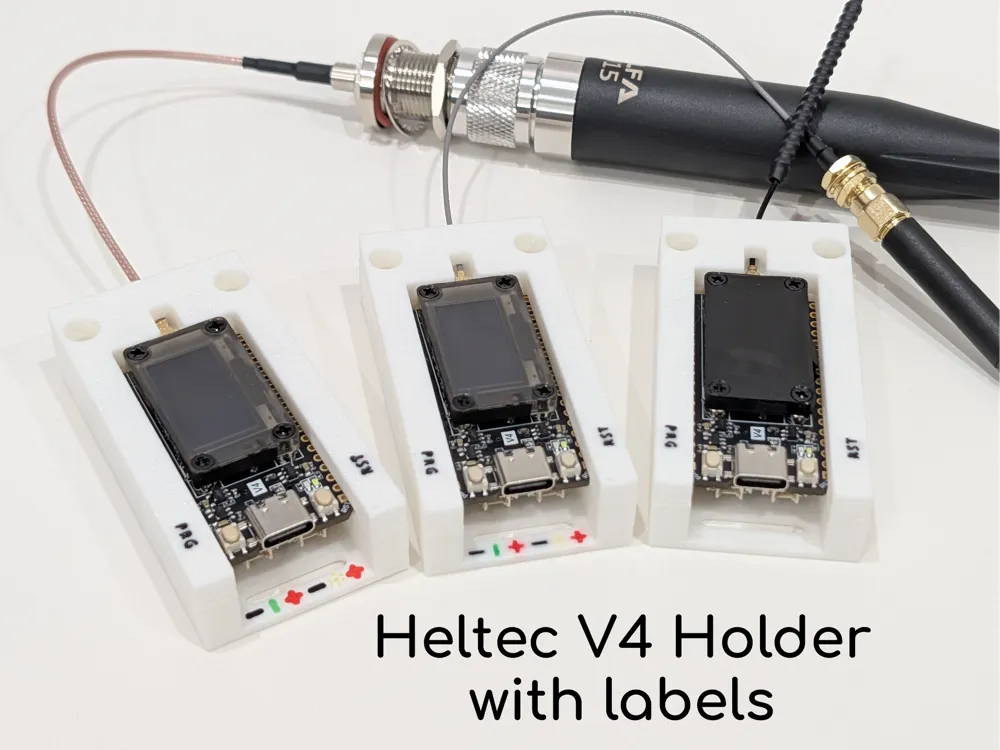

This mount/holder for the Heltec V4 LoRa radio is probably a little overkill with the following features:

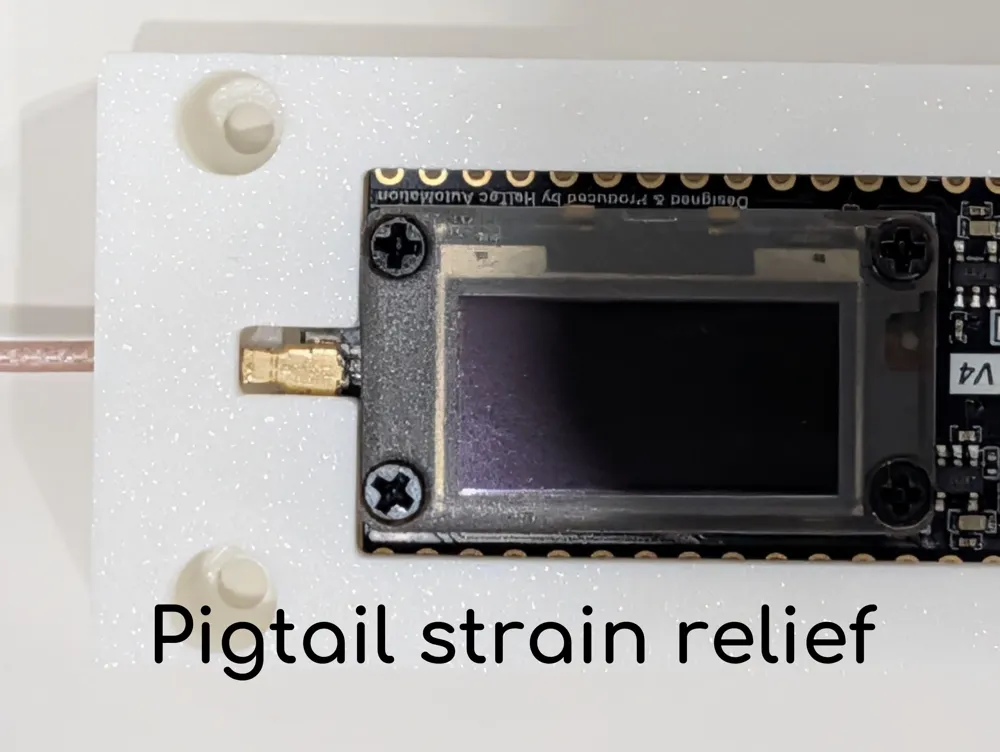

- a strain relief for antenna pigtails to help prevent the IPEX connector from accidentally disconnecting
- the IPEX connector is visible/open so you can always see if it's tight or loose, or gives you easy access to hot glue it in place
- labels for each of the two built-in buttons
- indicators for the battery and solar ports, including the polarity of the connectors
- two parts that press fit together to ensure the board is securely held in place

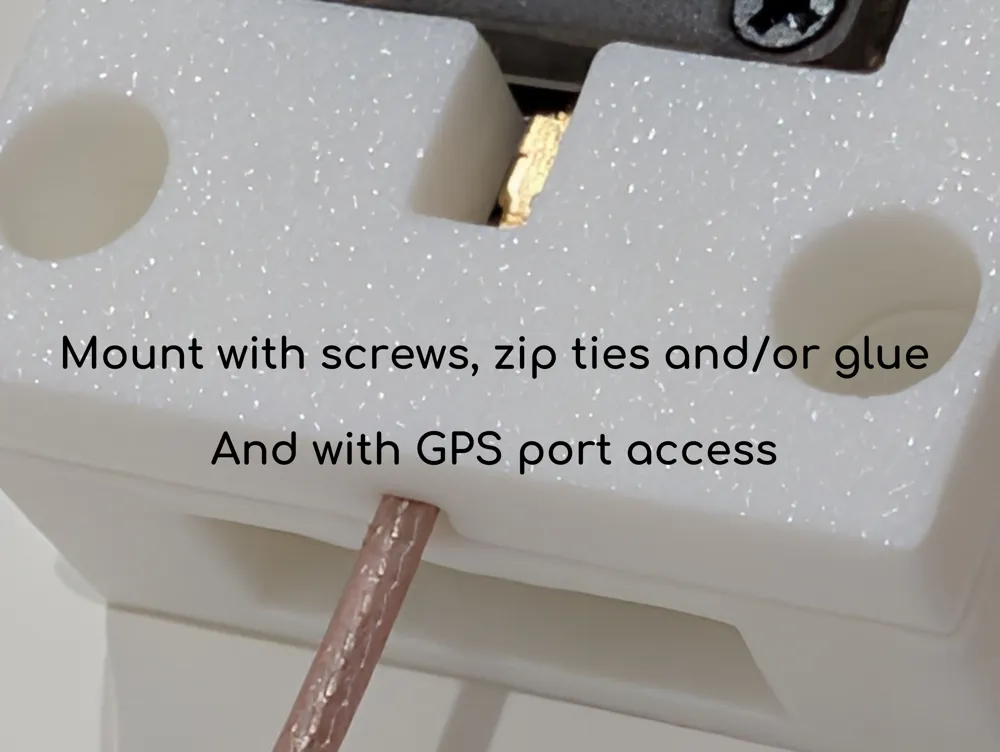

- multiple mount options, use screws, zip ties, and/or glue
Notes:

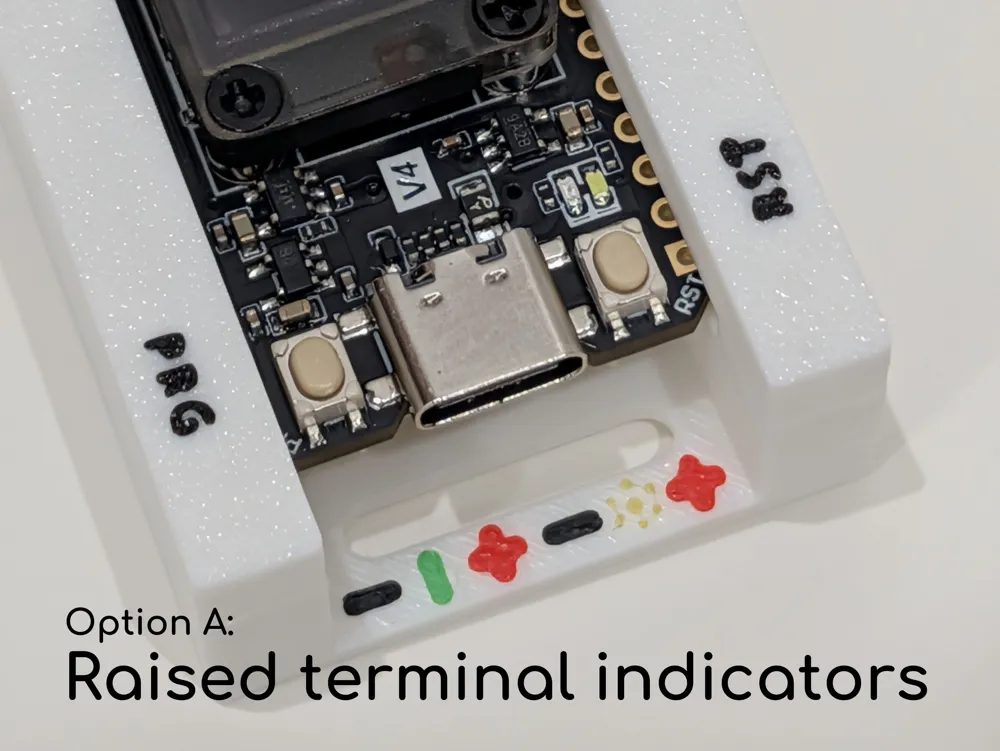

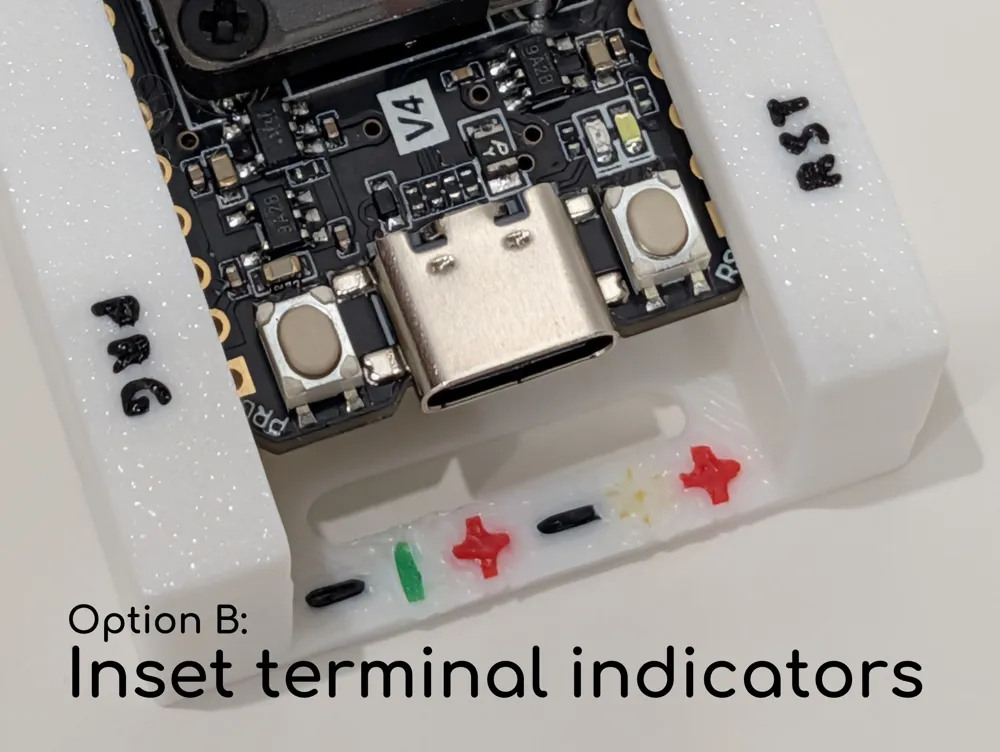

- there are two options for the battery and solar port indicators, raised or sunken text to suit your preference
- Heltec V3 has not been tested
designed entirely in FreeCAD
