Modern Ring Cage Table Lamp (Upcycled Base)

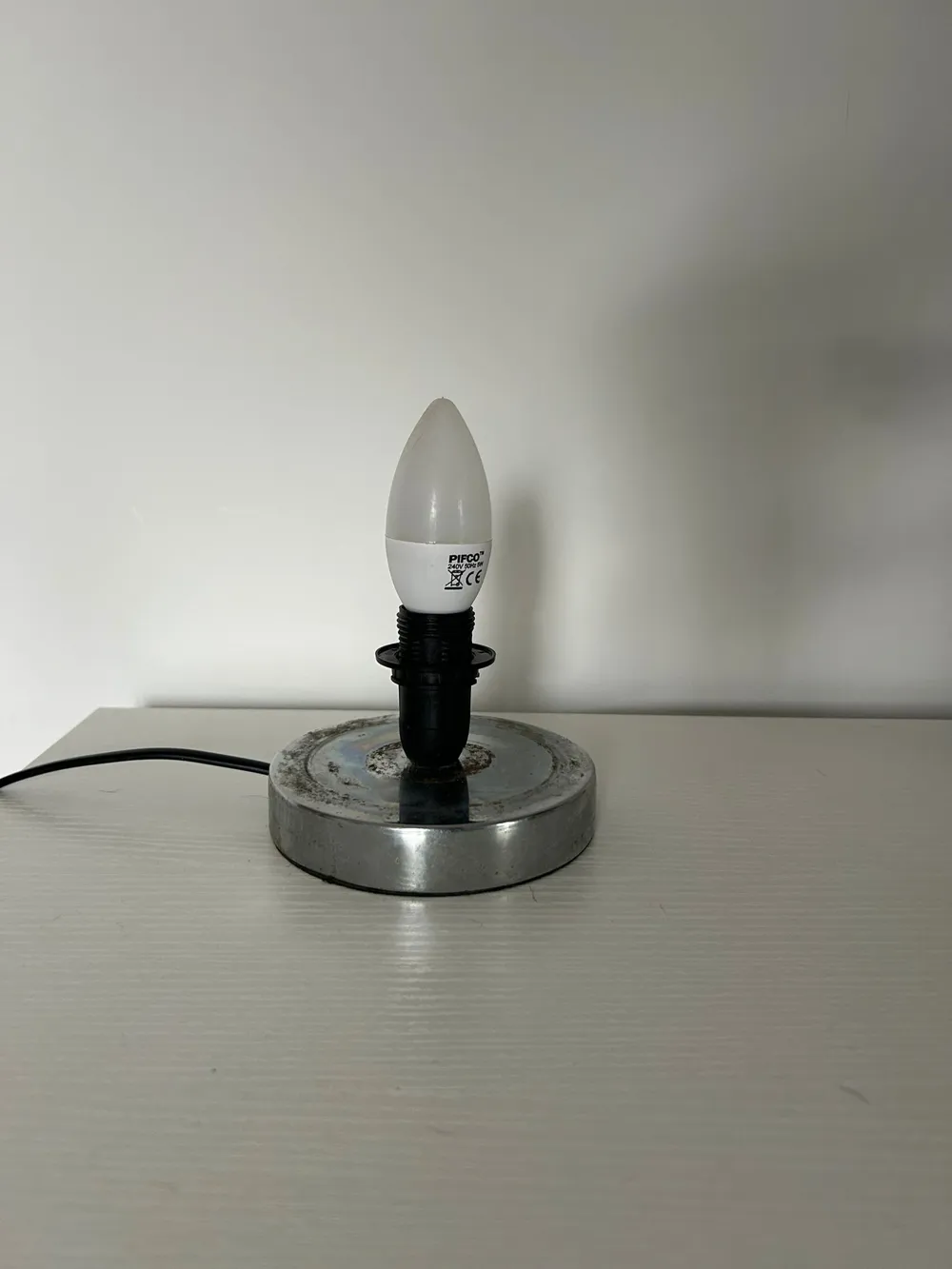

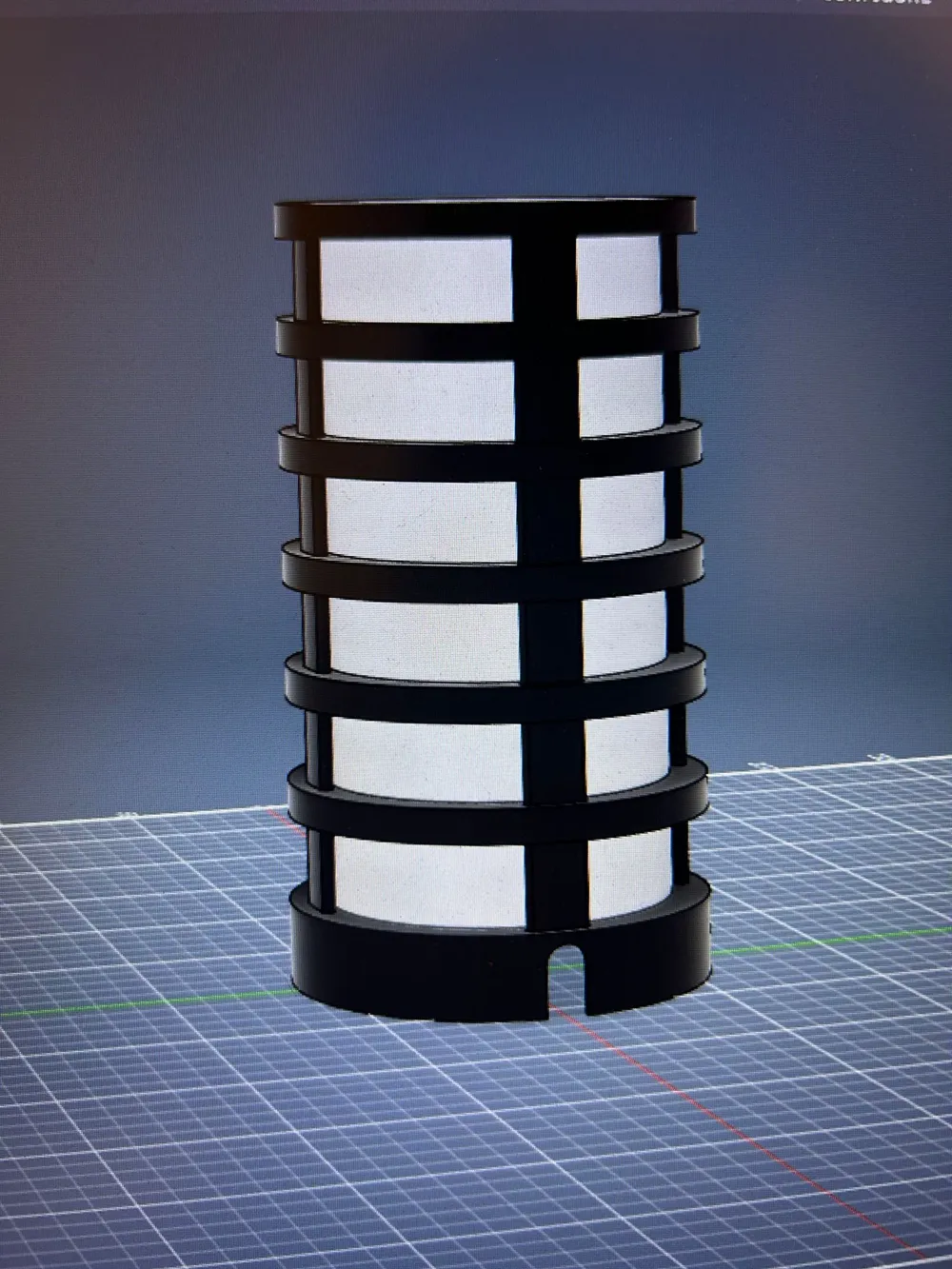

This lamp was designed to reuse an old table lamp base and give it a modern industrial look. The design features a minimal cylindrical cage made from stacked rings with a soft PLA diffuser inside that spreads the light evenly.

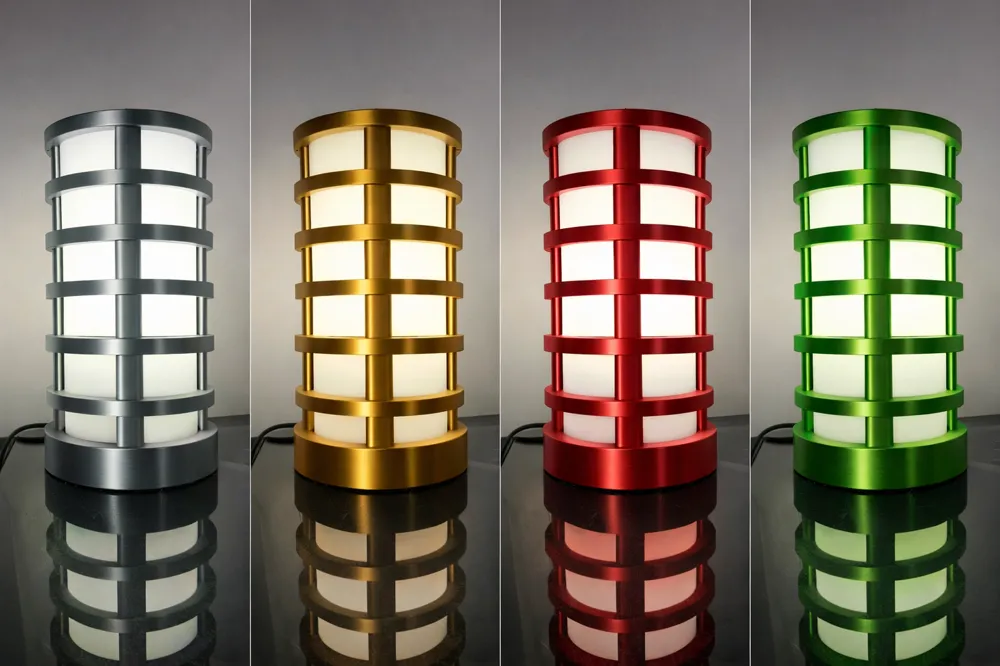

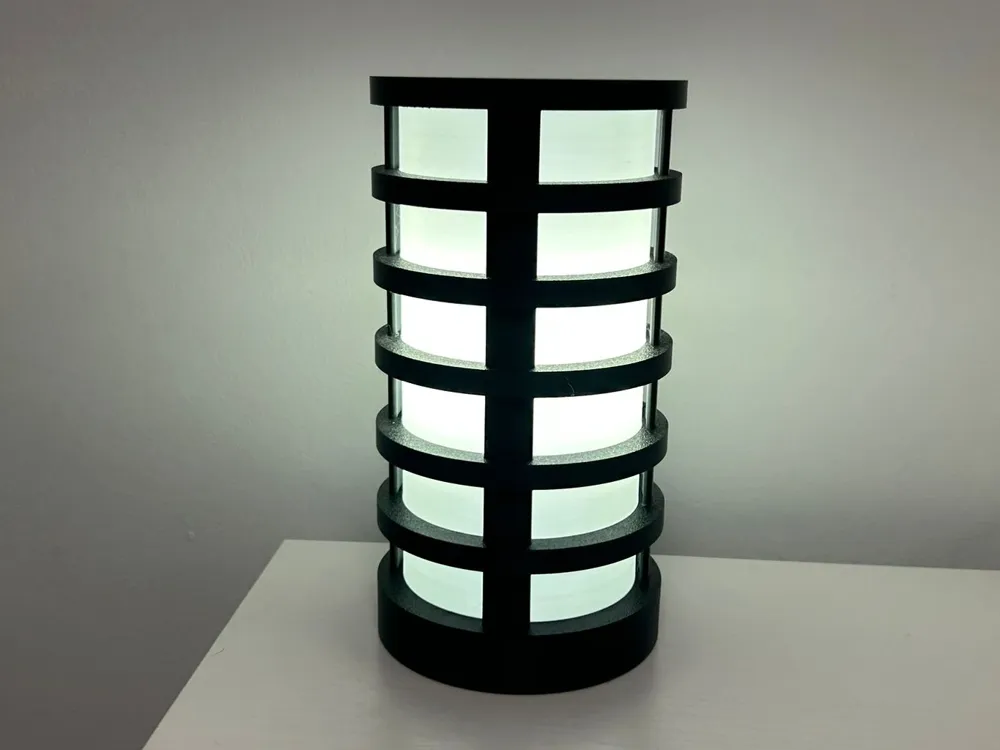

The lamp prints easily and works great with standard LED bulbs. The ring structure gives the lamp a modern architectural appearance, while the diffuser creates a soft ambient glow.
This project is perfect if you want to upgrade an old lamp base instead of throwing it away.
Dimensions
Total lamp height:
228 mm
Ring diameter:
121 mm
Ring thickness:
10 mm
Base adapter size:
117.5 mm diameter
Base adapter height:
22 mm
Printing Recommendations
Material used for diffuser:
White Silk PLA
Suggested materials:
- PLA
- Silk PLA (best for diffuser)
- PETG
Recommended settings:
Layer height:
0.2 mm
Walls:
2–3
Infill:
10–15%
Supports:
Not required
Assembly
- Print the ring cage parts.
- Print the diffuser in white PLA or silk PLA.
- Insert the diffuser inside the cage.
- Place the lamp on a 117.5 mm base.
- Install a LED bulb only.
Notes
⚠️ Use LED bulbs only.
PLA may deform with high heat from incandescent bulbs.
