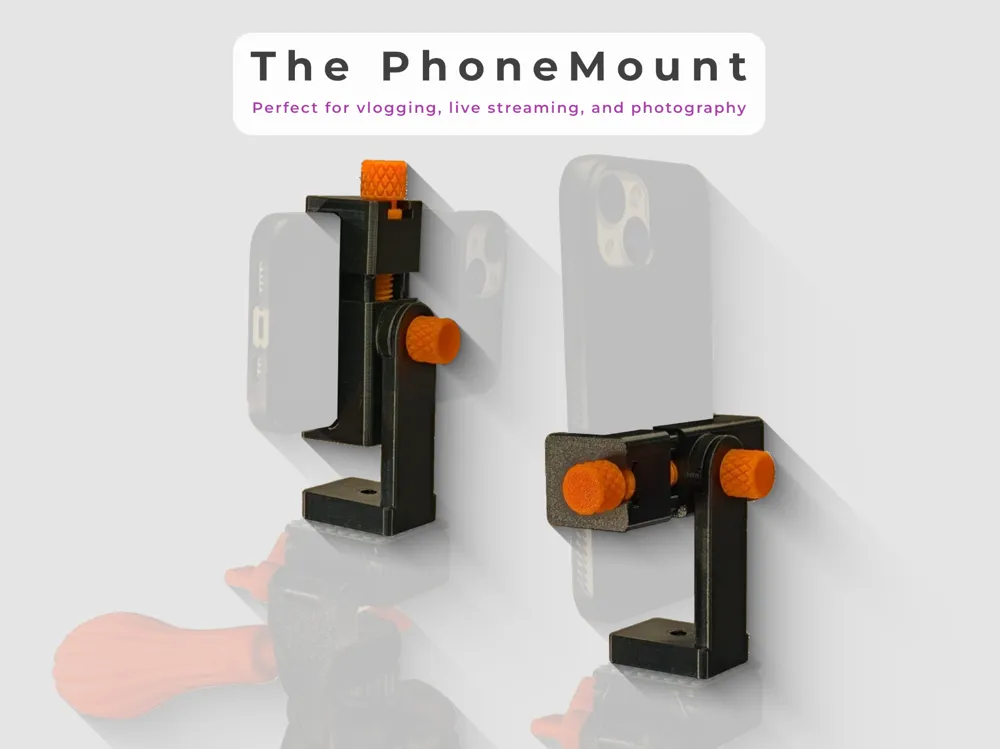

Rotatable Tripod PhoneMount

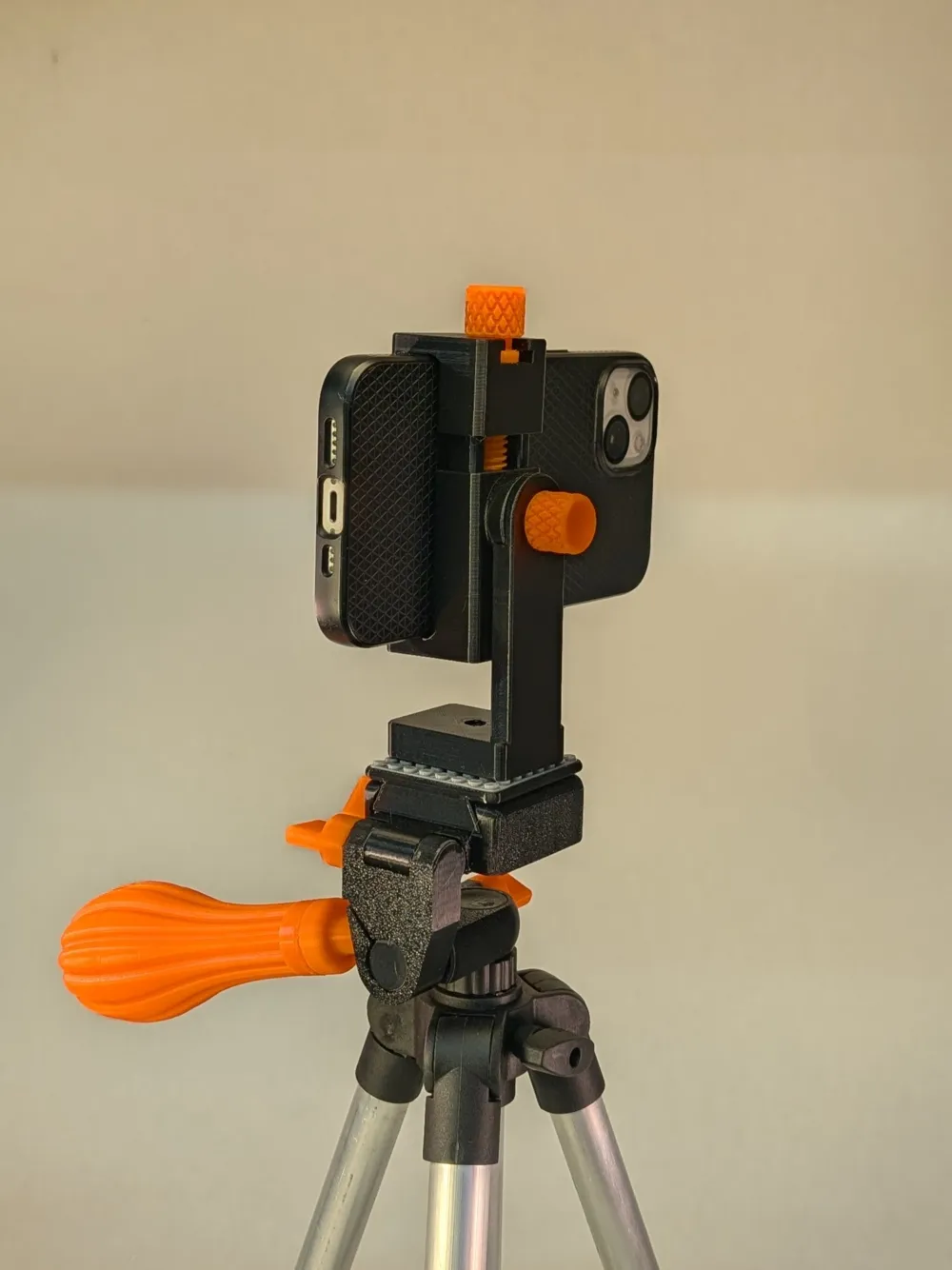

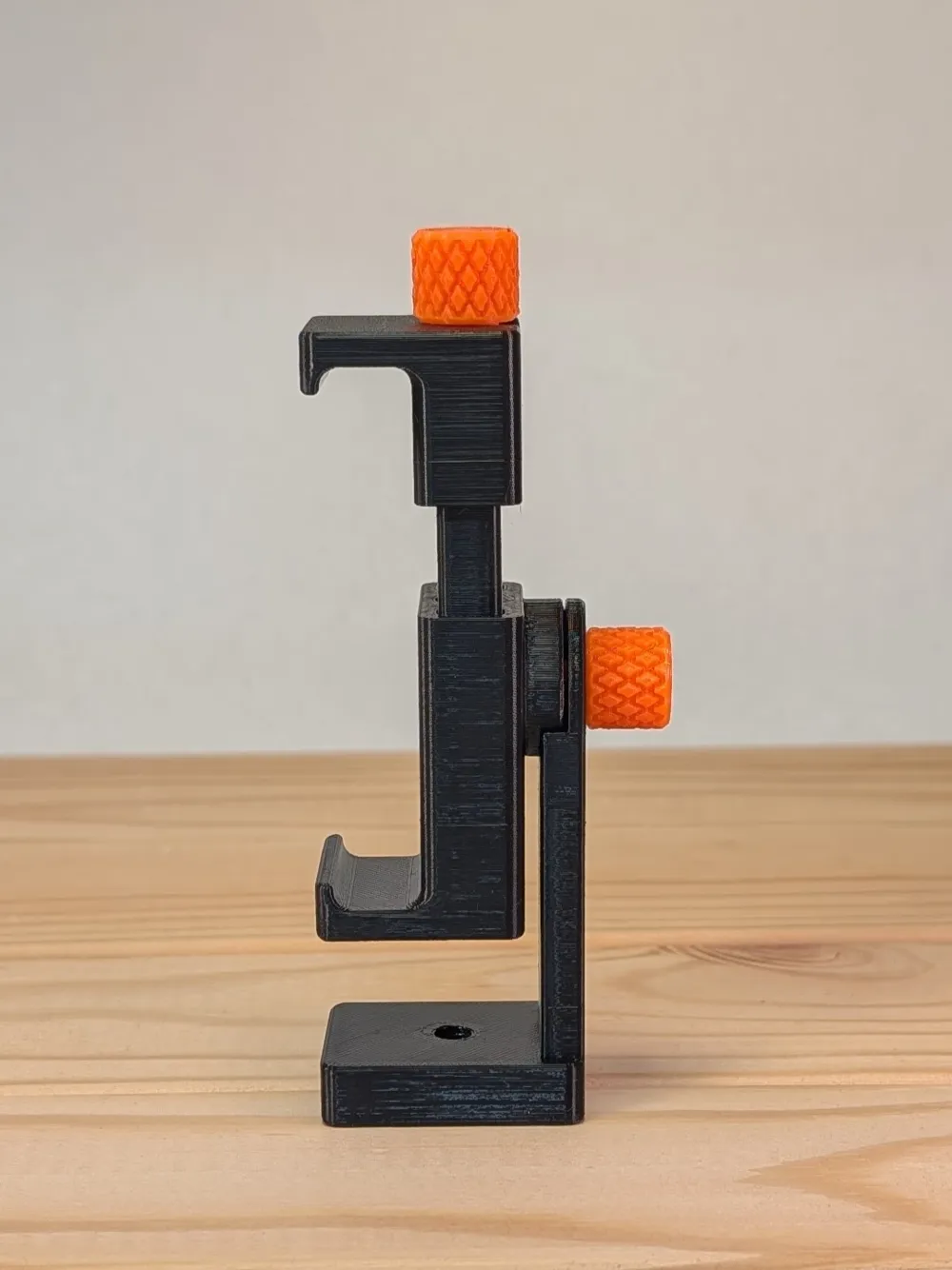

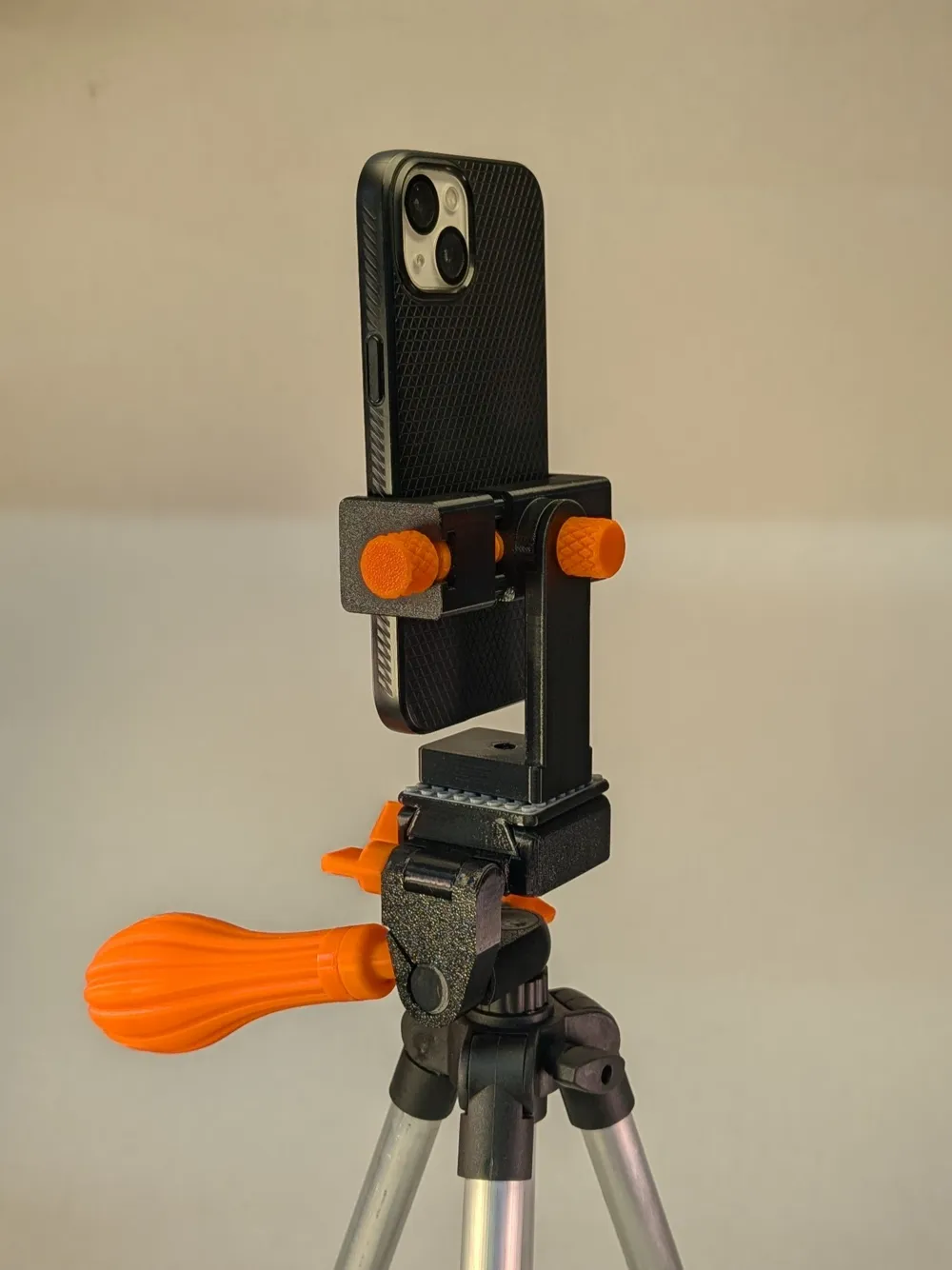

This universal phone holder is the perfect solution for all photographers, videographers, and content creators seeking maximum flexibility on a tripod. Equipped with an integrated 1/4 inch standard thread, it fits almost any common photo tripod. The absolute highlight is the precise rotation mechanism: the phone can not only be rotated continuously but also securely snap into place in 45° increments with noticeable resistance. This allows you to switch quickly and reproducibly between portrait, landscape, and creative diagonal perspectives!

✨ Features

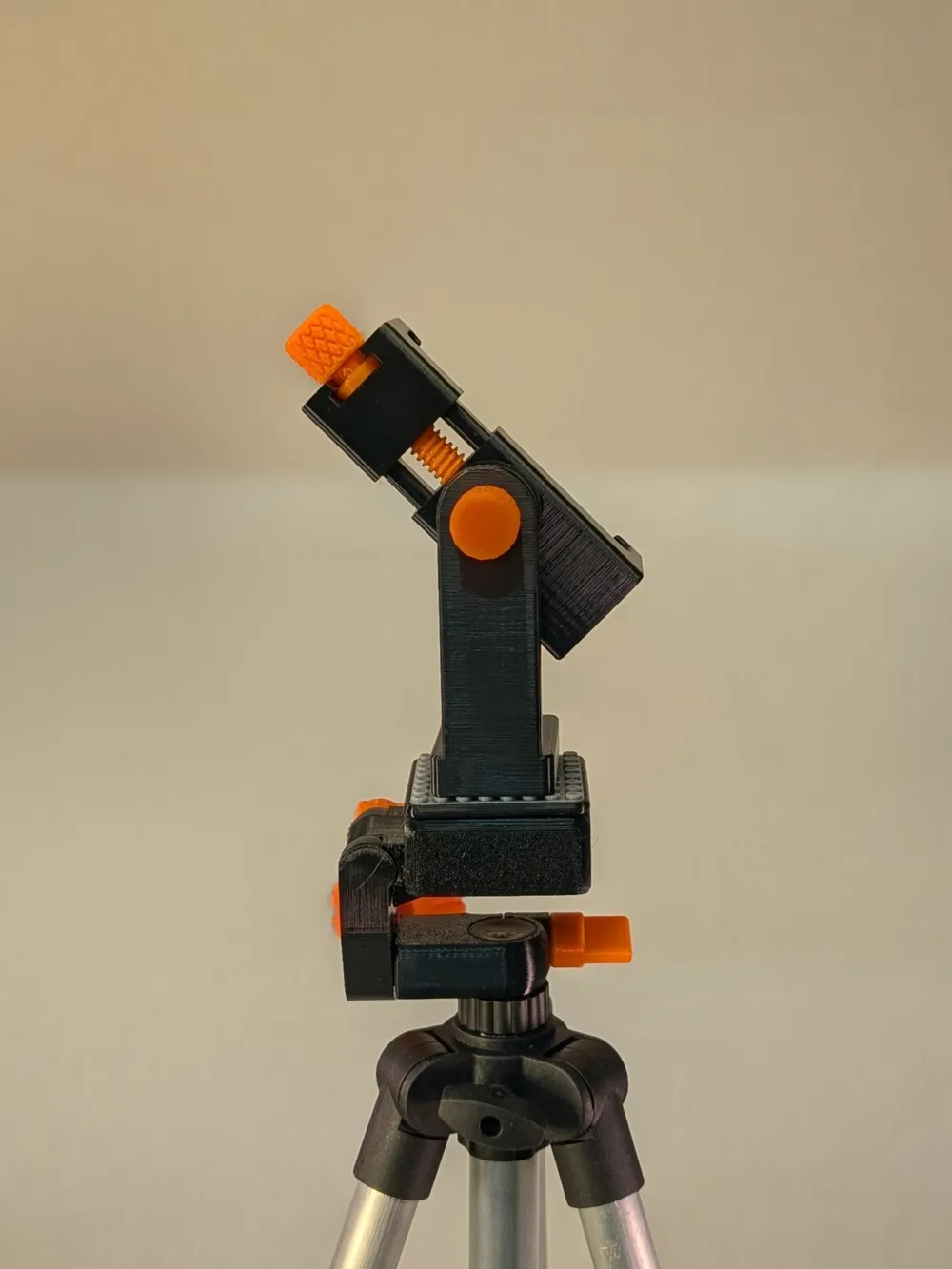

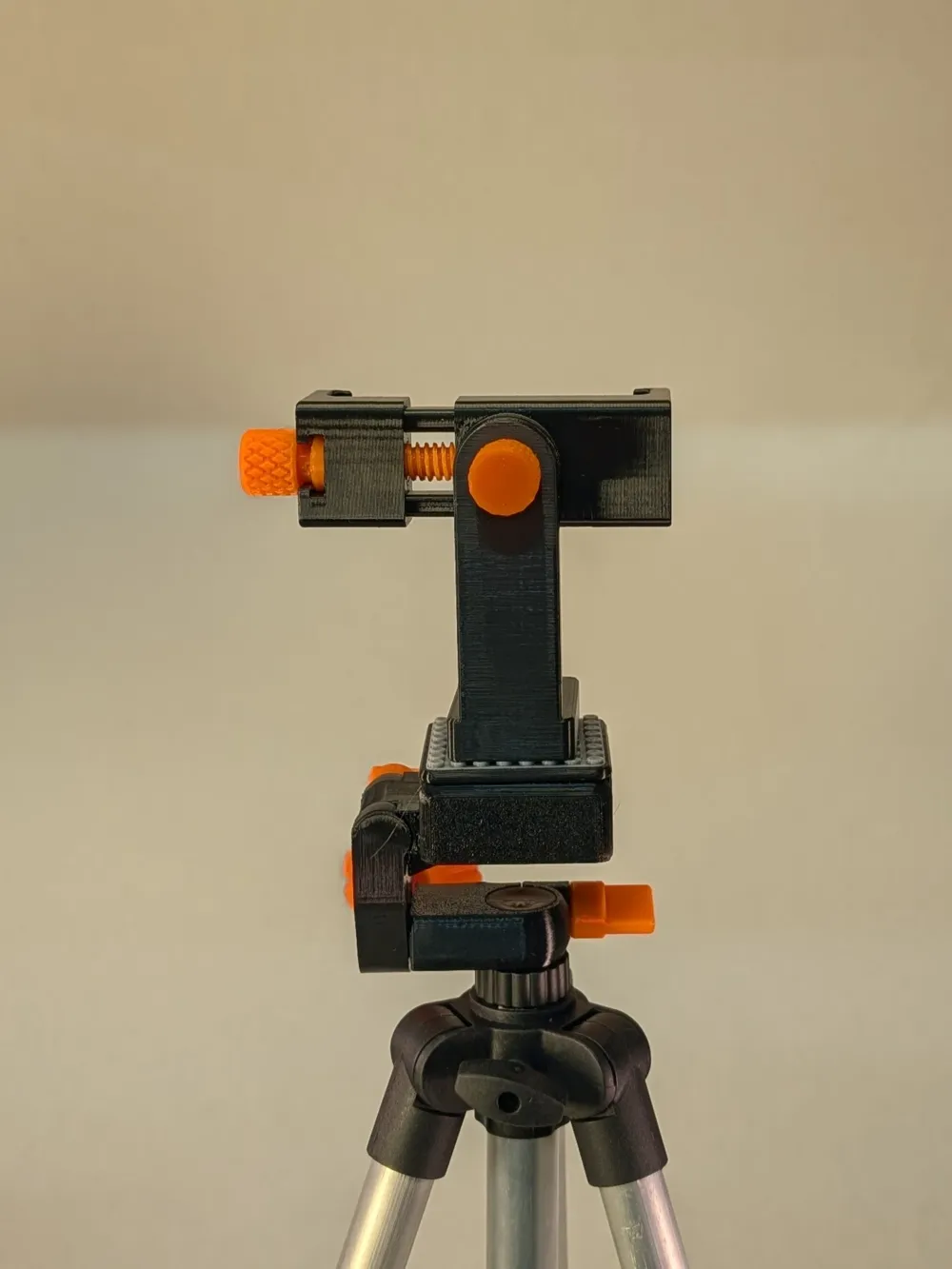

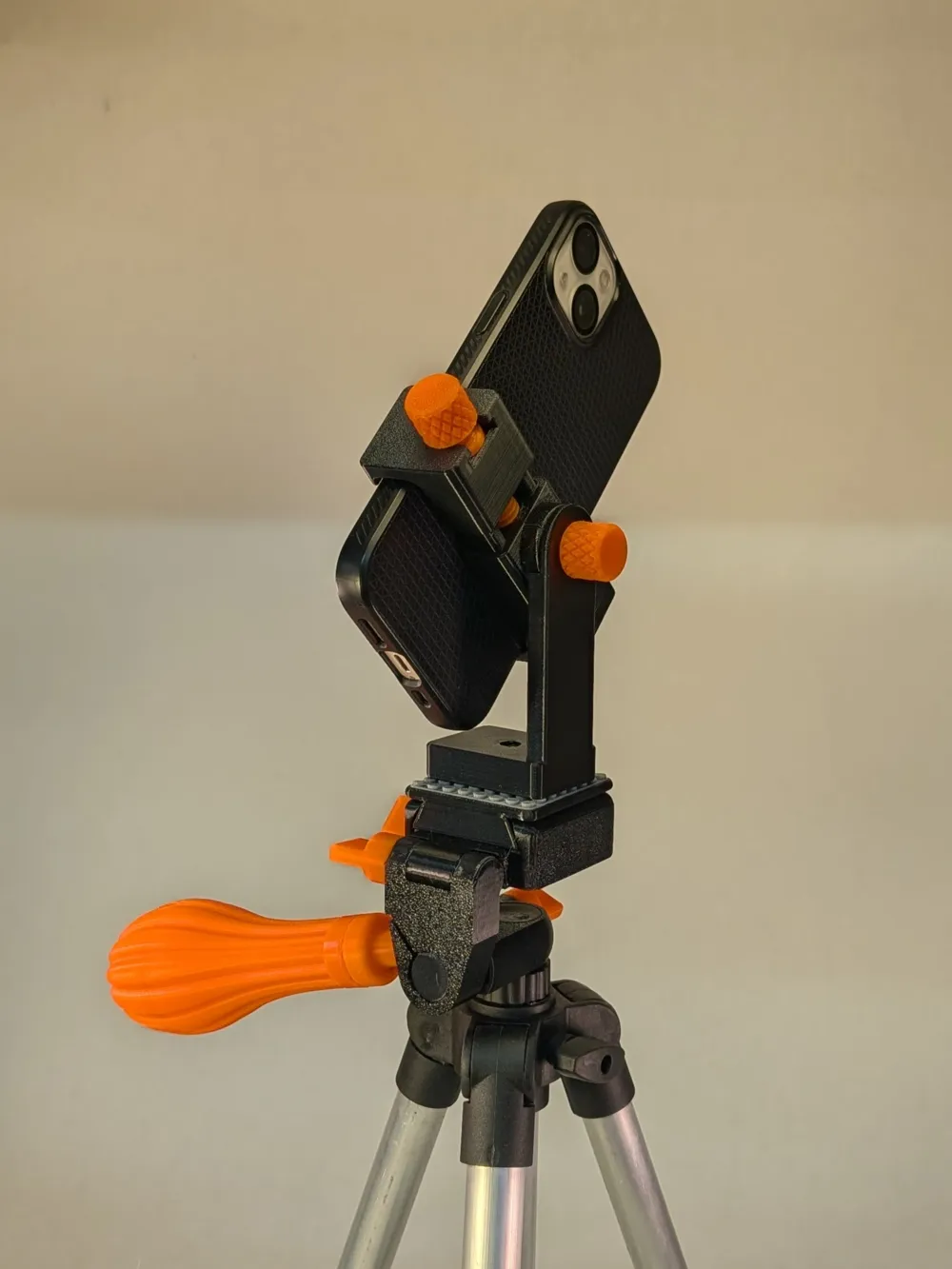

• 45° Detent System: Quick switching between portrait and landscape (and in between) with noticeable, secure locking.

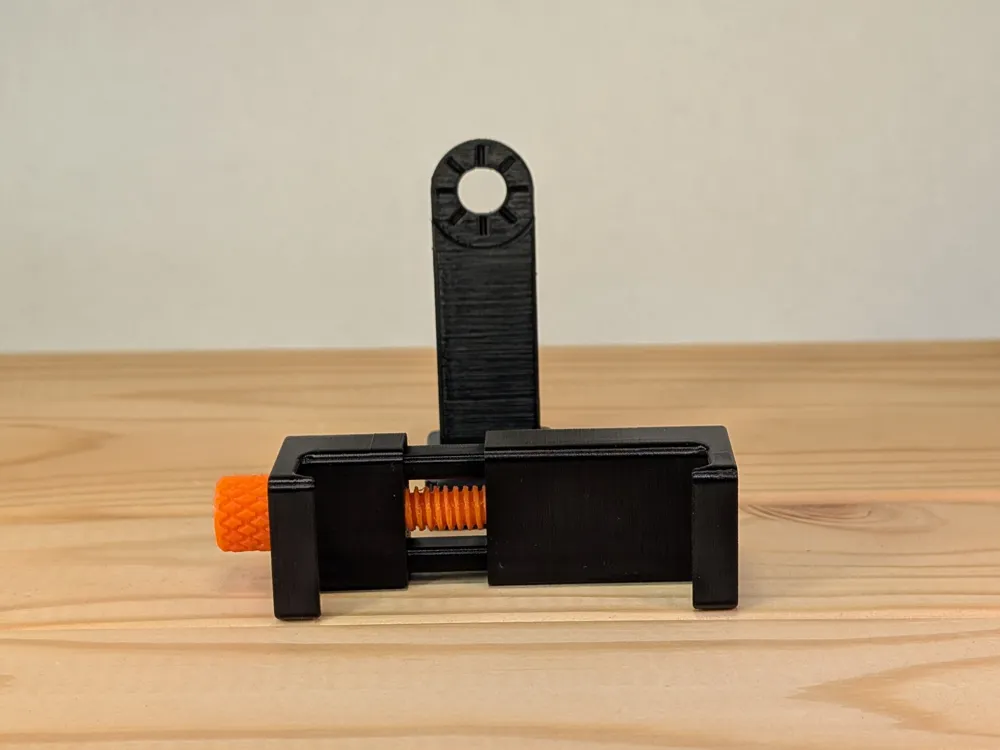

• Universal Fit: The jaws are adjustable and suitable for smartphones with a width of 65 mm to approx 100 mm.
• Secure Hold: Both the phone's width and rotation are firmly fixed via integrated, grippy knurled screws.

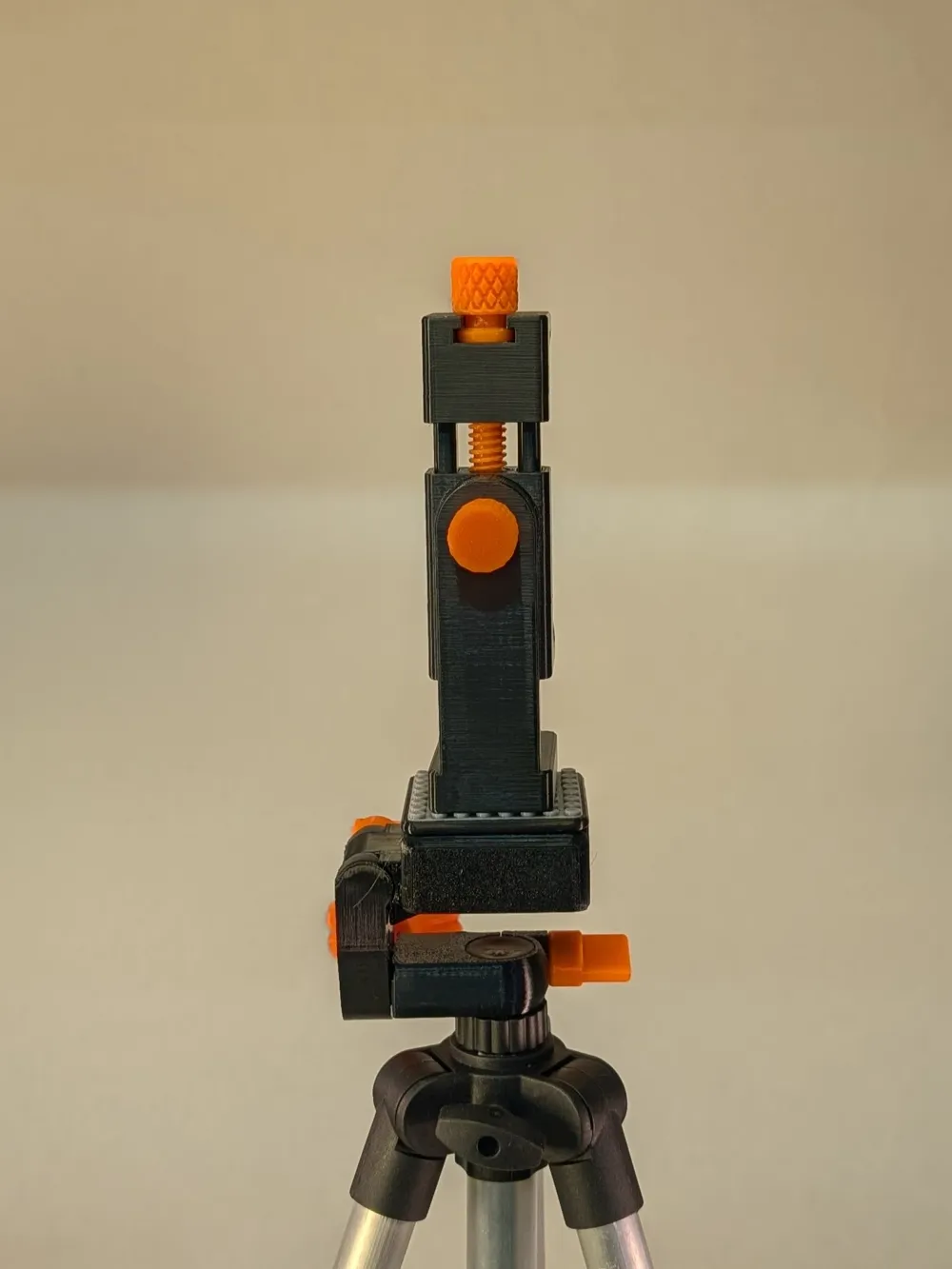

• Standard Thread: Easy and stable mounting on any tripod head with a 1/4" screw.
• Print-Focused Design: Fully optimized for 3D printing; no additional metal screws are required for adjustment.

🔧 Assembly

Assembly is straightforward and only requires a small piece of filament for securing in addition to the printed parts. Simply follow these steps:

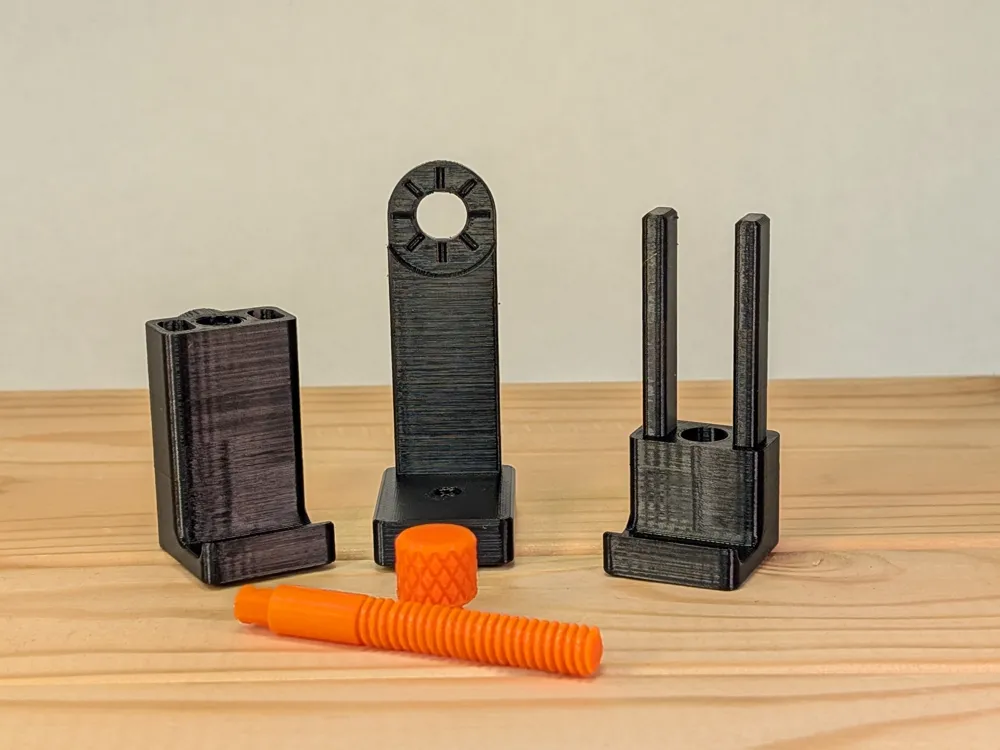

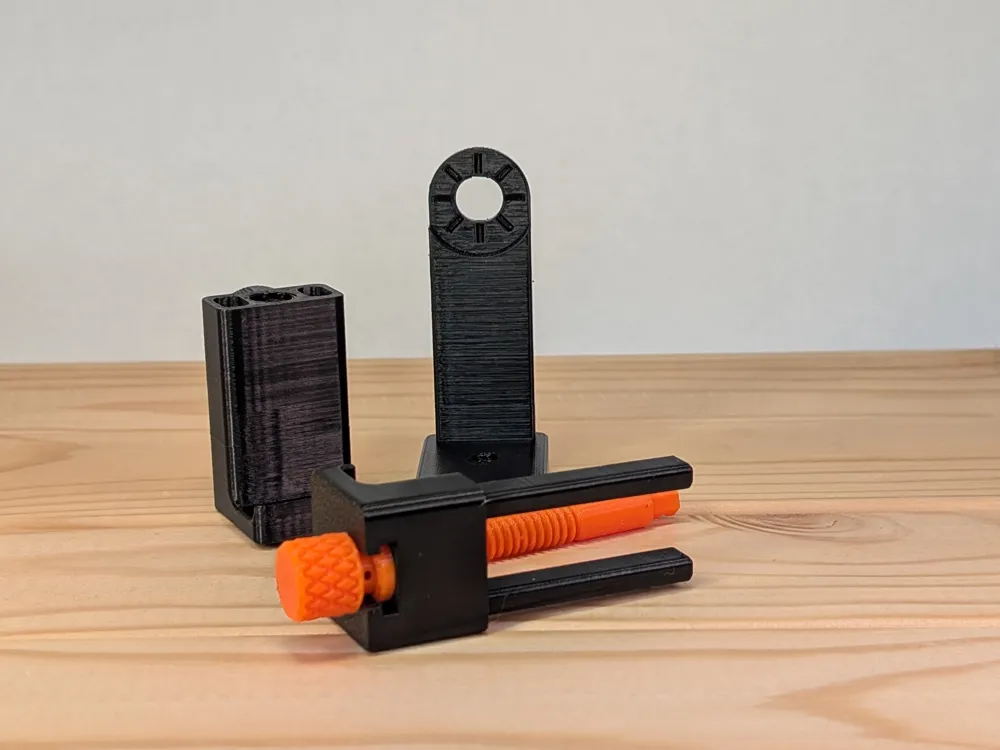

• Handle Preparation: Insert the handle into the top part of the phone holder.

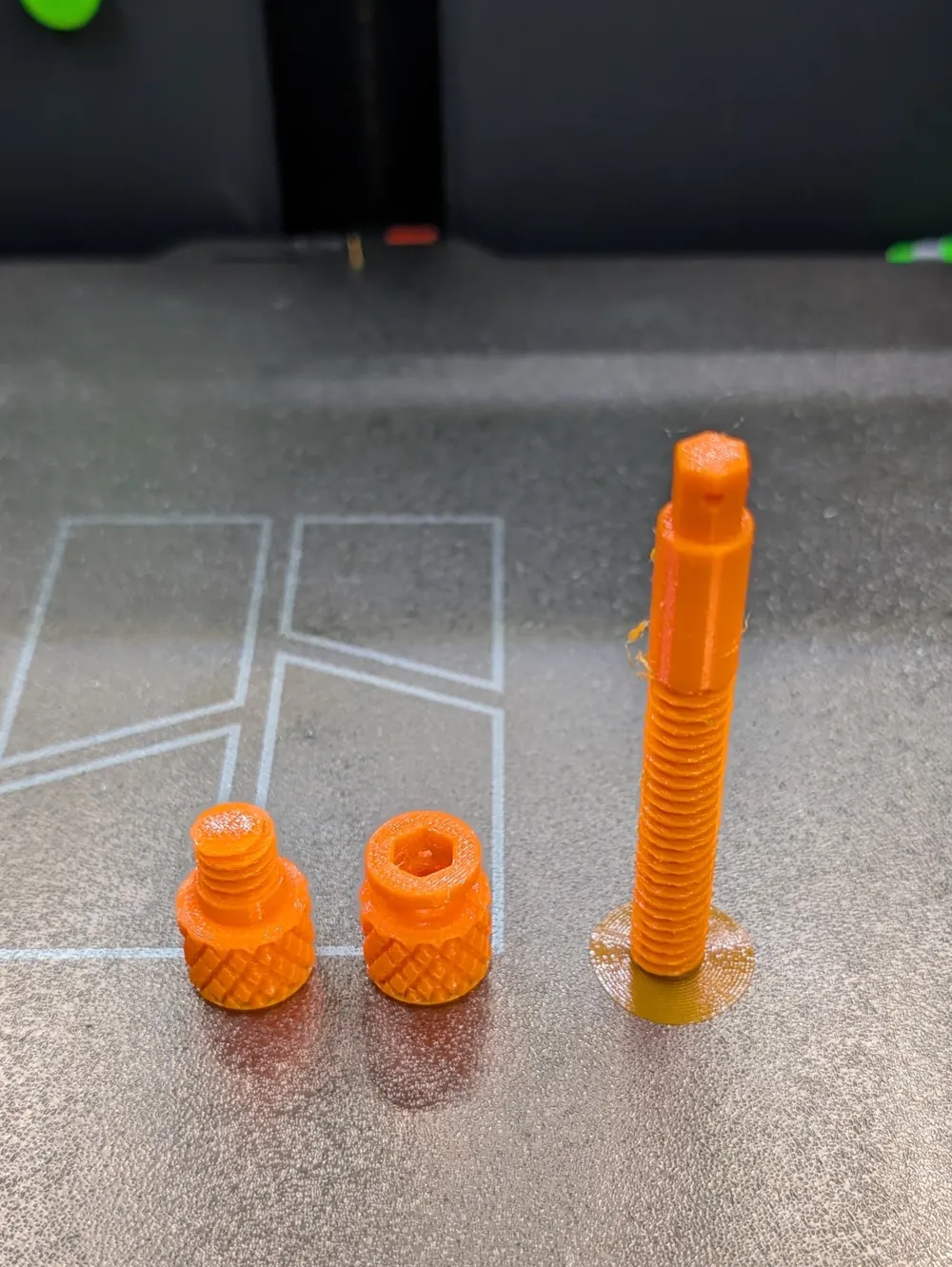

• Fix the Threaded Rod: Insert the threaded rod into its designated slot in the handle.
• Permanent Connection: Push a short piece of 1.75 mm filament into the designated side opening. This acts as a securing pin to firmly and permanently connect the threaded rod to the handle.
• Assemble the Holder: Bring the top and bottom parts of the phone holder together and screw the two segments to each other.
• Tripod Connection: Finally, connect the tripod mount to the phone holder and secure the whole assembly with the appropriate screw.

• Done! The PhoneMount is now ready for your next shoot.







  💡 Tip for maximum smoothness:

  If the threads are a bit tight after printing due to tight tolerances, gently "break them in" by screwing them on and off several times. A small drop of silicone oil or PTFE spray on the threads works wonders here and ensures buttery smooth operation!



Have fun shooting with the PhoneMount!
