H0 Railway Signals (3 and 4 lights) - Multicolor and single color printing

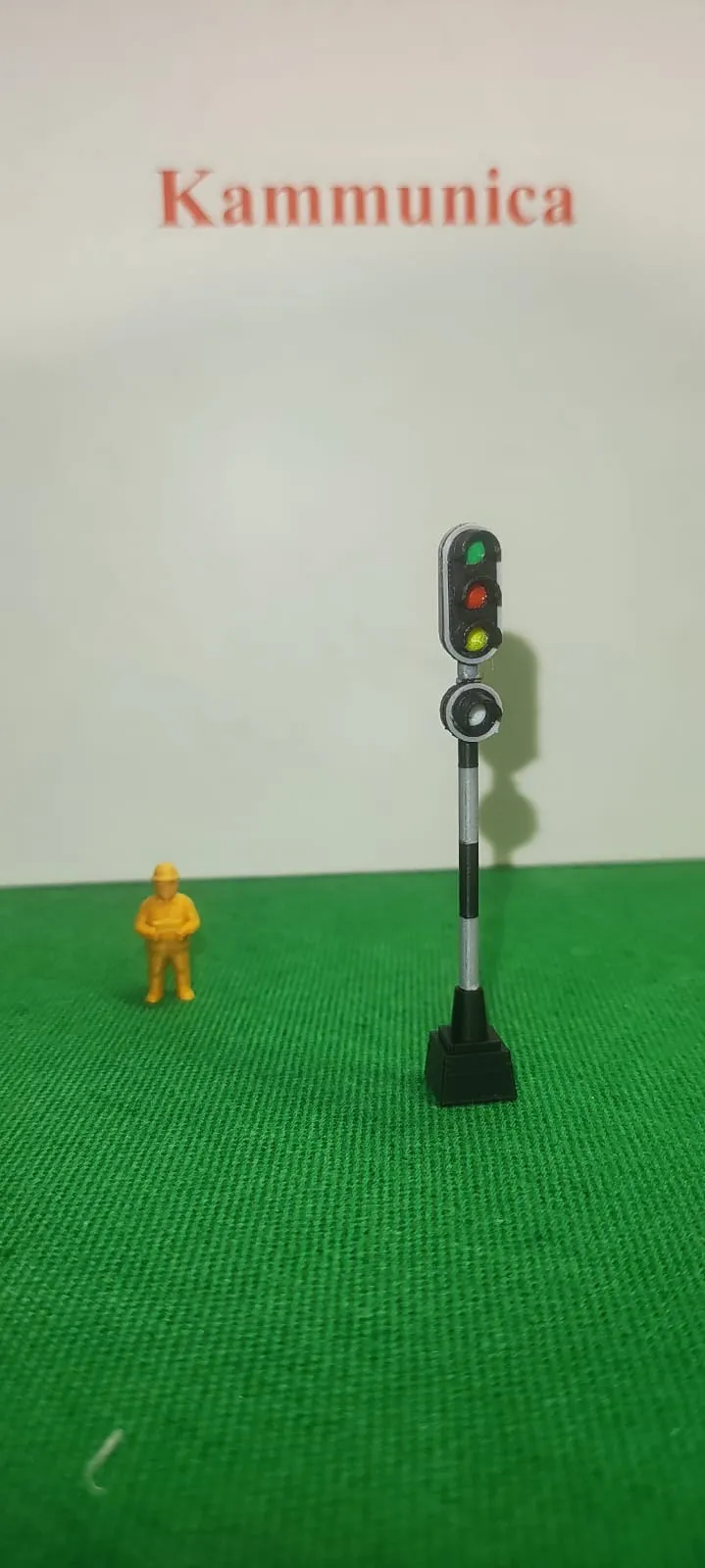

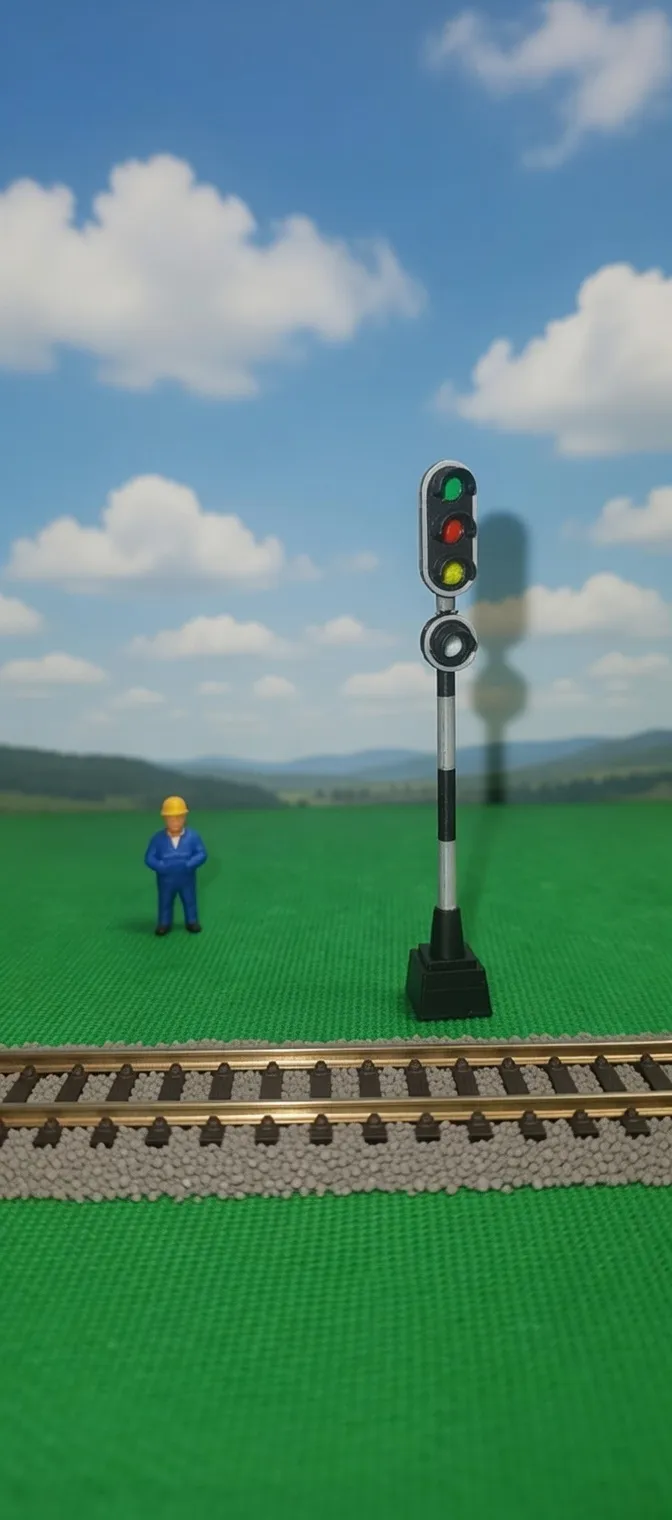

I present my model of railway signals in H0 scale (1:87) with 3 lights and 4 lights, specially designed for printers with multicolor (AMS) or for printing in a single color and then painting.

Main features:

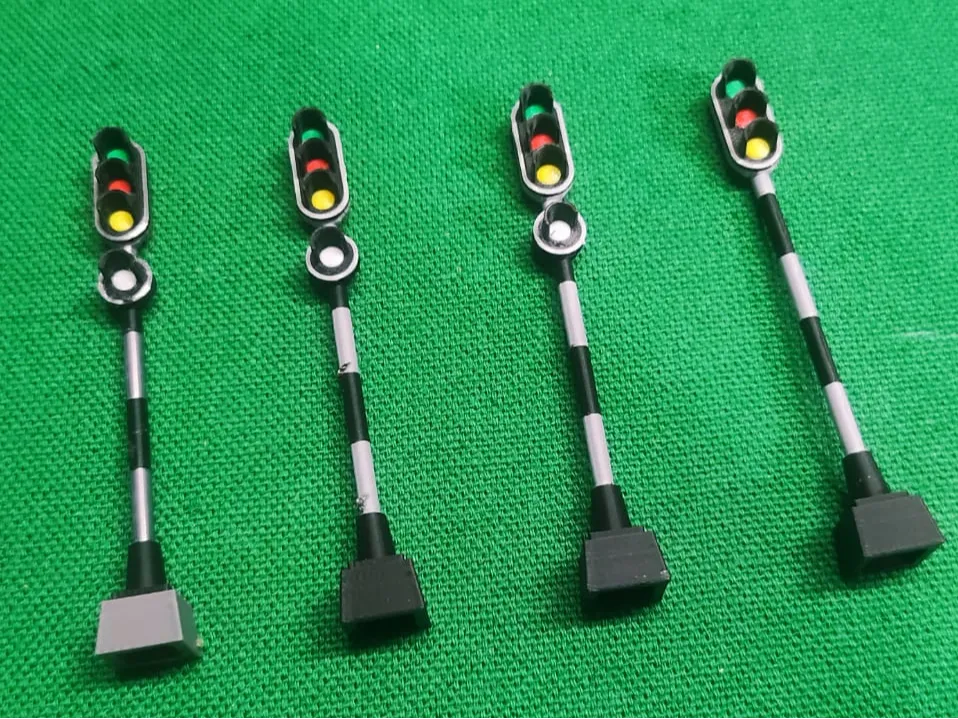

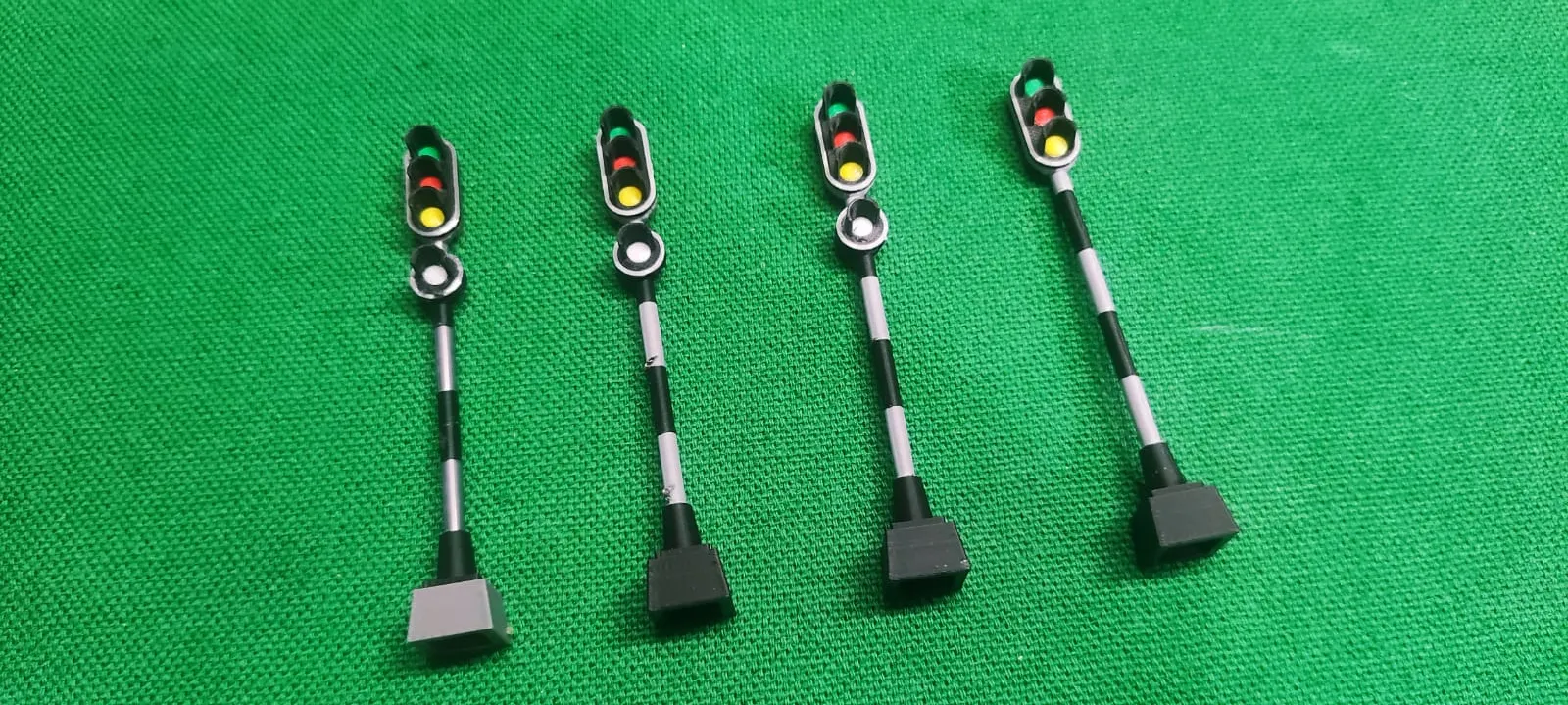

• Two versions: 3-light signal and 4-light signal
• Lights printed in red, amber/yellow, and green colors (the model already has default colors assigned)

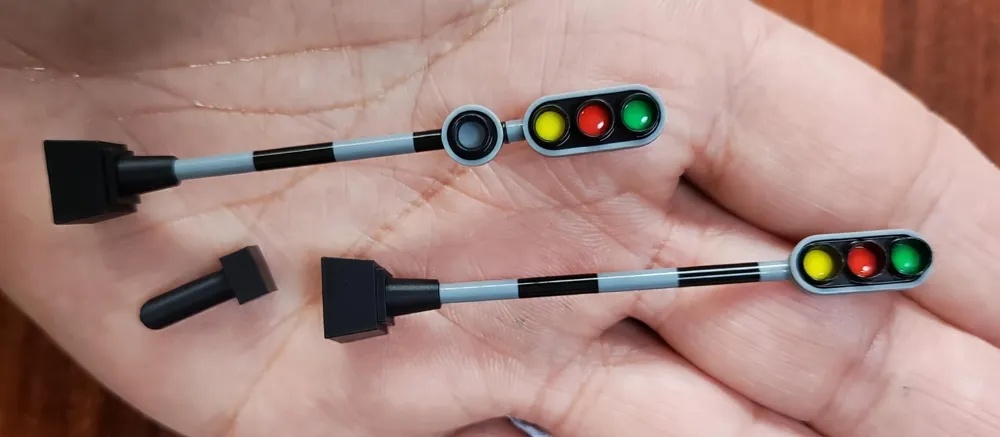

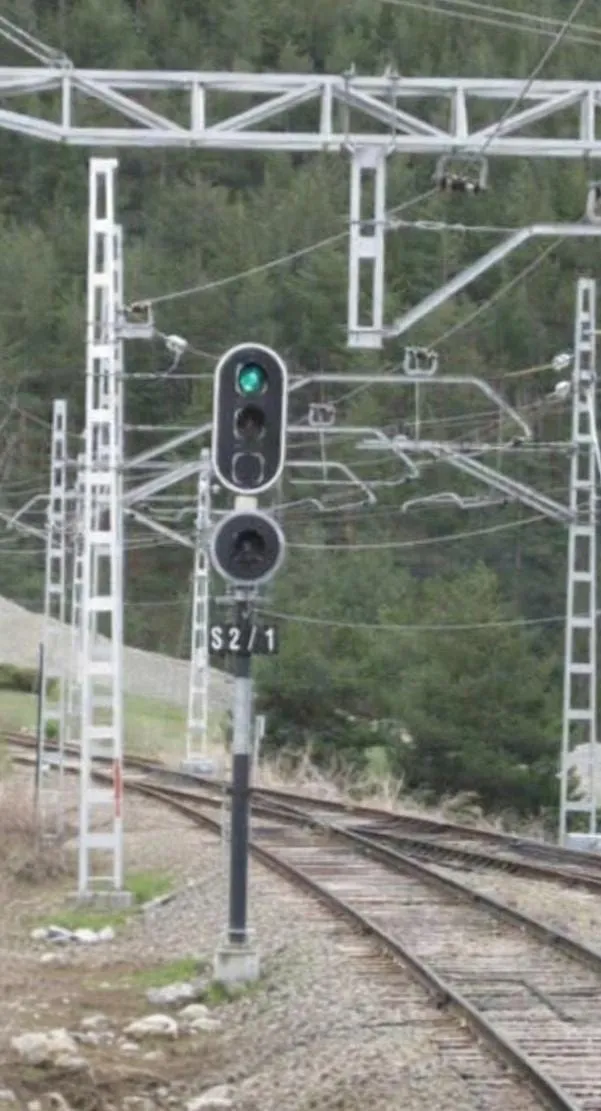

• Segmented post in grey and black, typical of many European railways
• Base with stable fitting to place on a model layout with a small 5 mm drill hole.
• Prepared for 3 mm LED (if there is enough interest in the future, an attempt will be made to design for real wiring and lighting and a video on how to do it )

• Use High definition 0.2 nozzle





Assembly instructions (very simple):

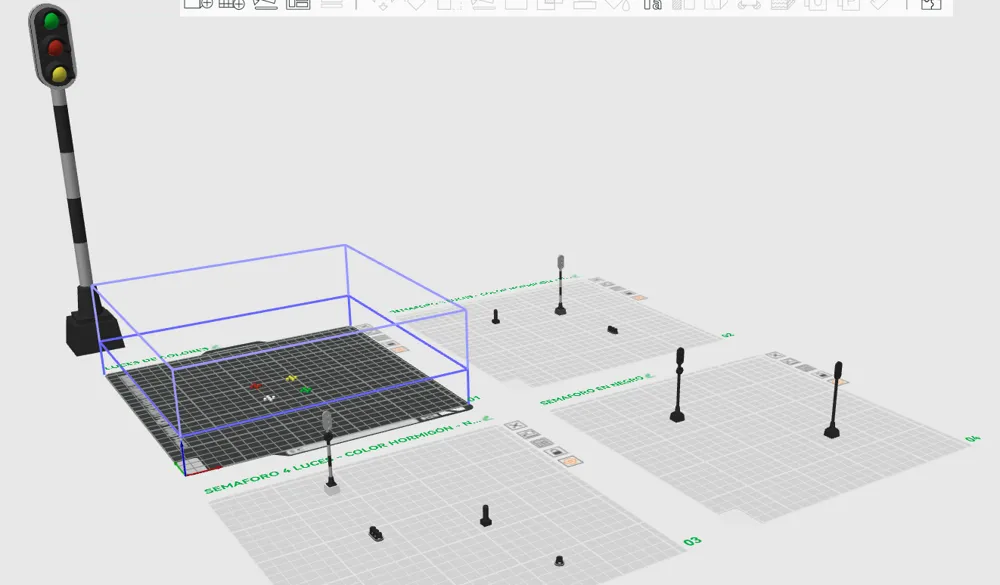

1. Print parts from plate 1, 2, and 3 with the project's default settings
2. Glue the lights (head) to the post with a dot of invisible contact adhesive.  If you need recommendations, ask.
3. Finally, glue the outer casing/base to the assembly

Printing recommendations:

• Use the default settings provided in the project (already optimized)

• To improve bed adhesion, if you are not using Bambu Lab glue, I recommend making the following change:

  Place an outer brim only on the mast ( others ► Bed adhesion ► Raft type ► outer brim only )

• Recommended material: PLA (PLA Matte or satin gives a very good visual result)

If you like the model and print it, leave a ❤️ like, a comment, and upload a photo of your print! 📸

Upcoming models (if there's interest):

• Ground signal
• Wall signal

• Gantry / bridge signals (multiple heads)



• Lightable version with 3 mm LEDs and wiring channel

Everything will depend on the reception: likes, comments, downloads, and prints. If you find it useful, write what versions you would like to see, and I will gladly continue designing more railway signaling elements with the same system.

Thanks for the support and happy printing! 🚉🚦

.
