Adjustable Wall Mount: Furniture Suspension
Print Profile(1)
Description

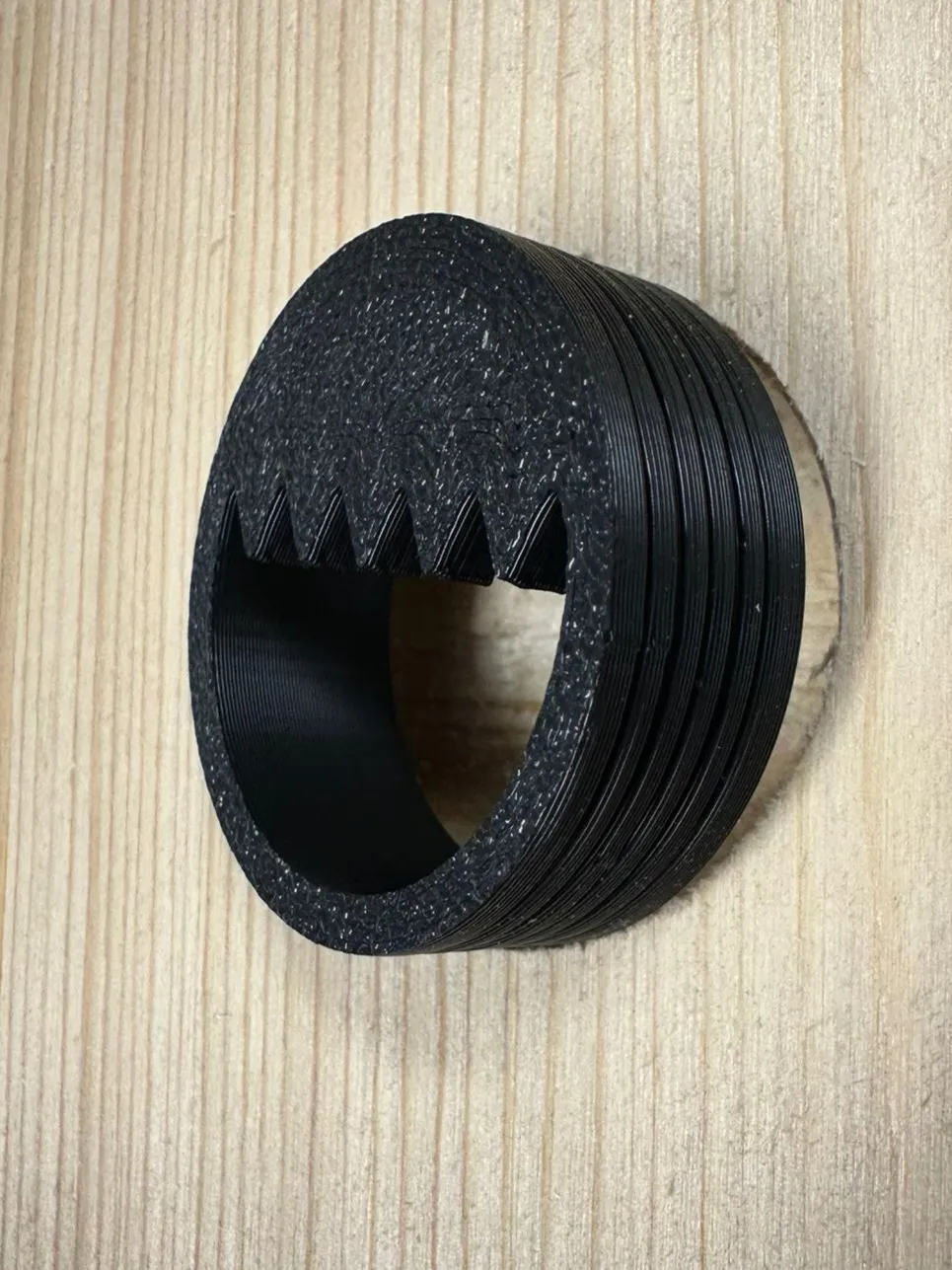

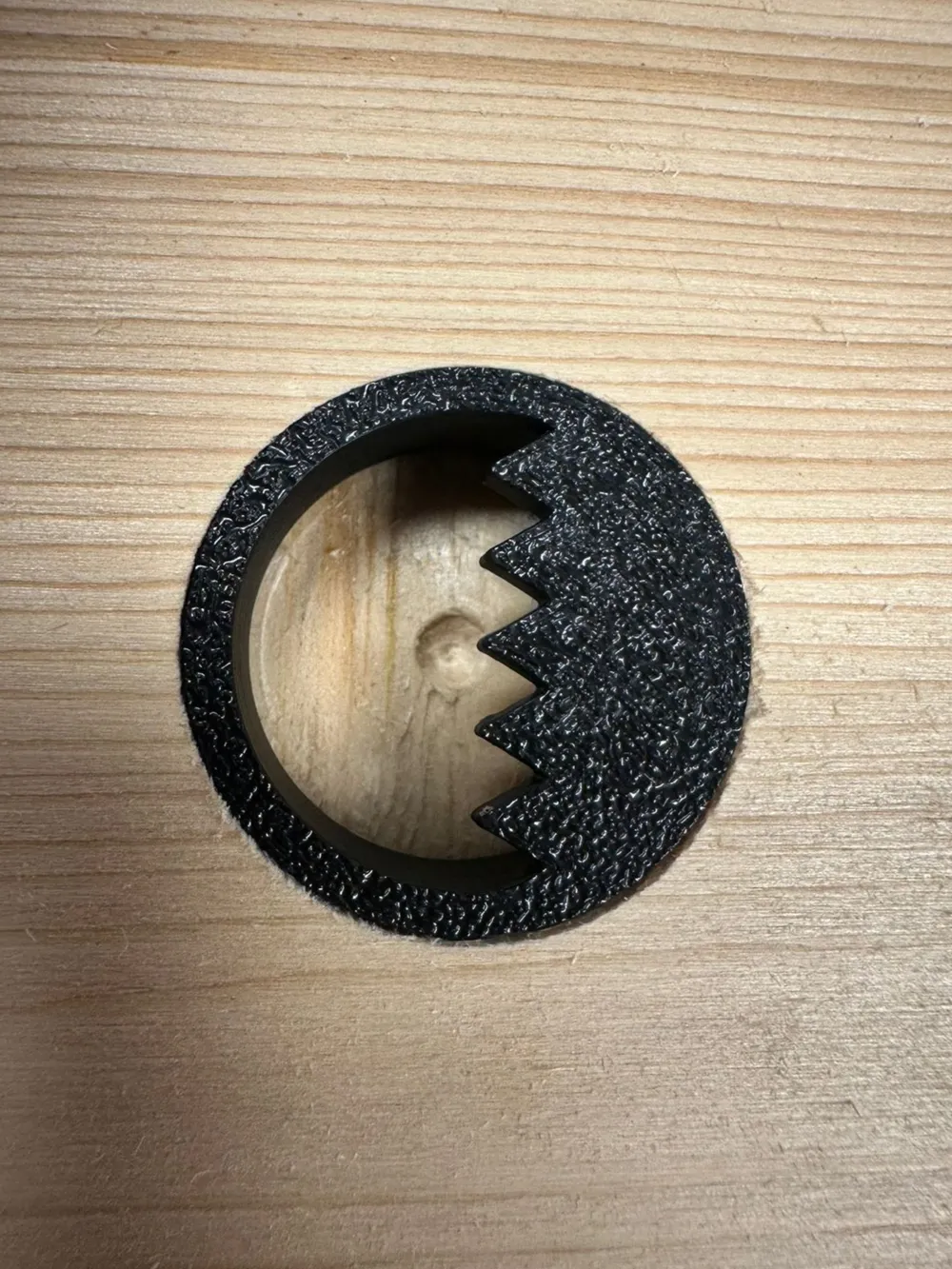

This universal mount is designed as a precise flush-fitting for the back of light furniture pieces, clocks, or mirrors. The stepped design inside allows the object to be perfectly aligned after mounting, without having to change the position of the screw in the wall.
Assembly & Installation:

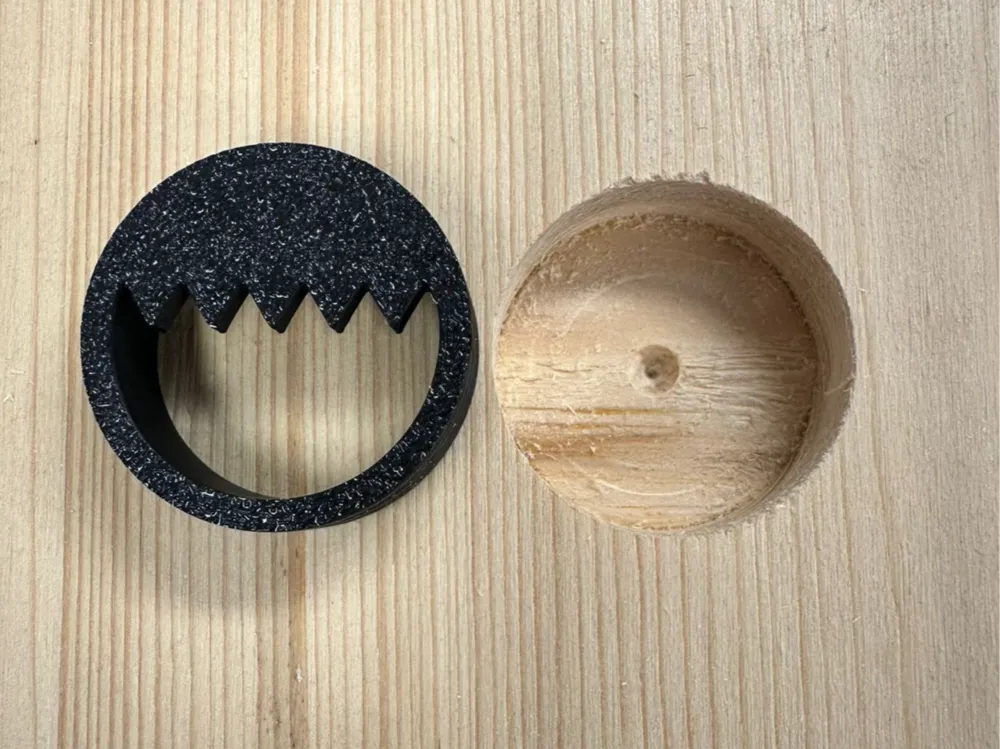

• Drilling: The mount is designed for a standard bore with a 30 mm Forstner bit.
• Depth: A drilling depth of 10 mm is ideal for the fitting to sit flush with the surface.
• Secure Hold: On the outside, there is a special ribbing that functions as adhesive pockets. This ensures significantly higher surface adhesion and a permanent connection to the workpiece.
Dimensions:
• Outer diameter: 30 mm
• Depth: 10 mm
