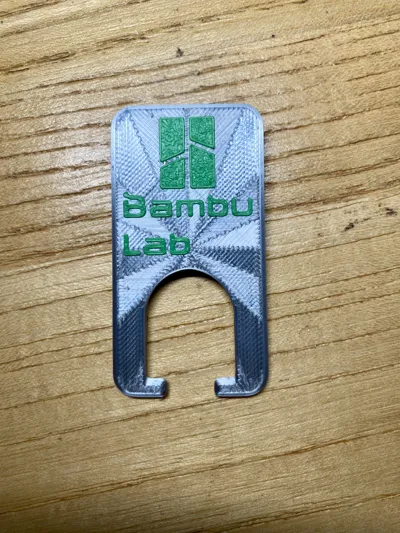

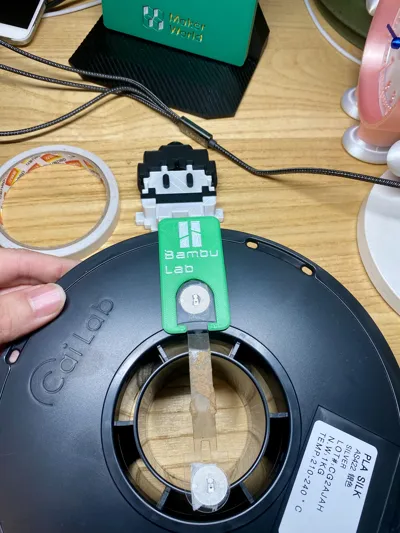

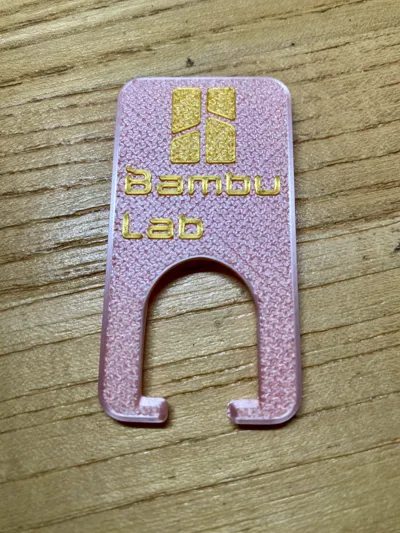

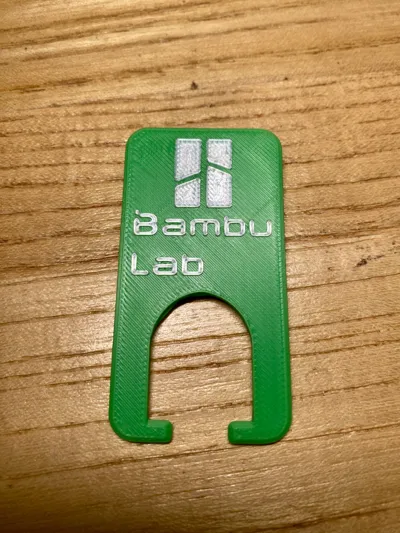

Bambu Lab Official RFID Chip Adhered to Spool: Precise Positioning Ruler
I. Adaptation: 20cm standard filament spool (e.g., Bambu Lab official filament spool, Caimore House filament spool...), compatible with all Bambu Lab AMS models currently on sale.
Note: For third-party FUID/CUID 28mm chips, please jump to this work (click the blue text 👉)FUID CUID 28mm RFID chip positioning ruler
II. Installation Instructions:

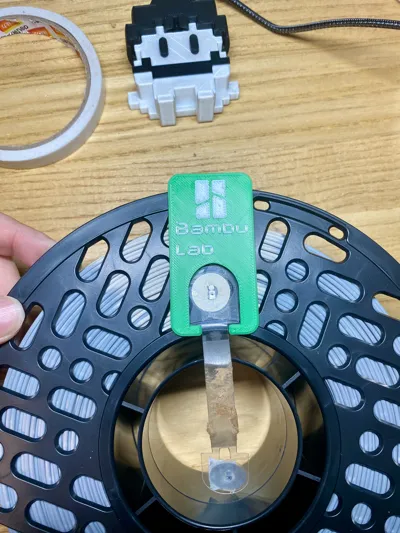

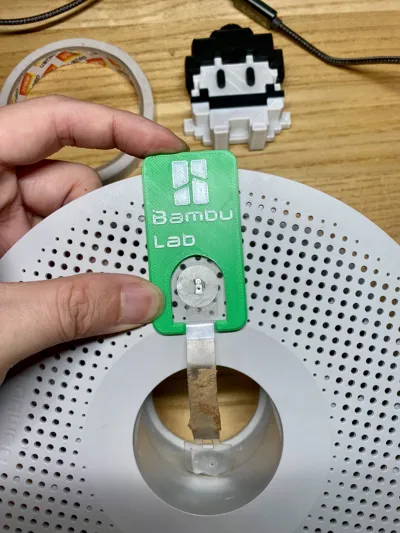

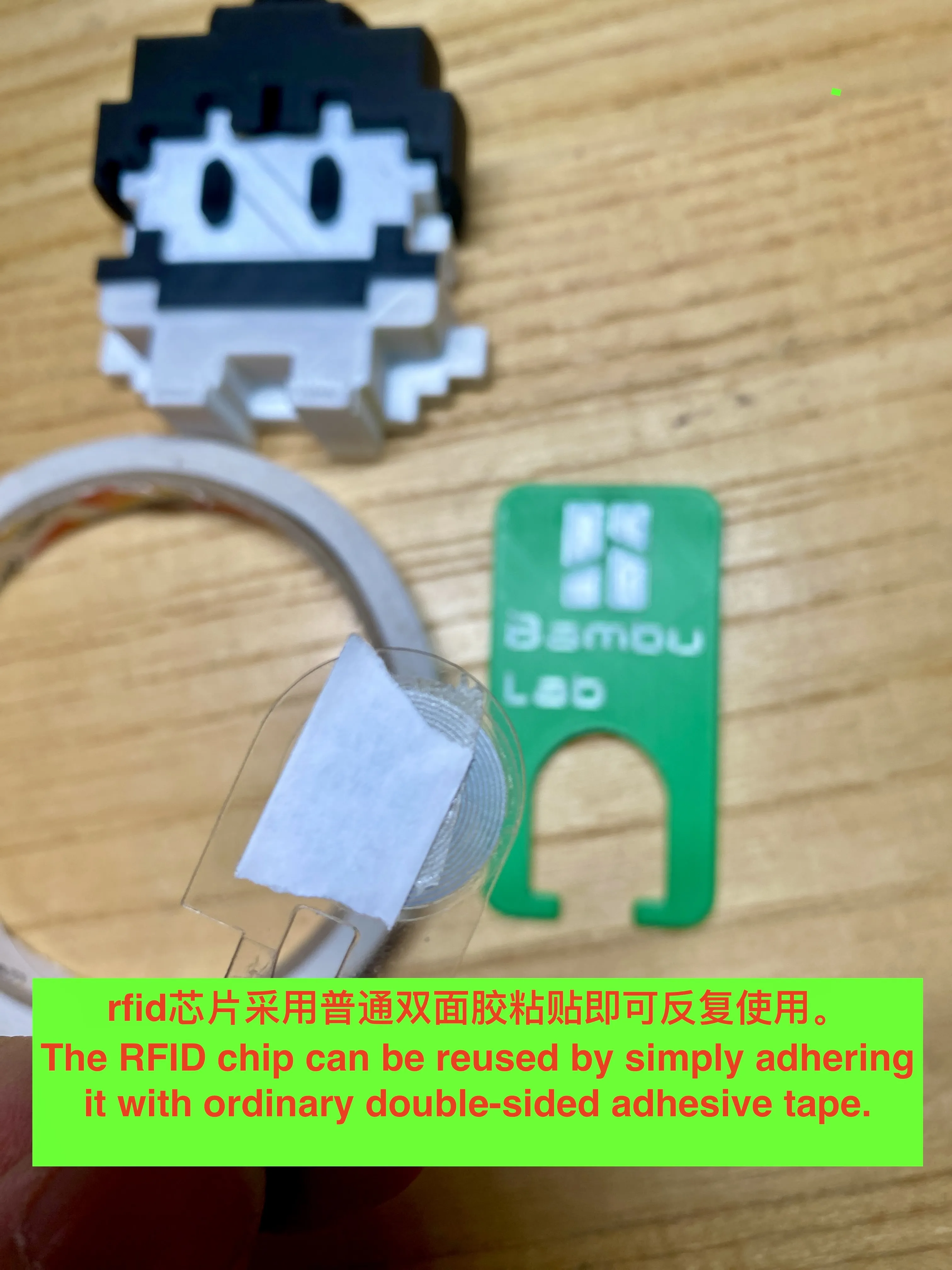

1. Cut the two-ended Bambu Lab official chip in half (trim as needed ✂️). Only 3M double-sided tape is needed for repeated adhesion and use.

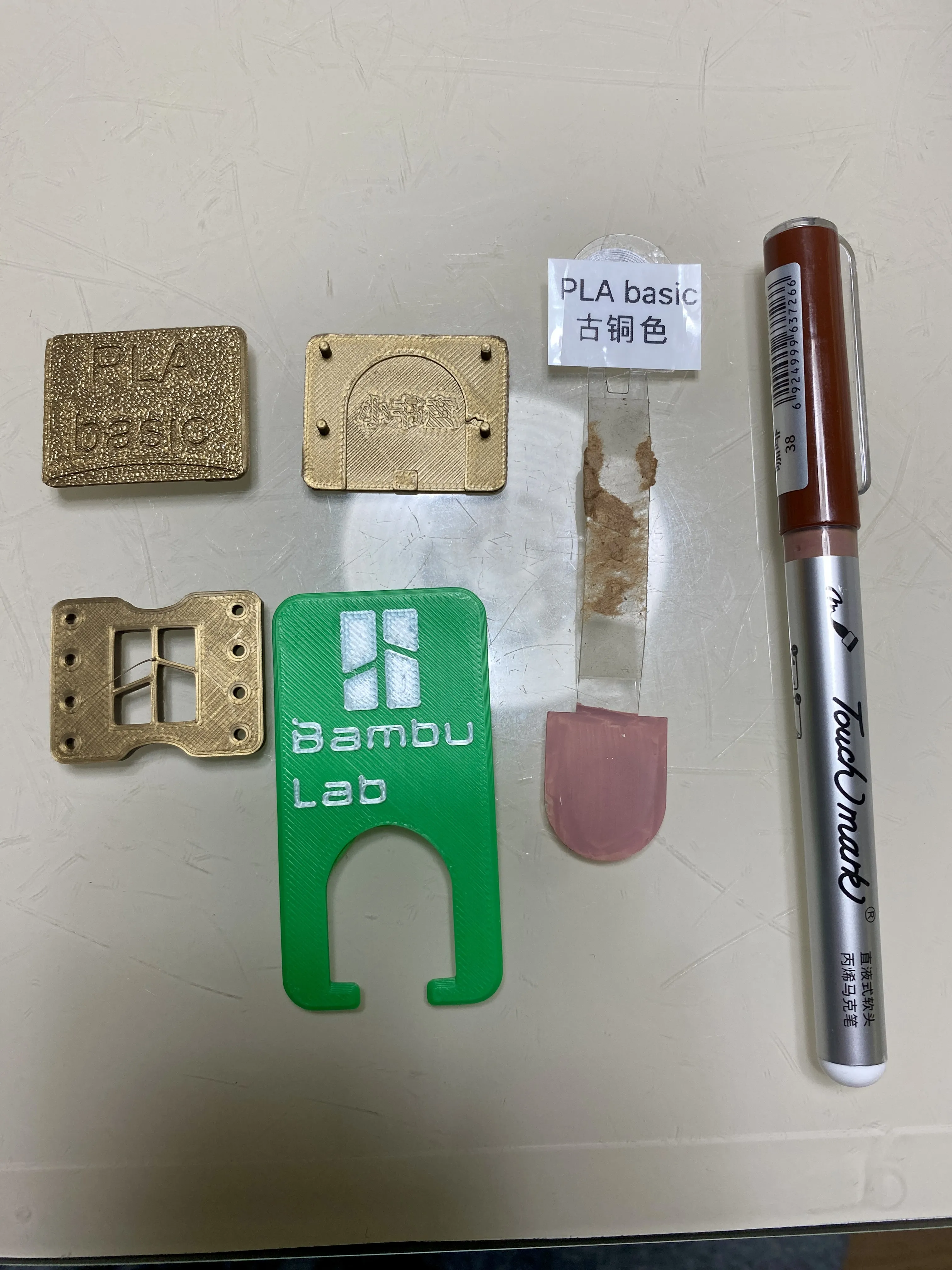

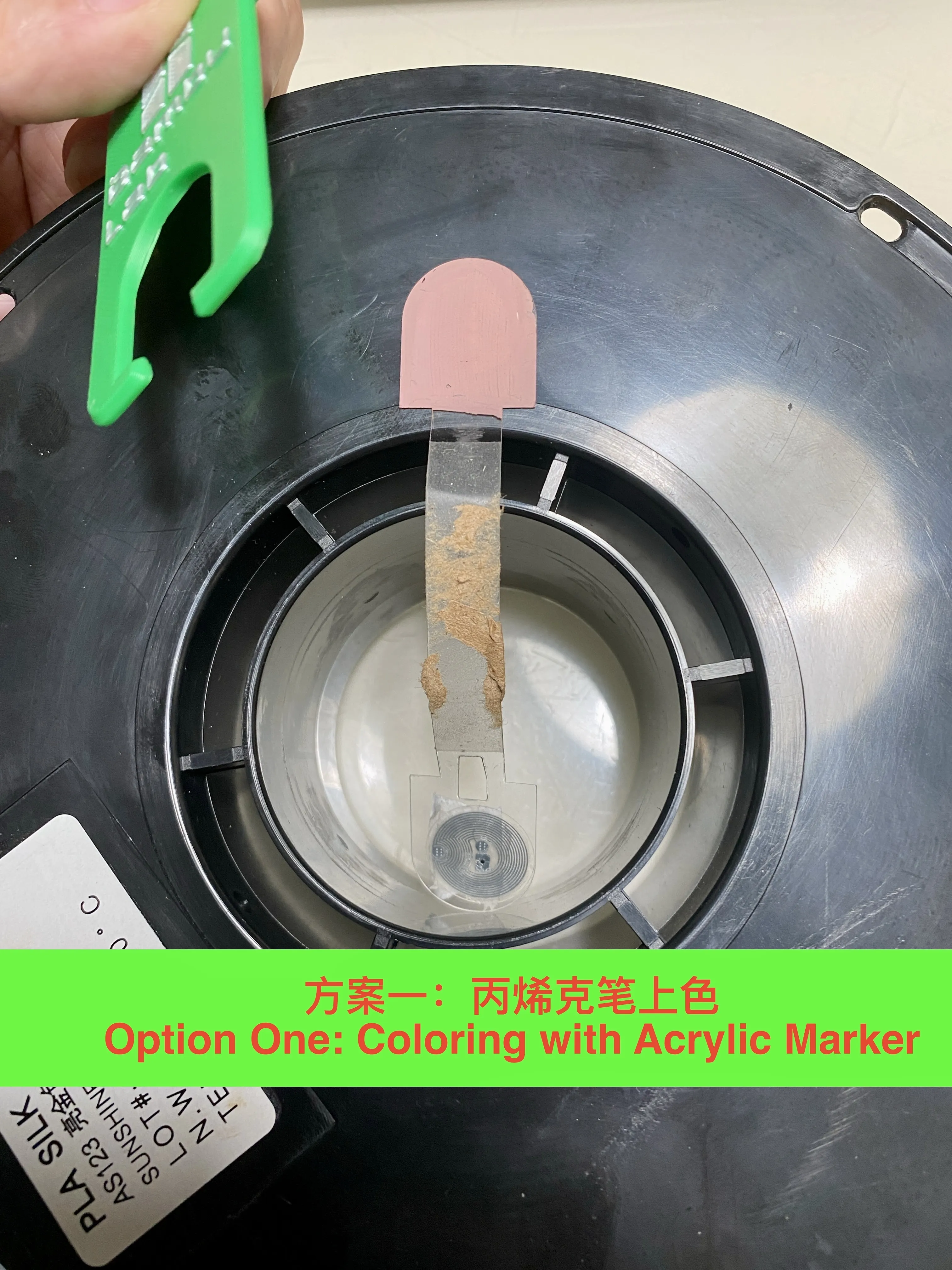

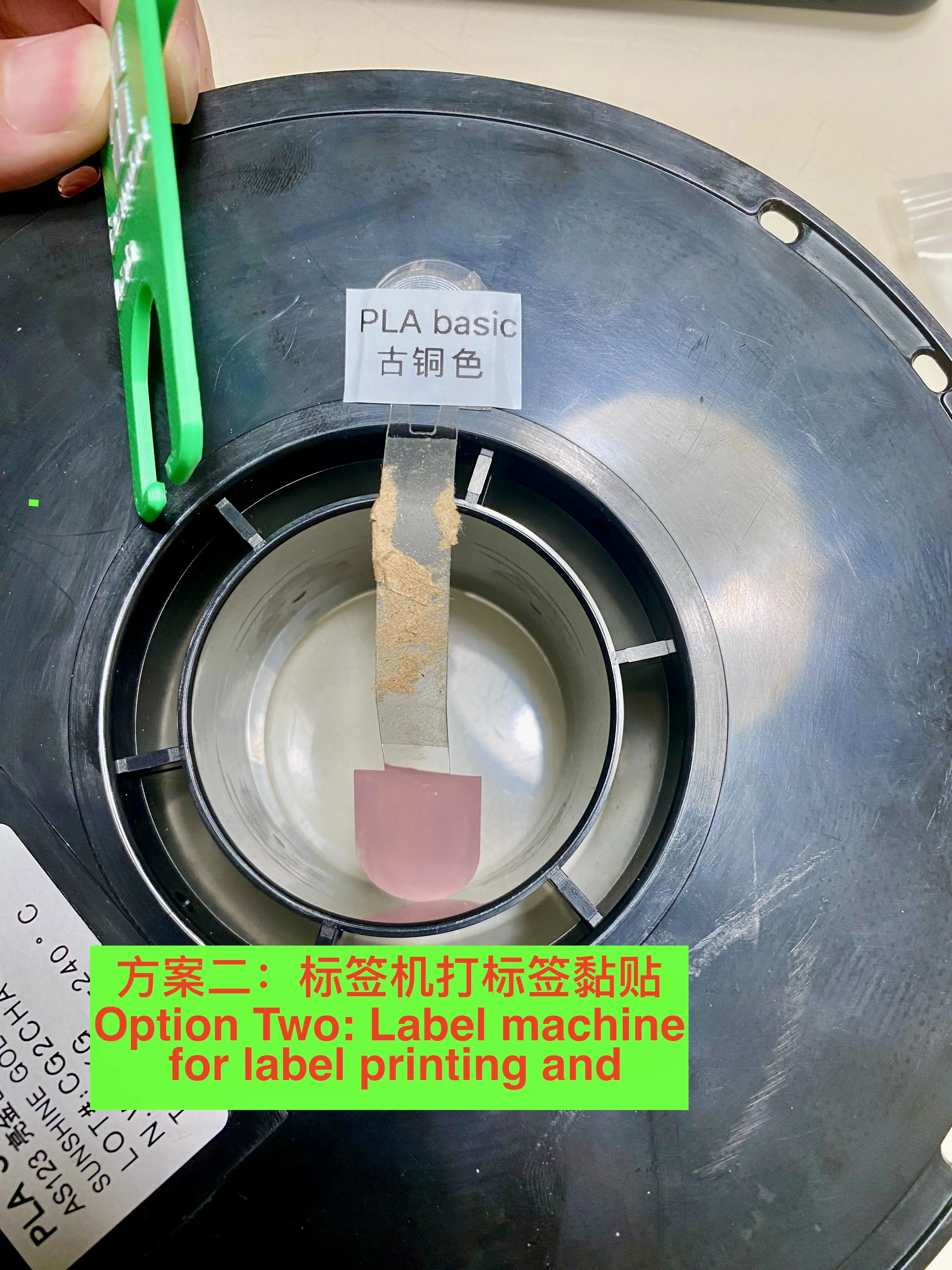

2. Stick label paper on the surface of the RFID chip, or directly paint the RFID chip with the corresponding color using an acrylic marker (any other recognizable marking method is acceptable).
3. The positioning ruler can be removed once positioning is complete.

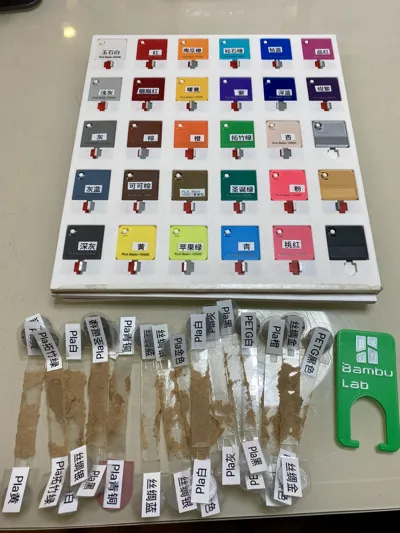

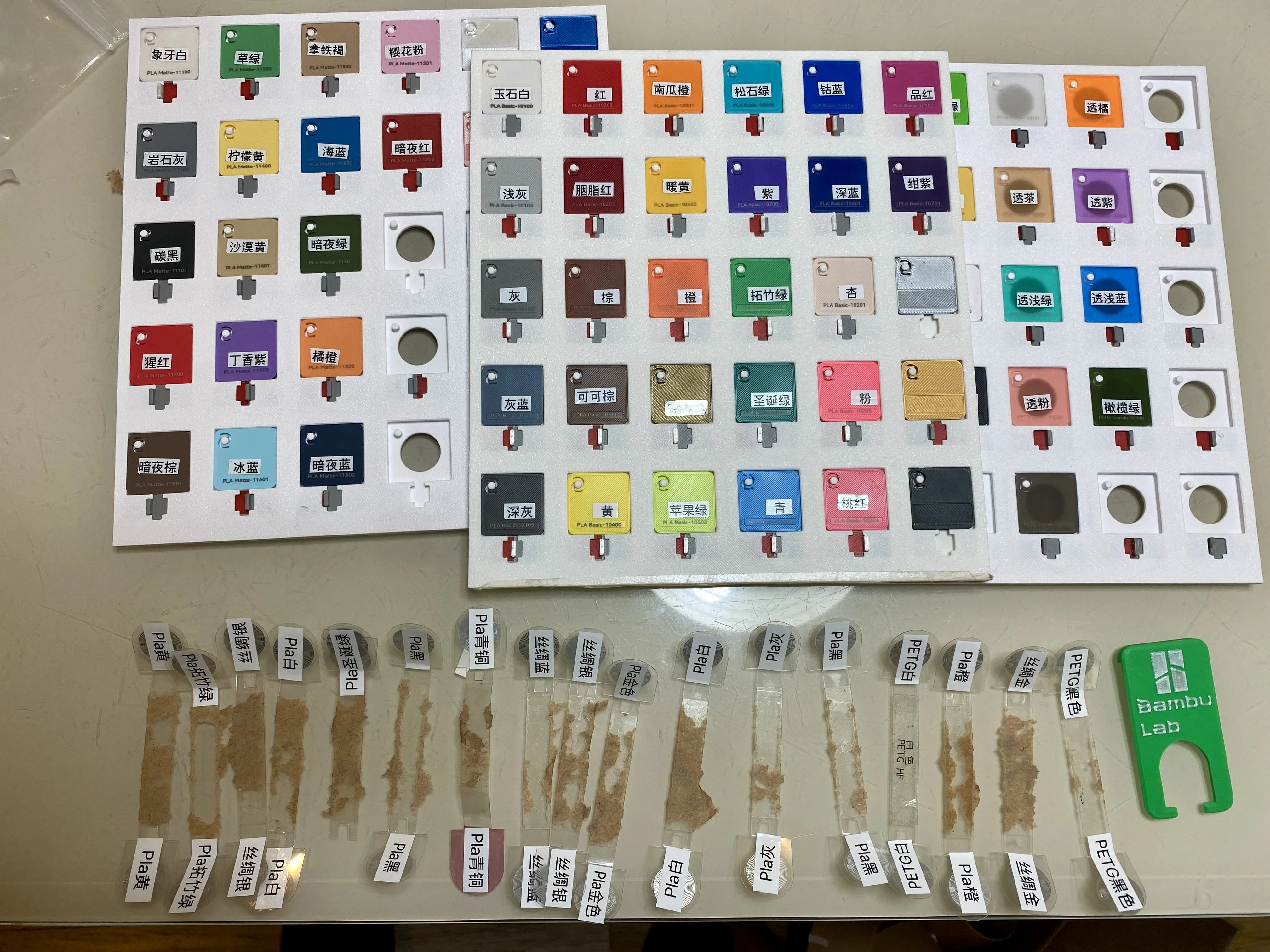

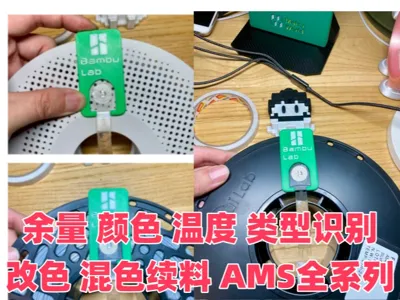

III. Function: Enables third-party filament to achieve [filament remaining quantity reading], AMS automatic recognition of [color, temperature, filament type], and through sticking different colored chips, [third-party filament color changing] and [mixed-color replenishment], etc.

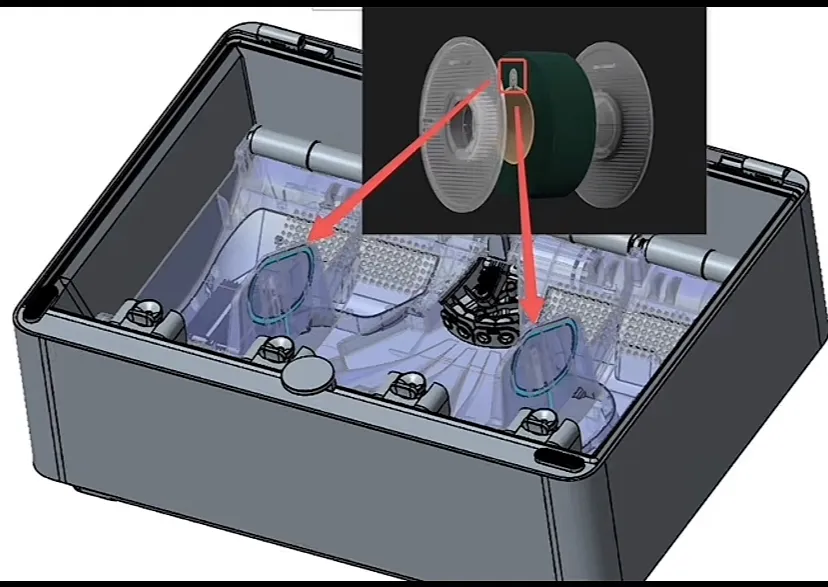

IV. Chip recognition areas for AMS1 and AMS2: the raised partition between plate 1 and plate 2, and the raised partition between plate 3 and plate 4.
💐: If you want to use a modular fixation for RFID chips, you can also check out my other work (click to jump):RFID Color Chip Quick-Release Quick-Install Module Bambu Lab Official Spool. Hope it helps you!
