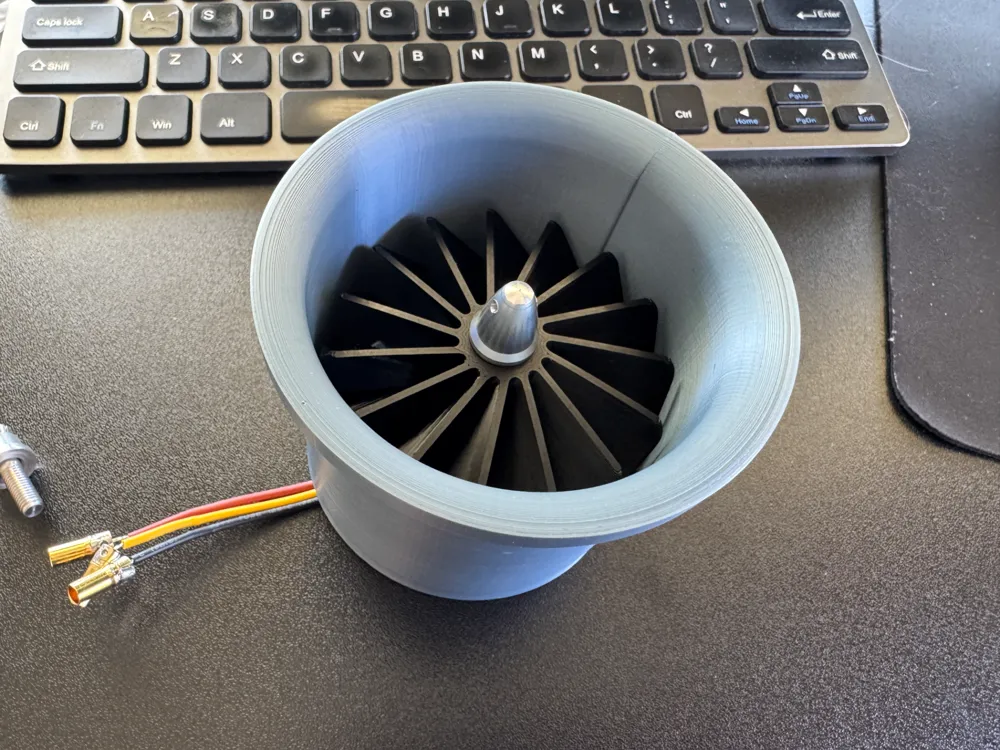

75mm EDF with A2212

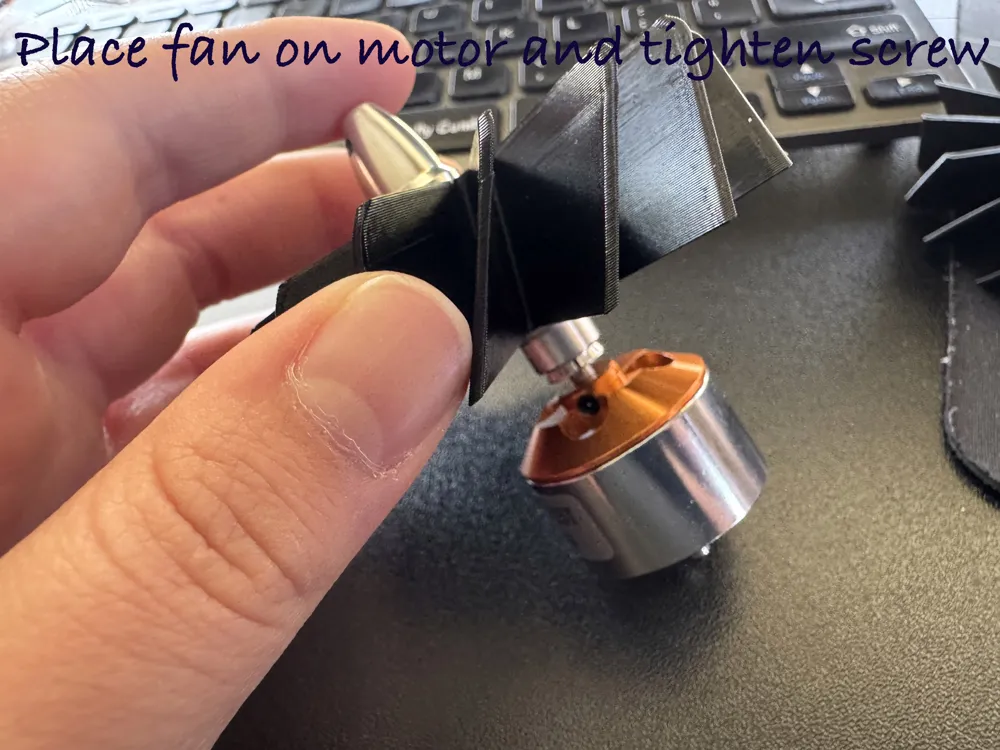

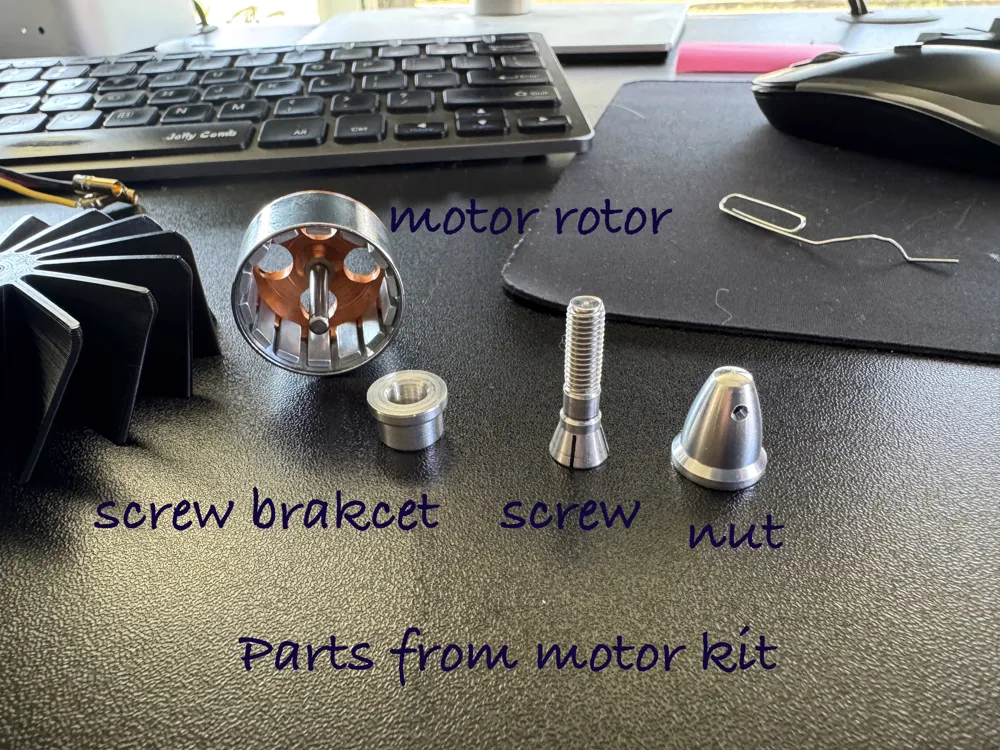

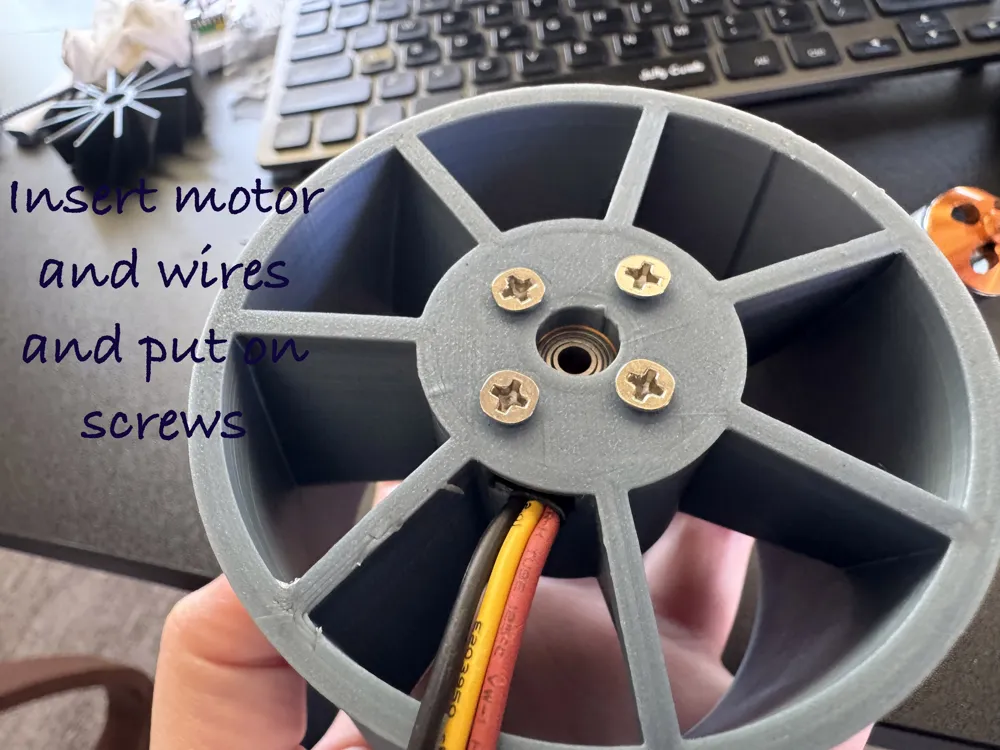

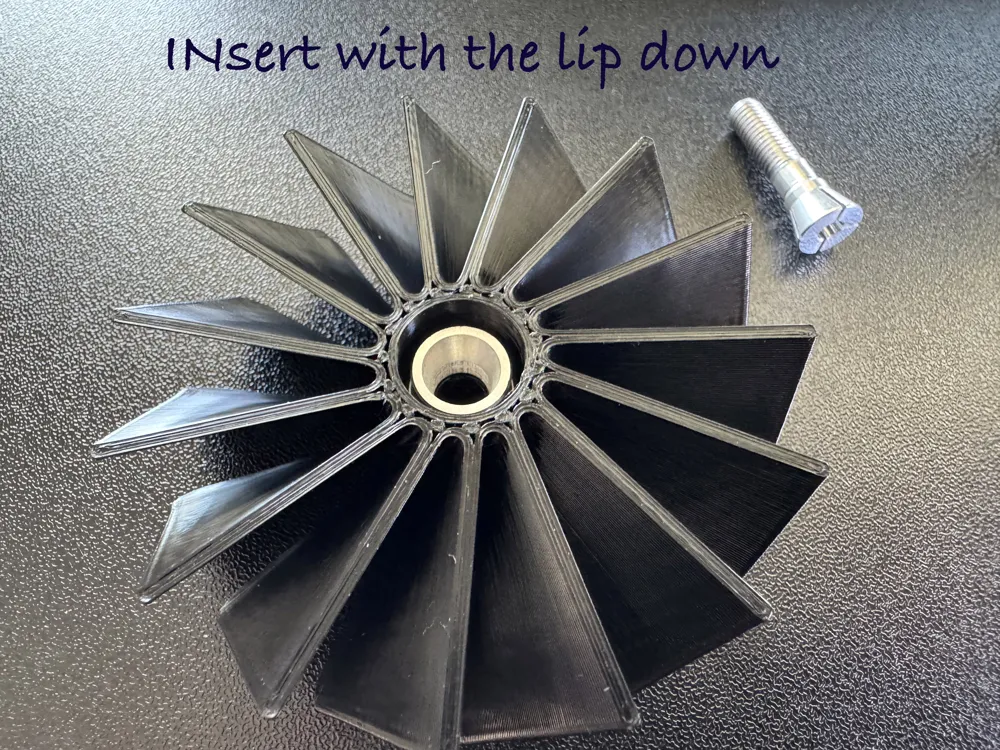

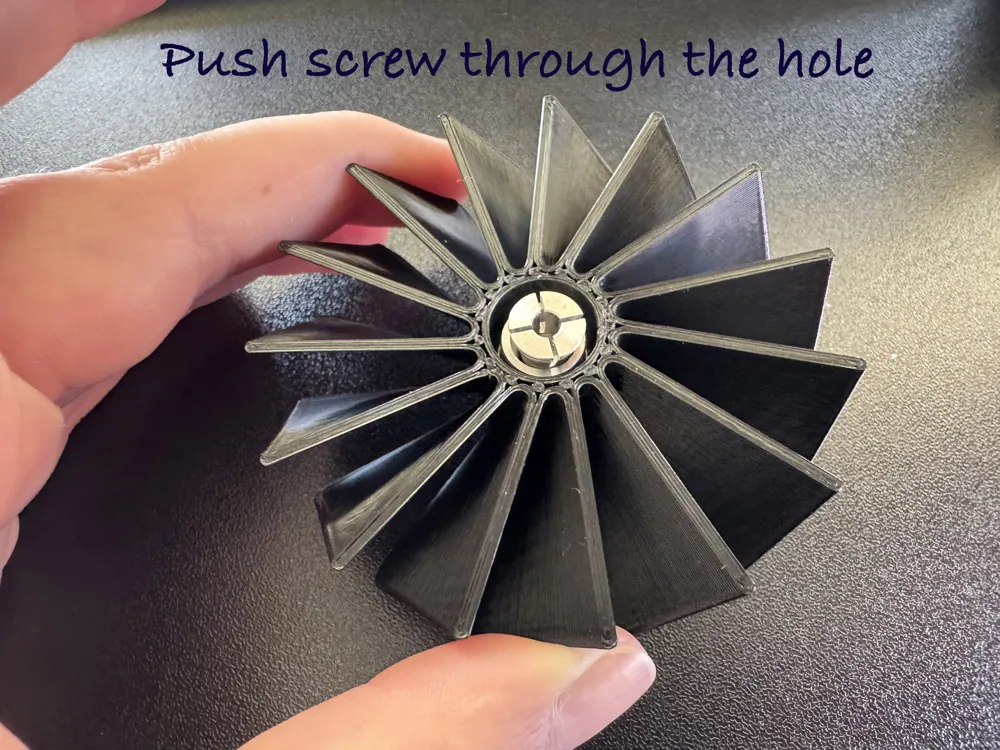

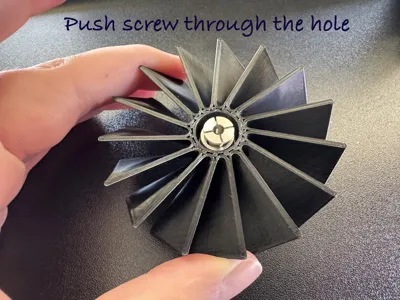

This is a remix of Nikodem Bartinik's Toroidal EDF. It is designed for an A2212 motor and the fan blade has been modified to fit the included hardware. I took off the rotor from the motor to make it easier to assemble. You can find an assembly guide in the photos. Look at the photos in order so you don't get the steps mixed up. I would recommend printing in petg or abs. I redesigned the fan blade to fit the bushing that comes with the A2212. If you want to do this to any of the other fan blades on Nikodem's EDF, you can just cut a 12.25mm hole in the middle. This model only includes one fan blade.
