Bookmark for communion or other events

📖 Description: Customizable Bookmark - First Communion or other events ✨

This is an elegant and fully customizable bookmark designed specifically for First Communion souvenirs or other events. 🕊️ The model is optimized for printing in two colors (base and relief) and allows adjusting both text and dimensions using the Customizer. 🛠️

🌟 Main features:

• 🎨 Fully Customizable: You can change the name, date, and event (e.g. "My First Communion").
• 📍 Total Position Control: Includes variables to move each text block up and down (Y) and left to right (X) for perfect centering.
• 📏 Adjustable Font Size: Control the size of each line of text independently to highlight the most important parts.

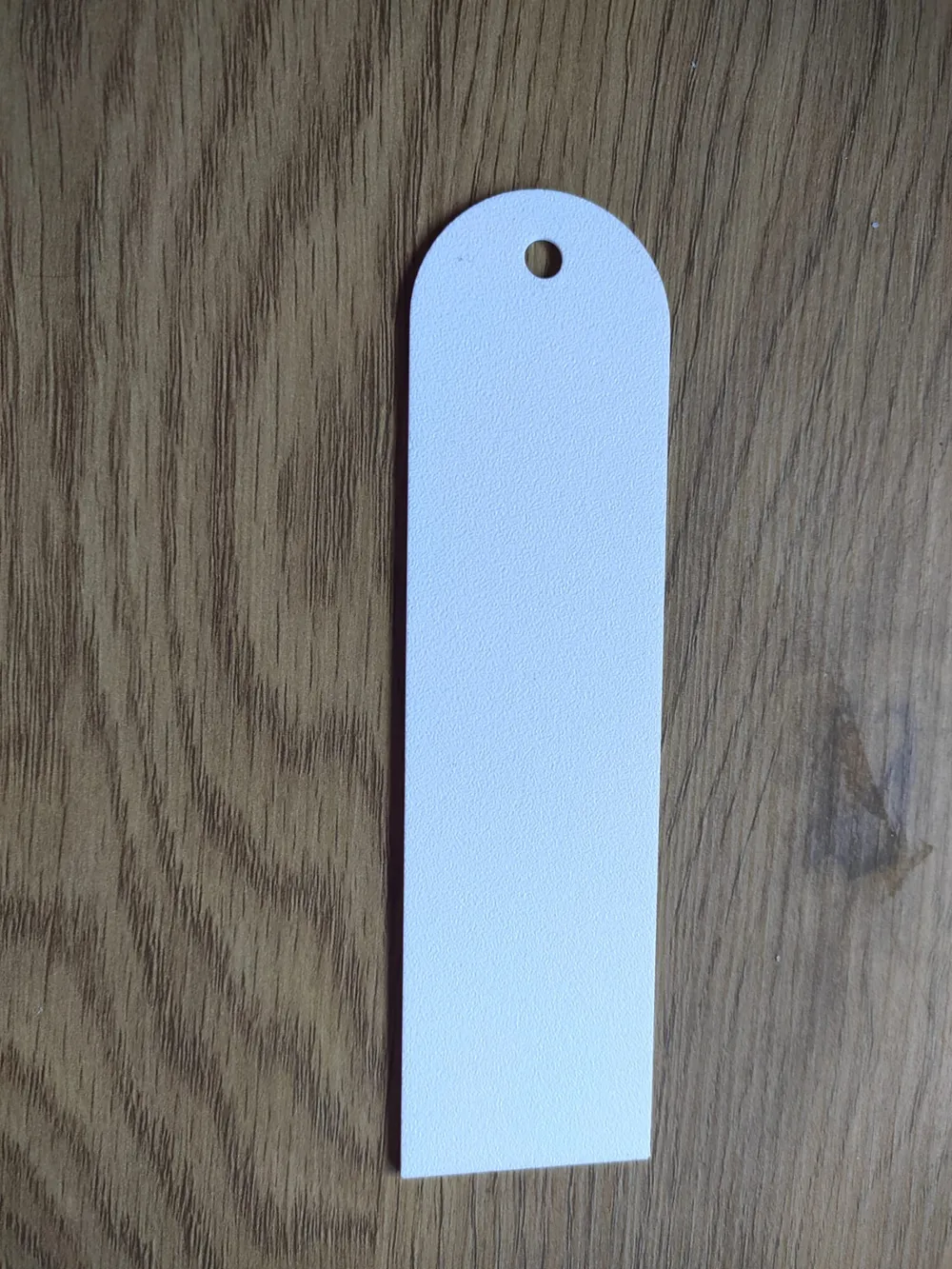

• 💎 Clean Design: Base with a rounded top and flat bottom, offering a modern and sophisticated style.

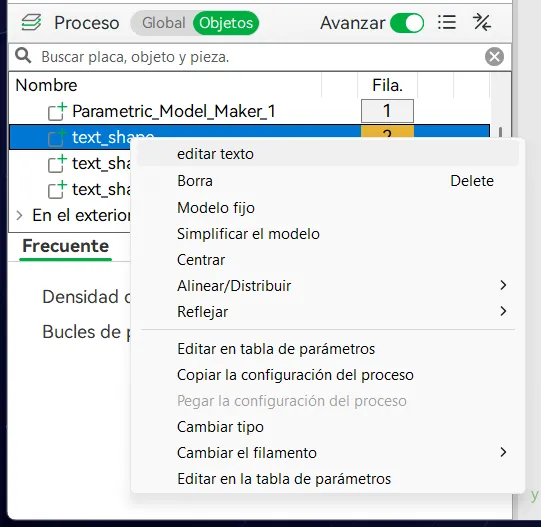

• I have added a 3mf file in case you want it, where you don't need to use the SCAD but can customize it from the Bambu slicer, as I show you in the image, you click on the objects option and then in tex_shape you click on edit text and then you modify either the event name, the name, or the date, remember that this is only for the 3mf, the other is modified in the SCAD.




⚙️ Customization Instructions:

In the Variables block, you can adjust to your liking:

• ✍️ Texts: Enter the child's name and the event date.
• 📐 Sizes: Change tamano_nombre, tamano_evento or tamano_fecha to fit the design.
• 🎯 Positions: * pos_y: Positive values move the text up, negative values move it down.
  • pos_x: Adjust horizontal centering if necessary.

🖨️ 3D Printing Tips:

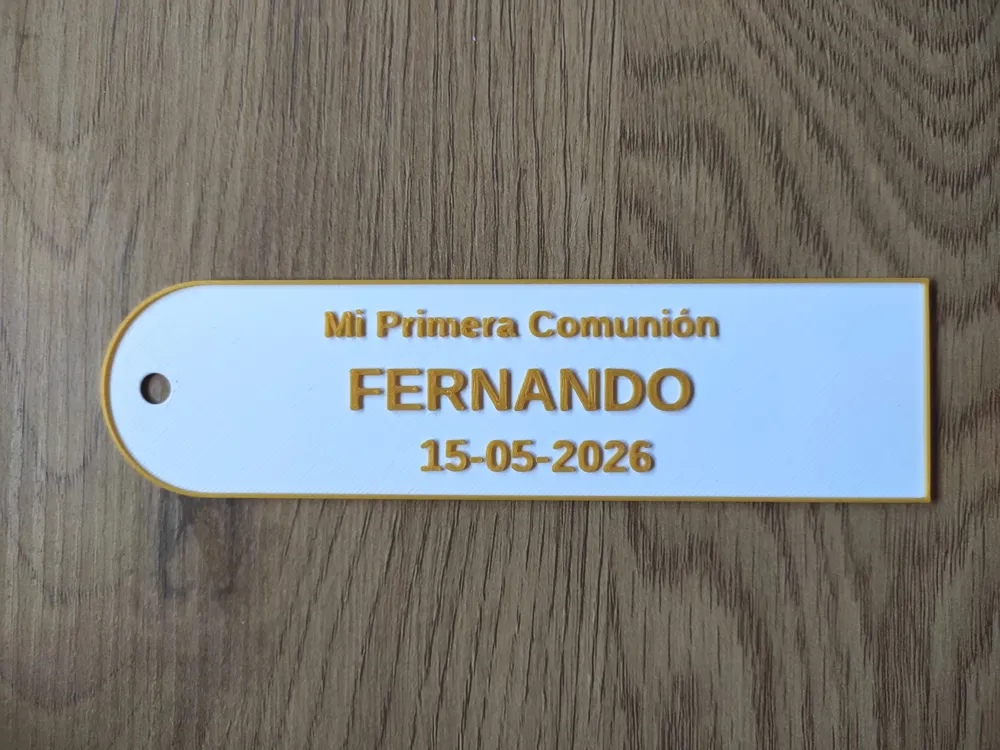

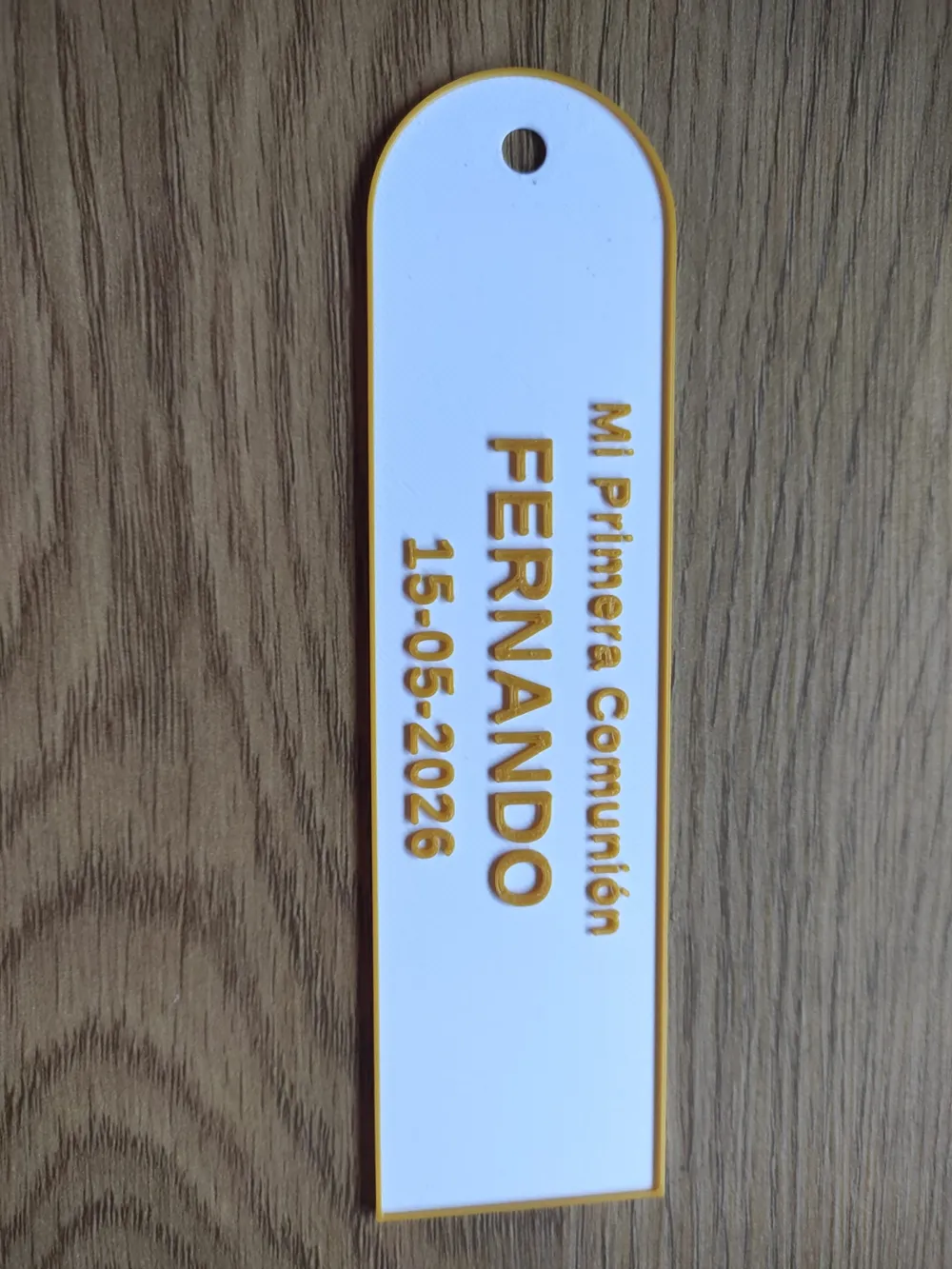

To achieve the ideal result (White Base and Gold/Yellow Letters):

🌈 Color Change (Filament Change):

• The model has a base of 0.8mm and an embossed layer of another 0.8mm.
• Set a pause or filament change in your slicer (Cura, PrusaSlicer or Bambu Studio) at a height of 1.0mm. ⚠️
• Start with White filament ⚪ and change to the contrast color (Gold, Silk or Yellow 🟡) when the printer stops.

📋 Recommended parameters:

• Layer height: 0.2mm (or 0.16mm for sharper letters).
• 🧱 Infill: 15-20% (as it is a thin piece, it will be practically solid).
• 🛏️ Print bed: A textured PEI plate is recommended for a professional and elegant finish on the bottom surface.
