Milwaukee M12 and M18 charger wall mount

Milwaukee M12 & M18 Charger Wall Mount with Quick Release

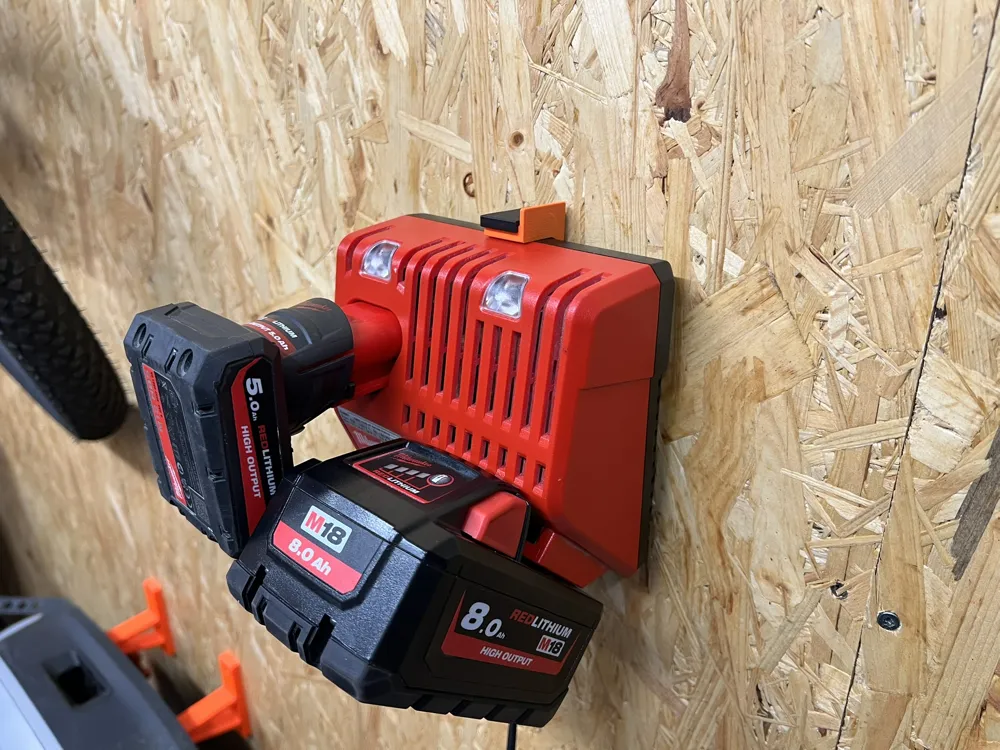

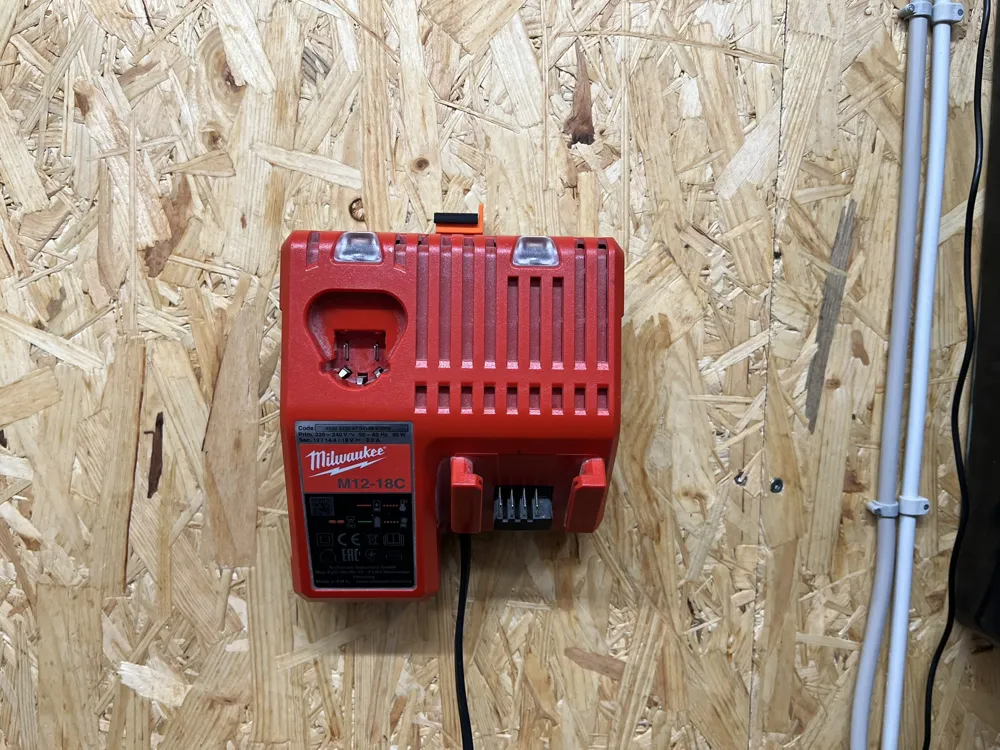

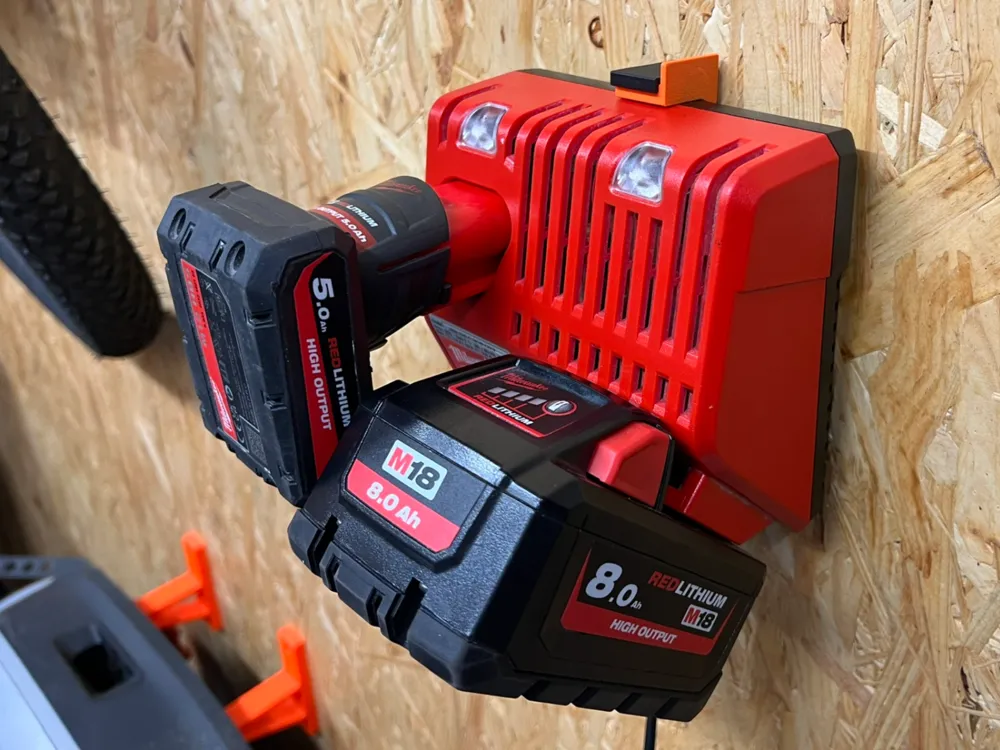

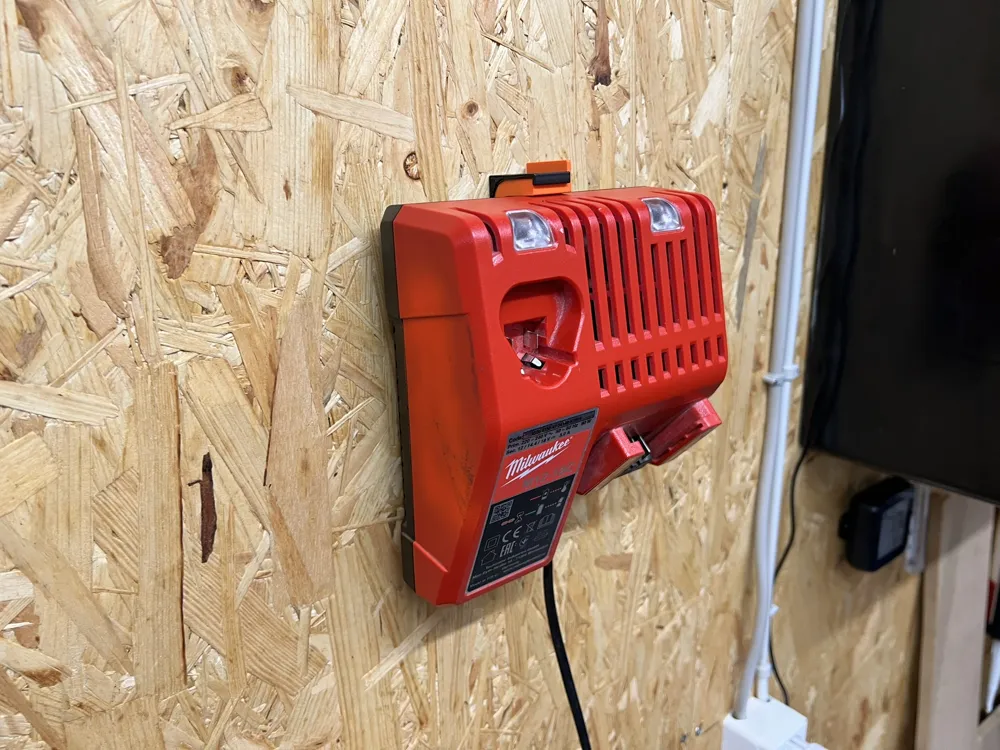

I designed this wall mount for the Milwaukee M12 & M18 charger because I think the charger sits poorly on the wall when it is simply mounted with screws. This mount provides a more secure and cleaner installation.

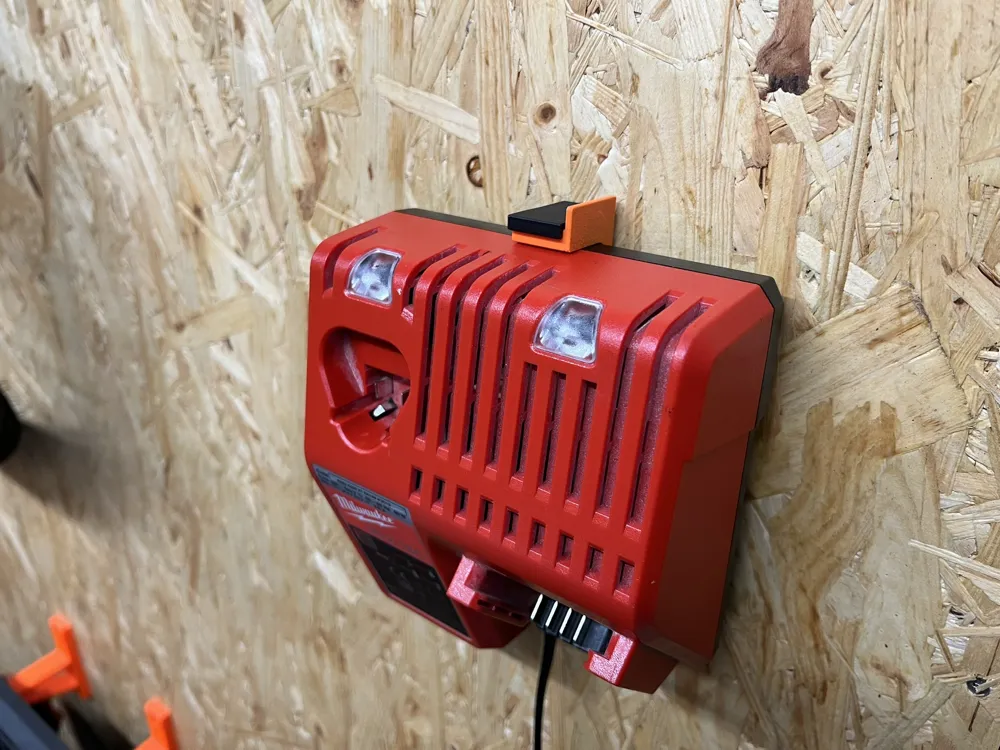

The design also makes it quick and easy to remove the charger if you need to take it with you. Simply remove the locking piece and the charger can be lifted off the wall mount.

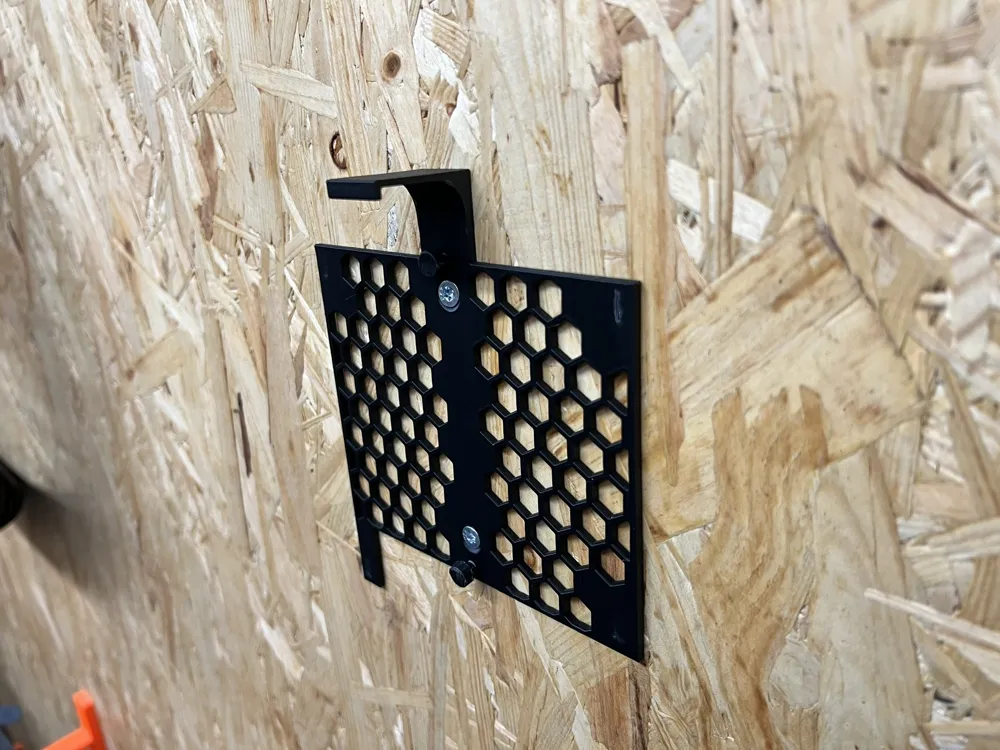

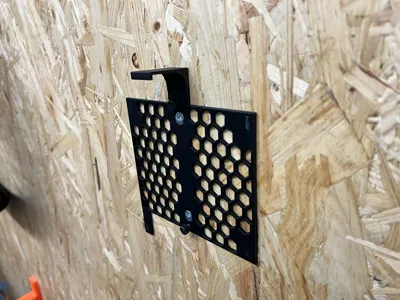

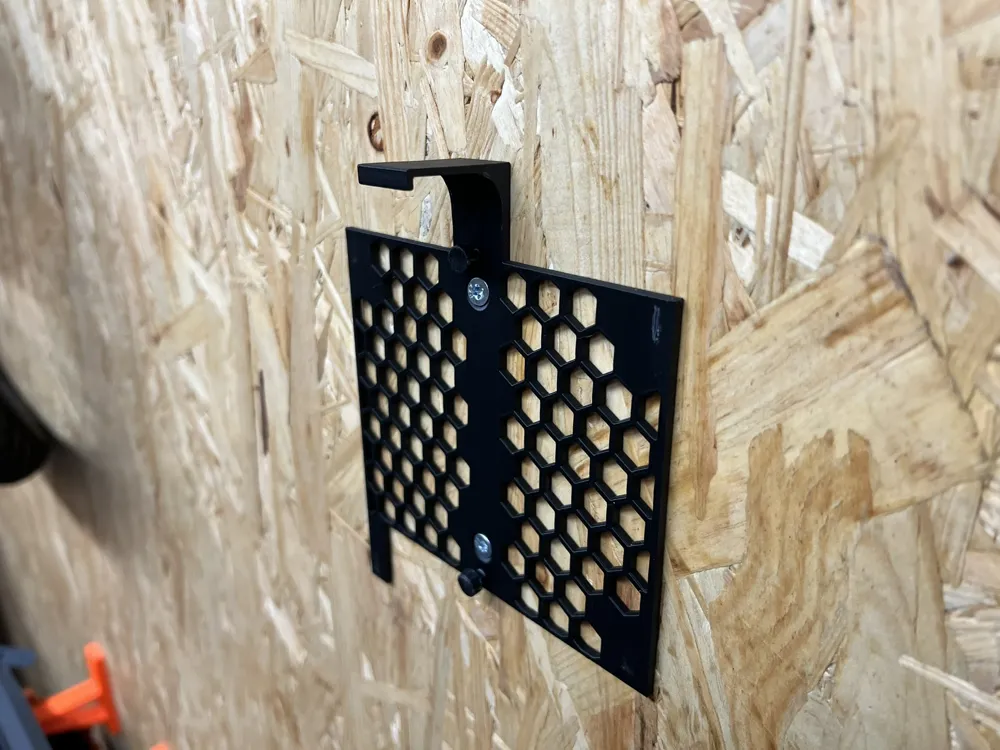

The mount features a hexagon pattern in the areas that do not require structural strength. This reduces filament usage while also giving the mount a nice visual design.

Check the video to see how the charger and the locking piece are installed.

Print Information

• Print time: ~3 hours
• Filament usage: ~40 g

Recommended Print Settings

• Material: PETG HF (recommended for sufficient strength)
• Layer height: 0.2 mm
• Walls / Perimeters: 4
• Infill: 15%

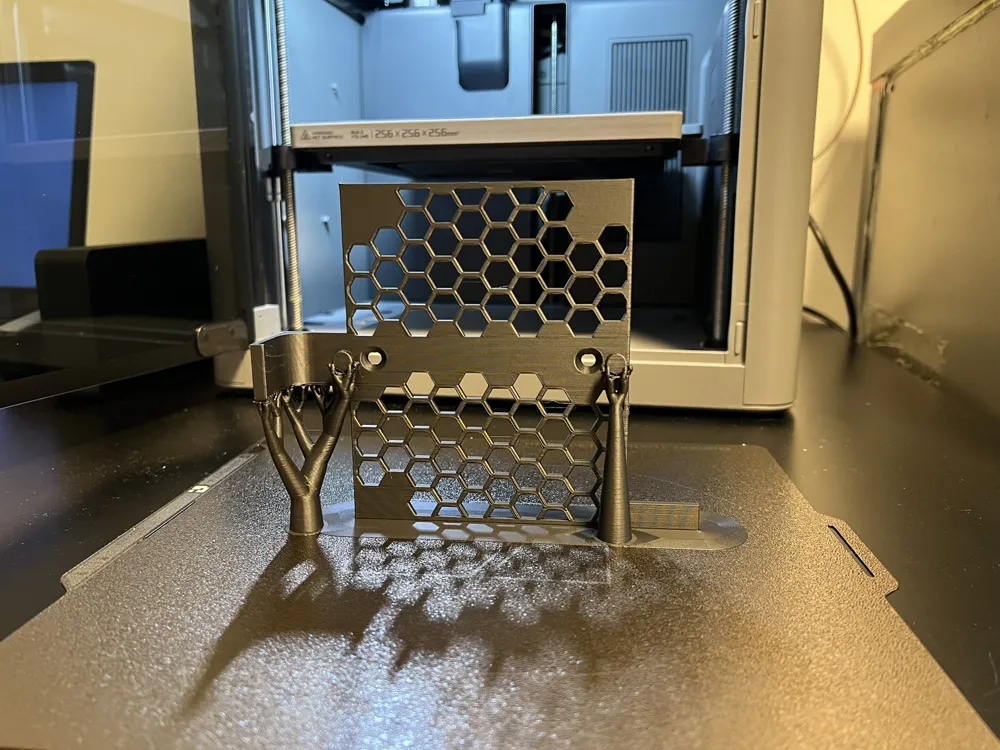

Supports

Print with Tree Supports.

You can also use my included print profile, which is optimized for this model.

Important Note

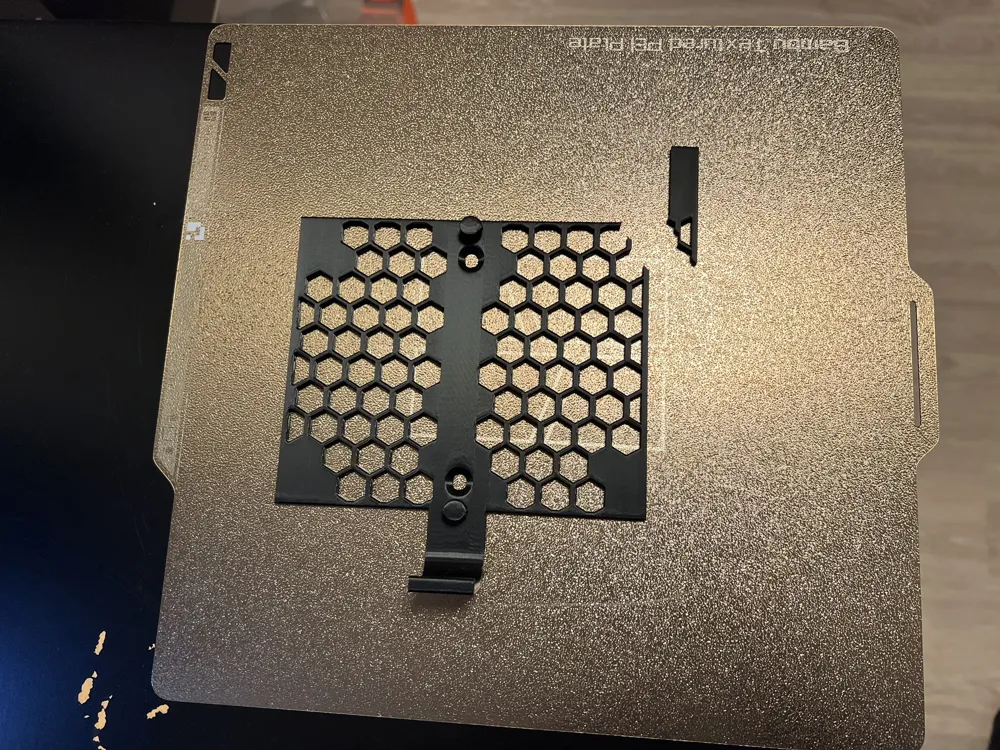

Allow the print bed to cool completely before removing the part. Be careful when removing it from the build plate.

During testing I experienced the mount breaking at the small bottom tab (“ear”) when removing it too early from the bed.

Hardware

Use mounting hardware suitable for your wall type (for example wood screws, drywall anchors, or masonry plugs).

Safety

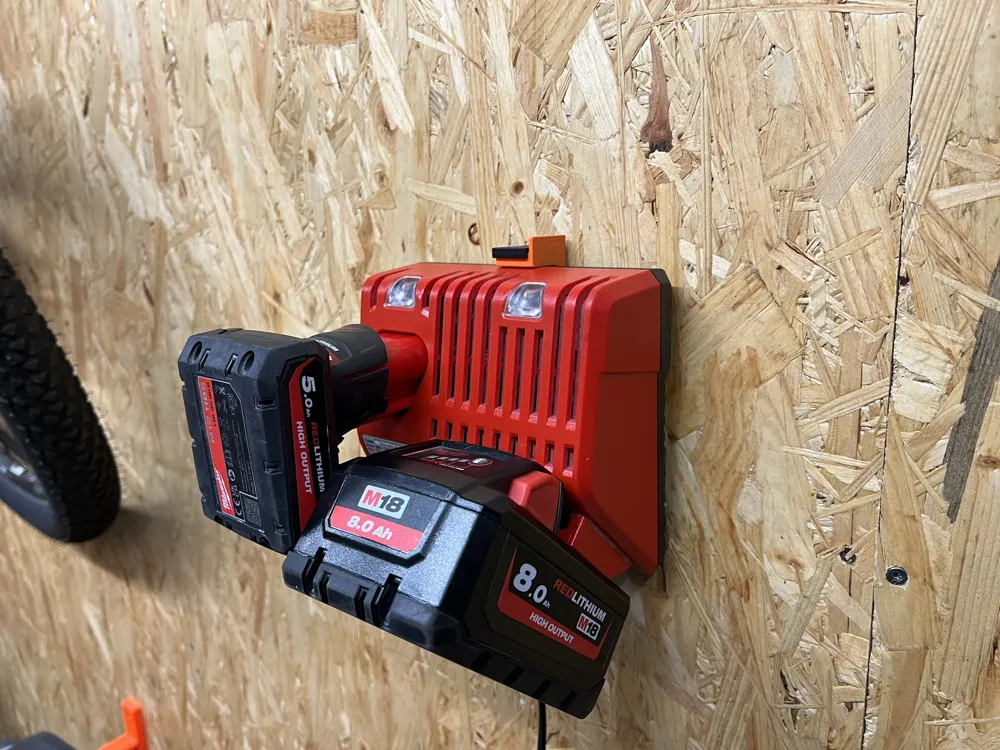

This mount is designed to hold one Milwaukee M12 & M18 charger only and is not intended for any other use.

Use at your own risk.
Make sure the mount is securely installed on the wall before use.

Feedback

Suggestions for improvements are very welcome!
