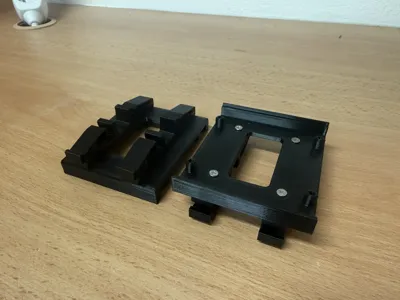

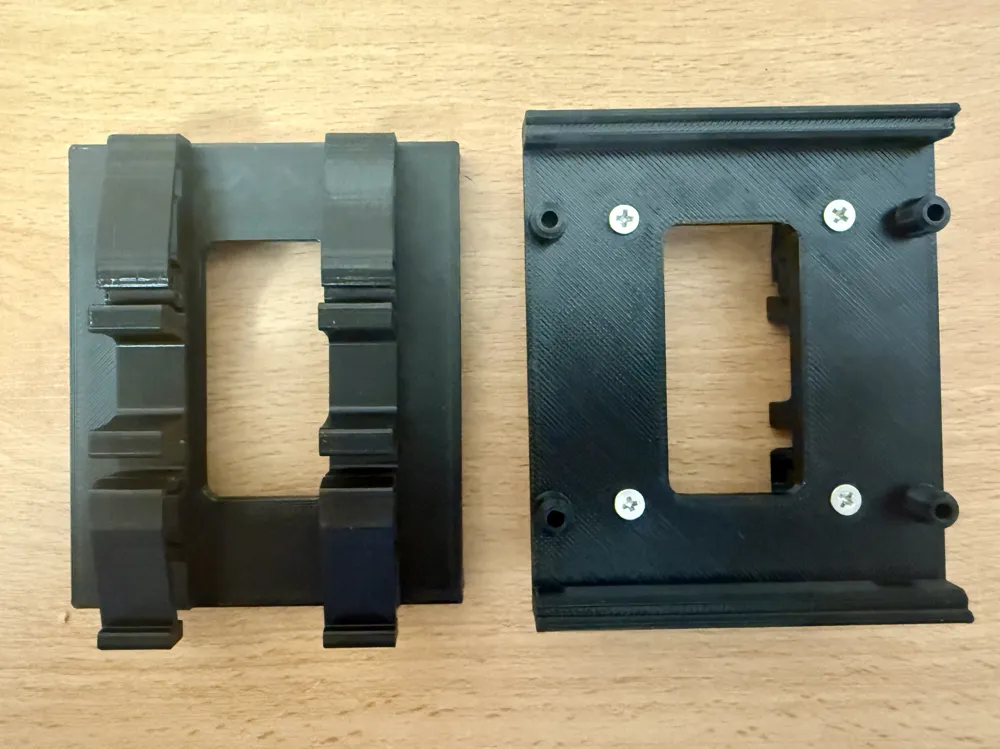

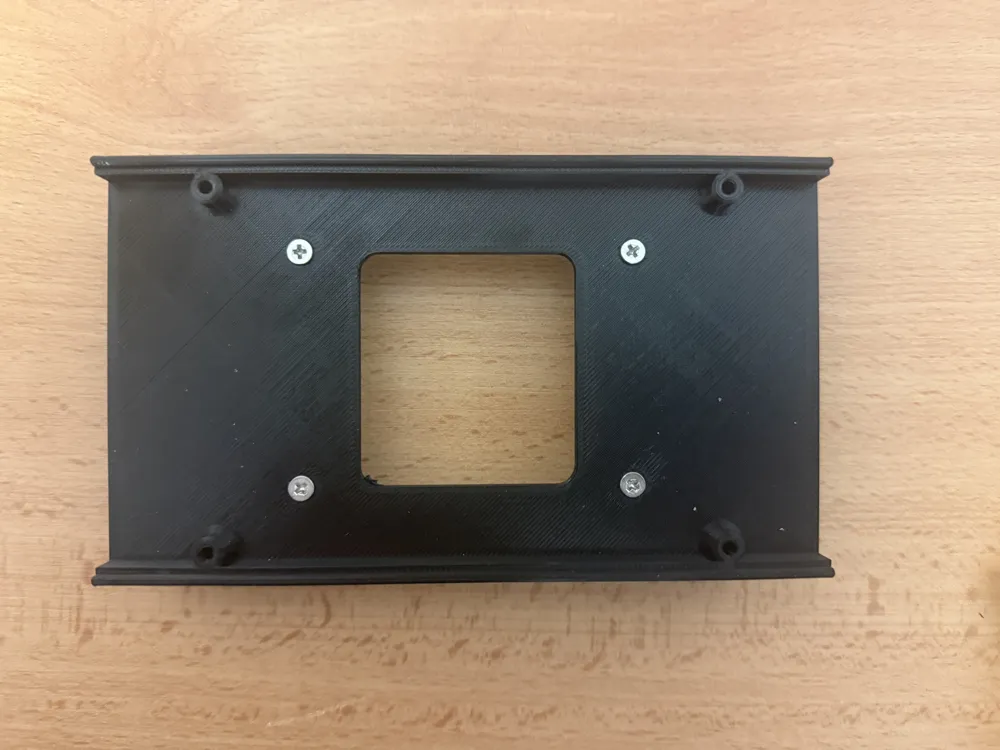

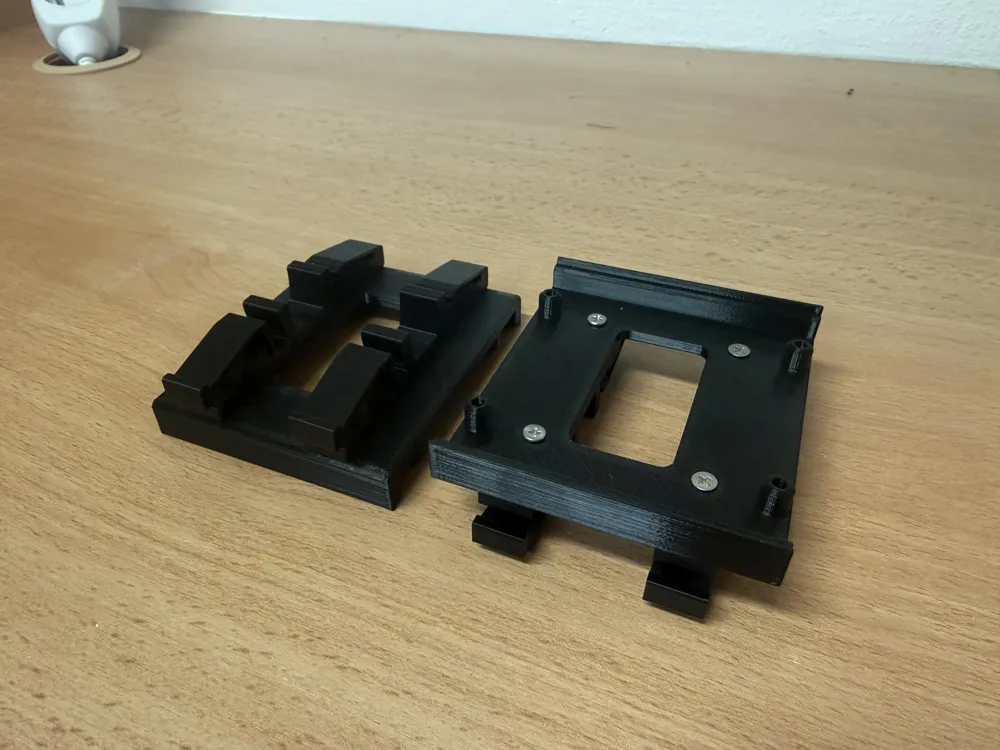

Esser koppler mounting bracket (Box / DIN Rail)

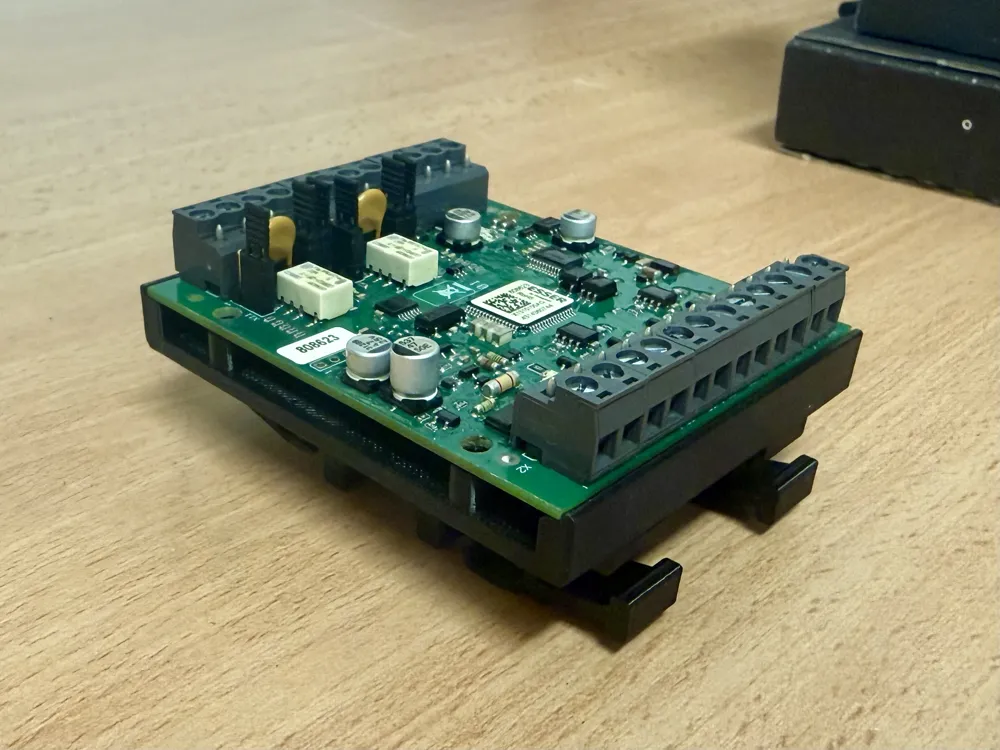

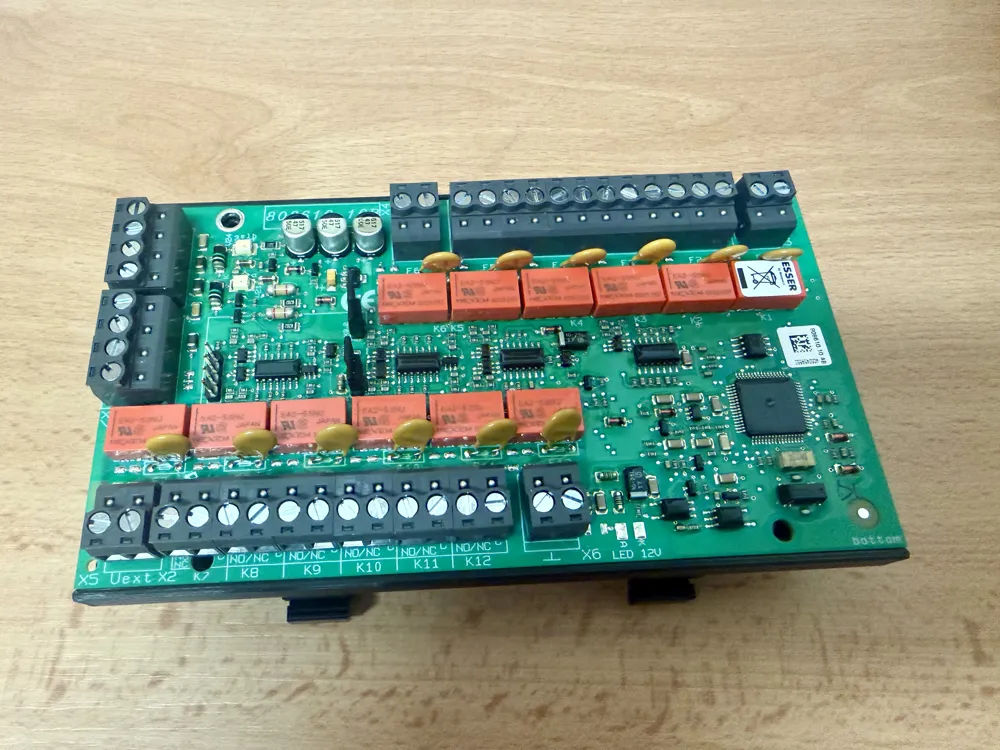

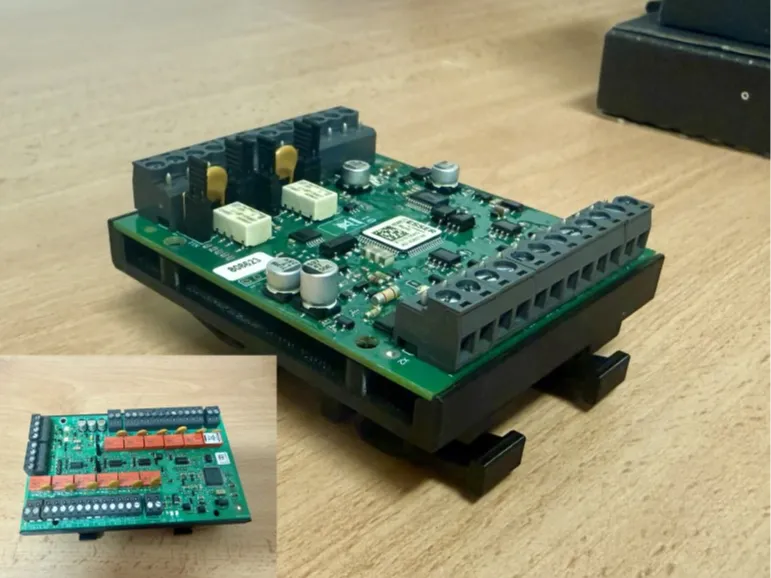

Description: A professional mounting solution for Esser modules. This bracket is designed for versatile installation—either mounted directly into electrical boxes or attached to a DIN rail (using a compatible DIN clip). The design ensures a secure fit while keeping the terminals fully accessible.
Material Recommendation: PET-G, ASA, PCTG,…For safety and compliance in electrical cabinets, we strongly recommend using flame-retardant materials with UL94 V-0 certification
⚙️ Print Settings
- Layer height: 0.2 mm
- Infill: 15%
- Perimeters: 3 walls
- Hardware: M3 threaded inserts + M3×6 or M3×10 countersunk screws.
