Trussbeam Desk Lamp
Print Profile(1)
Bill of Materials
Description

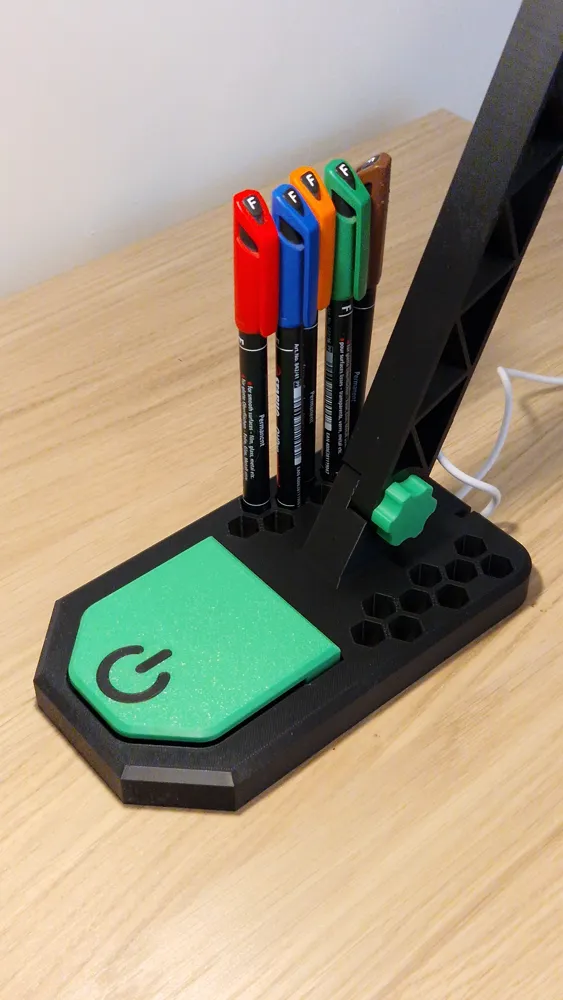

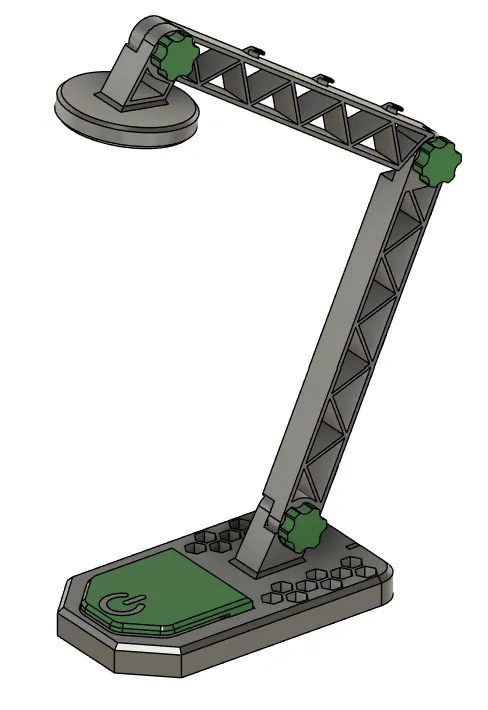

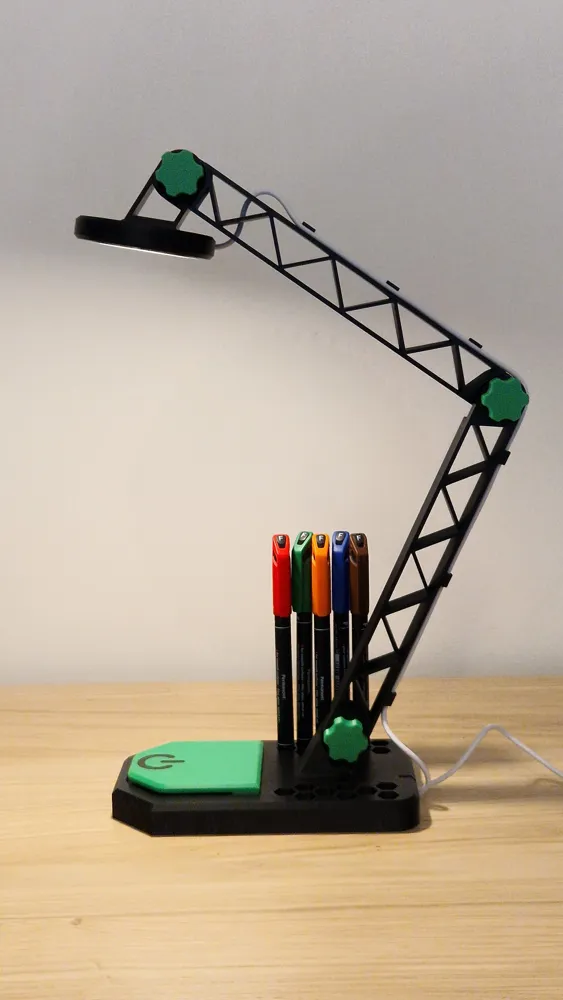

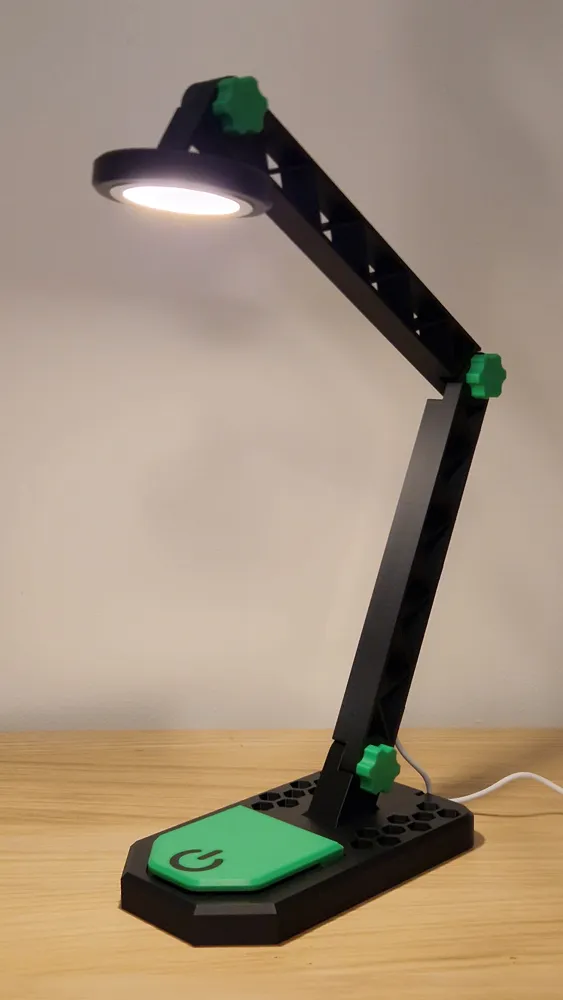

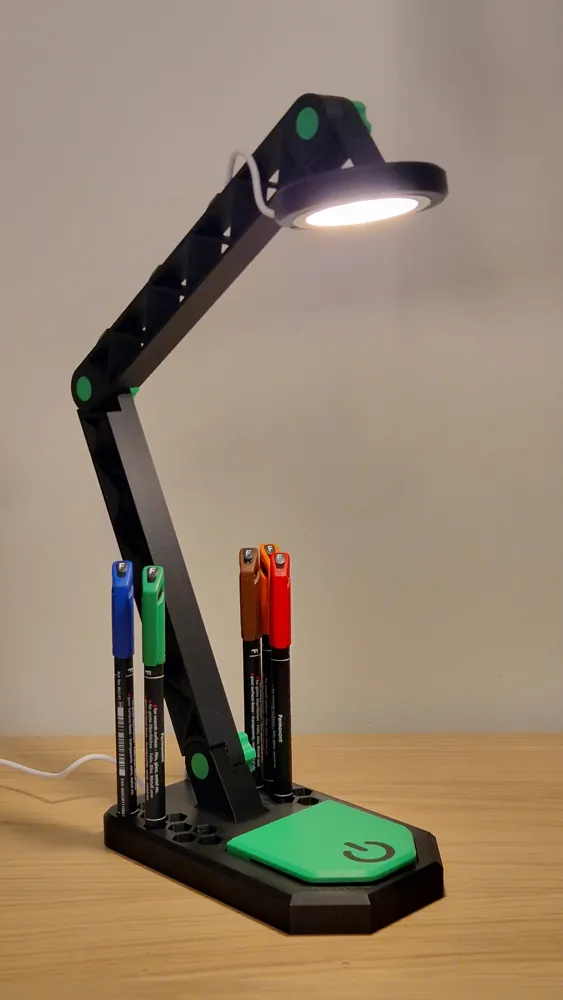

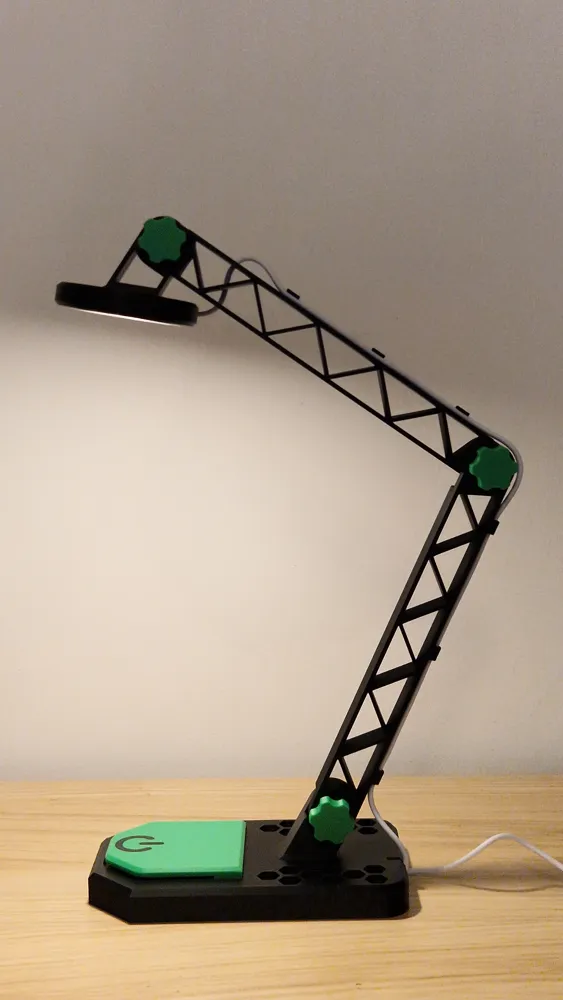

A modern adjustable Desk Lamp with an industrial truss arm.

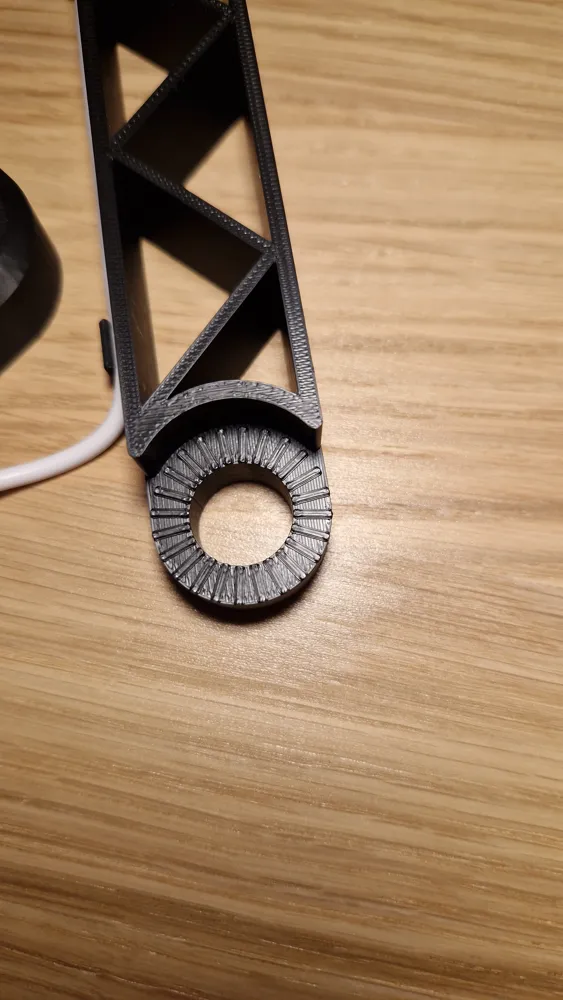

Serrations on the pivot mating faces to enable the arm to lock positively into position.
Adjustable arms and head.
Integrated switch for ease of use.
Tidy cable routing.
No AMS required.

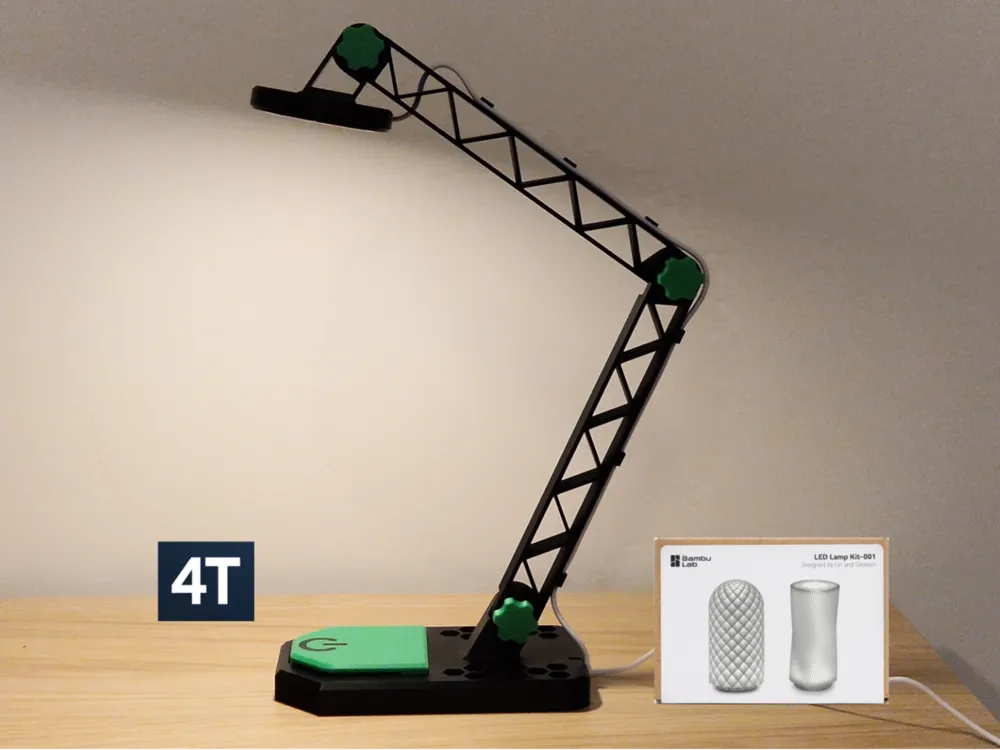

Bambu Lab MH001 LED kit.
Boost Me (for free)
If you like my design please BOOST ME, thank you.

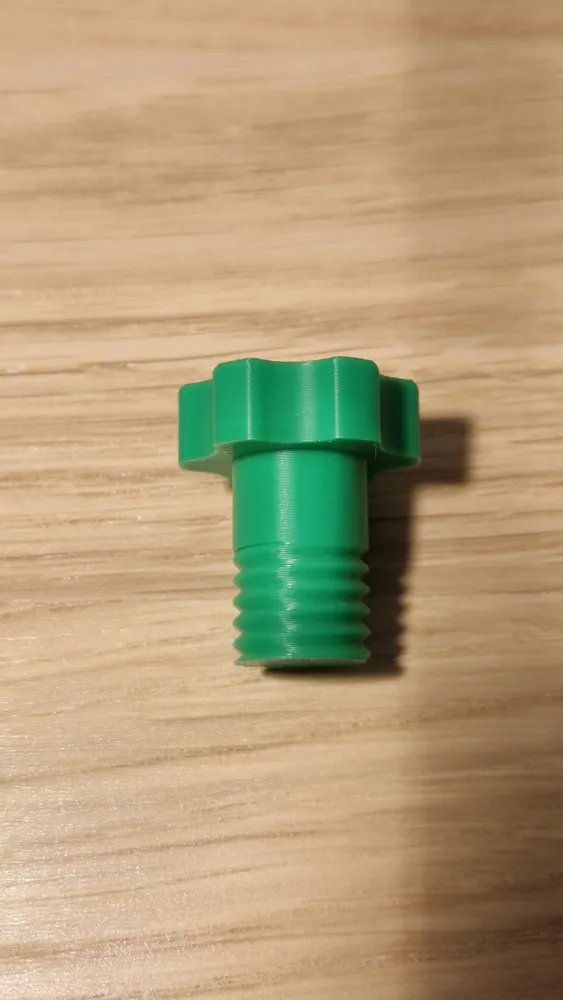

- Screw the lower arm to the base using one of the 3d printed M14 screws
- Screw the upper arm to the lower arm with the second M14 screw
- Screw the head to the upper arm with the last M14 screw

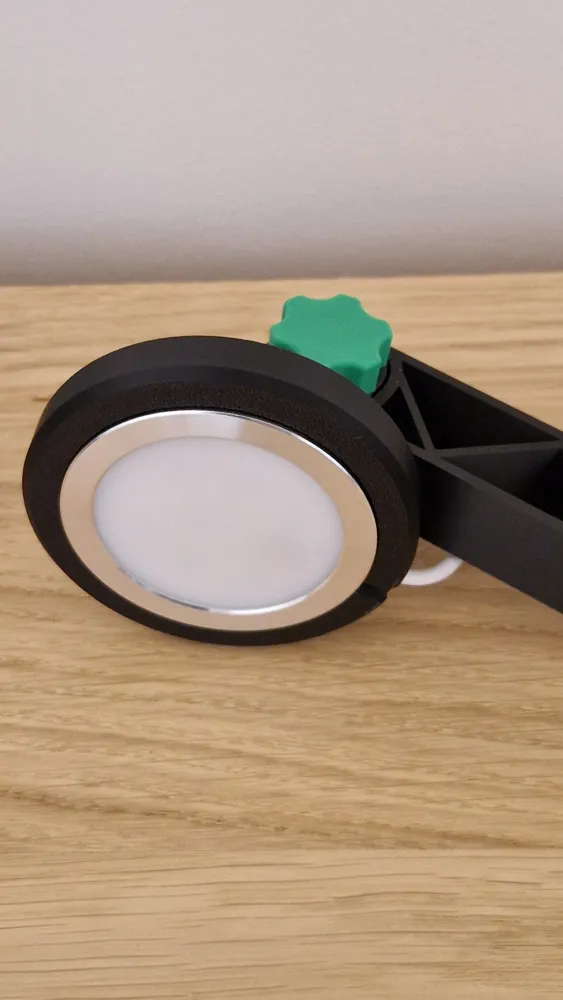

- Fix the LED to the head with the supplied 3M pad

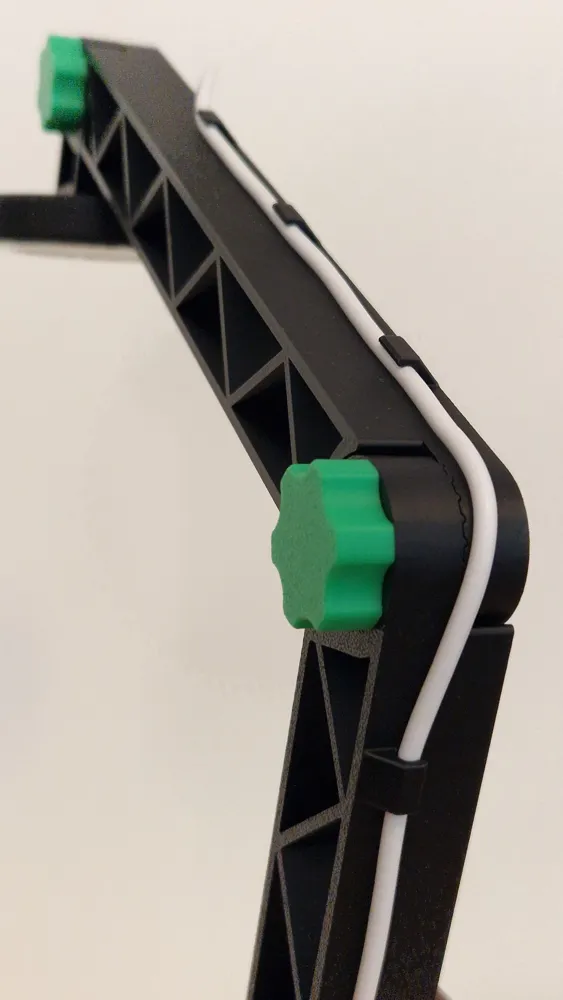

- Push the cable into the clips on the back of the upper and lower arm (leave enough slack for the arms to move)

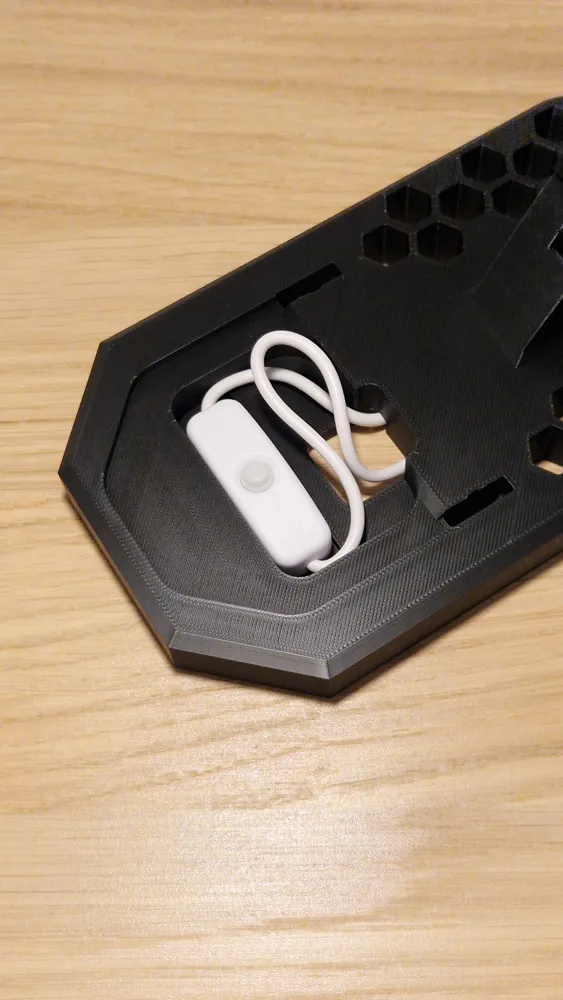

- Push the switch up through the hole in the bottom of the base and seat it into position

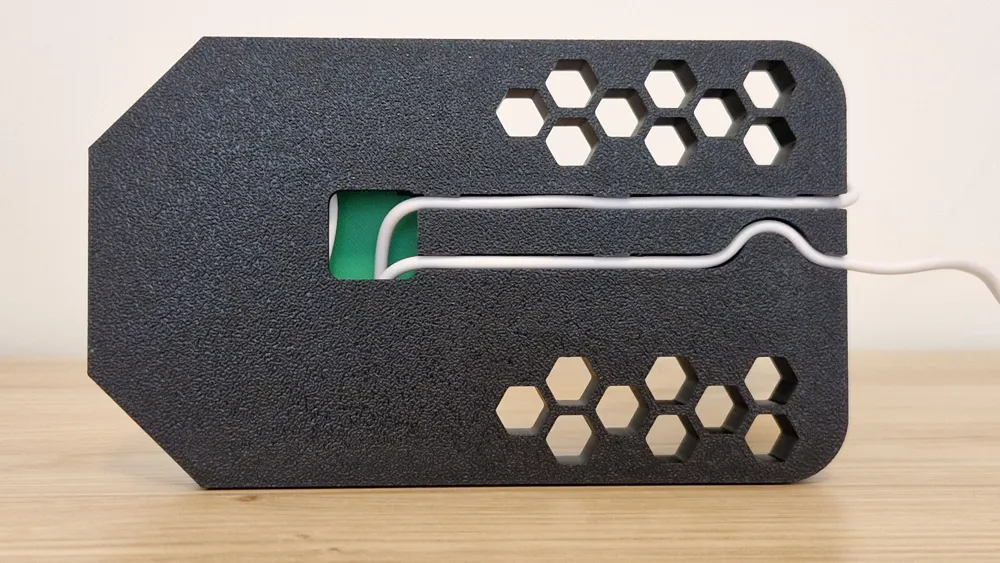

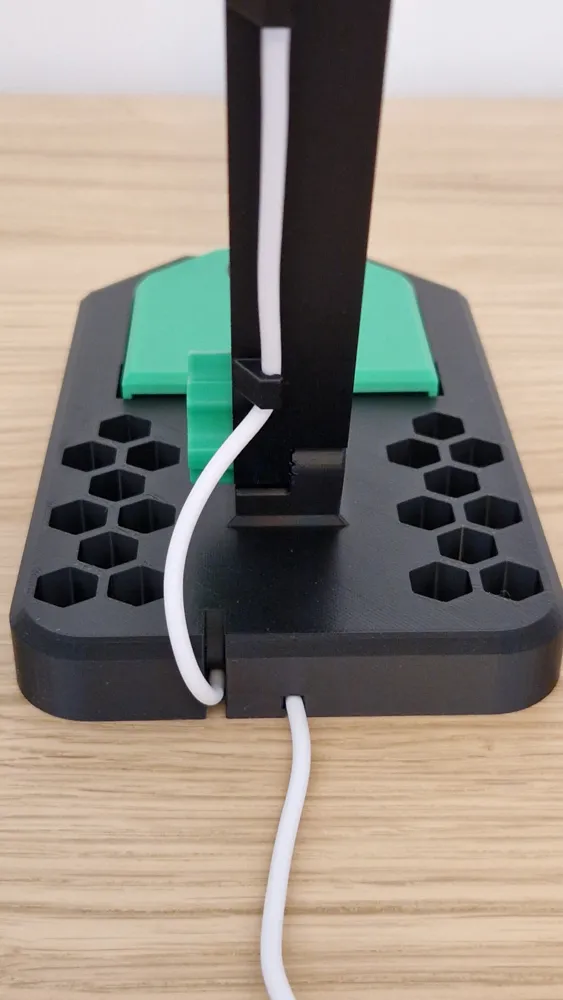

- Push the cable into the slots in the bottom of the base

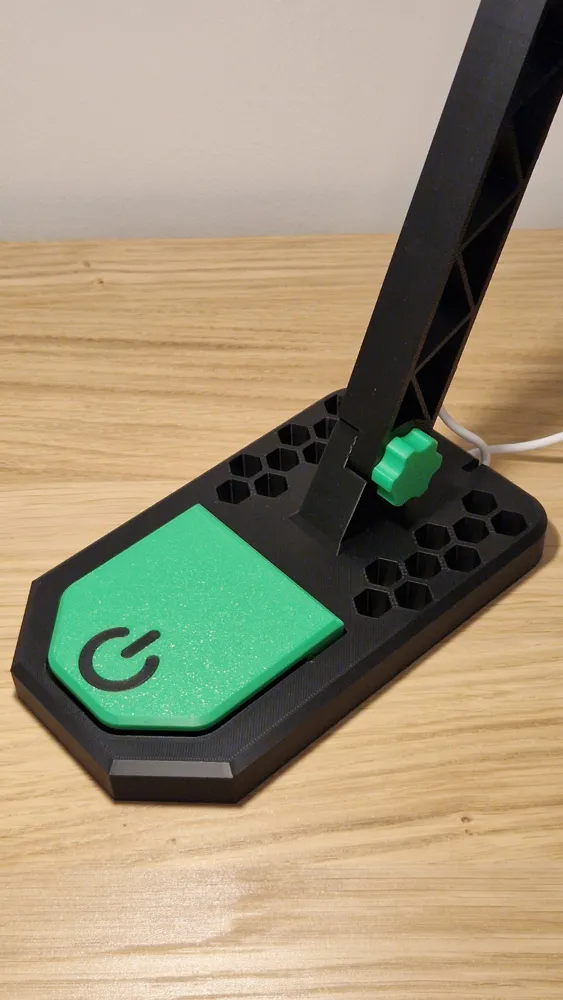

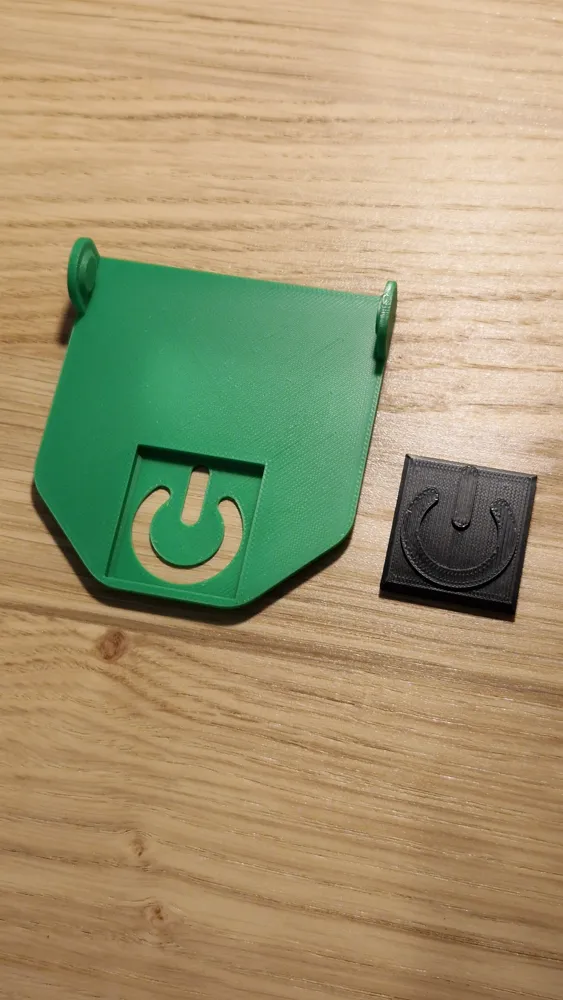

- Assemble the switch plate by inserting the ON/OFF indicator into the switch plate (a little glue is required to keep it in position)
- Push the switch cover in place into the body and your finished.
