Description

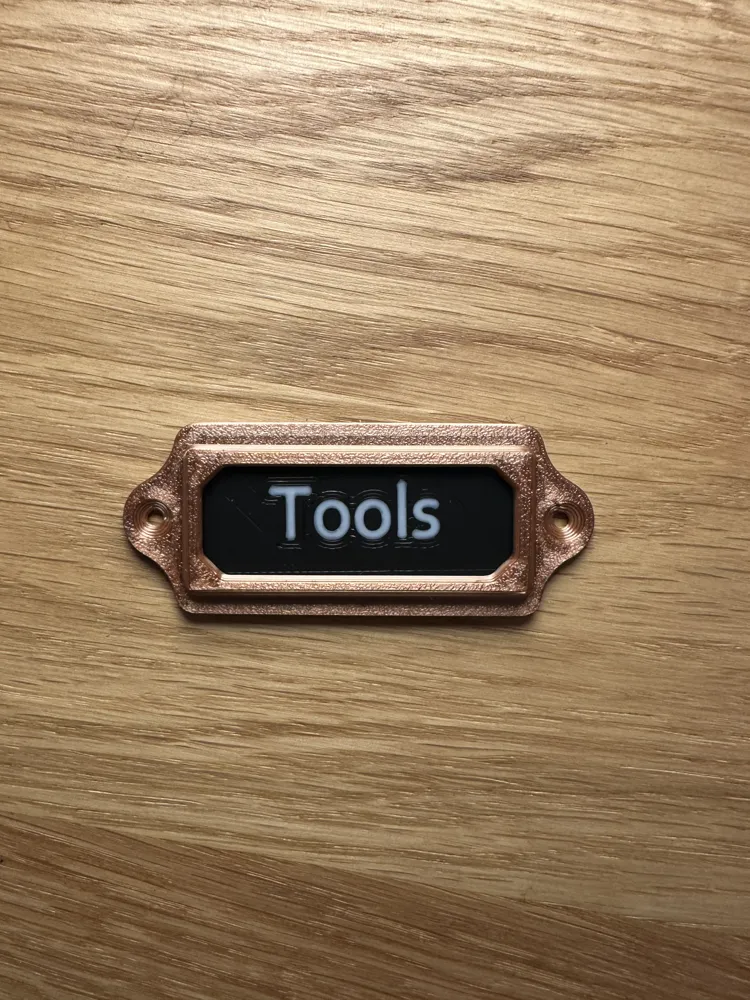

A 75 × 30 mm label holder for drawers, storage bins, shelves and more.
The holder prints in two separate parts that snap together, allowing you to easily create two-color holders without using AMS.
Simply print the parts in different colors and snap them together – no glue required.
Size
📏 Label size: 75 × 30 mm
Features
🔧 Snap-fit assembly – no glue needed
🎨 Two-color printing without AMS

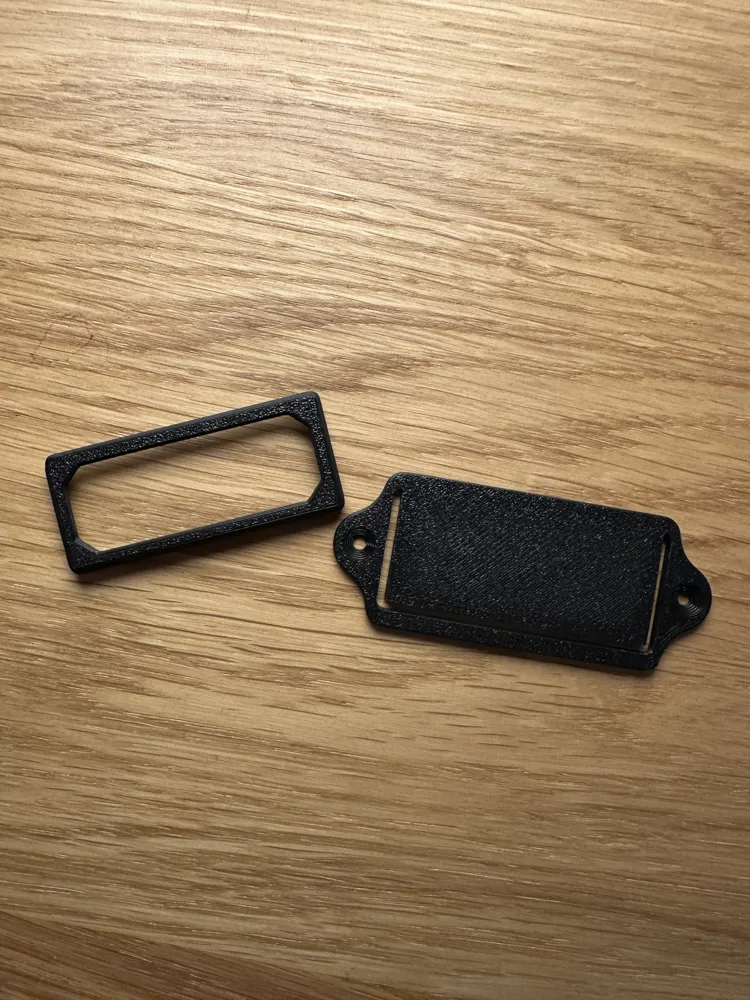

🧩 Printed in two parts
✂️ Label template included

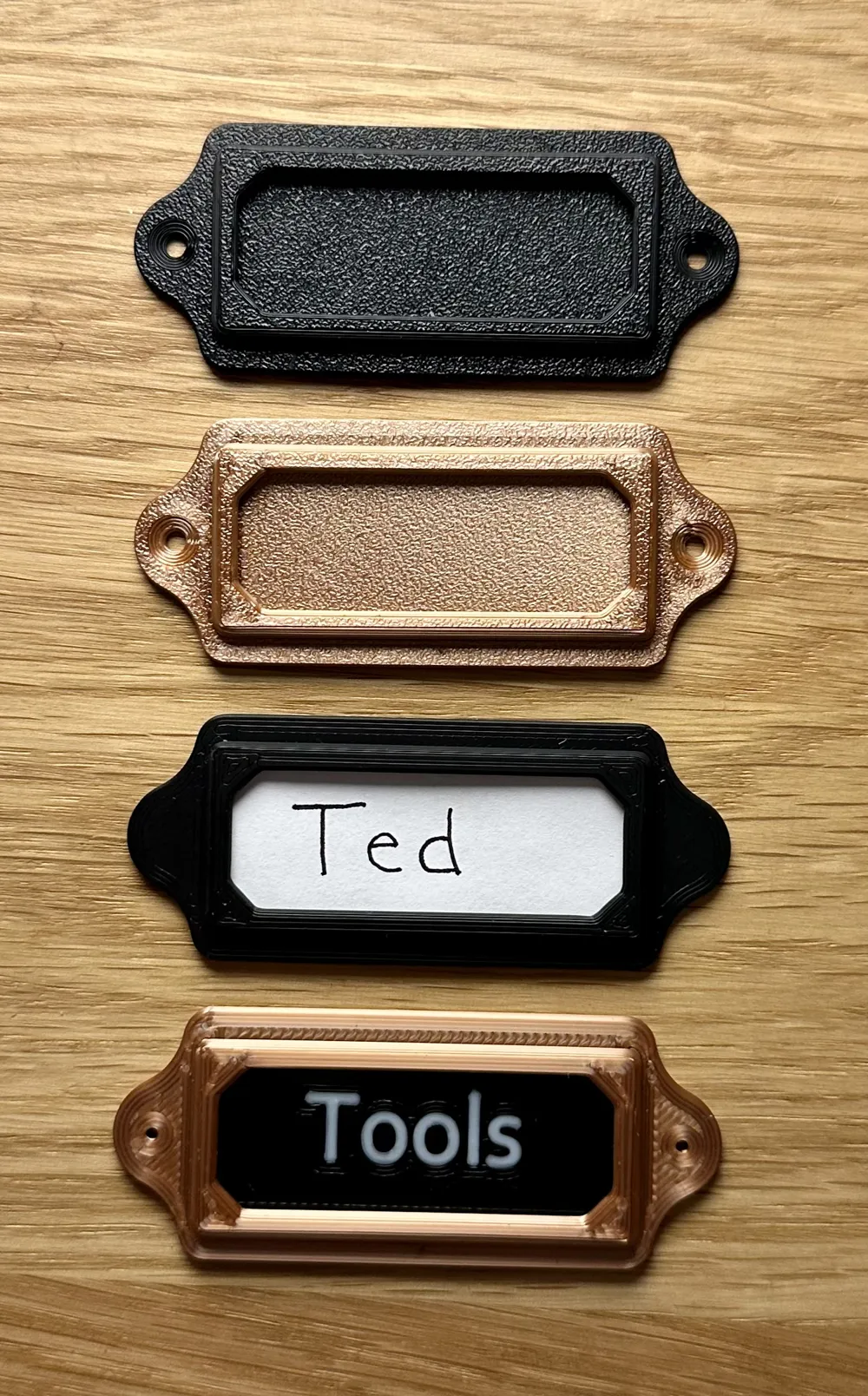

Included Variants
1️⃣ Nail Version
Small holes designed for mounting with small nails.
2️⃣ Screw Version
Larger holes with chamfer for screws.
3️⃣ No-Hole Version
Perfect if you want to mount it using double-sided tape.
Label Template

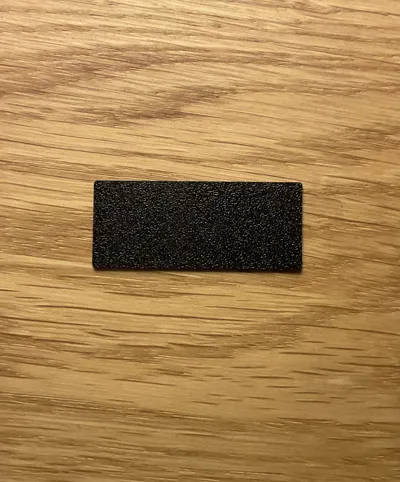

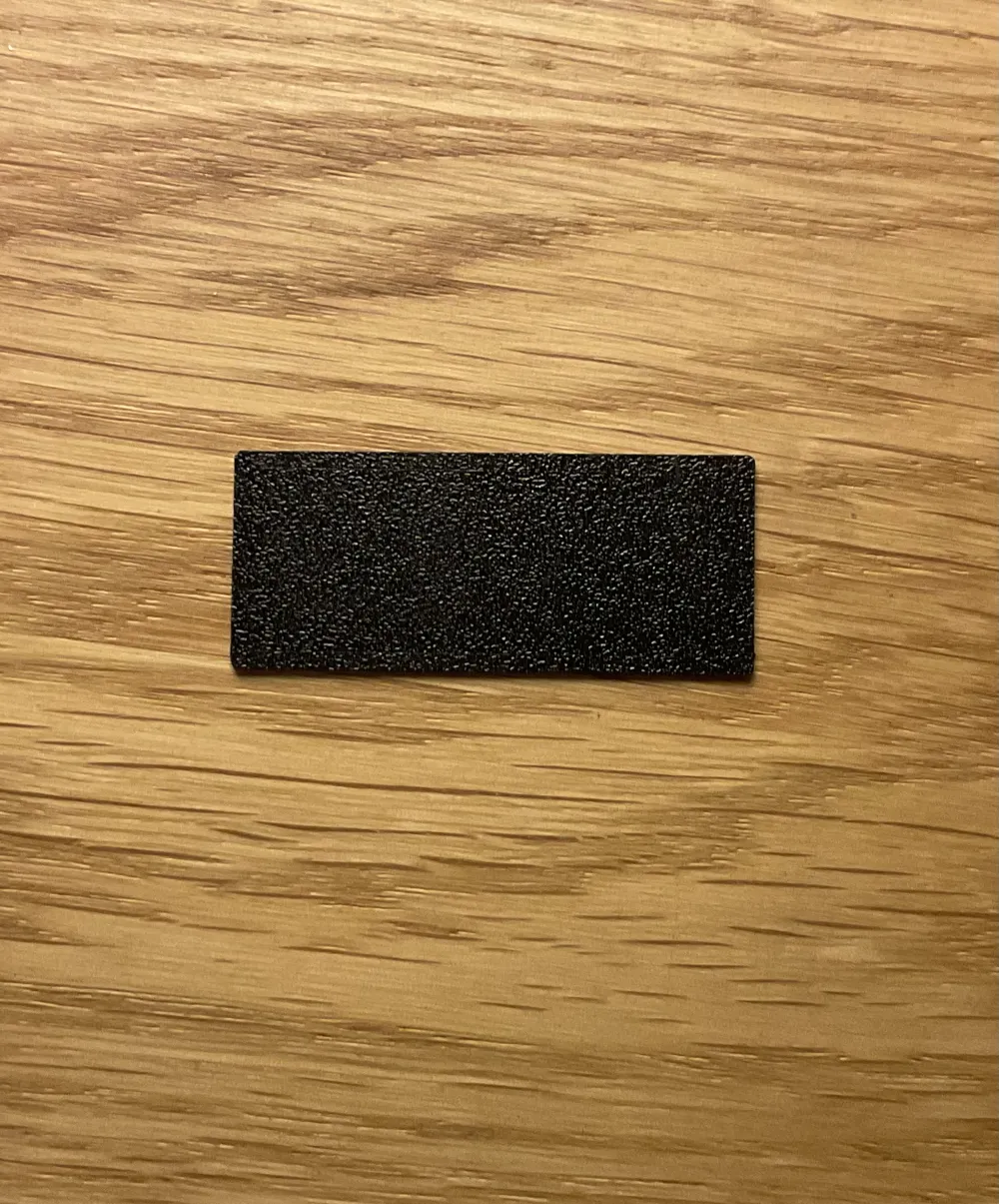

A thin template insert is included.
You can use it in two ways:

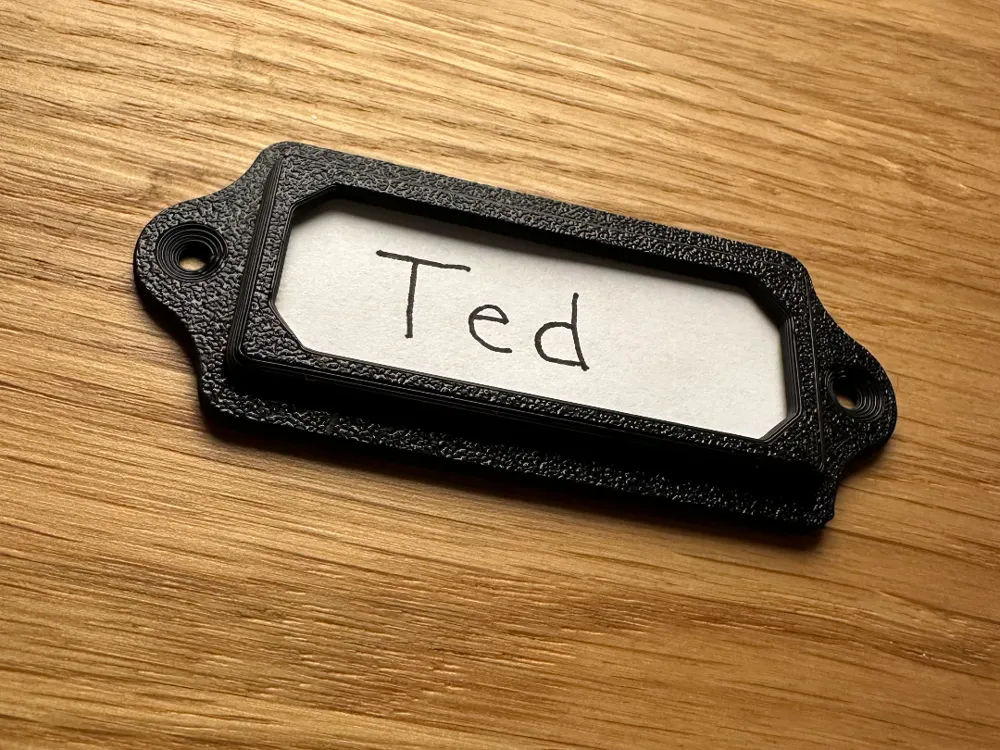

• As a cutting template for paper labels

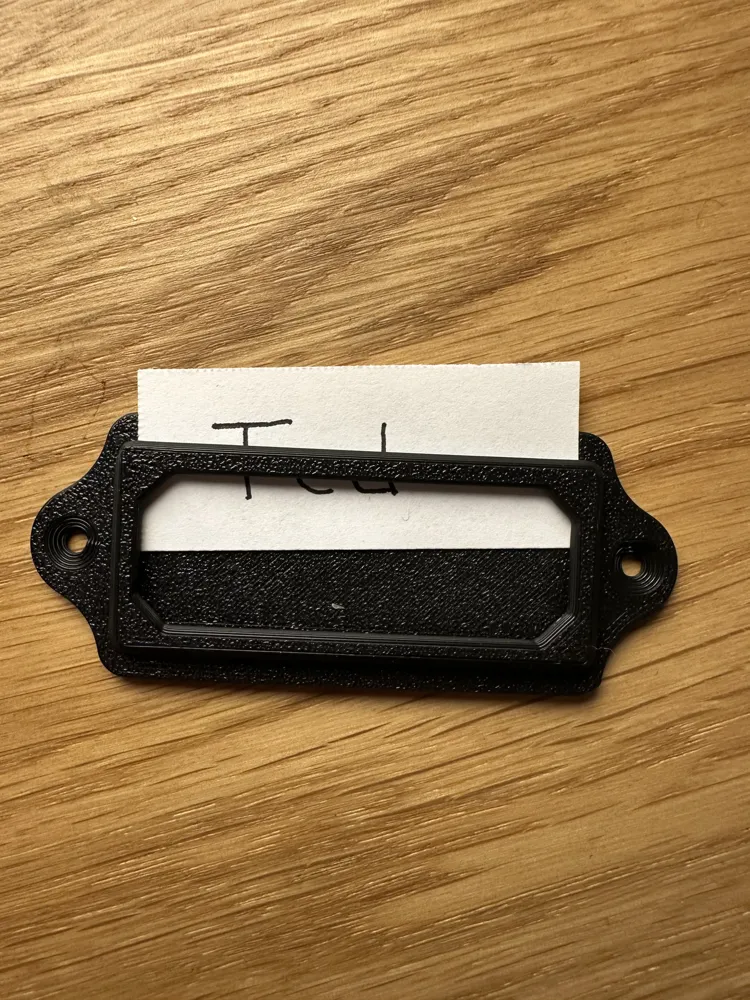

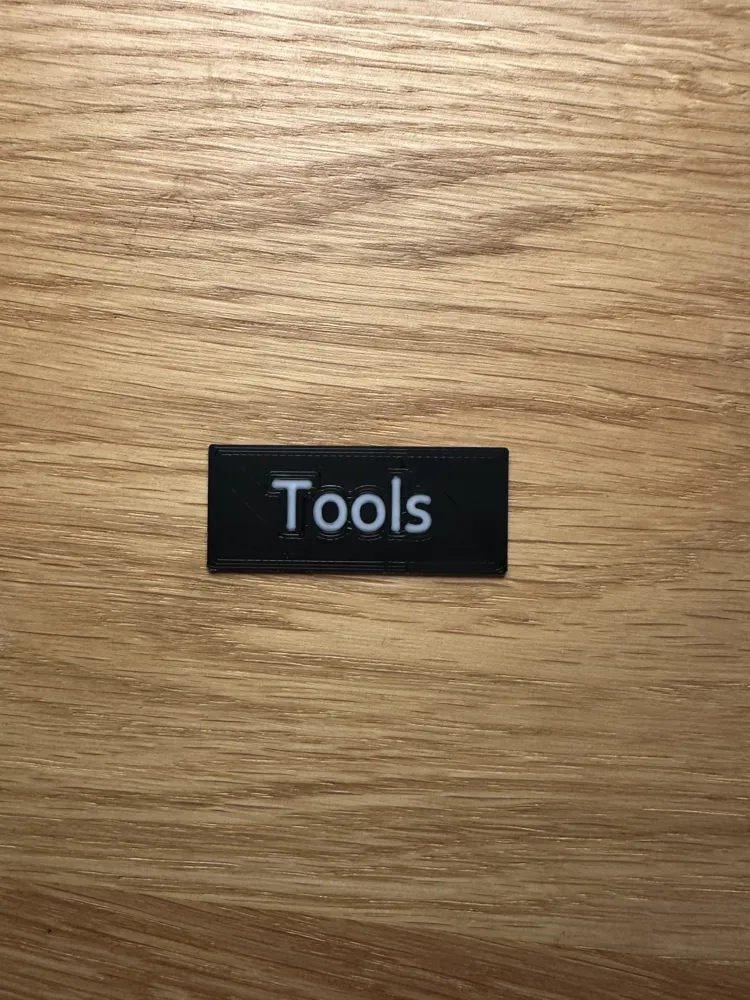

• Add text in Bambu Studio, print it, and insert it into the holder
Assembly
Both parts are printed face-down on the build plate.
The flat insert piece has a small fillet that acts as a guide, ensuring the front frame aligns correctly during assembly. Because of this feature, the insert must be slid in from the correct direction.
Place the flat piece on a table with the front side facing up (the side that was against the build plate and does not have the fillet).
Place the other part into the groove and press it down evenly around the edges until it snaps into place.
Some force may be required.
