Designed these molex-style pin connector housings for a pinball project that I'm working on.

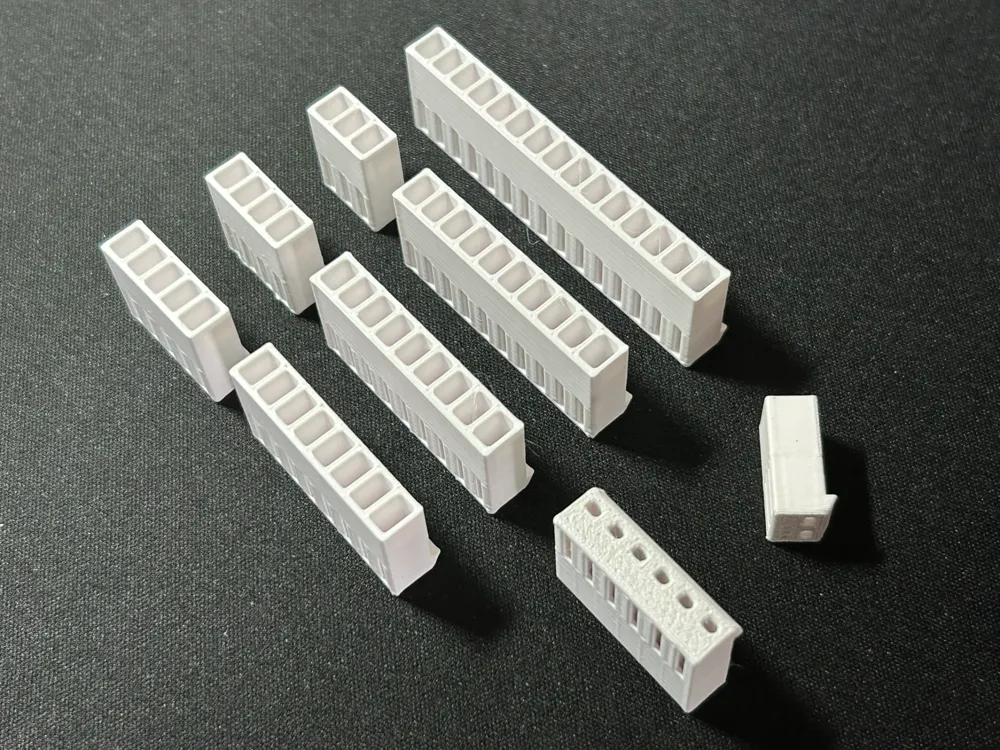

These are designed for single inline pins at 0.156" / 03.96mm spacing. Includes connectors for 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, and 15 pins. (UPDATE: per user request, various extra sizes from 16-32 positions have been added on plates 3 and 4).

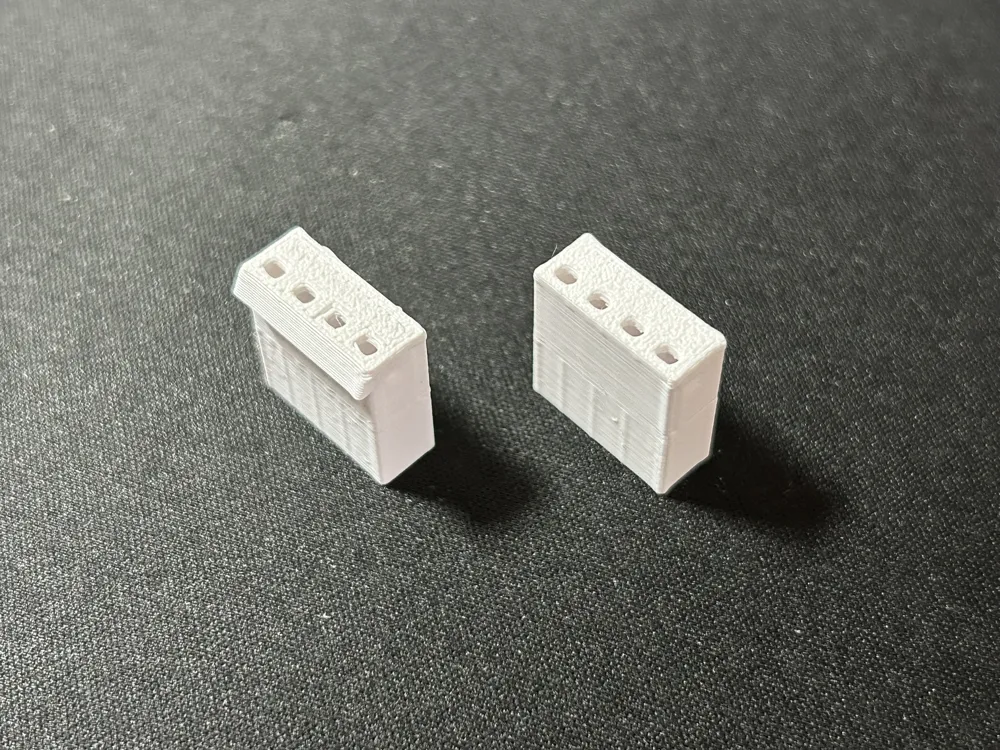

Two versions are included:

Plate 1: connector with locking ramp
Plate 2: connector housing without locking ramp

NOTE: suggest printing these out of heat resistant materials if possible (PETG or nylon should work). These should be used in low-voltage / low-current signal applications, not to carry power due to risk of heat deformation.

Please consider leaving a thumbs-up if you liked this model! :)

UPDATE: June 2026 - Added new sizes per comment request.
