🎨 Advanced 3D Letter Generator v3.0

Complete Parameter User Guide

🚀

1. Quick Start

• design_templatedropdown

  Choose from pre-configured templates optimized for different use cases

  custom wall_sign desk_nameplate keychain_tag led_sign fridge_magnet

• text_inputtext

  The text you want to generate. Supports multi-line text with \n

• custom_font_nametext

  Leave blank for auto font selection, or specify a custom font name

📝

2. Text Style

• font_style_typedropdown

  Choose the overall font style and character

  modern_bold classic_serif block_style geometric industrial elegant retro minimal

• font_weightdropdown

  Font weight/thickness

  regular bold italic light medium

• font_sizenumber

  Base font size in millimeters

  [20:5:200]

• font_stretchnumber

  Horizontal character stretching/compression

  [0.5:0.05:2.0]

• font_letter_spacingnumber

  Spacing between individual characters

  [0.5:0.05:2.0]

• font_line_heightnumber

  Vertical spacing between lines of text

  [0.8:0.05:2.0]

🔤

3. Letter Shape

• letter_heightnumber

  Thickness/depth of the 3D letters

  [5:1:50]

• letter_bevelnumber

  Beveled edge size for rounded letter corners

  [0:0.5:10]

• bevel_styledropdown

  Style of beveling applied to letter edges

  chamfer round stepped

• edge_roundingnumber

  Additional rounding applied to all letter edges

  [0:0.5:5]

📐

4. Layout

• text_alignmentdropdown

  Horizontal alignment of text

  left center right

• letter_spacingnumber

  Additional spacing between letters

  [0.5:0.1:2.0]

• kerning_adjustmentnumber

  Fine-tune spacing between specific character pairs

  [-10:1:10]

• text_curvedropdown

  Apply curved or wavy effects to text layout

  flat arc_up arc_down wave

• curve_radiusnumber

  Radius for arc curves

  [50:10:300]

• curve_intensitynumber

  Strength of curve/wave deformation

  [0.1:0.1:1.0]

• join_lettersboolean

  Connect adjacent letters with bridges

• join_thicknessnumber

  Thickness of connecting bridges between letters

  [1:0.5:5]

🏗️

5. Base Settings

• include_baseboolean

  Add a backing plate/base to the design

• base_positiondropdown

  Where to place the base relative to letters

  back bottom

• base_styledropdown

  Shape/style of the base

  flat beveled rounded pedestal

• base_shapedropdown

  Basic shape of the base plate

  rectangle ellipse letter_outline

• base_thicknessnumber

  Thickness/height of the base plate

  [2:1:50]

• base_extensionnumber

  How much the base extends beyond the text

  [0:1:50]

• base_roundingnumber

  Corner rounding radius for the base

  [0:1:25]

🕳️

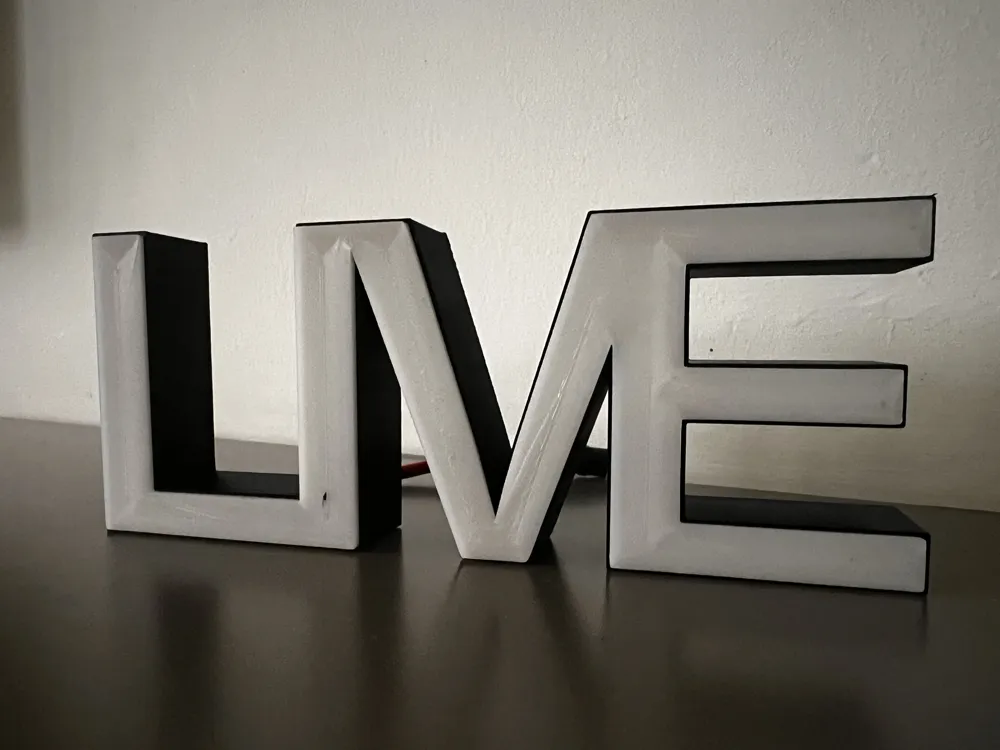

6. Hollow & Cut

• create_hollowboolean

  Make letters hollow for reduced material and weight

• create_cut_piecesboolean

  Generate separate pieces for hollow assembly

• wall_thicknessnumber

  Thickness of walls in hollow letters

  [1:0.5:10]

• hollow_rim_depthnumber

  Depth of rim for cut piece alignment

  [0:0.5:5]

• hollow_baseboolean

  Also hollow out the base for maximum weight reduction

🔧

7. Letter Mounting

• letter_cutoutsboolean

  Add decorative cutout patterns through letters

• cutout_patterndropdown

  Shape of the cutout pattern

  circles squares hexagons

• cutout_sizenumber

  Size of individual cutout shapes

  [1:0.5:20]

• cutout_spacingnumber

  Distance between cutout pattern elements

  [3:1:50]

• cutout_marginnumber

  Margin from letter edges where cutouts won't appear

  [0:1:20]

• letter_mounting_holesboolean

  Add mounting holes through individual letters

• letter_hole_diameternumber

  Diameter of holes in letters

  [2:0.5:10]

• letter_hole_styledropdown

  Style of mounting holes

  cylindrical countersunk keyhole

• letter_magnet_pocketsboolean

  Add recessed pockets for magnets in letters

• letter_magnet_diameternumber

  Diameter of magnet pockets

  [4:1:12]

• letter_magnet_depthnumber

  Depth of magnet pockets

  [2:0.5:6]

• letter_keychain_ringboolean

  Add keychain attachment rings to letters

• letter_ring_diameternumber

  Outer diameter of keychain rings

  [8:1:50]

• letter_ring_thicknessnumber

  Thickness of keychain ring material

  [2:0.5:10]

⚡

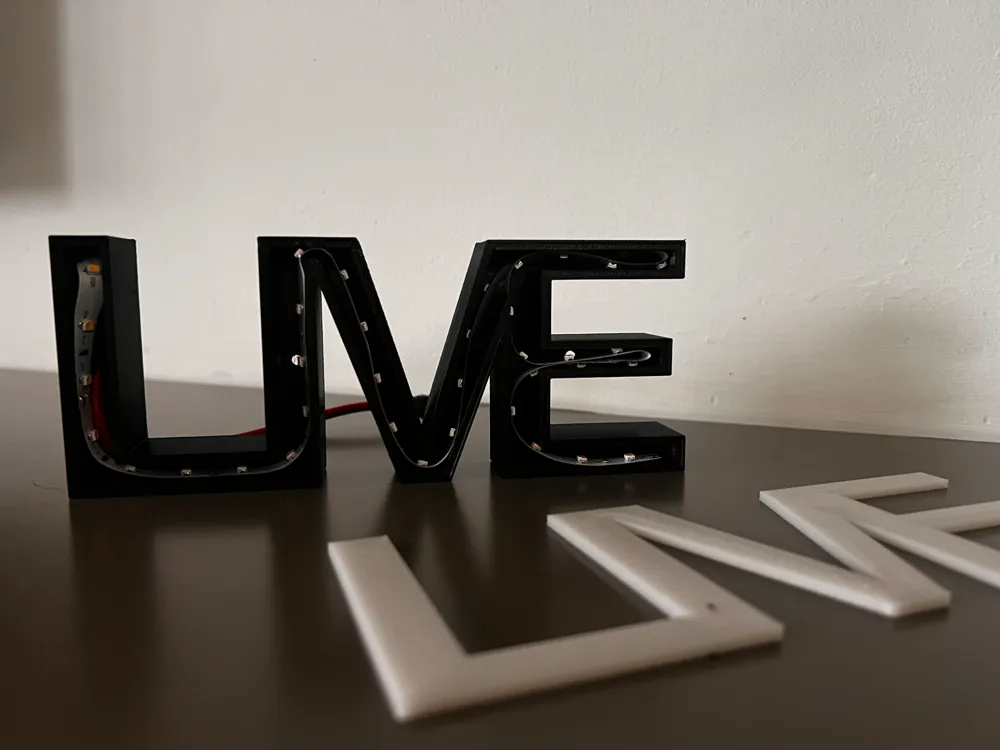

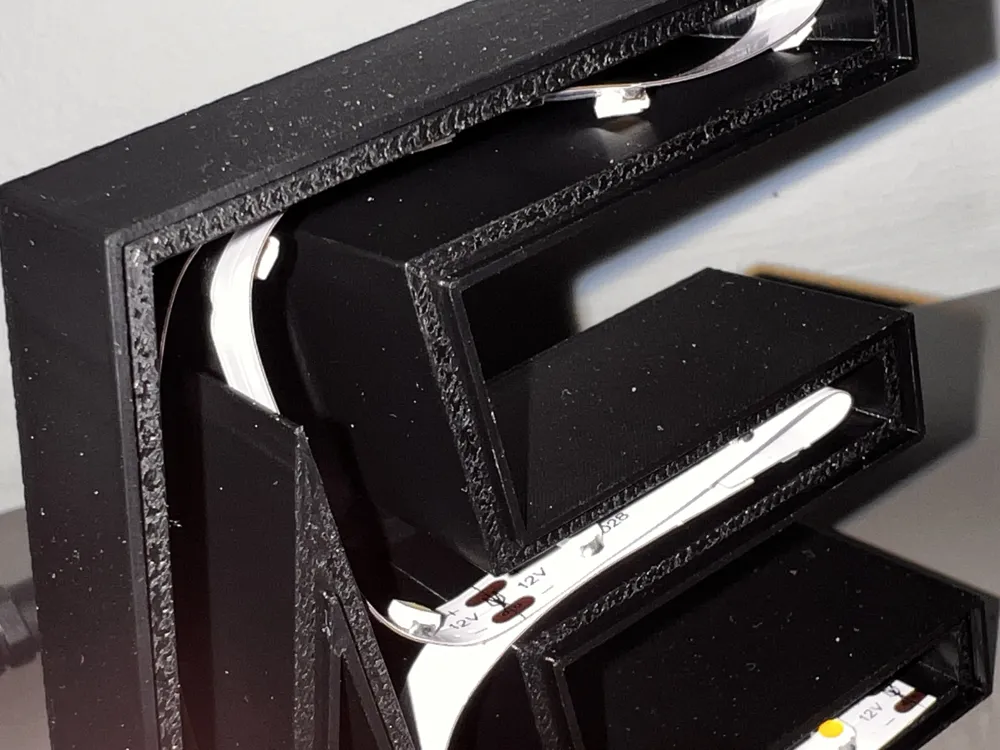

7.1. Cable/LED Routing

• cable_routing_holesboolean

  Add cable routing holes through each letter for LED strips

• cable_hole_diameternumber

  Diameter of cable routing holes

  [2:0.5:12]

• cable_route_styledropdown

  Orientation of cable routing holes

  horizontal vertical angled

📌

8. Base Mounting

• include_mounting_holesboolean

  Add mounting holes to the base plate

• hole_diameternumber

  Diameter of mounting holes

  [2:0.5:10]

• hole_styledropdown

  Style of mounting holes

  cylindrical countersunk keyhole

• hole_placementdropdown

  Positioning pattern for mounting holes

  corners center edges

• hole_countnumber

  Number of mounting holes

  [2:1:8]

• magnet_pocketsboolean

  Add recessed pockets for magnets on base

• magnet_diameternumber

  Diameter of magnet pockets on base

  [4:1:12]

• magnet_depthnumber

  Depth of magnet pockets on base

  [2:0.5:6]

• keychain_ringboolean

  Add keychain attachment ring to base

• ring_diameternumber

  Outer diameter of base keychain ring

  [8:1:50]

• ring_thicknessnumber

  Thickness of base keychain ring material

  [2:0.5:10]

✨

9. Surface Effects

• add_surface_patternboolean

  Add textured patterns to letter surfaces

• pattern_typedropdown

  Type of surface pattern to apply

  dots lines grid honeycomb waves

• pattern_depthnumber

  Depth of surface pattern engraving

  [0.2:0.1:10]

• pattern_densitynumber

  Spacing/density of pattern elements

  [0.2:0.1:1.0]

• accent_borderboolean

  Add raised border around letters

• border_thicknessnumber

  Width of accent border

  [1:0.5:20]

• shadow_effectboolean

  Add 3D shadow effect beneath letters

• shadow_offsetnumber

  Horizontal offset of shadow

  [1:0.5:20]

• shadow_heightnumber

  Height/depth of shadow effect

  [1:0.5:50]

💡

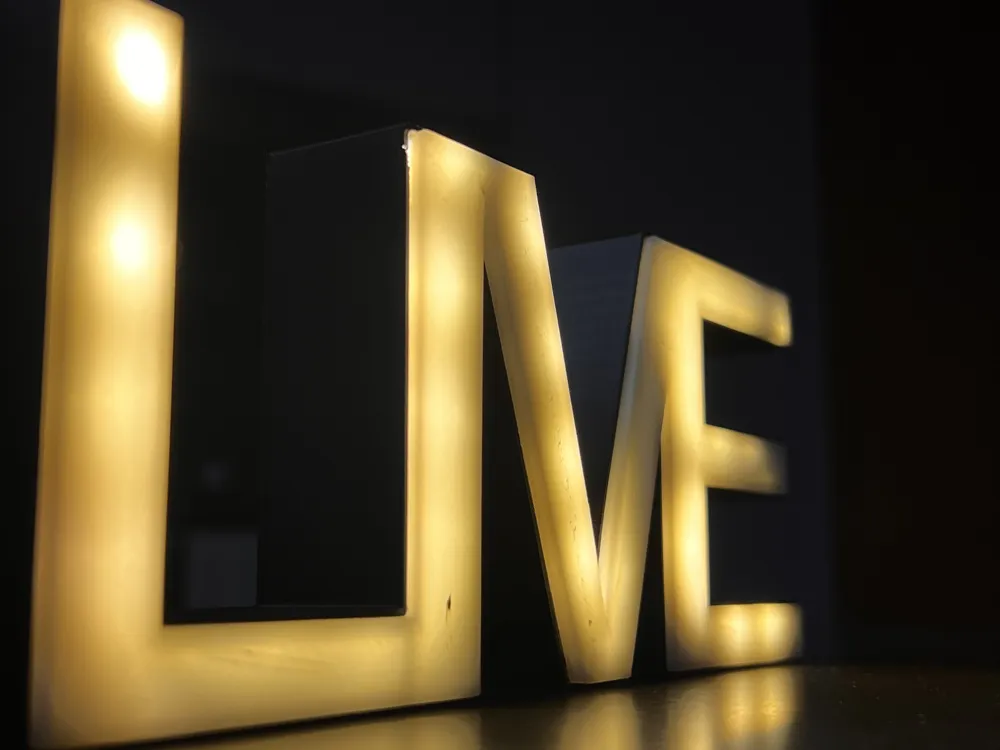

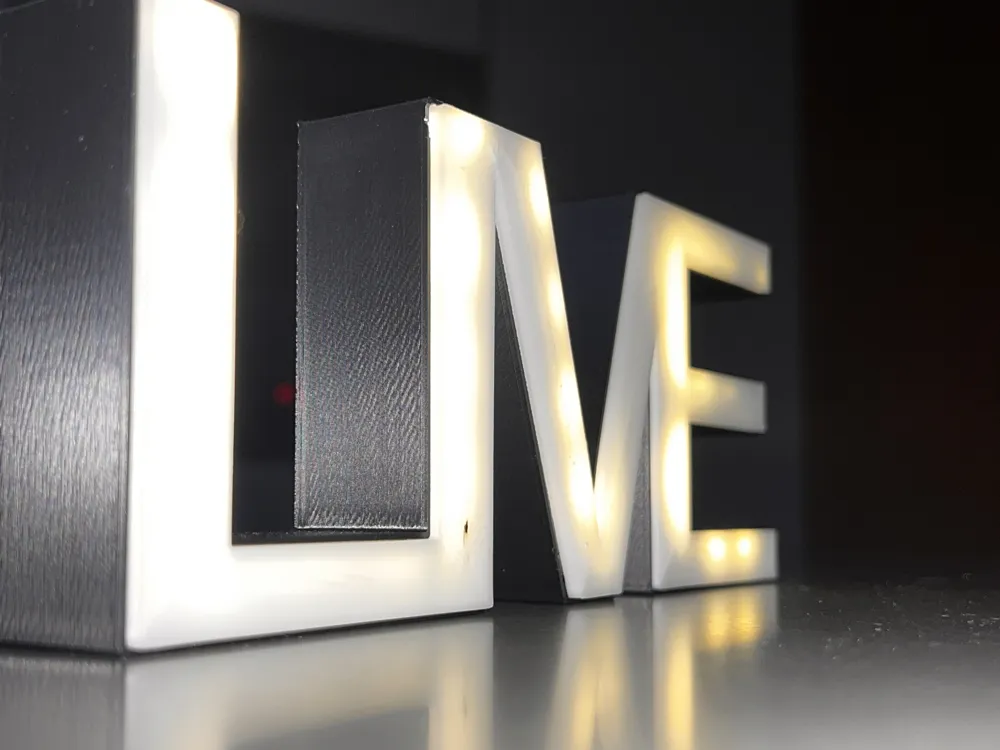

10. LED Features

• led_compatibleboolean

  Enable LED lighting features

• led_channel_depthnumber

  Depth of LED strip channels

  [3:1:15]

• light_diffuserboolean

  Add translucent diffuser layer over LEDs

🖼️

12. Wall Mount Brackets

• wall_mount_bracketsboolean

  Add wall mounting brackets to the back

• bracket_styledropdown

  Style of wall mounting brackets

  decorative hidden visible

• bracket_widthnumber

  Width of mounting brackets

  [5:1:100]

• bracket_depthnumber

  Depth/thickness of mounting brackets

  [5:1:100]

• bracket_heightnumber

  Height of mounting brackets

  [10:1:200]

• bracket_thicknessnumber

  Material thickness of brackets

  [2:1:30]

🖨️

11. Print Settings

• print_resolutionnumber

  Circle resolution ($fn) for smooth curves

  [12:4:128]

• print_orientationdropdown

  Recommended printing orientation

  flat standing angled

• orientation_anglenumber

  Angle for angled printing orientation

  [0:5:90]
