270 WSM Ammo Box - Holds 50 Rounds

Hello,

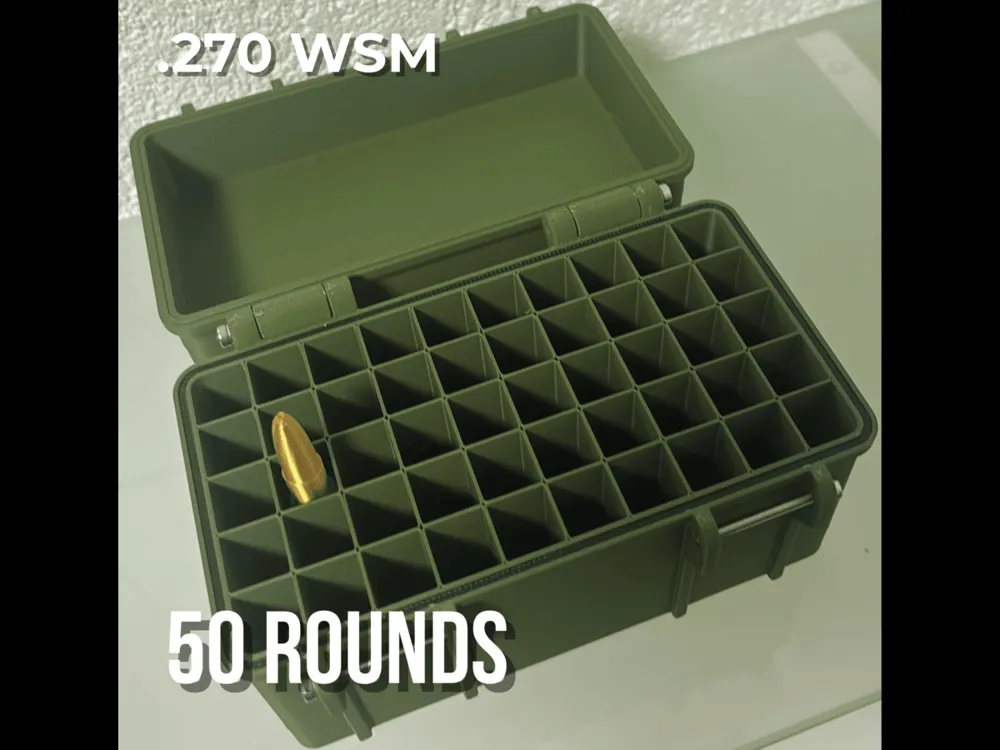

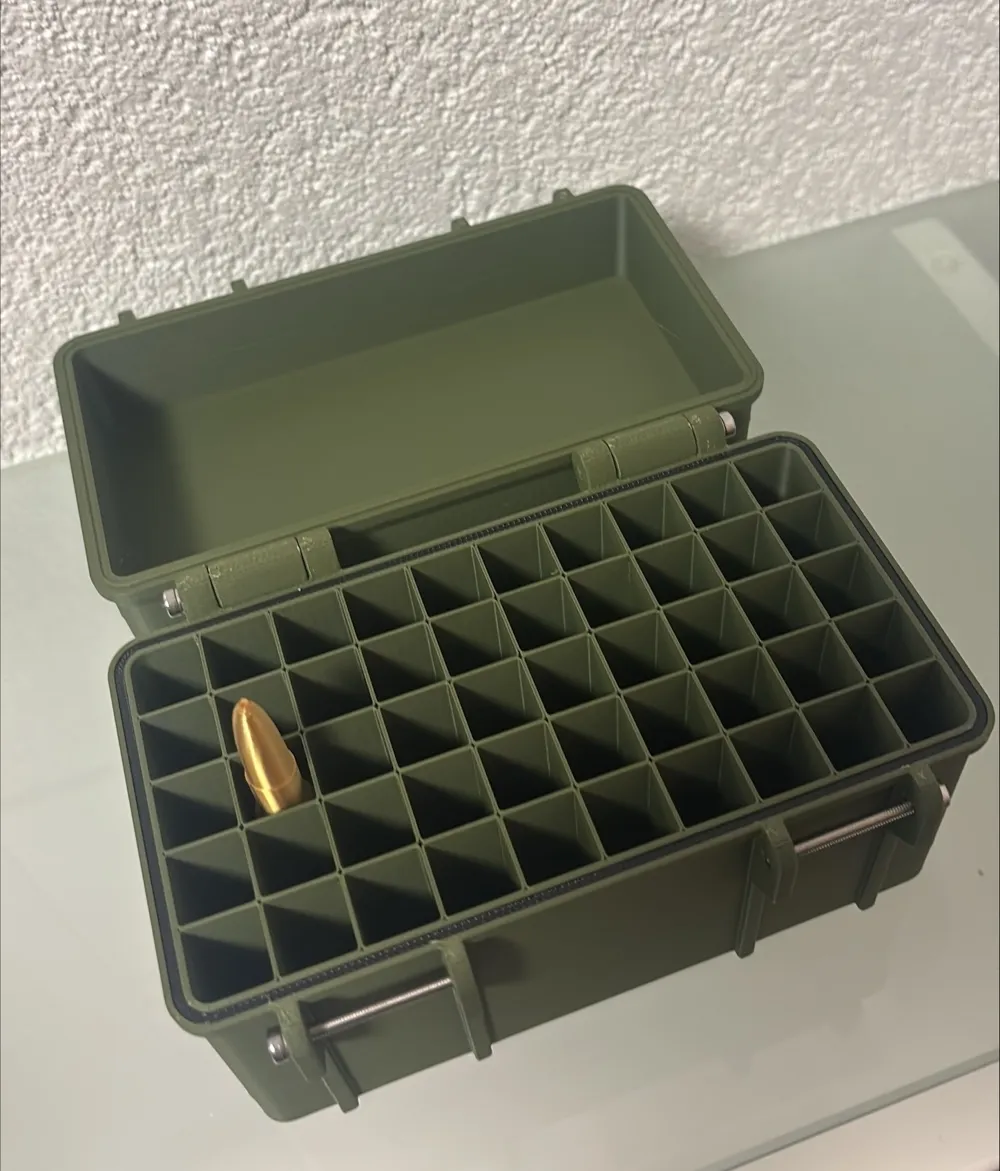

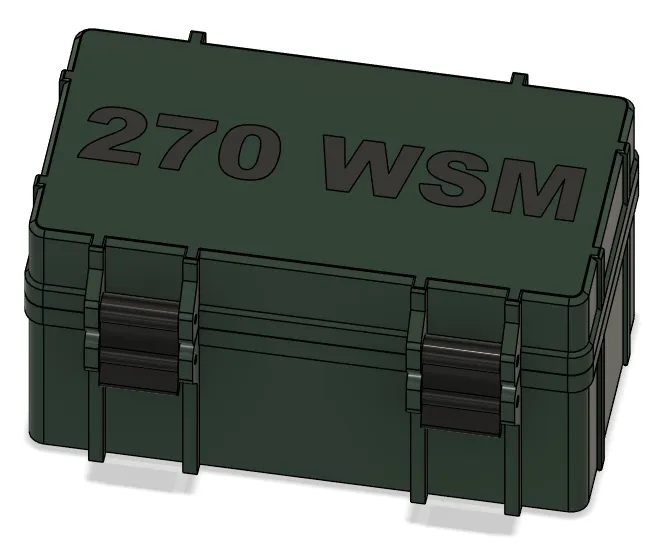

270 WSM Ammo Box – 50 Rounds is a precision-designed ammunition storage system for secure transport, organization, and long-term storage.

The internal geometry is engineered with controlled clearance to accommodate a protective foam insert in the lid, ensuring stable retention and preventing cartridge movement or direct plastic contact during transport.

Capacity:
• 50 rounds of 270 WSM (.270 Winchester Short Magnum)

Key features:
• Precision-fit internal cartridge layout
• Foam-compatible lid clearance design
• Stable and secure ammunition positioning
• Optimized for hunting, range use, and storage
• Durable, print-optimized structural design

Internal design includes approximately 5–6 mm additional length per cartridge to allow controlled compression of a foam insert (recommended 10–15 mm foam layer in lid).

This model is part of a precision-designed ammunition storage system developed for multiple calibers and capacities.

Box was printed in PLA, latches in PETG HF, and seal TPU.

Seal is not necessary for the function of the print.

The circles on the inner top side are for avoid the warping.

All parts are connected with M3x30 bolts

You will need 6 pcs.

More calibers available in my Ammo Box System:

https://makerworld.com/en/collections/23283919-ammo-box-system

Feel free to ask for any adaptation.
