Sliding Hook (2020)
Print Profile(1)
Bill of Materials
Description
Optimized prints. Clean CAD. Complete drawings. Modular T-slot accessories for engineers who care about complete design packages.

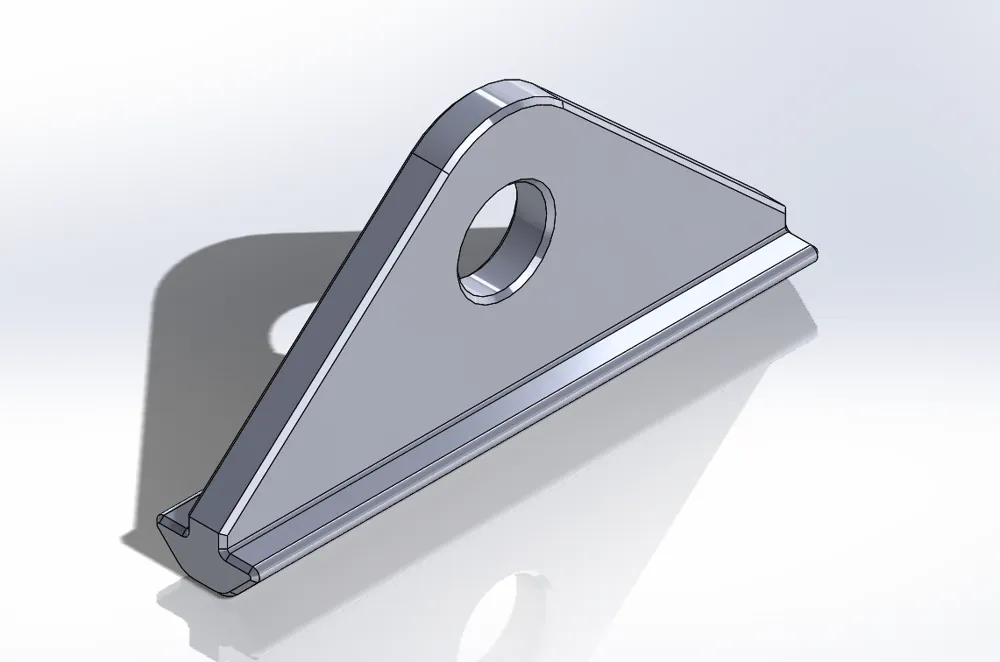

This is a Sliding Hook for 20x20 T-slot aluminum extrusion profiles strong enough for light strength fixturing.

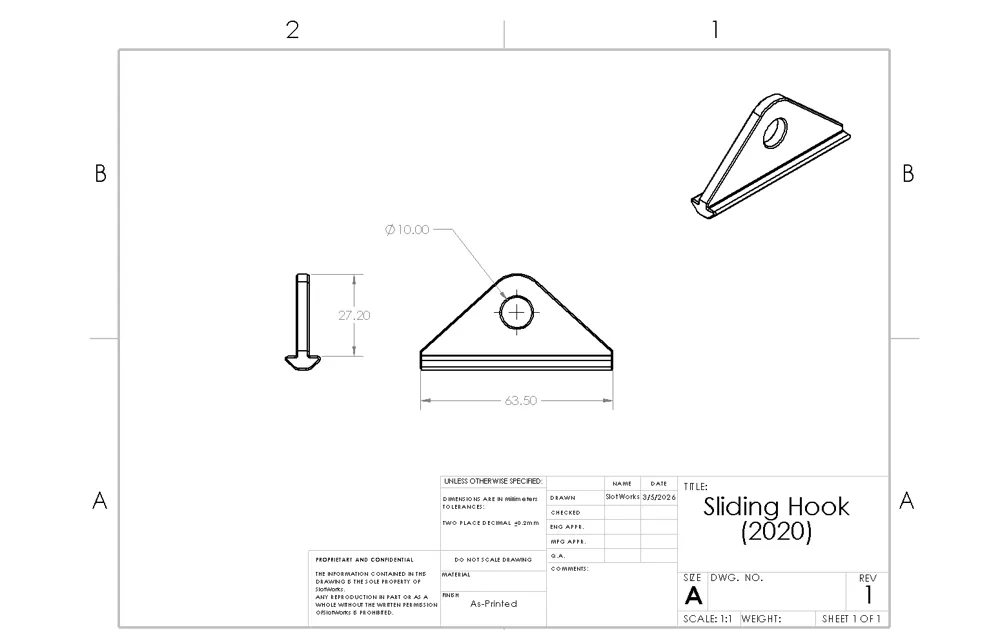

All dimensions are in millimeters.
Like, Boost and Follow me for more!
Recommended Print Settings
Material: PLA
Layer Height: 0.2 mm
Wall Loops: 4+
Infill: 20-100% (depending on strength needs)
Supports: Engineered Supports (Do not include supports)
Orientation: Print vertically (This is done for optimal strength in Z-axis)
Compatibility

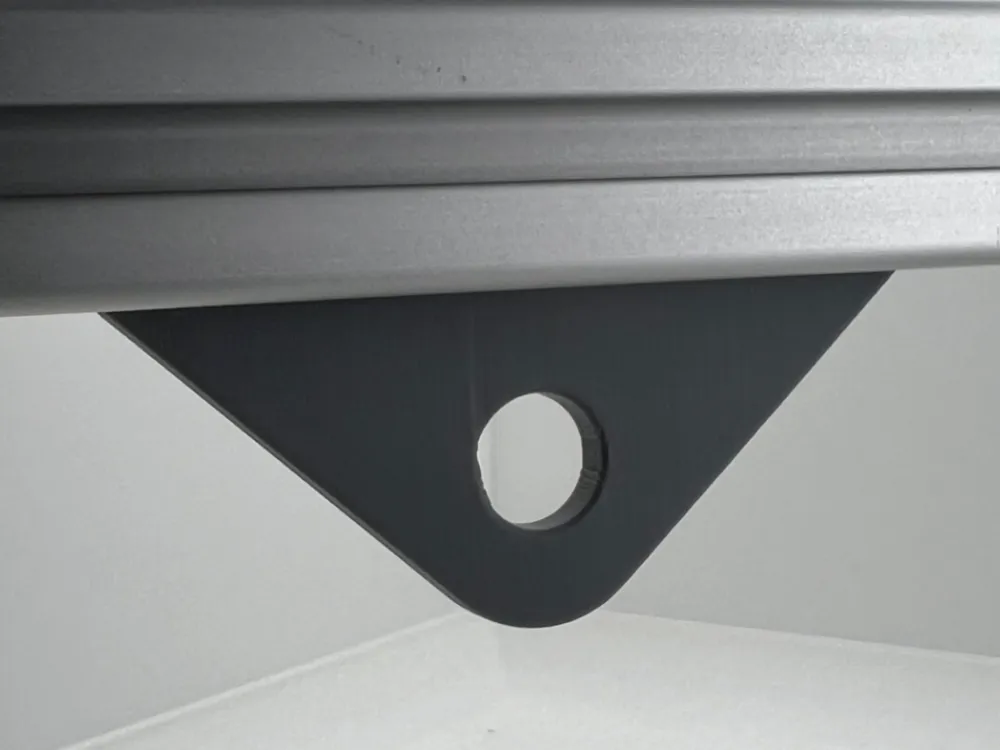

Designed and Tested on 2020 T-slot Aluminum Extrusion: T-Slotted Framing, Single Four Slot Rail, Silver, 20 mm Square, Solid | McMaster-Carr
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
