Fan Powered Aroma & Scent Diffuser

Active Aroma Diffuser Tower

Bring your favorite scents to life — no candles, no mess, no batteries required.

This forced-air aroma diffuser tower uses a press-fit 80mm fan base to actively pull air through a scent medium of your choice — wood shavings, cedar blocks, dried botanicals, coffee beans, cotton with essential oils — and disperse fragrance continuously through a decorative triangular lattice tower. Set it on your desk, nightstand, or shelf and let your printer do what it does best: make something genuinely useful.

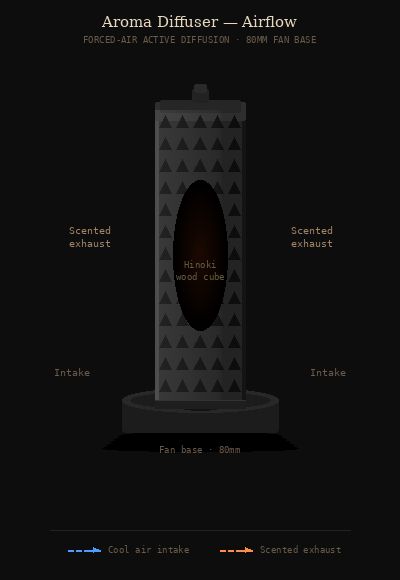

The design is two-part and tool-free. The tower press-fits onto the fan base and can be swapped or remixed independently. The triangular cutout pattern isn't just decorative — it's tuned for airflow, creating natural draft channels that carry scent outward in all directions as air rises through the column.

Print Details

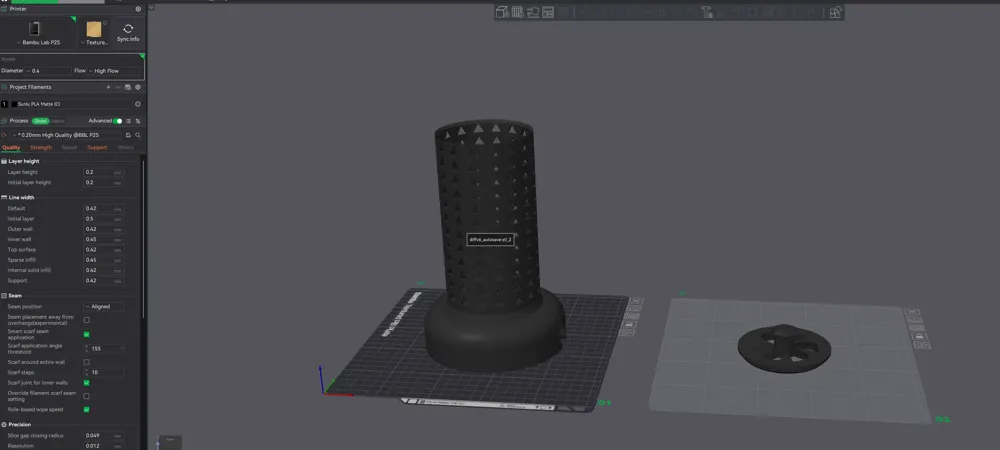

Original Printed on a Bambu Lab P2S using Sunlu PLA Matte at 0.20mm layer height with a 0.4mm nozzle on the High Quality profile. No supports needed. The lattice geometry is self-supporting and prints cleanly with standard settings. Two parts, two plates — the tower and the fan base print separately.

• Layer height: 0.2mm
• Walls: recommend 3 for rigidity on the base
• Infill: 15% or higher on the base for fan mount stability
• Supports: Yes for base and lid
• Material: I use PLA Matte or PLA Wood; PETG if you want more heat tolerance

What goes inside?

Almost anything aromatic and breathable but not fine enough to fall through vent por perforations.   Can use a nylon mesh bag for finer stuff:

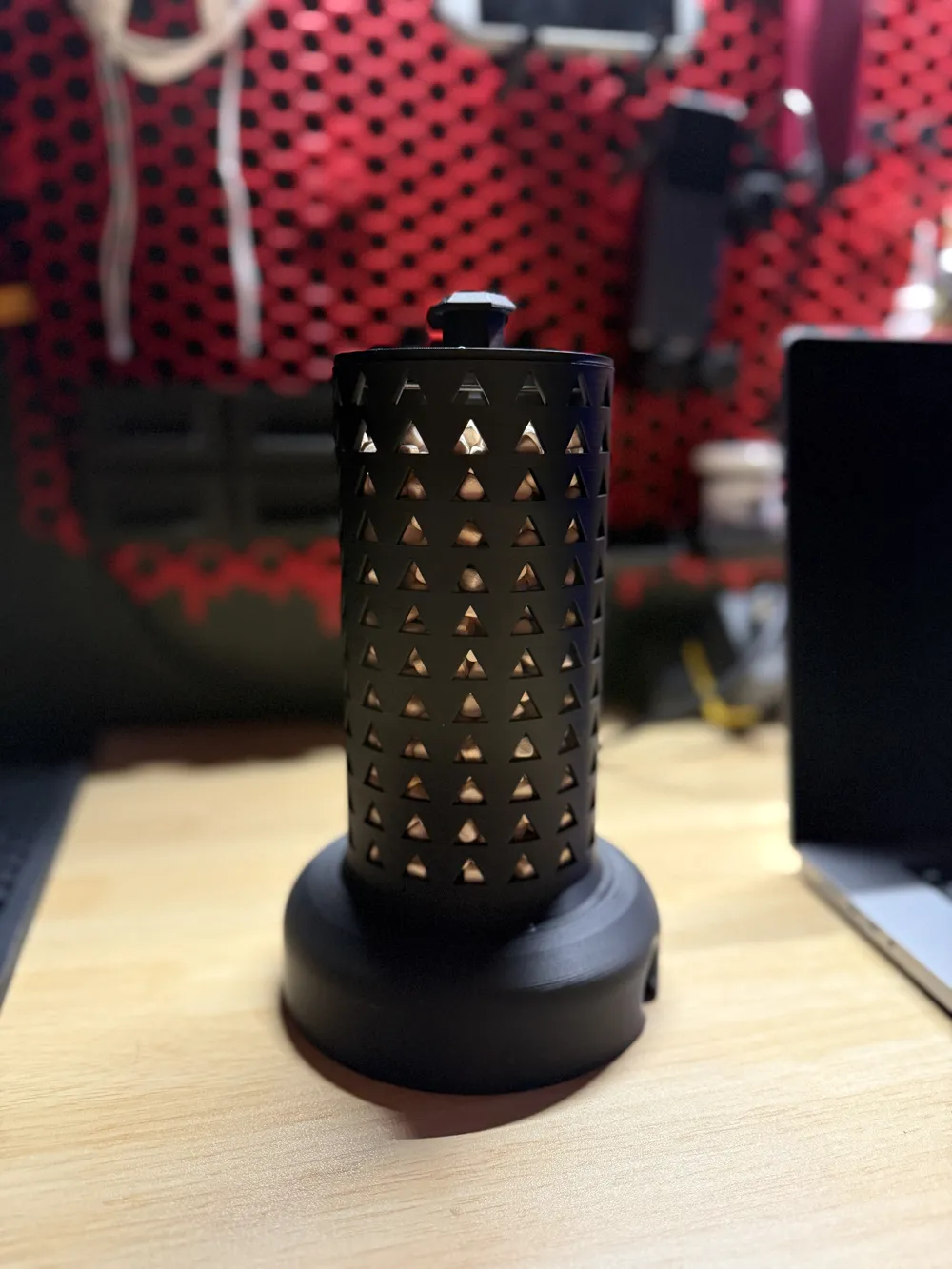

• Hinoki or cedar wood shavings/cubes (as seen in pictures)
• Cotton balls with a few drops of essential oil
• Dried lavender, rosemary, or citrus peel
• Potpourri

Avoid anything that could shed fine particles into the fan. The tower sits over your scent medium — no direct contact with the fan housing.

Fan compatibility

I used this fan $10 USB fan from Amazon: https://amzn.to/47yKNhS

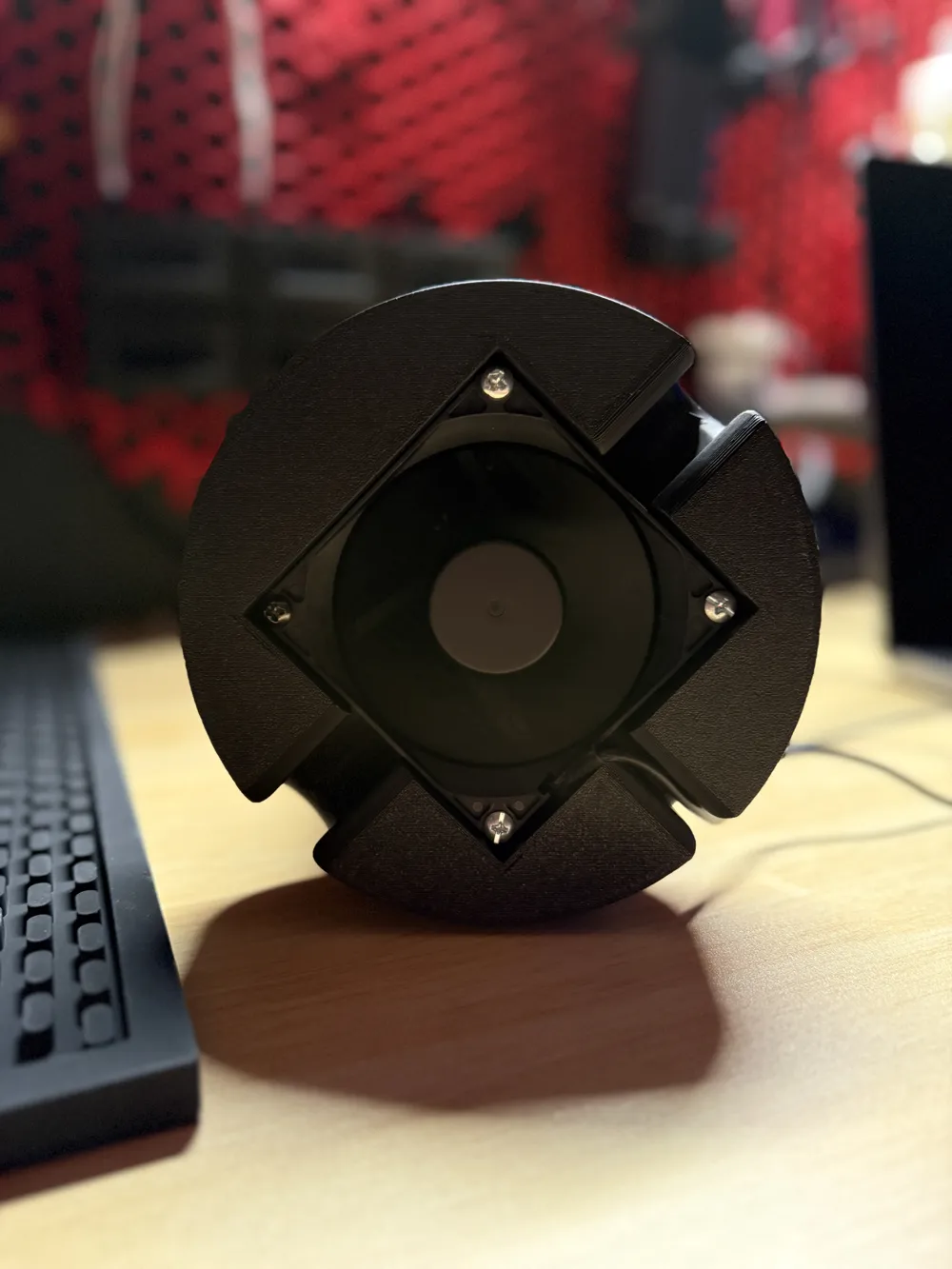

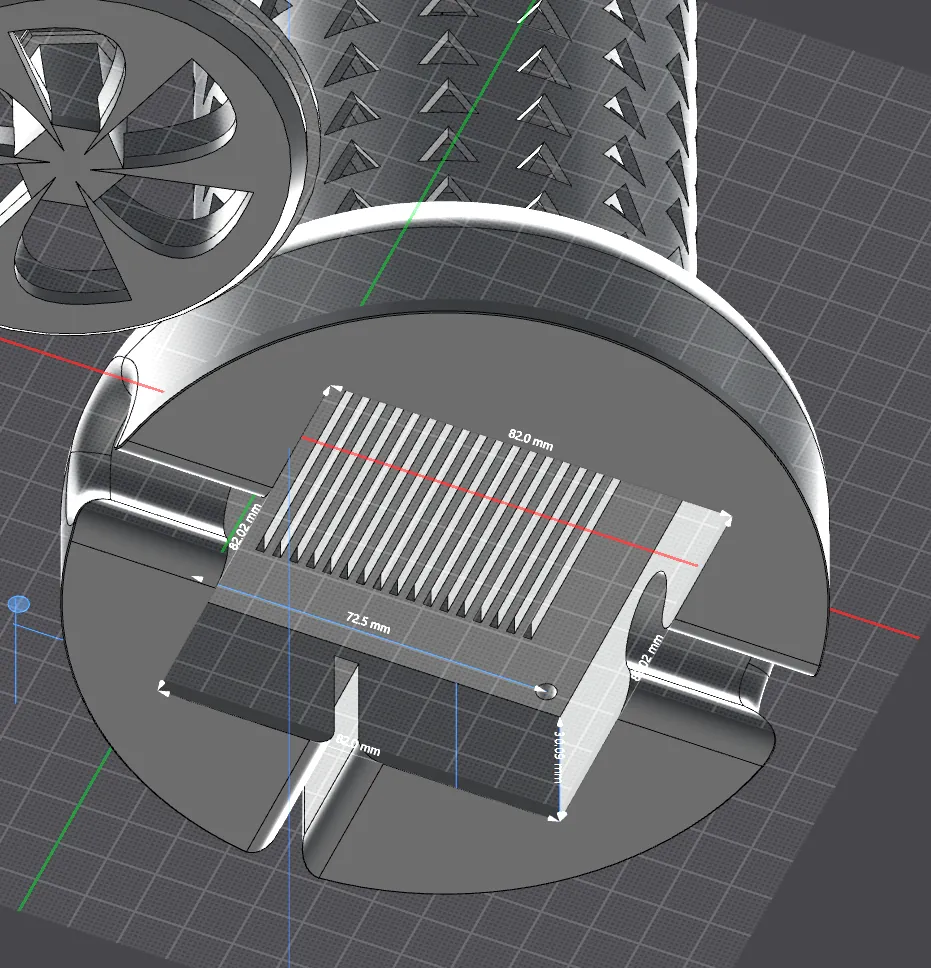

Designed for a standard 80mm USB fan and 4mm self tapping screws . The base press-fit is sized for common 80mm PC-style fans. A 5V USB fan means you can power it from any USB port — computer, hub, or wall adapter. Quiet, low-draw, and runs indefinitely.
