Description

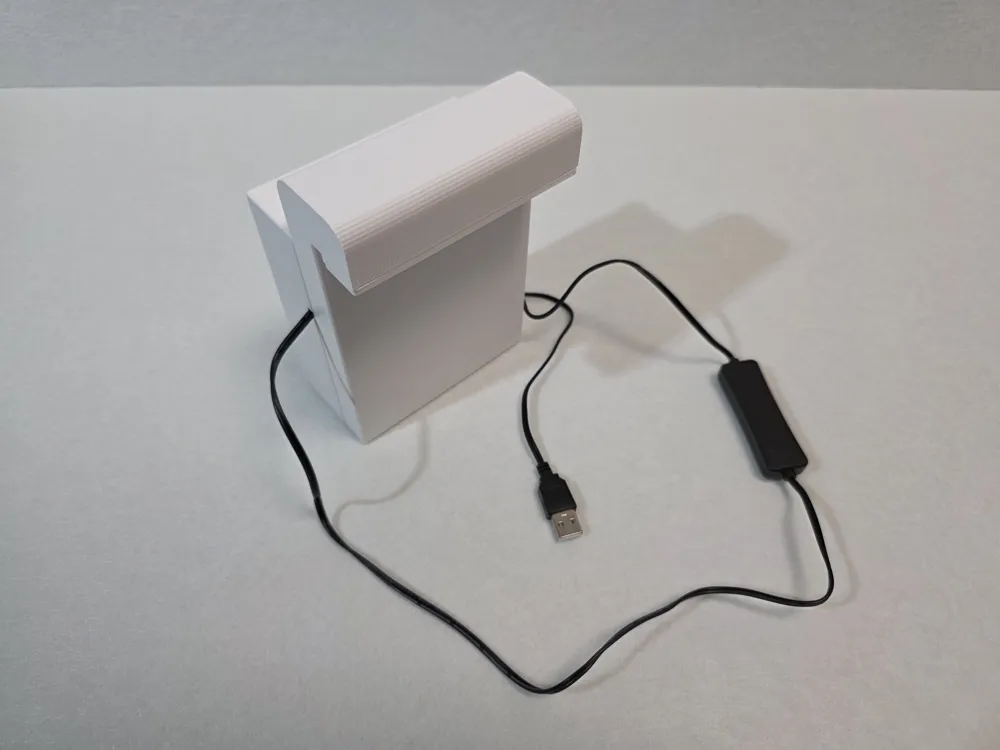

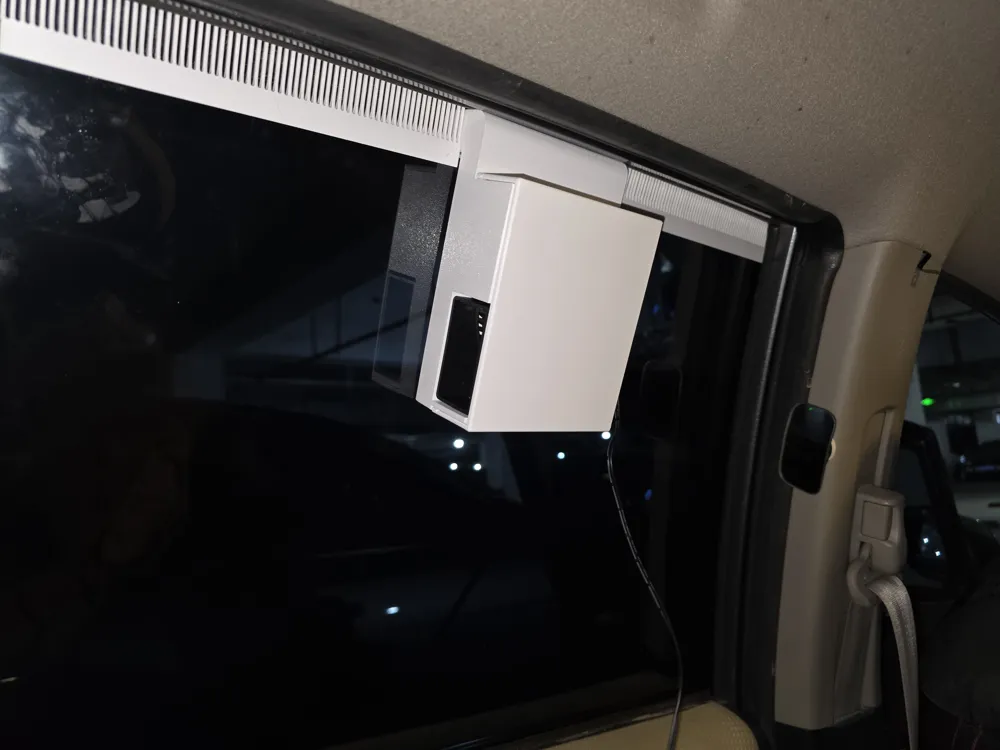

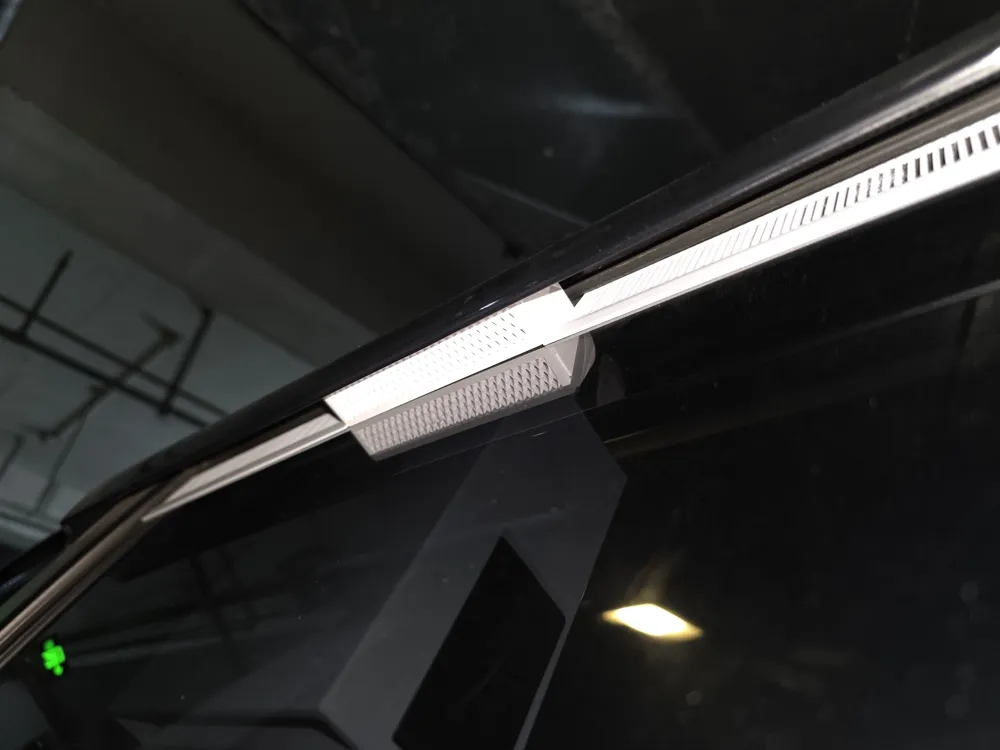

When parking outdoors, for safety reasons, if the car window is only opened a small crack, this can lead to insufficient air intake and carbon dioxide buildup inside the car. Therefore, this intake fan was designed, which can draw in a large amount of fresh air with just about a two-centimeter window gap. At the same time, the incoming air blows towards the side and rear, avoiding direct drafts on occupants and preventing discomfort.

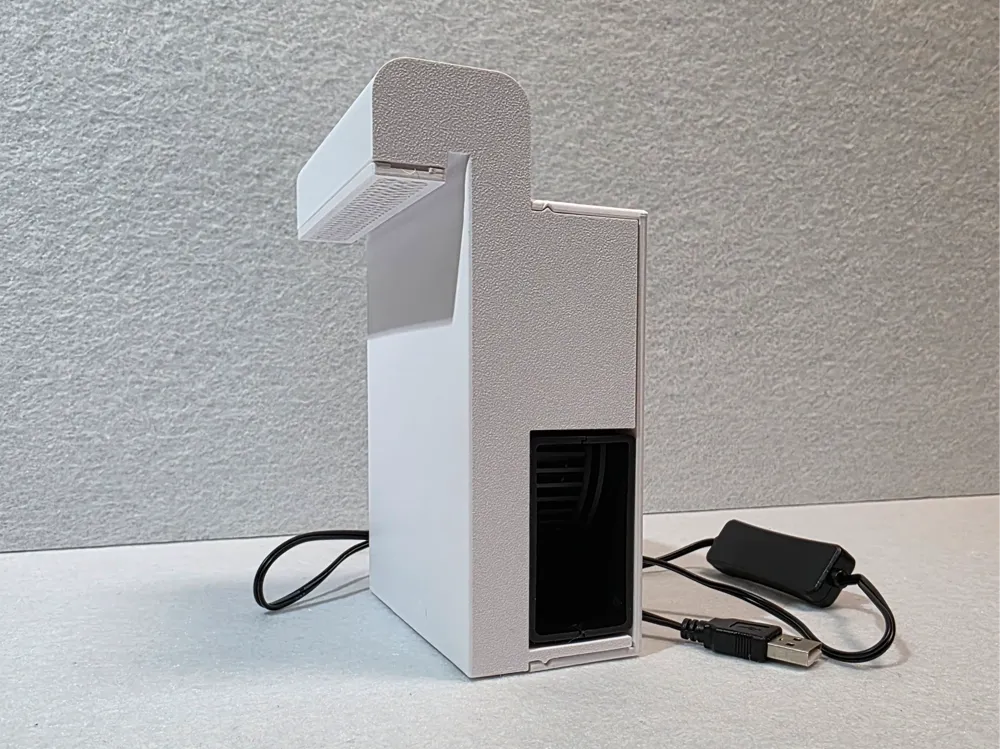

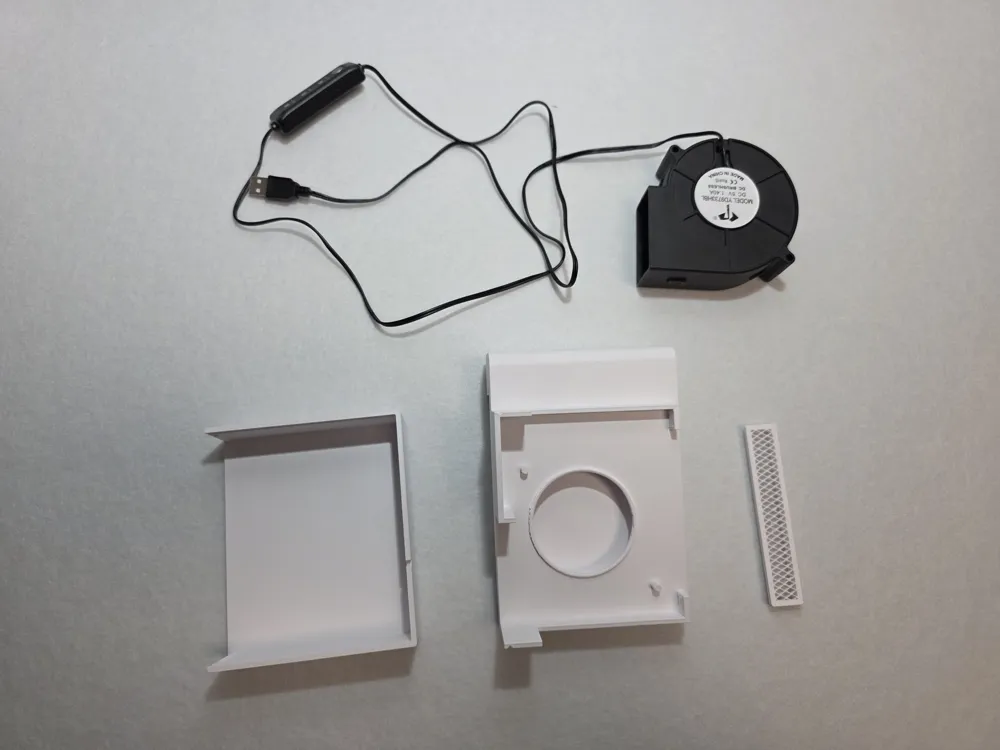

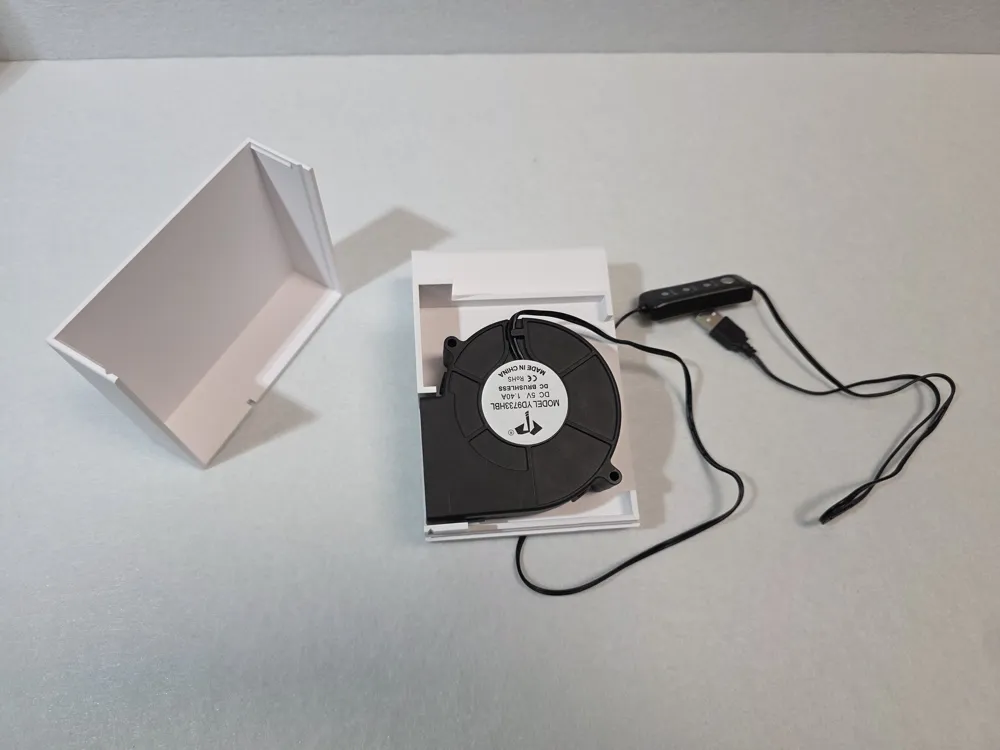

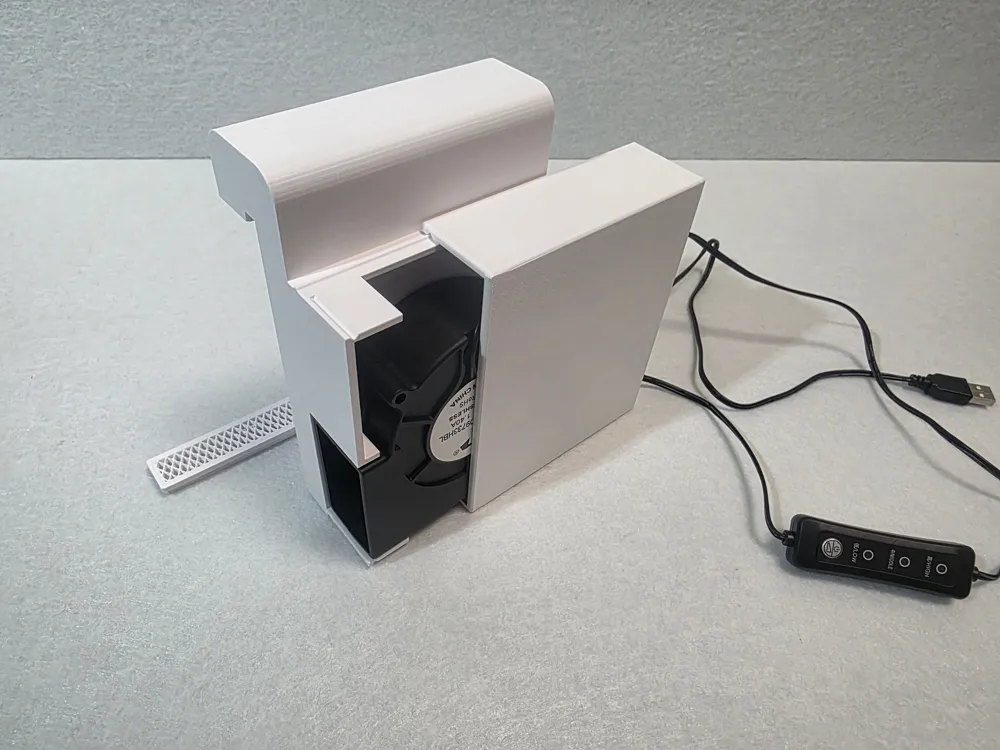

Aside from needing to purchase a 9733 turbine fan separately, the entire model is connected with buckles, requiring no screws, and can be assembled and used directly after printing. There is a replaceable insect screen at the air inlet, which can be easily replaced if blocked or damaged.

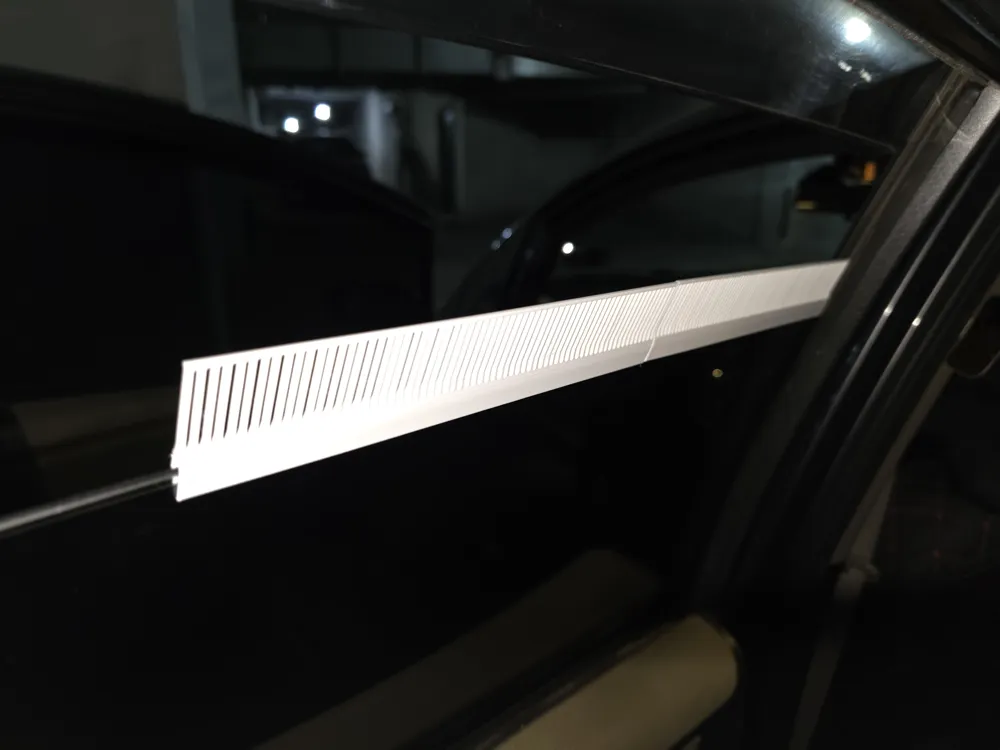

This model can also be used in conjunction with my designed 'Camper Van Window Ventilation Mosquito Grille' to seal off other window gaps and prevent mosquitoes from entering.
Note:

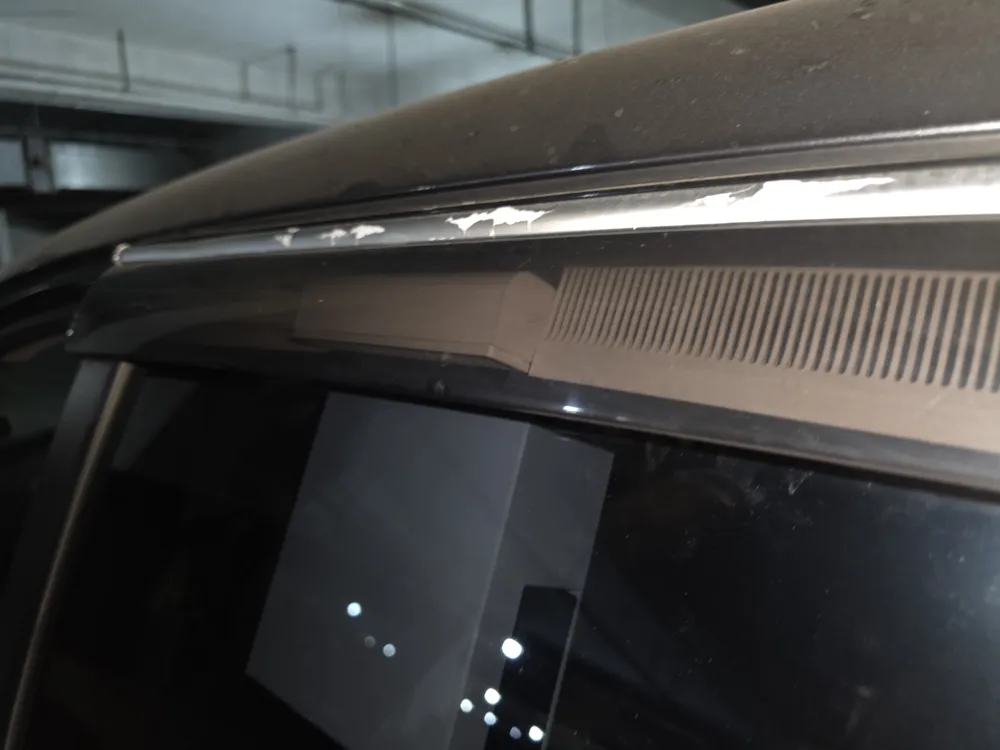

If the car window has rain guards installed, when raising the window to clamp the intake fan, be sure to leave enough space to prevent crushing or hitting the rain guard.

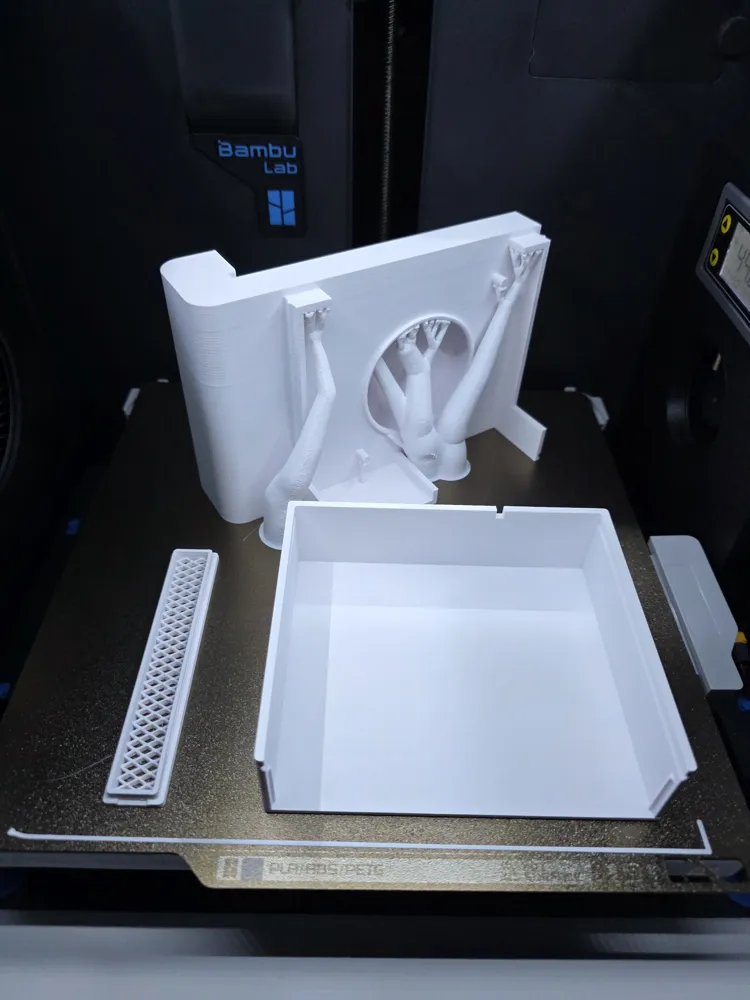

Because the air duct is relatively narrow, removing the support after the corners can be a bit tricky. Bent-nose pliers/tweezers are recommended.
The link to the 9733 turbine fan I used is as follows, for your reference
