Large Trim Reveal Gauge
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
40 min
1 plate
Open in Bambu Studio
Boost
2
20
0
1
35
32
Released
Description

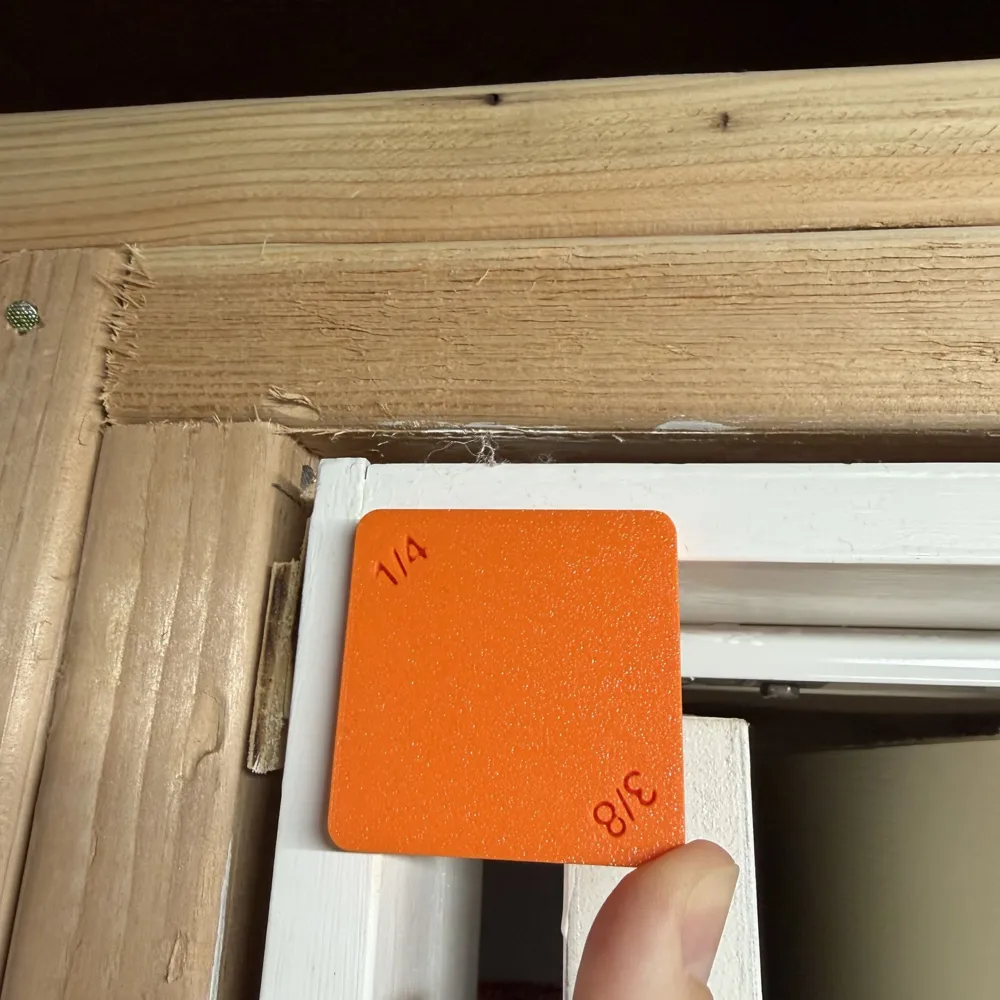

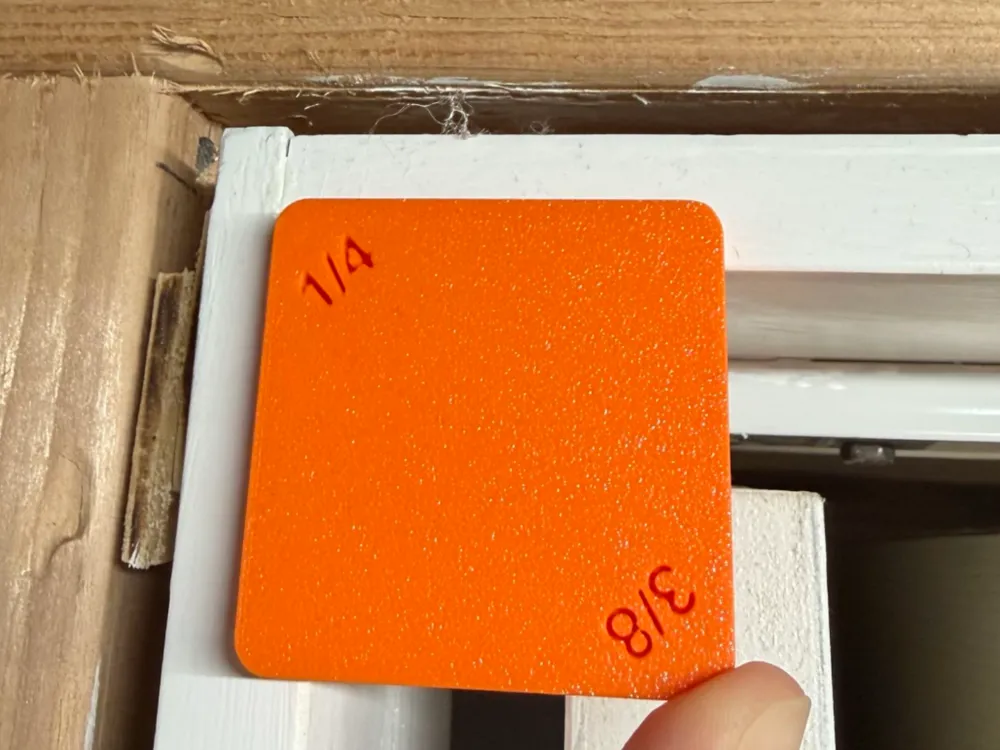

This is a larger trim reveal gauge, the same as my other smaller model.
- It features a ¼" corner, and a 3/8" corner. as well as two sides for each to run down door and window jamb extensions to mark your reveal.
- Typically I would use these size reveals on a larger molding or 1-by stock.
- Best printed in PETG if you're the type to not lose things on the job site and will keep it around a while, but prints great in PLA as well
Hope this helps!
