Description

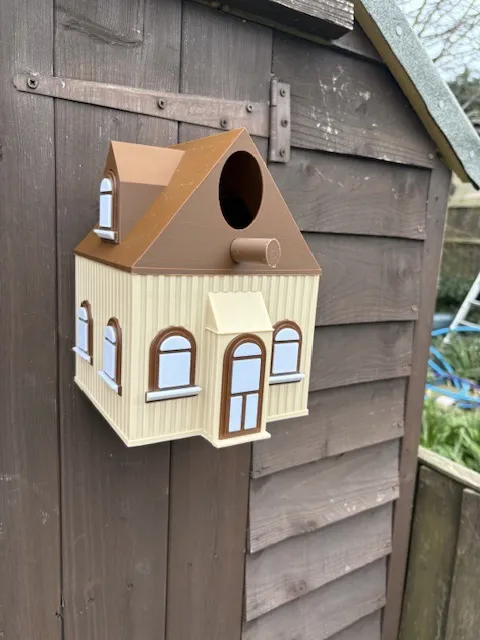

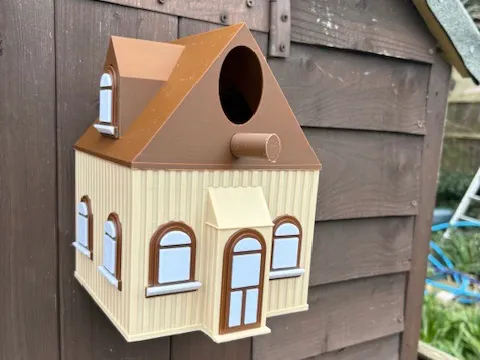

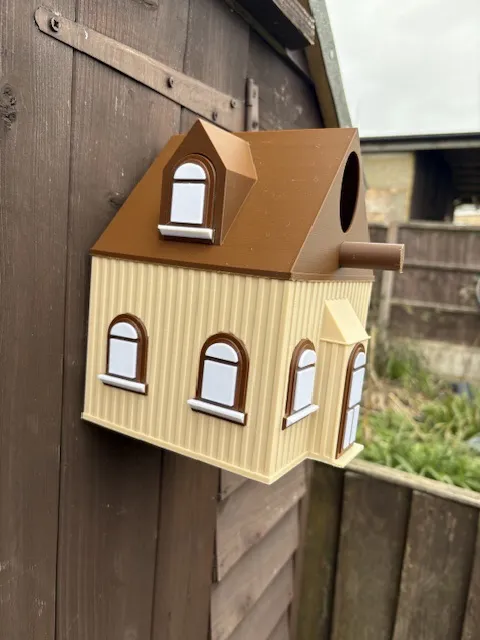

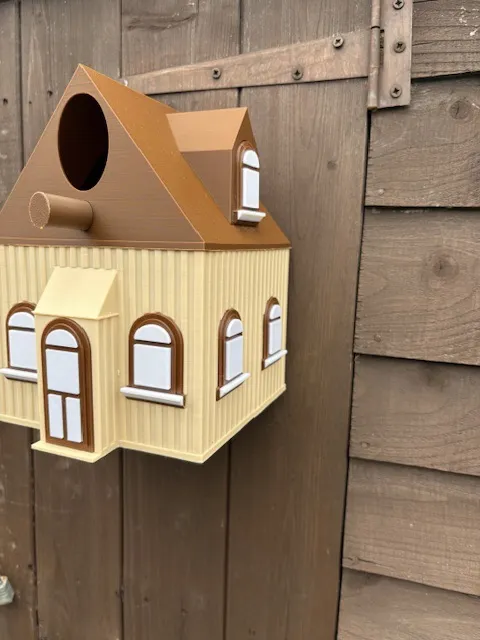

Add this traditional looking bird house to your garden retreat. Sit back and watch / enjoy the parent birds come and go to feed their young.
The house comes with a tight fitting dormar roof that can be taken off easily for cleaning when not used.

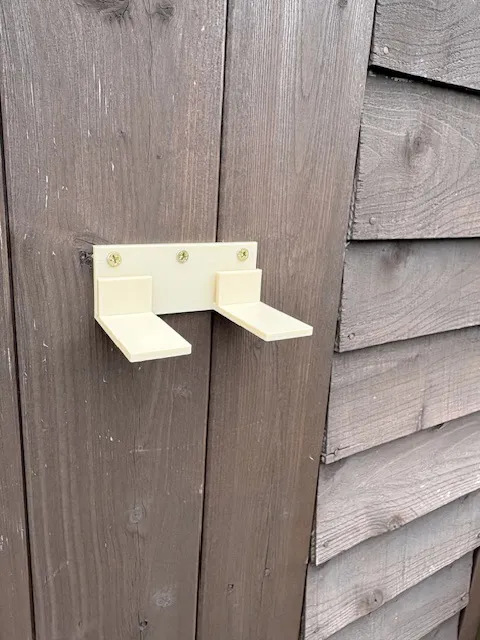

It is mounted using the bracket which the house slides onto thus making it secure and a snug fit to your chosen position. The bracket has 3 preformed 6mm holes which screws or nails can fix through. The bracket supports which sit under the house can also double up as hangers for bird feeders so the adults don’t need to leave the nest for long to feed.
The Door and windows have the white filament used to help them stand out at a distance and replicate glass panes.
The house has a 50mm H x 35mm hole for the birds to enter and exit and is 150mm from the base.
The perch sits 10mm below the hole.
If you require a different size hole try down scaling the print or let me know.
You may also want the perch removed. If so also let me know.
When positioning the bird house please take into consideration direct sunlight this could kill the occupants.
If the house is going to be positioned in an uncovered area then use PETG or better for obvious reasons.
Overall model size in the photo is -
150mm W x 150mm x 215mm
The door and 8 windows will require a small amount of glue to fix into their formed recesses.
Roof Plate / Perch -
No AMS
No Supports
0.20 Layer , 2 Walls , 15% infill
Print Time - 3hr 40 m
Filament - Brown Coffee PETG 134.98g

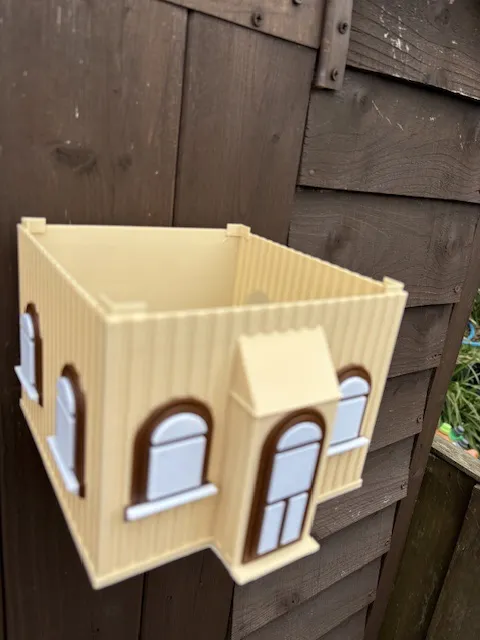

House Base Plate -
No AMS
No supports
0.20 Layer , 2 Walls , 15% infill
Print Time - 7hr 18m
Filament - Beige PETG 187.10g
Bracket Plate -
No AMS
No supports
0.20 Layer , 2 Walls , 15% infill
Print Time - 51m 45s
Filament - Beige PETG 25.85g
Door / Windows Plate -
1 Filament change
No supports
0.20 Layer , 2 Walls , 15% infill
Filament - Brown Coffee PETG 32.98g
White PETG 15.08g
Thank you for your support and I hope you enjoy your time with your new found friends.
