3x18650 Battery Case with Snap Lid
Print Profile(1)
Description

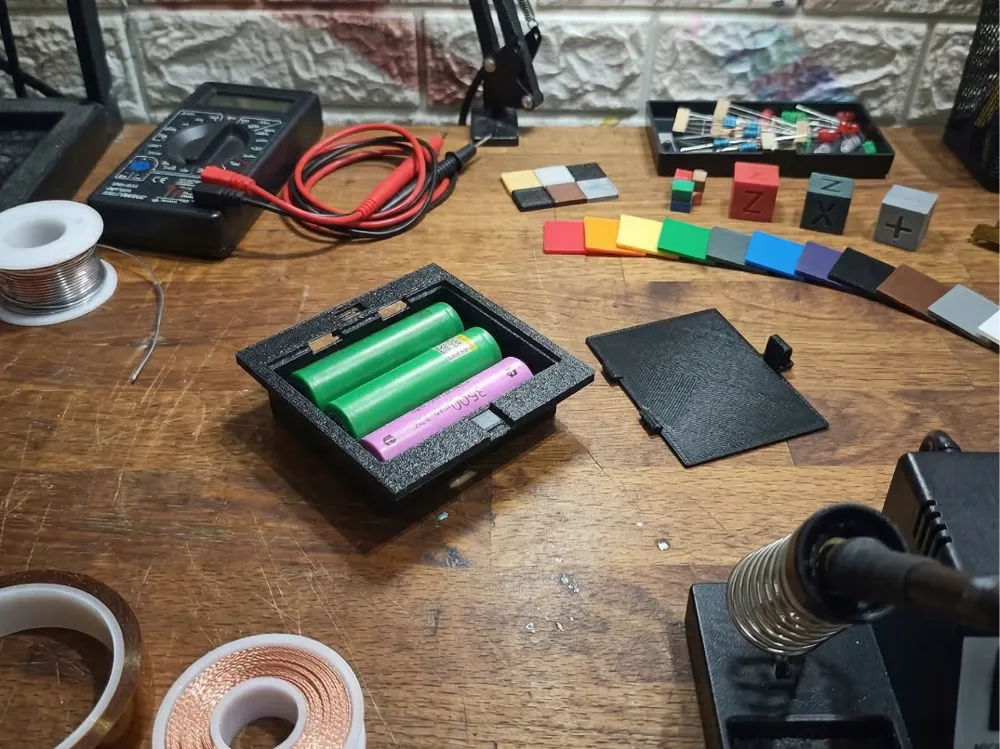

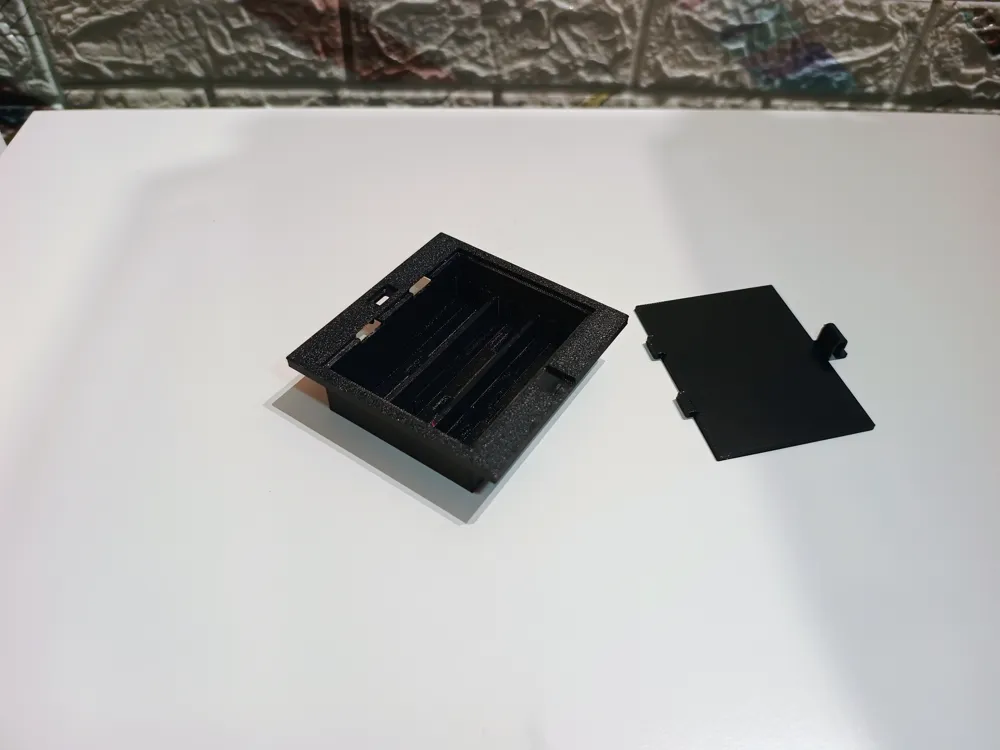

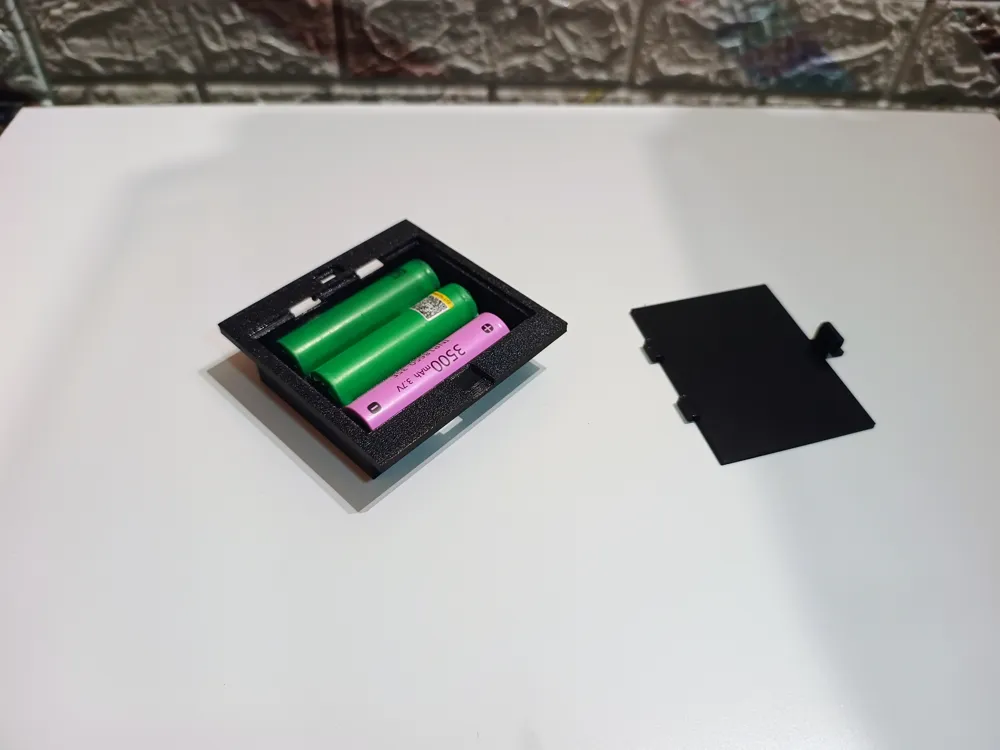

18650 Battery Housing - Flush Mount Design
This is a practical, panel-mountable battery box designed for a 3x18650 cell. It features a clean, professional finish, making it ideal for DIY electronics projects where a neat battery compartment is needed.
Key Features:
- Easy Installation: Designed to fit perfectly into a 80x80 mm rectangular cutout.

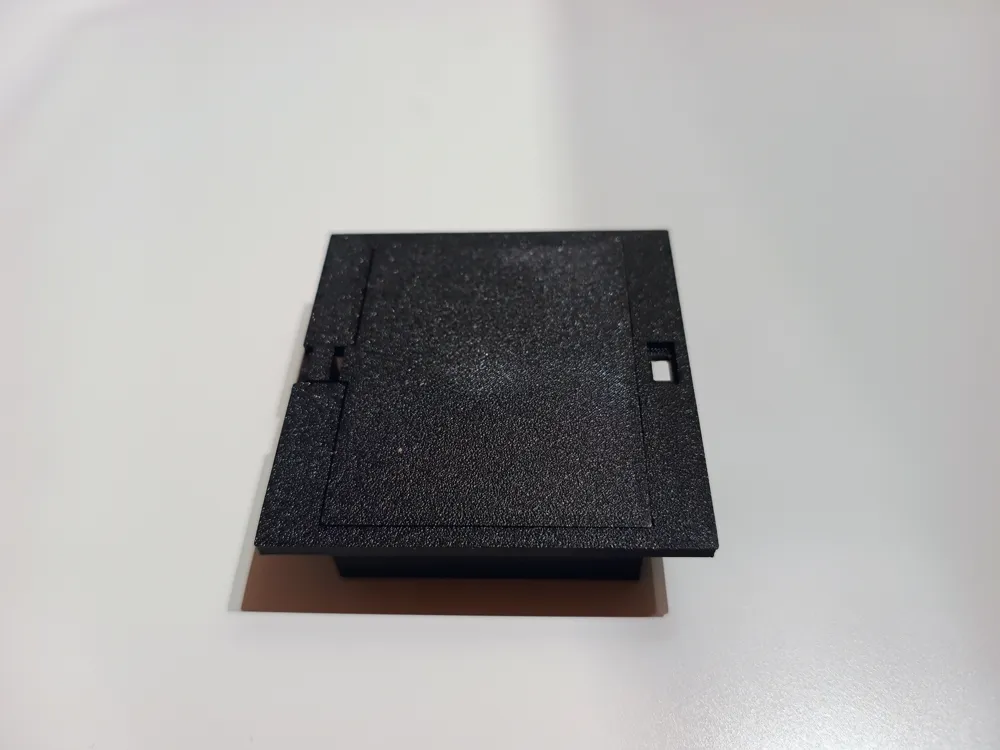

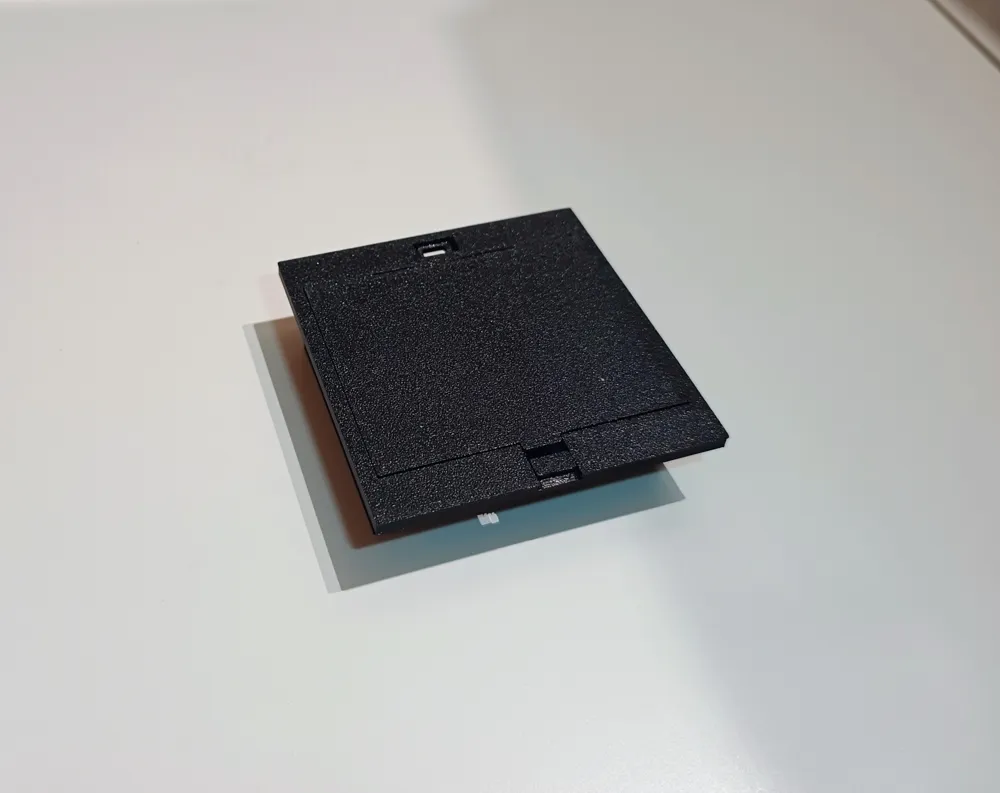

- Secure Fit: The outer rim ensures a flush mount, and it can be easily secured in place using adhesive/glue.
- Durable Design: Optimized for PETG to ensure heat resistance and durability during use.
Recommended Print Settings:
- Material: PETG (Recommended for better heat resistance and flexibility).
- Layer Height: 0.2 mm.
- Infill: 25% (Provides good structural integrity).
- Supports: Yes (Normal).
- Pro tip: I used PLA as the support interface material for the PETG body to achieve a clean surface finish and easy support removal.

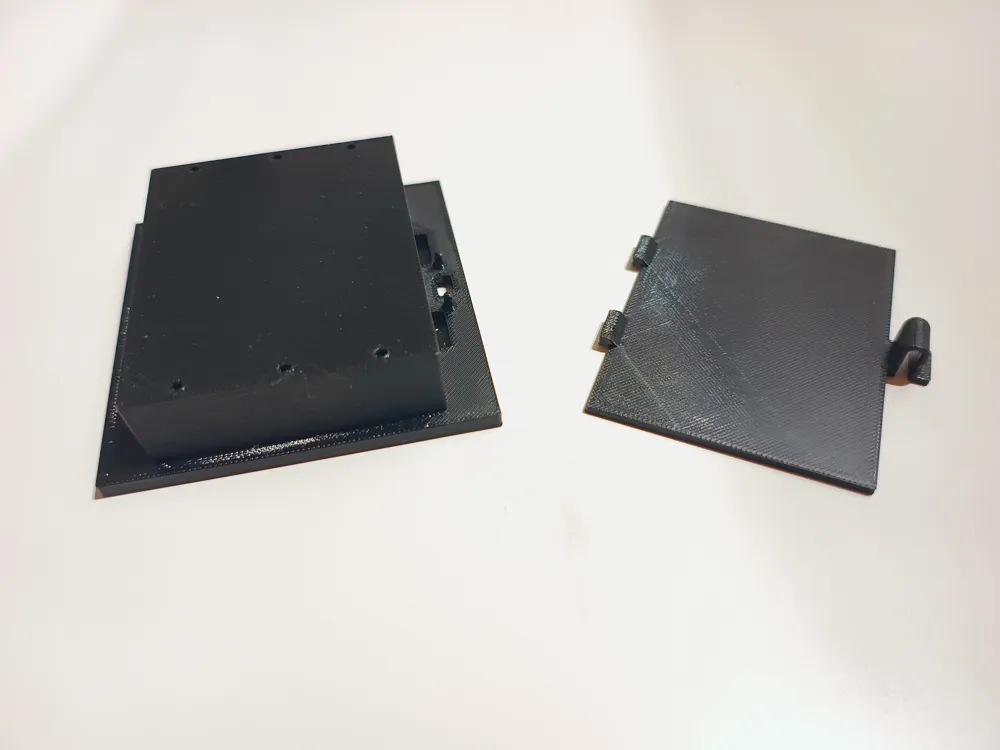

- Brim: Yes. A manual brim is highly recommended for the top/rim of the box to prevent warping and ensure perfect bed adhesion.
Here is a printing guide for using PETG and PLA for support: https://wiki.bambulab.com/en/filament-acc/filament/h2d-pla-and-petg-mutual-support
Non printable parts:
- battery spring: https://a.aliexpress.com/_EGwSo9w
- switch: https://a.aliexpress.com/_EydkhWC
Similar model:
- 4xAA Battery Case with Snap Lid: https://makerworld.com/en/models/2551123-4xaa-battery-case-with-snap-lid#profileId-2809634
- 3xAA Battery Box with Snap Lid: https://makerworld.com/en/models/1037791-3xaa-battery-box-with-snap-lid#profileId-1022007
- 2xAA Battery Box with Snap Lid: https://makerworld.com/en/models/1824784-2xaa-battery-box-with-snap-lid#profileId-1948022
- 1xAA Battery Box with Snap Lid: https://makerworld.com/en/models/1843941-1xaa-battery-box-with-snap-lid#profileId-1970360
- 1x18650 Battery Case with Snap Lid: https://makerworld.com/en/models/1956199-1x18650-battery-case-with-snap-lid#profileId-2102412
- 2x18650 Battery Case with Snap Lid: https://makerworld.com/en/models/1981161-2x18650-battery-case-with-snap-lid#profileId-2131137
- 4x18650 Battery Case with Snap Lid: https://makerworld.com/en/models/2532968-4x18650-battery-case-with-snap-lid#profileId-2787859
Love the design? ⚡ Support my filament fund: https://buymeacoffee.com/filafun
Happy Printing
