Universal GPS tracker bicycle mount
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
0
1
0
0
3
1
Released
Bill of Materials
List other parts
- GPS Tracker x 1: https://de.aliexpress.com/item/1005009320220018.html
- M3*8mm cylinder head screws x 4:
Description
Summary
Very simple mount for inexpensive GPS trackers for installation on a bicycle saddle. Consists of only two parts and 4 screws, and can be printed and assembled in just a few minutes.
Full description on GitHub: https://github.com/Smengerl/bicycle_tracker_mount
Printed parts:

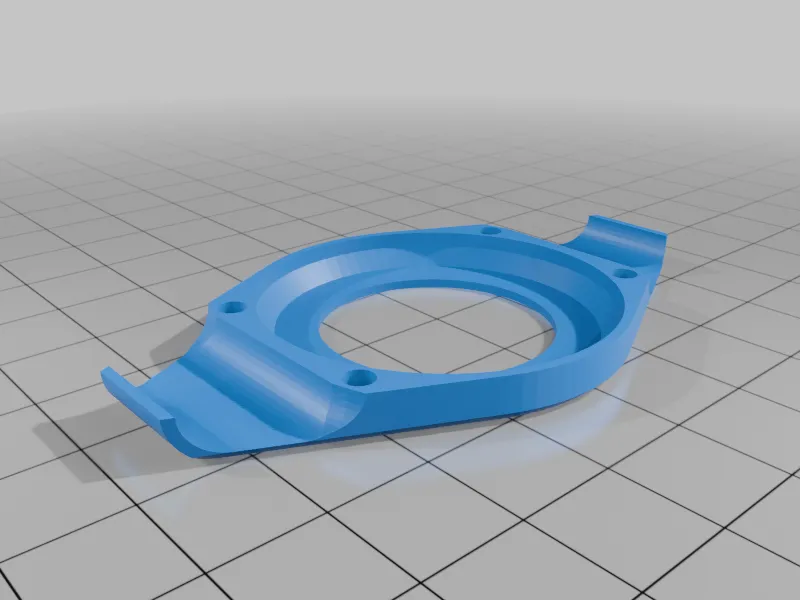

- lower_part.stl

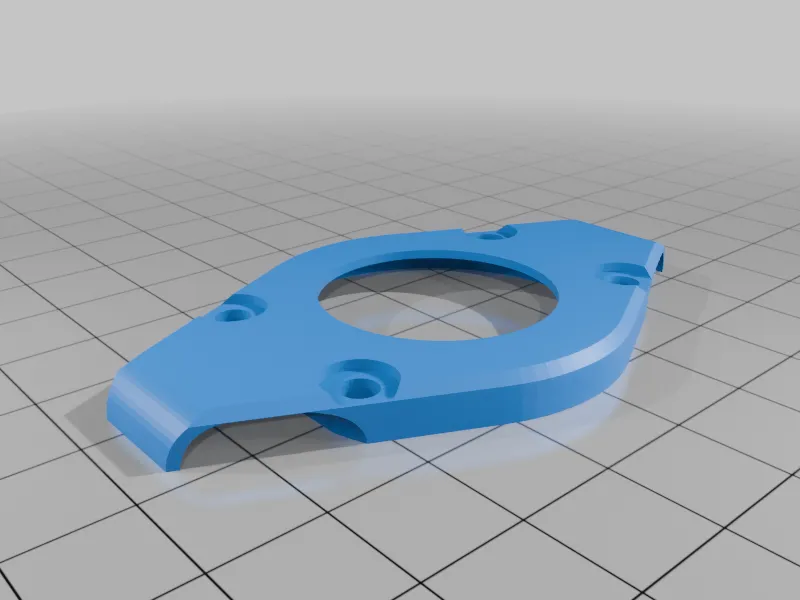

- upper_part.stl - print upside down (face on built plate)
Print Settings
- Rafts: No
- Supports: No
- Filament Material: PETG
Assembly

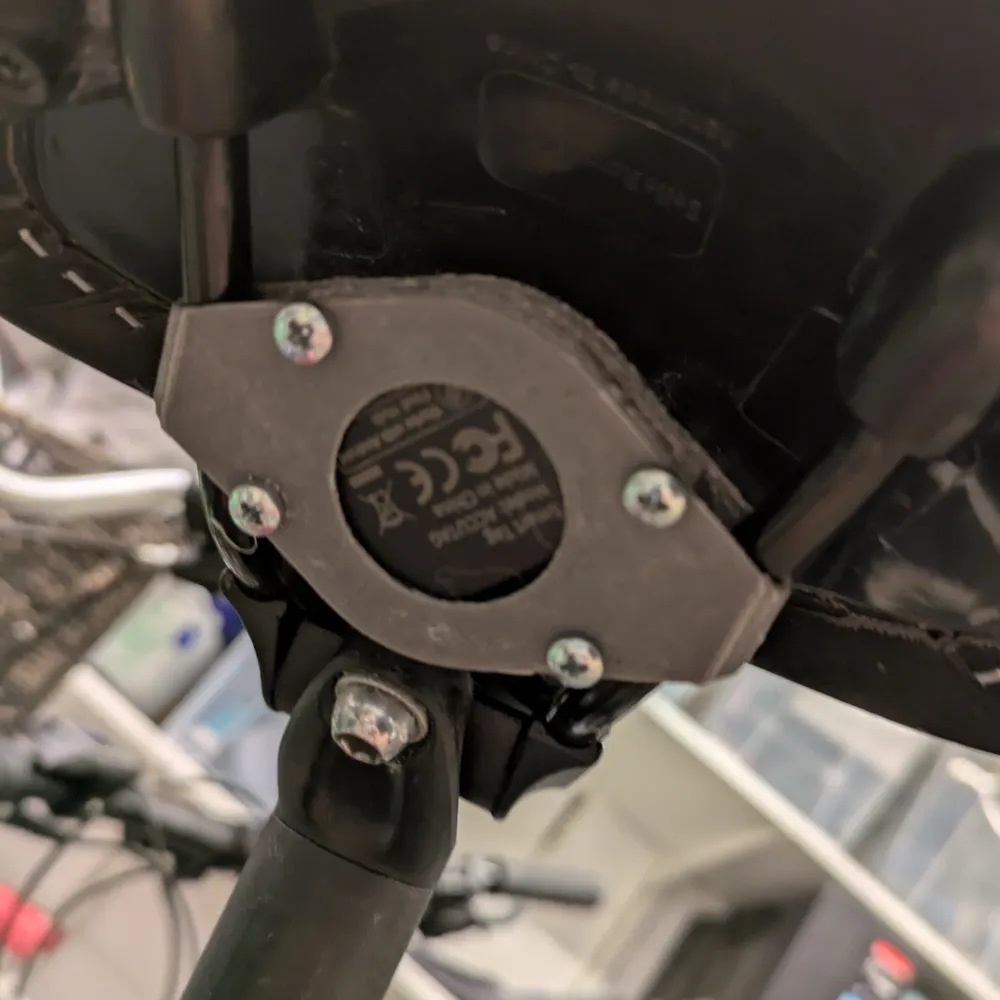

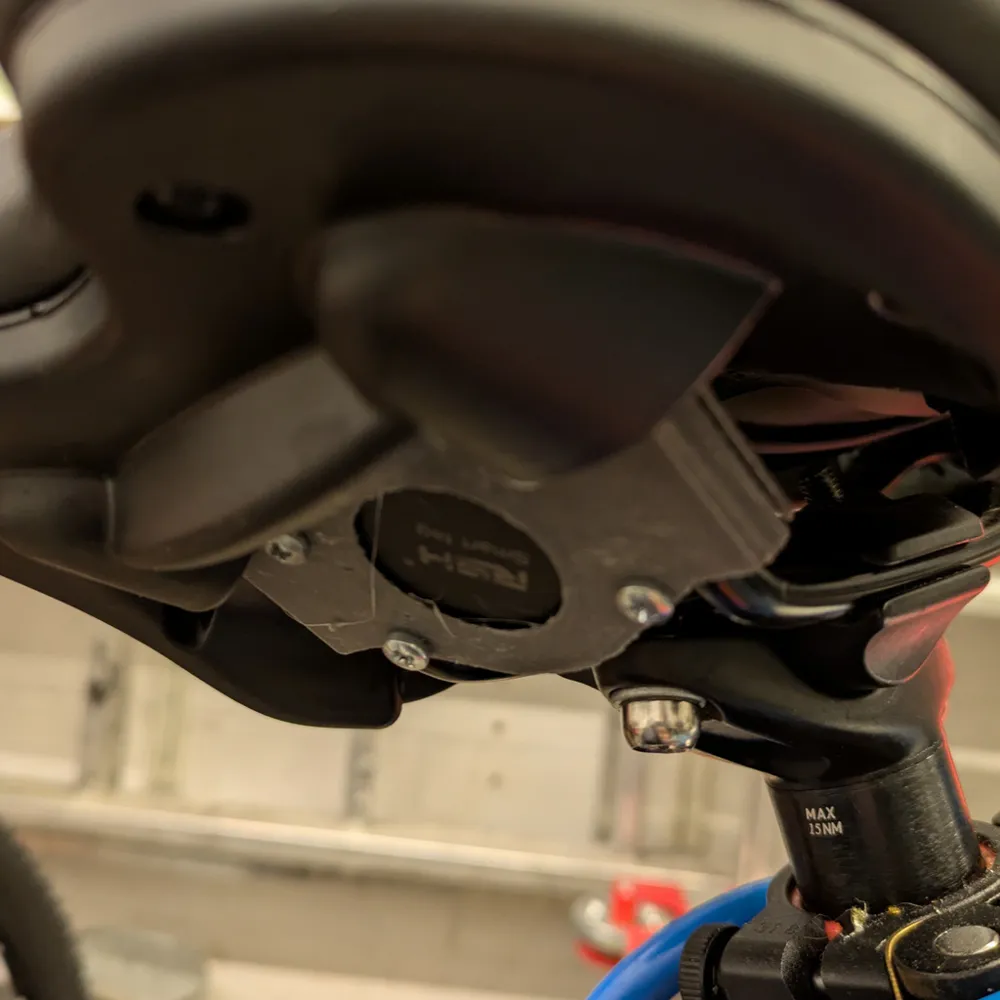

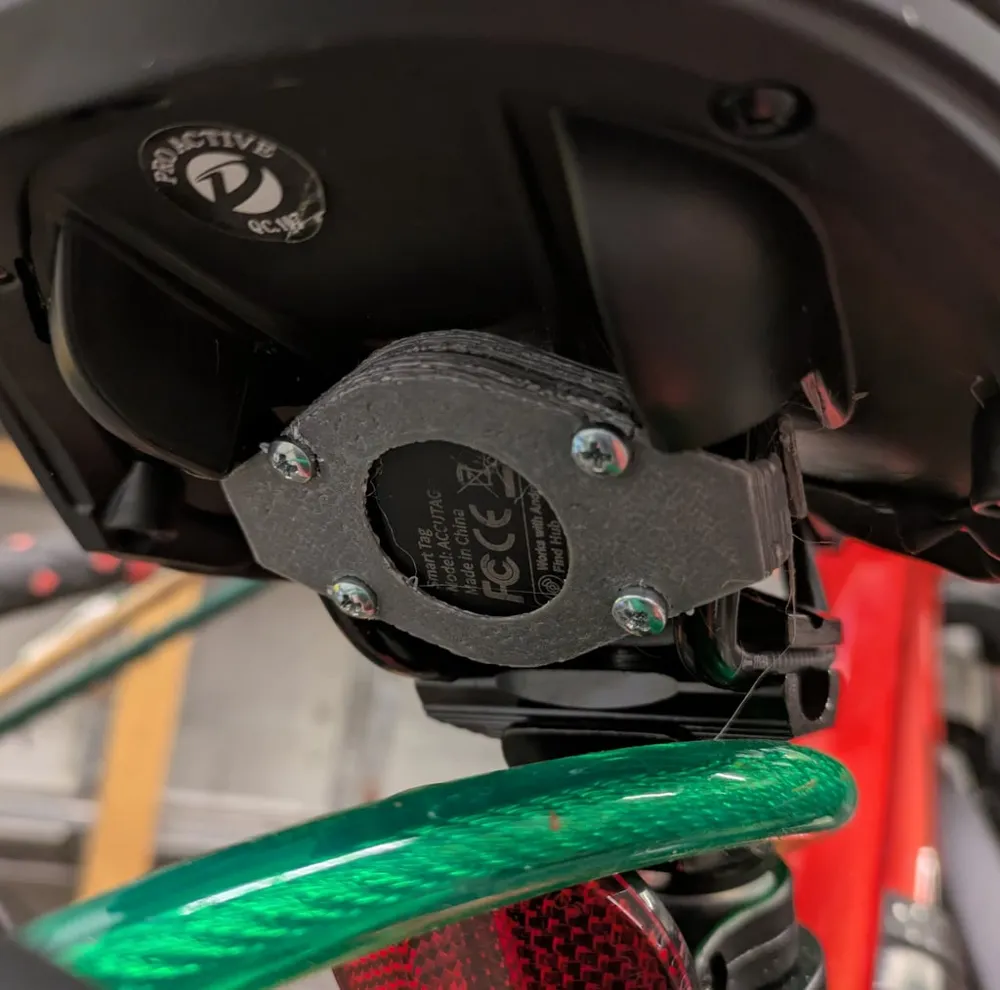

Place the tracker in the lower shell, hold it against the steel rails of the saddle, and then screw the upper part to the underside using the cylinder head screws.
Documentation (1)
Assembly Guide (1)
GIF
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
