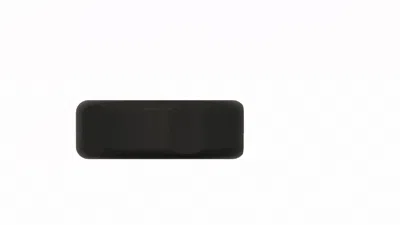

Magnetic AirTag Case 🧲🔒
This is a compact and durable case for AirTag, designed to protect the tracker and allow it to be easily attached to metallic surfaces thanks to a powerful integrated magnet

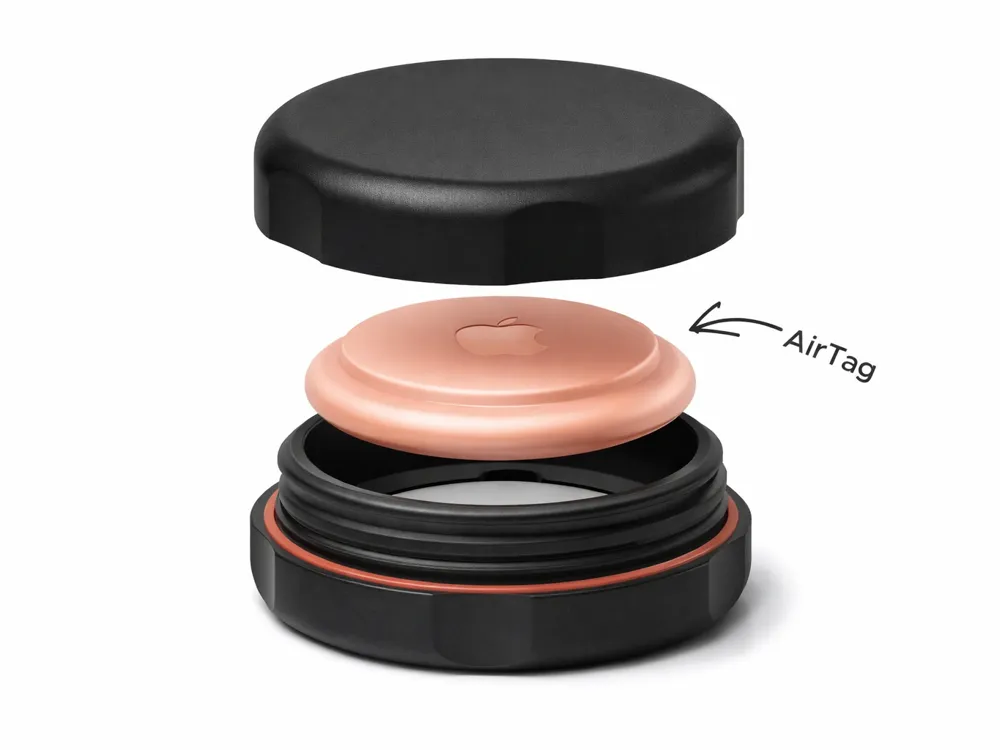

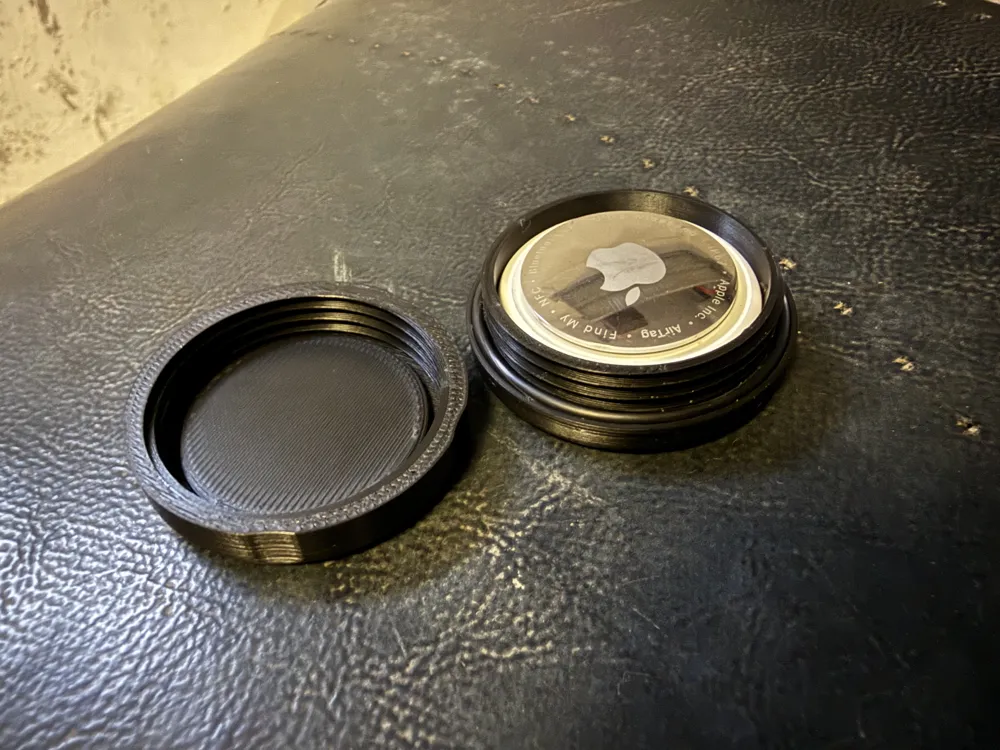

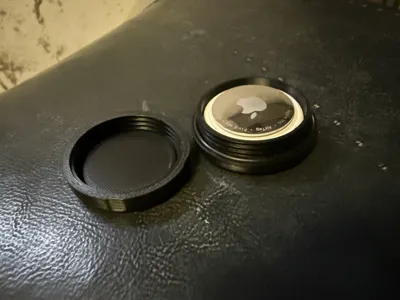

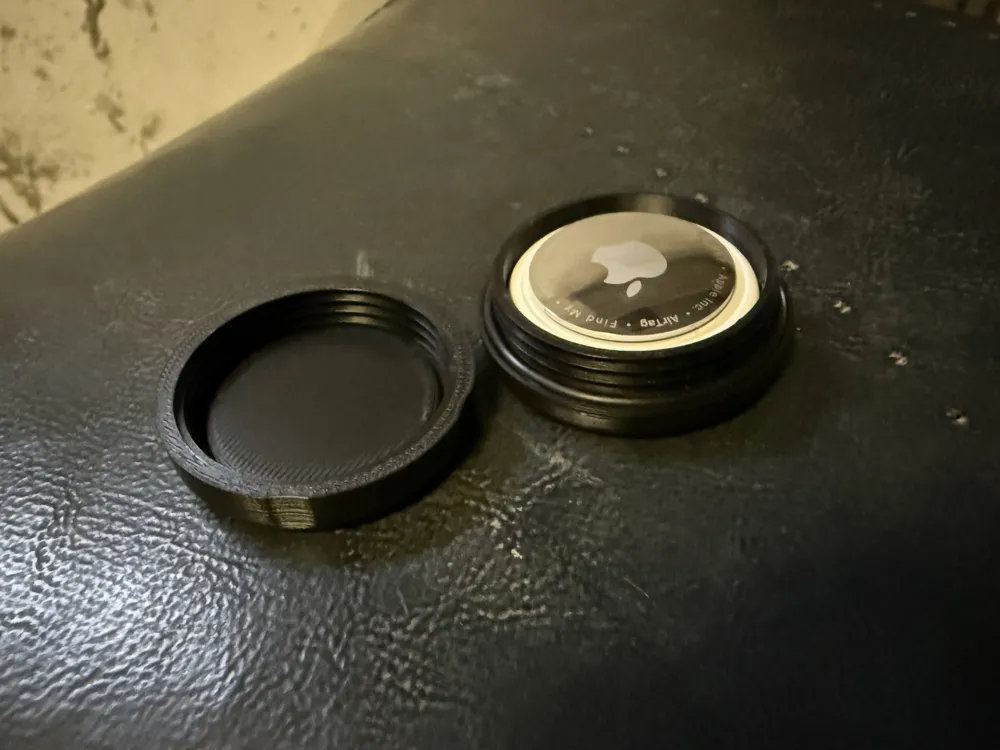

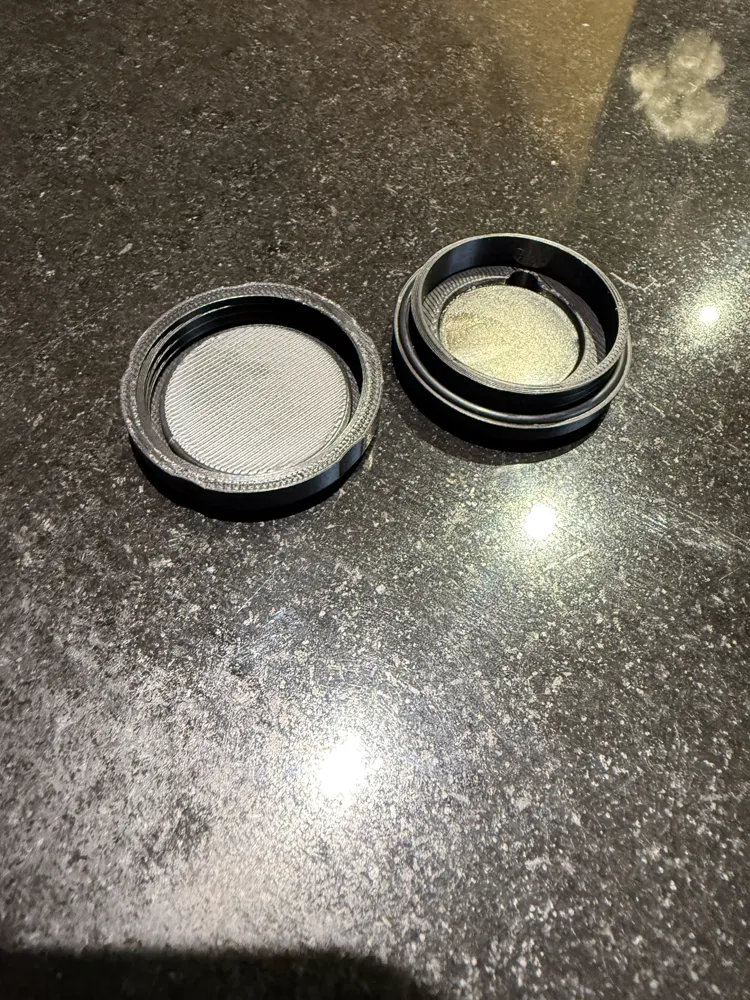

The case consists of two parts with a screw thread closure, which screw together ensuring a secure and stable seal

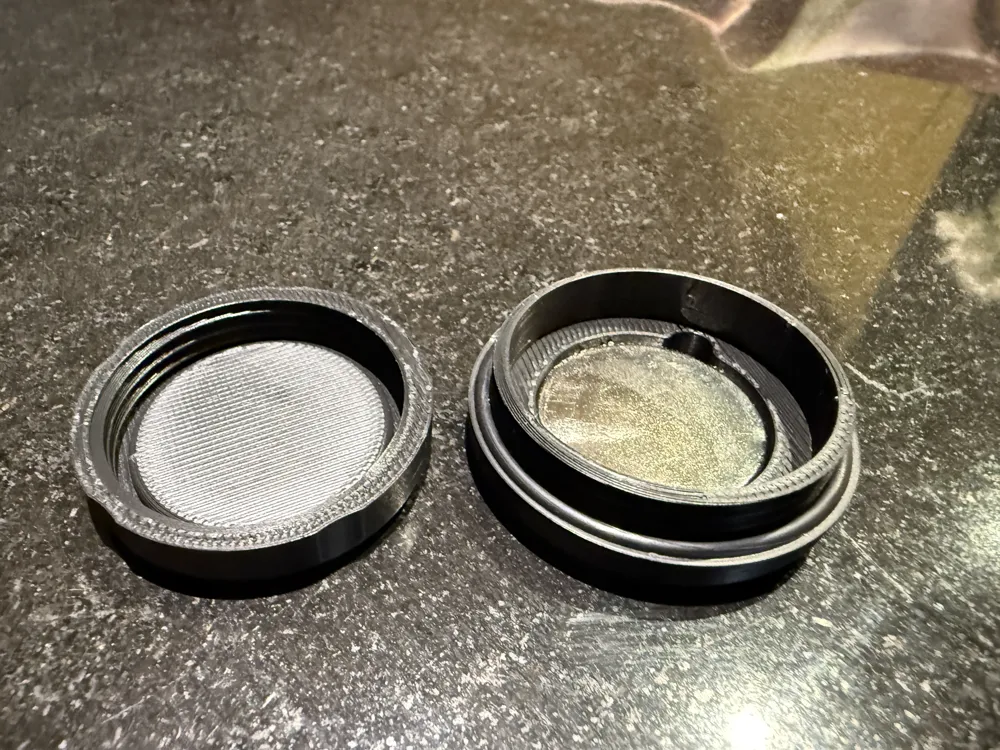

Inside, there is a dedicated seat for an O-ring gasket, which helps improve water and dust resistance

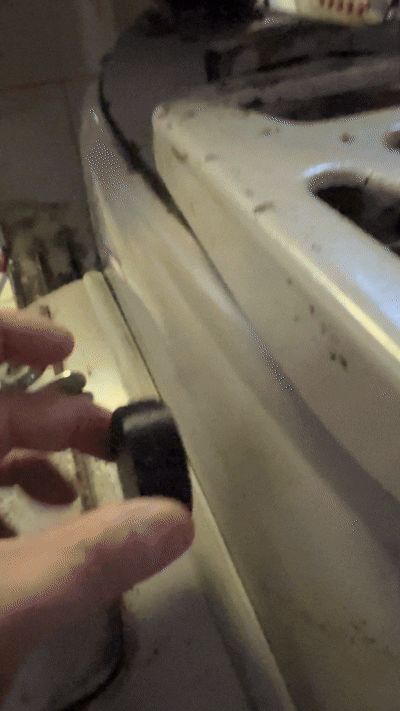

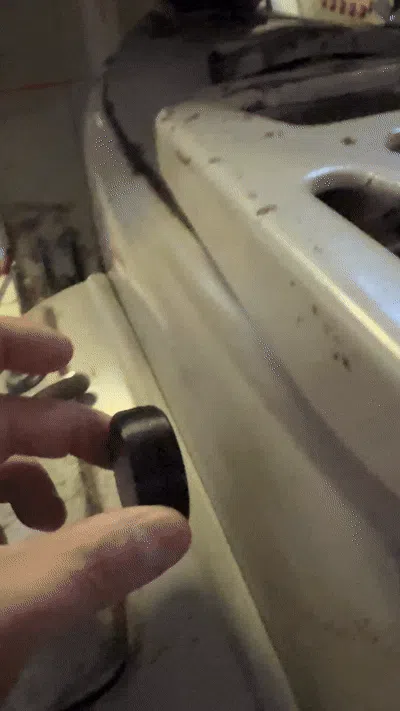

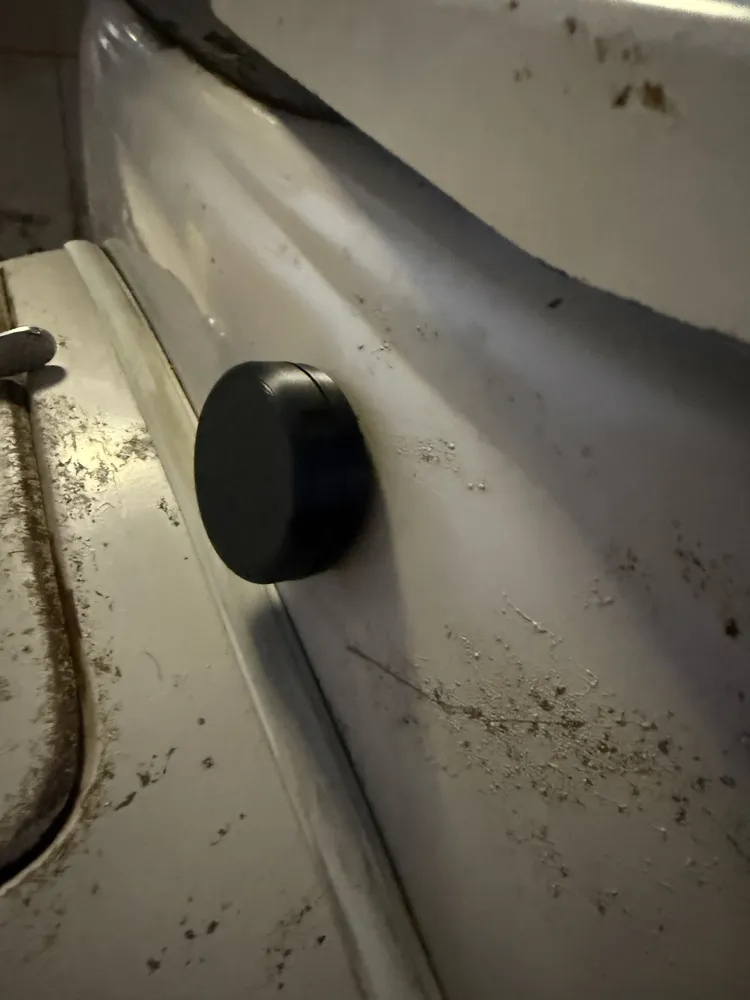

The design also includes a space for a 25×3 mm magnet, which allows the AirTag to be attached to bicycles, toolboxes, vehicles, machinery, or any metallic surface

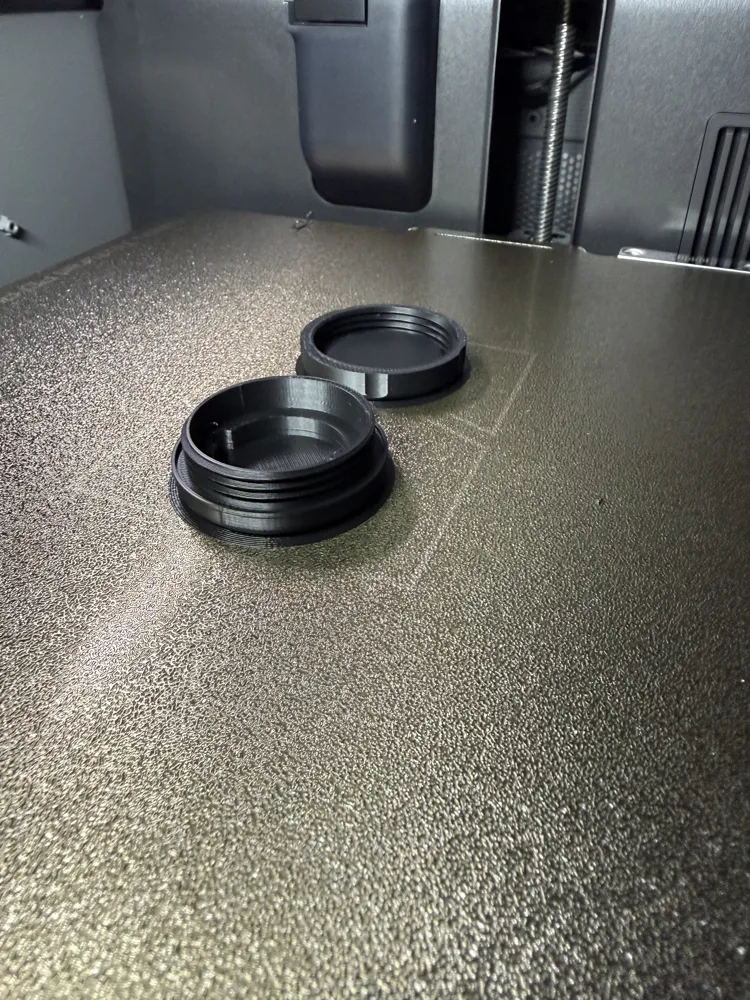

The model was primarily designed to be printed in PETG, a more durable material suitable for outdoor use
It can also be printed in PLA, but PETG offers better performance in terms of durability and resistance
⸻
Features
🧲 Magnetic attachment system
🔒 Two-part screw-thread closure
💧 O-ring housing to improve waterproofing
📦 Compact design that perfectly encloses the AirTag
🖨️ Optimized for PETG printing (also compatible with PLA)
⸻
Required Components
25×3 mm Magnet
https://www.amazon.it/dp/B07FMTGZB9
36×32×2 mm O-ring
https://www.amazon.it/dp/B0BZPDH4BK
⸻
Assembly
1️⃣ Insert the 25×3 mm magnet into its dedicated housing
2️⃣ Place the O-ring into its seat
3️⃣ Insert the AirTag into the case
4️⃣ Screw the two parts together until fully closed
