Bambu P1P / P2S / P1S Fire Extinguisher Ferosticker

Here is the model for the H2C and H2D:

H2C / H2D

Here is the model for the X2D and X1C:

X2D / X1C

Updates:

• There is a new version which is screwed underneath the rail No additional material is needed here if you use the original screw

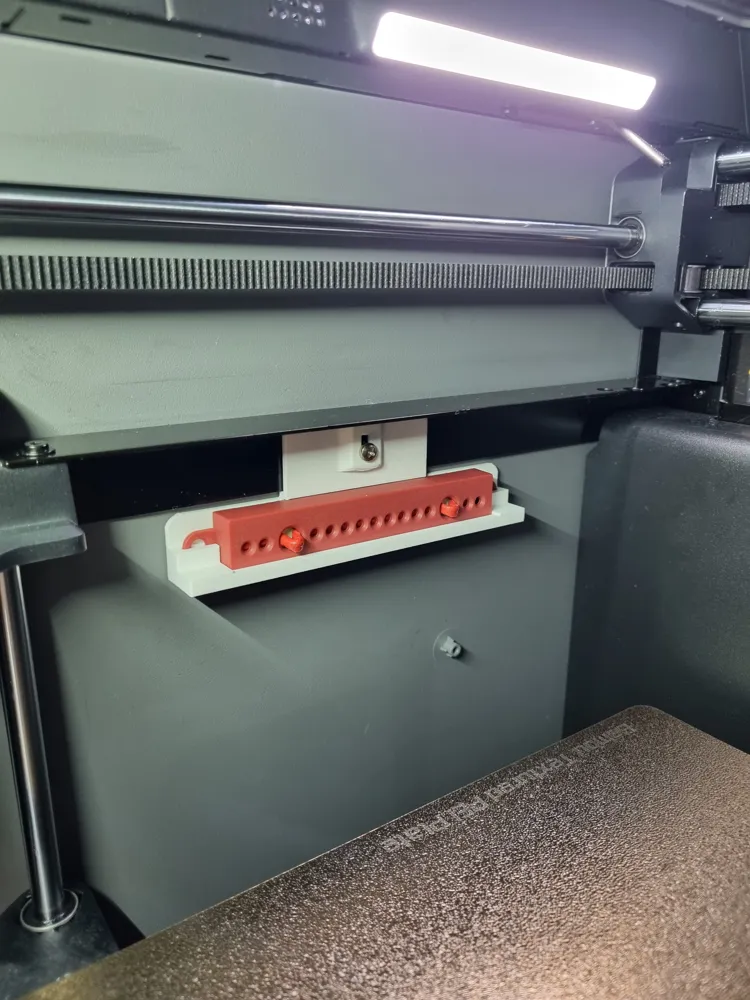

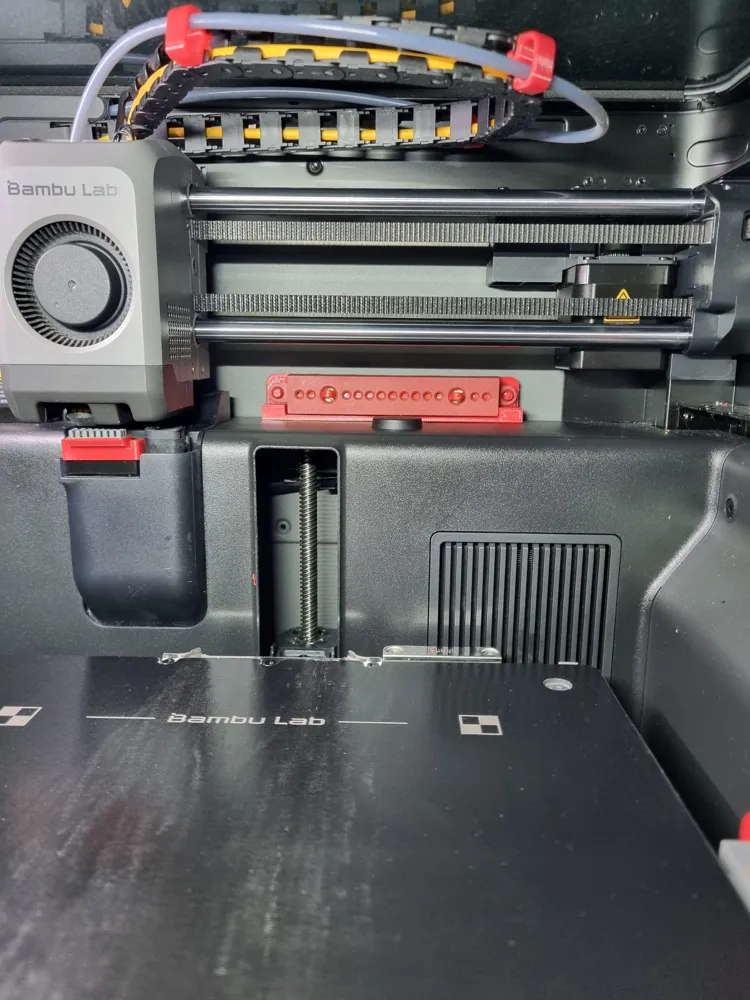

• There is a new version which is mounted at the very back above the electronics No additional material is needed at all here

  • There is now also an ASA profile for this



• There is a new version which is placed above the rail No additional material is needed here if you use the original screw

Welcome to the ORIGINAL!

I have designed a holder for an automatic fire extinguisher for the Bambu P2S, P1S & P1P

This gives me a better feeling when the printer is running at night or when I'm away

The fire extinguisher triggers automatically if the chamber temperature exceeds 170 degrees Celsius This also prevents false alarms But even if a false alarm were to occur, no foam escapes, so nothing happens to the printer

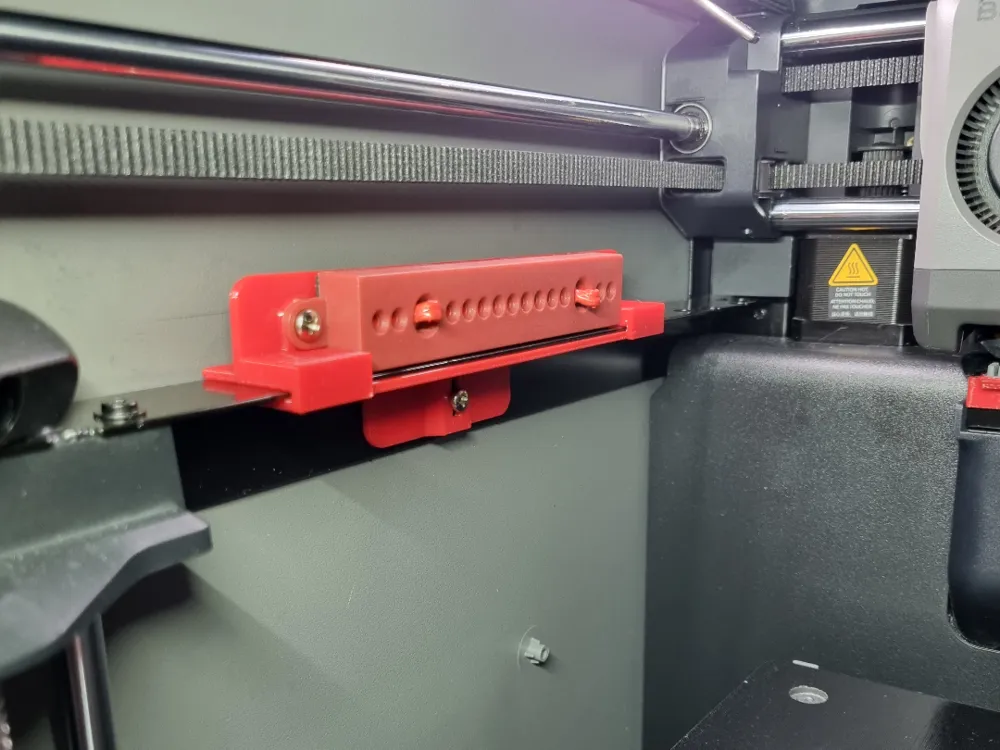

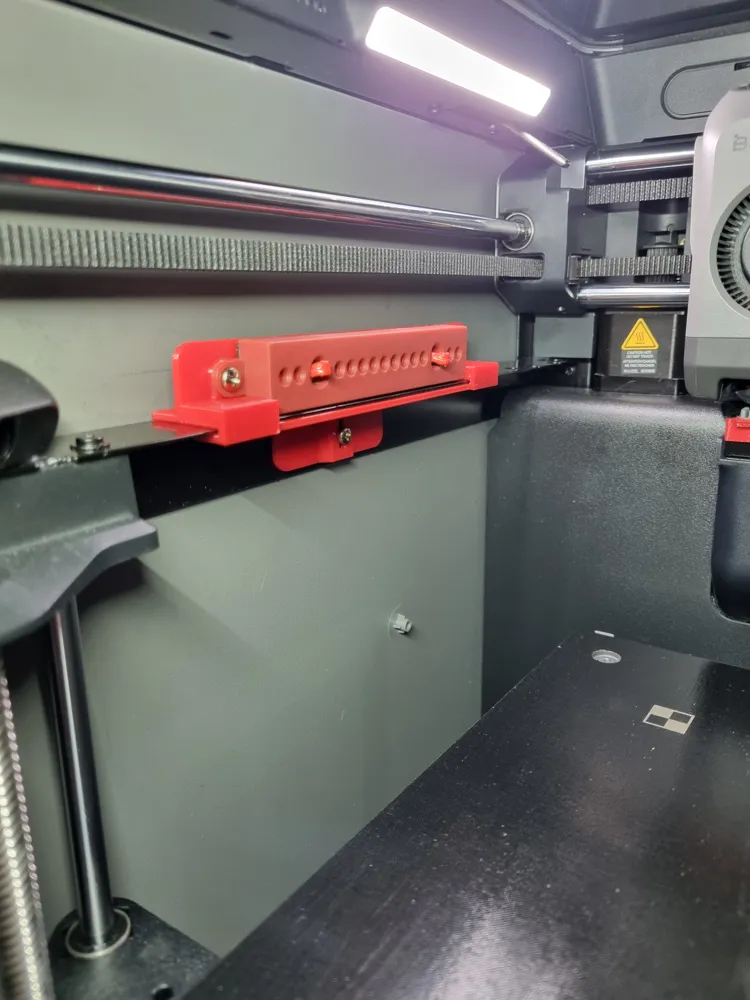

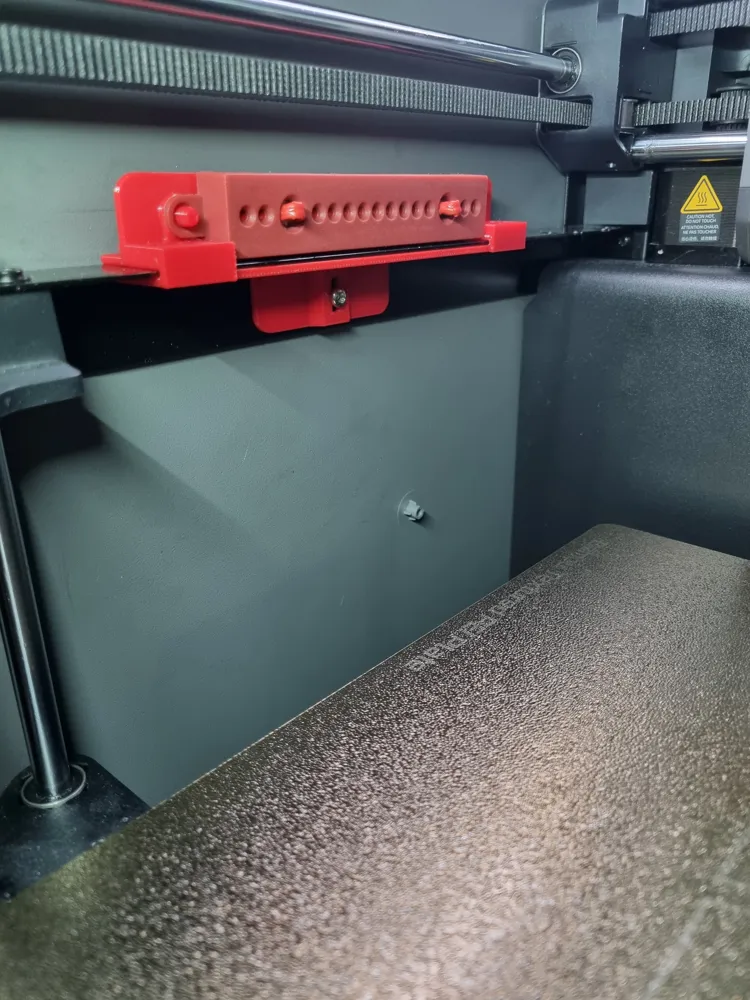

The holder is pushed onto the rail on the left for the P2S and on the right for the P1S and screwed to the existing holder The existing screw can be used for this, but I would recommend using one that is 2mm longer

The fire extinguisher is also screwed on with two screws and additionally adhered with the supplied adhesive tape

Required items:

• Three M3 x 8mm screws (whether countersunk or pan head screws)
  • Only needed if you use the first print profile!
• Two nuts for M3 screws
  • Only needed if you use the first print profile!

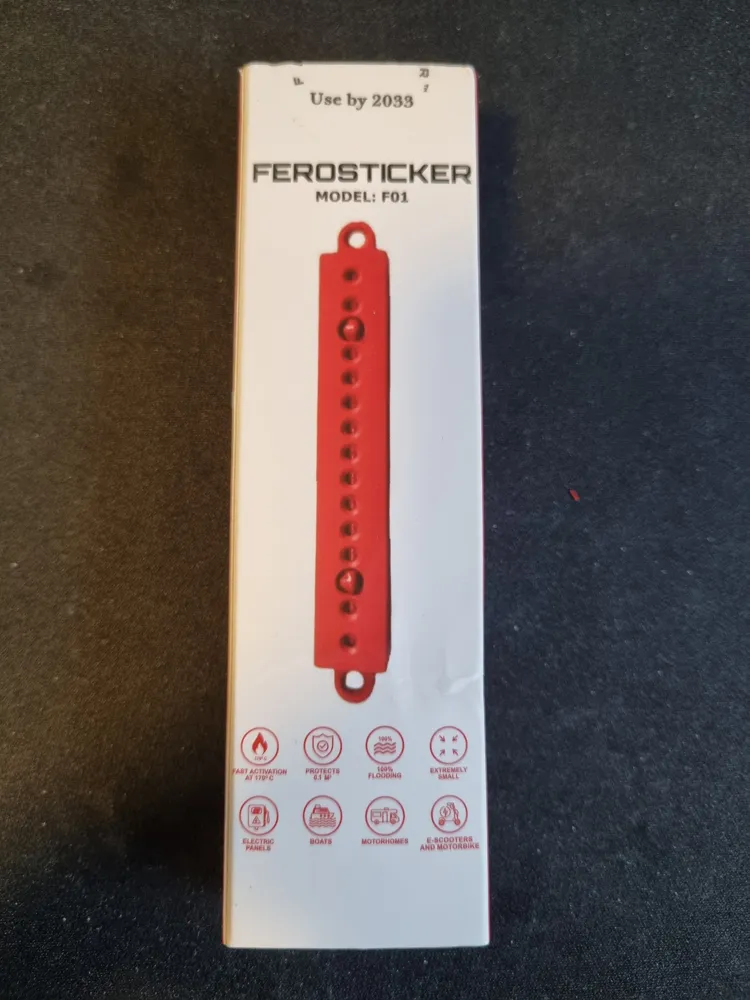

• The fire extinguisher is available for example here: FIRE EXTINGUISHER

Special thanks go to https://makerworld.com/en/@user_2325496465 He found out that the holder can also be mounted in the P1S
